Product Introduction

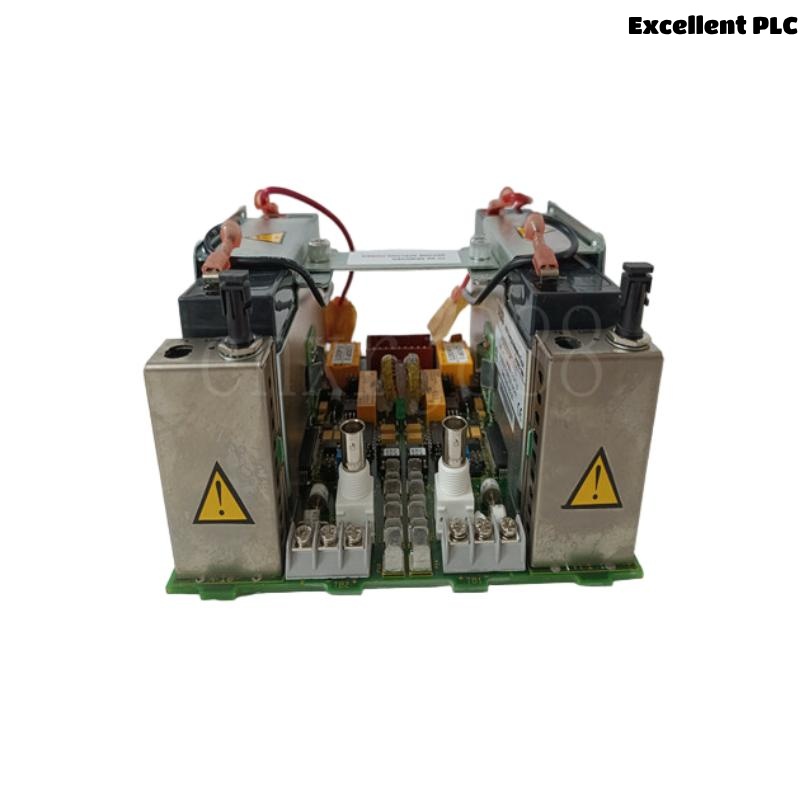

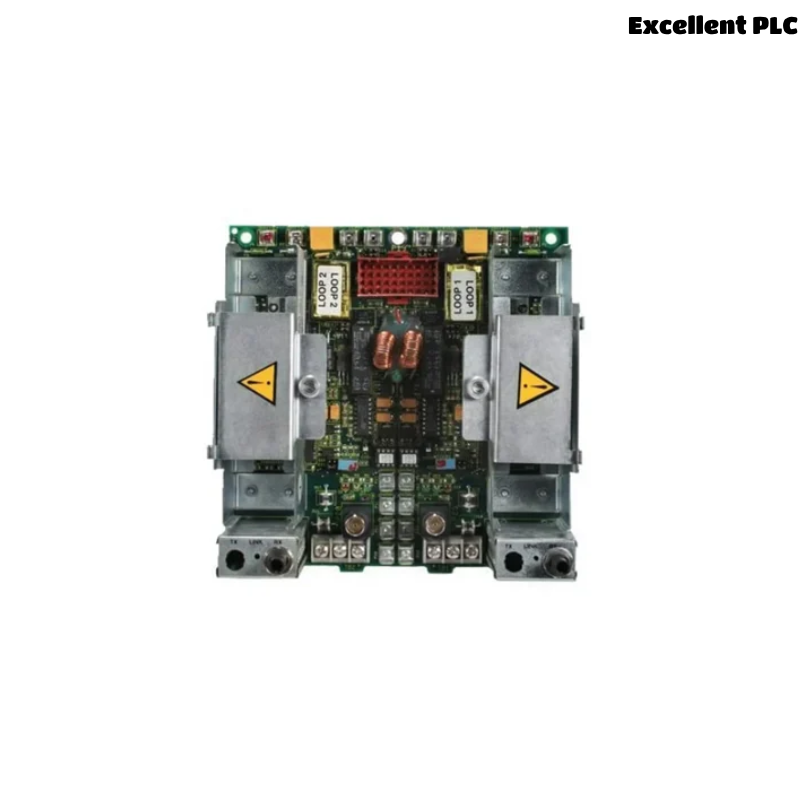

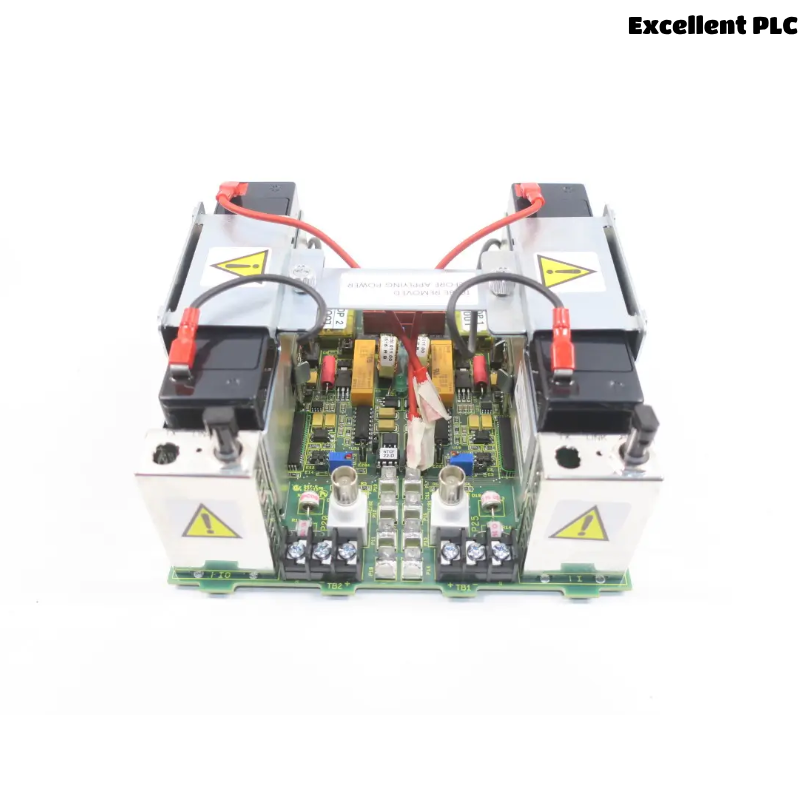

The ABB Bailey NTCF21 is a high-performance network termination unit designed for industrial automation and control systems. It serves as a critical interface between field devices and control networks, ensuring reliable communication and signal conditioning. This product is widely used in power generation, oil & gas, and process industries due to its robust design and compatibility with various protocols.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | NTCF21 |
| Dimensions | 160.02x 228.6x 213.36mm |
| Weight | 2.721 kg |
| Operating Voltage | 24V DC (±10%) |
| Communication Protocols | Modbus, Profibus, Ethernet/IP |
| Operating Temperature | -20°C to +70°C |
| Ingress Protection (IP) | IP65 |
| Housing Material | Aluminum alloy (corrosion-resistant) |
| Certifications | CE, UL, IEC 61000 (EMC compliant) |
| Wiring Connections | Screw terminals (field-configurable) |
Product Applications
The ABB Bailey NTCF21 is commonly used in:
-
Power Plants: Facilitates communication between turbines and control systems.
-
Oil & Gas Refineries: Ensures stable signal transmission in harsh environments.
-
Water Treatment Facilities: Integrates sensors and actuators with SCADA systems.
-
Manufacturing Automation: Connects PLCs with remote I/O modules.
-
Chemical Processing: Provides noise immunity for critical control loops.
Product Advantages
-
High Reliability: Built to withstand industrial vibrations and temperature fluctuations.
-
Easy Installation: Modular design allows quick setup and replacement.
-
Wide Protocol Support: Compatible with multiple industrial communication standards.
-
Durable Construction: Aluminum housing ensures long-term performance in corrosive environments.
-
Low Maintenance: Sealed design minimizes dust and moisture ingress.
Frequently Asked Questions (FAQ)
Q1: What is the maximum cable length supported by the NTCF21?
A: The NTCF21 supports cable lengths up to 100 meters for RS-485 communication.
Q2: Can the NTCF21 be used in explosive atmospheres?
A: No, it is not ATEX-certified; use an additional protective enclosure for hazardous areas.
Q3: Is the NTCF21 compatible with legacy Bailey systems?
A: Yes, it is backward-compatible with older Bailey network interfaces.
Q4: What is the warranty period for this product?
A: ABB provides a standard 1-year warranty.
Q5: Does the NTCF21 require external cooling?
A: No, its passive cooling design eliminates the need for fans.
Q6: Can I daisy-chain multiple NTCF21 units?
A: Yes, up to 32 units can be connected in a single network segment.
Q7: What tools are needed for installation?
A: A standard screwdriver and DIN rail mounting clip are sufficient.
Q8: How often should firmware updates be applied?
A: ABB recommends updating firmware every 1 years or as needed for new features.
Q9: Is the NTCF21 suitable for outdoor use?
A: Yes, its IP65 rating protects against rain and dust.
Q10: Is the module certified for industrial compliance?
A: Yes, it meets CE, UL, CSA, and RoHS standards.
