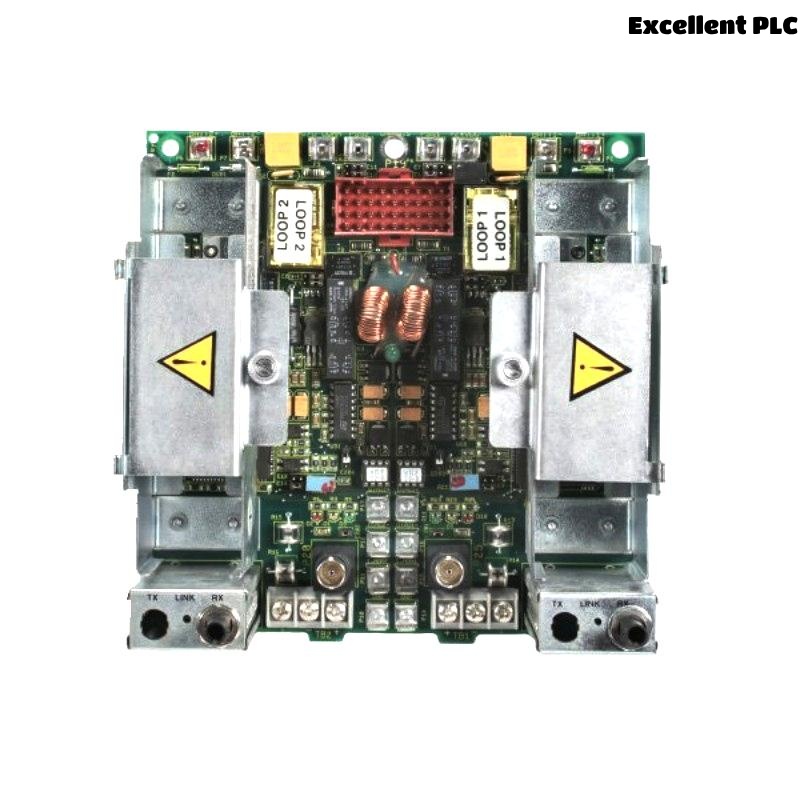

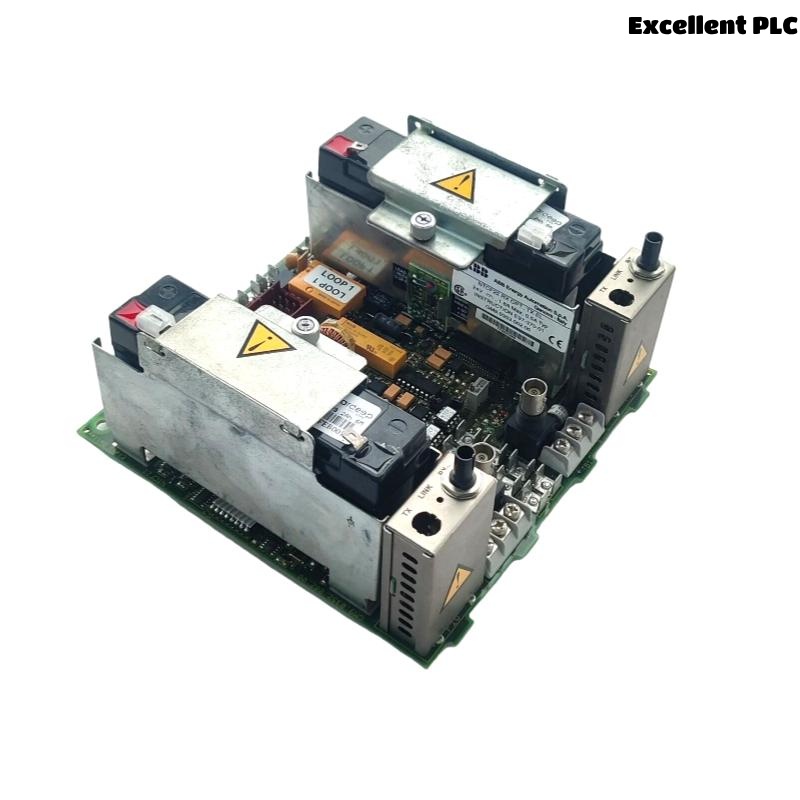

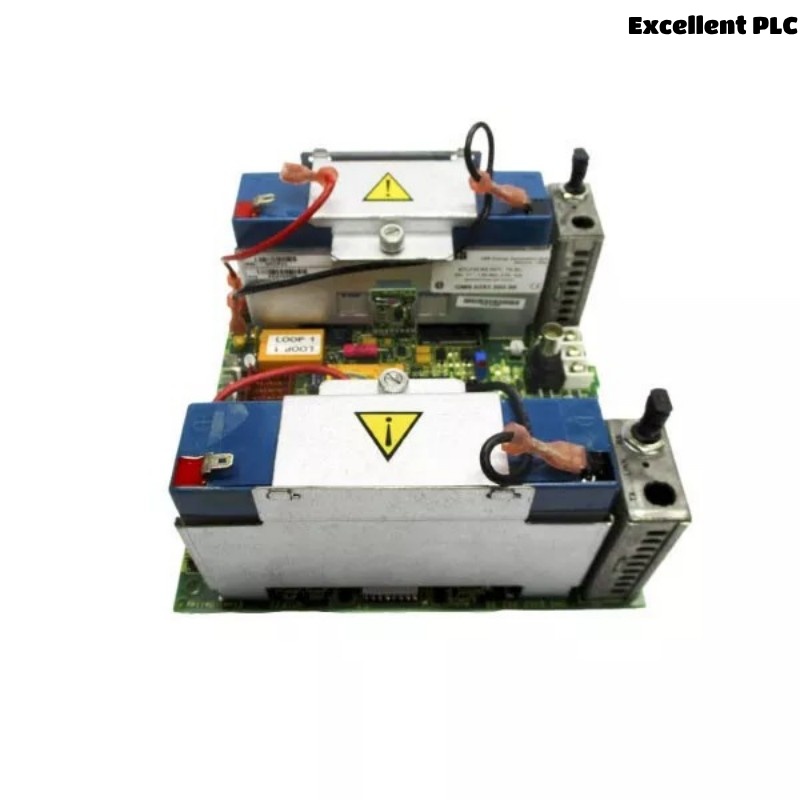

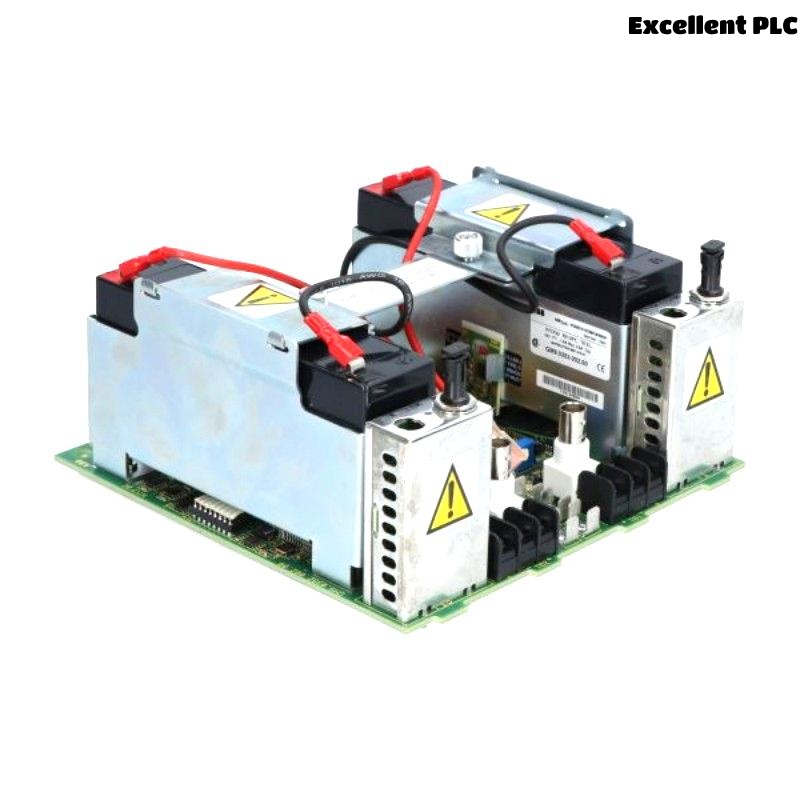

ABB Bailey NTCF22 Infi 90 INFI-Net Optic-to-Electric Termination Unit

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Overview

The ABB Bailey NTCF22 is a critical component in the Infi 90 system architecture. It serves as an Optic-to-Electric Termination Unit that converts optical fiber signals into electrical signals for seamless communication across the INFI-NET local control network. Designed for reliable operation in industrial environments, the NTCF22 ensures stable, high-speed data transfer in distributed control systems (DCS).

---

Technical Specifications

---

Applications

• Optical-to-electrical signal conversion in control networks

• INFI-NET communication interface

• Power plants and industrial automation systems

• Control room data distribution and termination

• Seamless signal transition between optical and copper media

---

Advantages

• Reliable Data Conversion: Ensures seamless communication between fiber optic and copper network segments

• Compact Design: Saves rack space with a streamlined footprint

• High Compatibility: Fully interoperable with INFI 90 system devices

• Industrial Grade: Designed for critical environments with high EMI resistance

• Easy Maintenance: Module-based design for straightforward replacement and servicing

---

FAQs

Q1: What is the primary function of the NTCF22 unit?
A1: It converts optical fiber communication signals into electrical signals for the INFI-NET system.

Q2: Is the NTCF22 compatible with all Infi 90 modules?
A2: Yes, it is designed for full compatibility with the Infi 90 series modules.

Q3: Can this unit be hot-swapped?
A3: No, power should be removed before replacing or installing the module.

Q4: What type of fiber optic cable is supported?
A4: It supports standard multimode fiber used in INFI-NET systems.

Q5: Does it support redundancy?
A5: Yes, the Infi 90 system architecture supports redundant paths and the NTCF22 integrates into this structure.

Q6: What is the typical use case for NTCF22?
A6: It is typically used at network termination points where optical signal needs to be transitioned to electrical.

Q7: How is the unit mounted?
A7: It is rack-mounted within standard Infi 90 system enclosures.

Q8: What is the operating temperature range?
A8: 0°C to 60°C during normal operation.

Q9: Is the NTCF22 field-configurable?
A9: No, it is a fixed-function termination unit without user-adjustable settings.

Q10: What is the main benefit of optical-to-electrical conversion in control systems?
A10: It reduces electromagnetic interference and enables long-distance, high-speed data communication.

---
