Product Introduction

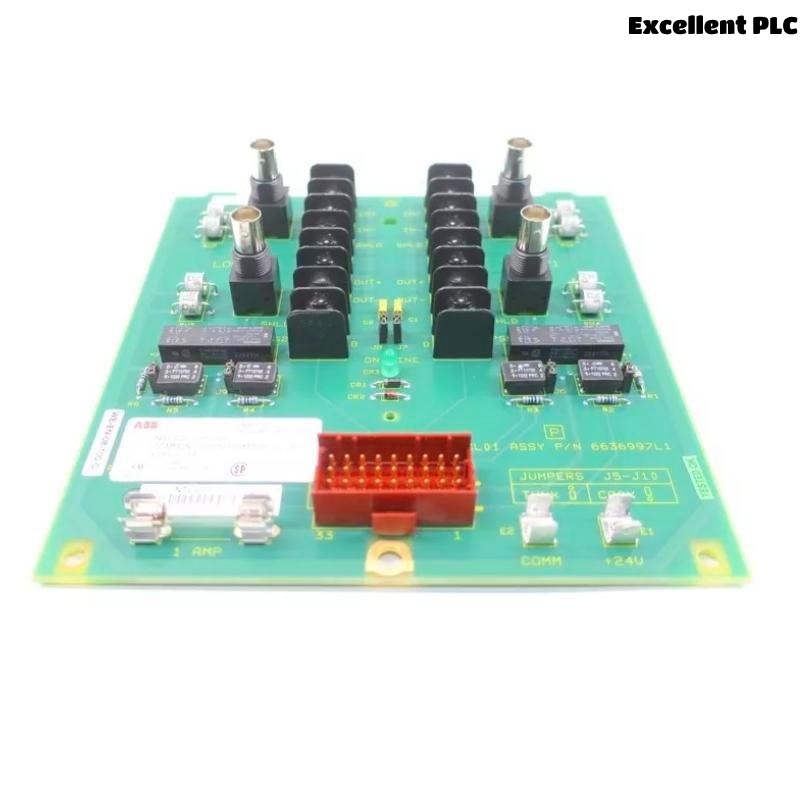

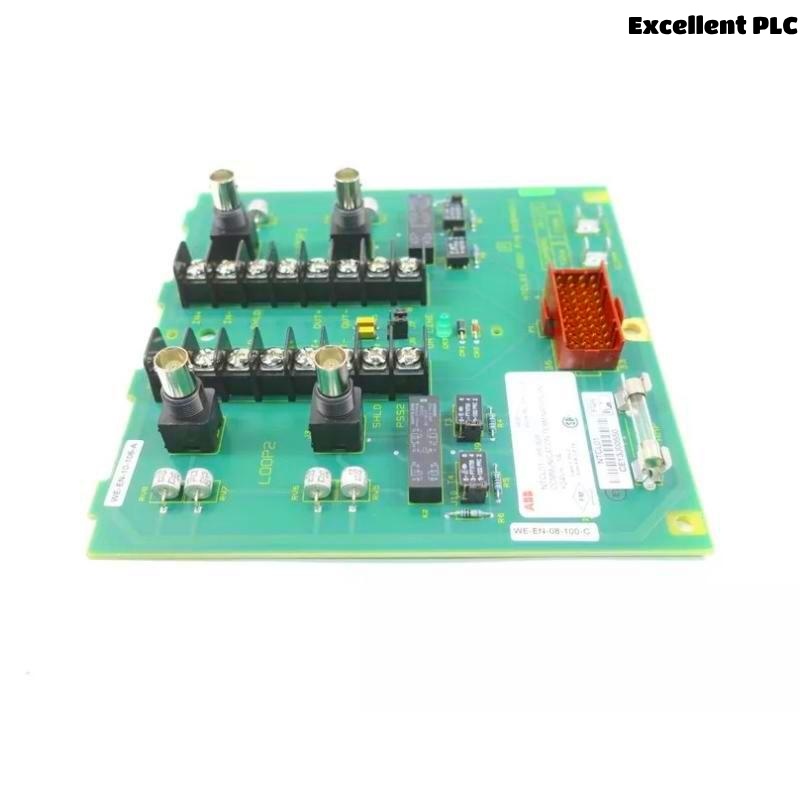

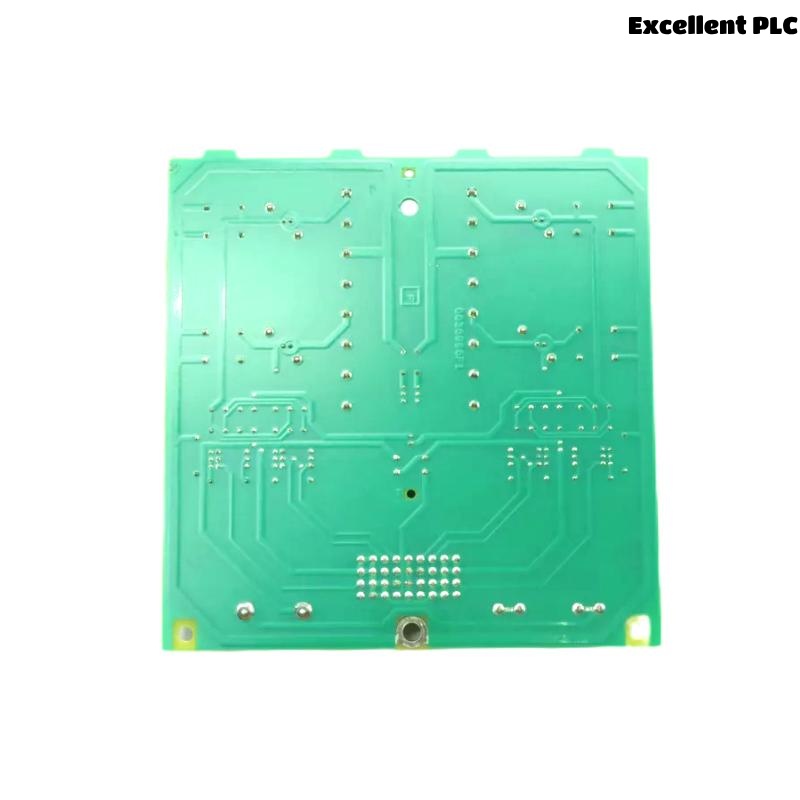

The ABB Bailey NTCL01 Termination Unit is a vital interface component designed for use within the INFI 90 Distributed Control System (DCS). As part of ABB’s legacy and highly dependable control system architecture, the NTCL01 serves as a termination and signal conditioning unit that facilitates the physical connection between control modules and field wiring. It supports the clean routing, conditioning, and protection of digital and analog signals transmitted to and from various process field devices.
Functioning as an intermediary between I/O modules and the plant floor, the NTCL01 plays a critical role in signal organization, electrical isolation, and system reliability. It reduces wiring complexity, enhances maintainability, and ensures high-quality signal transfer—making it indispensable in safety-critical and performance-driven industrial settings.
Thanks to its robust construction and seamless compatibility with ABB Bailey systems, the NTCL01 continues to be deployed in legacy upgrade projects and process plant retrofits worldwide.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | NTCL01 |
| Manufacturer | ABB Bailey |
| Product Type | Termination Unit |
| System Compatibility | INFI 90 Distributed Control System |
| Supported Signal Types | Analog and Digital Signals |
| Typical Channels | Up to 16 (based on application) |
| Terminal Type | Screw terminal blocks |
| Isolation | Channel-to-channel and system-to-ground |
| Surge Protection | Integrated |
| Mounting Style | Rack-mounted |
| Material | Industrial-grade steel housing |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Certifications | UL, CSA, CE |
| Dimensions (H × W × D) | 96.52 x 236.22 x 220.98 mm |
| Weight | 0.476 kg |
Product Applications
The ABB Bailey NTCL01 is designed for a wide variety of industrial process control applications where reliable field termination is essential. Key application sectors include:
-
Oil & Gas Processing – Interfaces digital and analog sensors to controllers for pressure, flow, and temperature measurement.
-
Power Generation – Routes control and feedback signals to and from turbines, boiler systems, and emission control instruments.
-
Water Treatment Facilities – Connects analog transmitters for chemical dosing and valve control loops.
-
Pharmaceutical Manufacturing – Provides secure and traceable wiring terminations in sterile production environments.
-
Pulp and Paper Industry – Transfers analog and binary signals for moisture content, speed, and temperature controls.
-
Chemical & Petrochemical Plants – Ensures stable field connectivity for mission-critical reactions and batch control.
Product Advantages
-
Optimized Signal Management: Simplifies the organization and routing of both digital and analog signals.
-
Superior Isolation: Minimizes electrical noise and interference through effective channel and ground isolation.
-
Space-Efficient Design: Rack-mounted format allows for efficient use of cabinet space.
-
Built-in Protection: Protects system components from surges, transients, and grounding faults.
-
Proven Reliability: Designed and field-tested for critical applications with high uptime requirements.
-
ABB System Integration: Fully compatible with the INFI 90 platform and other ABB Bailey modules.
Frequently Asked Questions (FAQ)
-
What is the purpose of the NTCL01 Termination Unit?
It provides organized termination and conditioning for analog and digital signals between the DCS and field devices. -
Which ABB system is the NTCL01 designed for?
It is part of the ABB Bailey INFI 90 Distributed Control System. -
Does the NTCL01 support both analog and digital signals?
Yes, it supports a wide range of analog and digital inputs and outputs. -
How many channels can the NTCL01 accommodate?
It typically supports up to 16 signal channels, depending on the configuration. -
Is the NTCL01 equipped with surge protection?
Yes, it includes built-in surge and overvoltage protection features. -
Can the NTCL01 be DIN-rail mounted?
No, it is designed for rack mounting within ABB system cabinets. -
What type of wiring connections are used?
It uses standard screw-type terminal blocks for secure and serviceable connections. -
Is the NTCL01 suitable for harsh environments?
Yes, it is designed to operate reliably under industrial temperature and humidity conditions. -
Can the unit be used with third-party control systems?
It is optimized for ABB systems, but may be adaptable with custom interfacing. -
What maintenance does the NTCL01 require?
Routine terminal inspections, wire integrity checks, and tightening as part of preventive maintenance schedules.
Related Models from the Same Series or Application
| Model | Description | Signal Type | Primary Function |
|---|---|---|---|
| NTDI01 | Digital Input Termination Unit | Discrete | Connects digital field inputs |
| NTDO01 | Digital Output Termination Unit | Discrete | Sends digital signals to field actuators |
| NTAI06 | Analog Input Termination Unit | Analog Input | Receives sensor input signals |
| NTAO01 | Analog Output Termination Unit | Analog Output | Sends output to I/P converters, actuators |
| NTAM01 | Analog Master Termination Unit | Analog I/O | Centralized analog termination |
| NISB01 | Intrinsically Safe Barrier | Analog/Discrete | Safe signal routing in hazardous areas |
