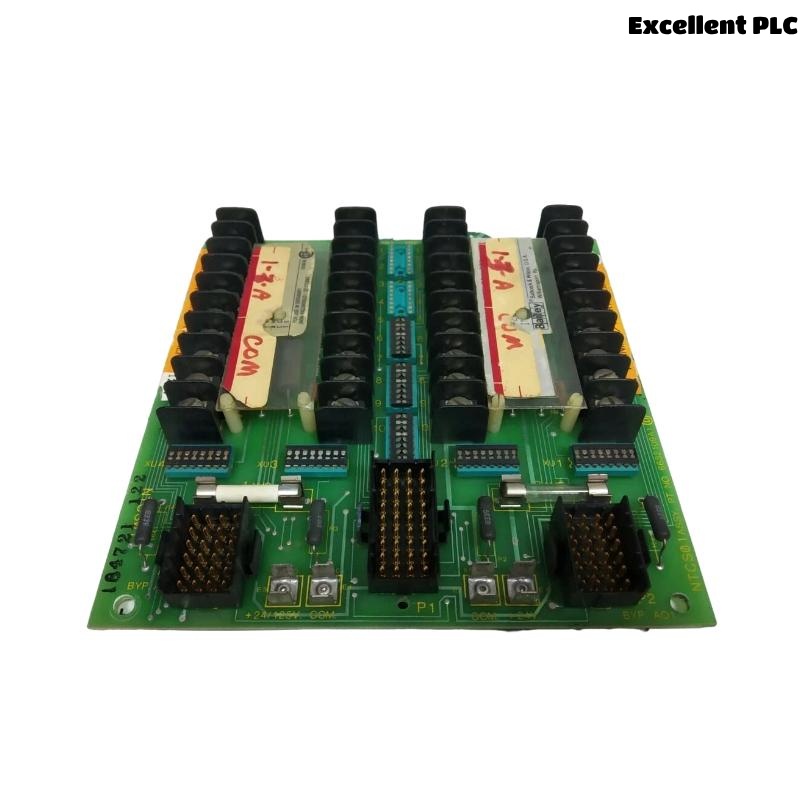

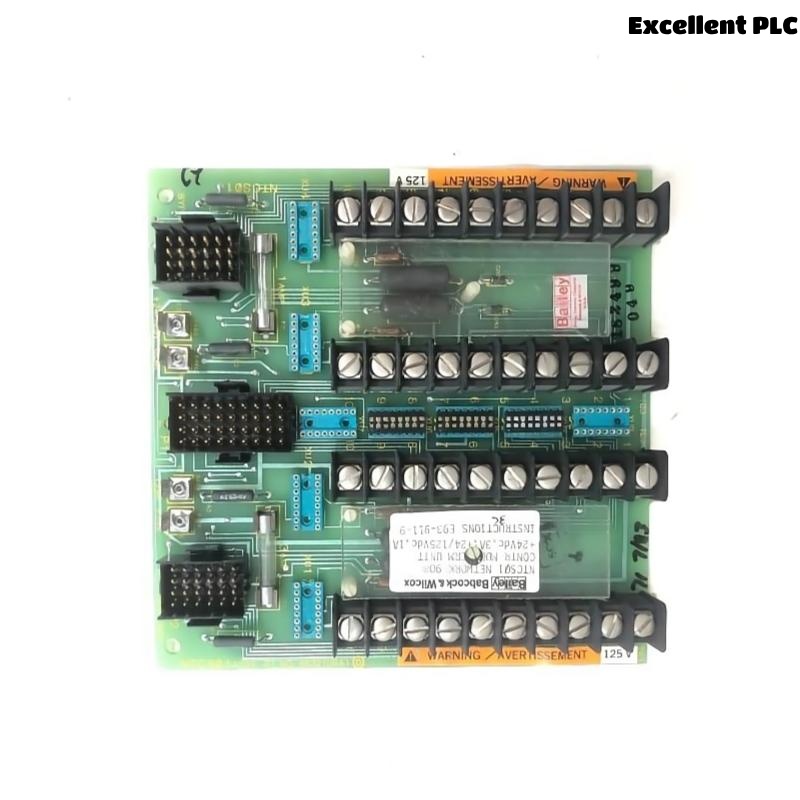

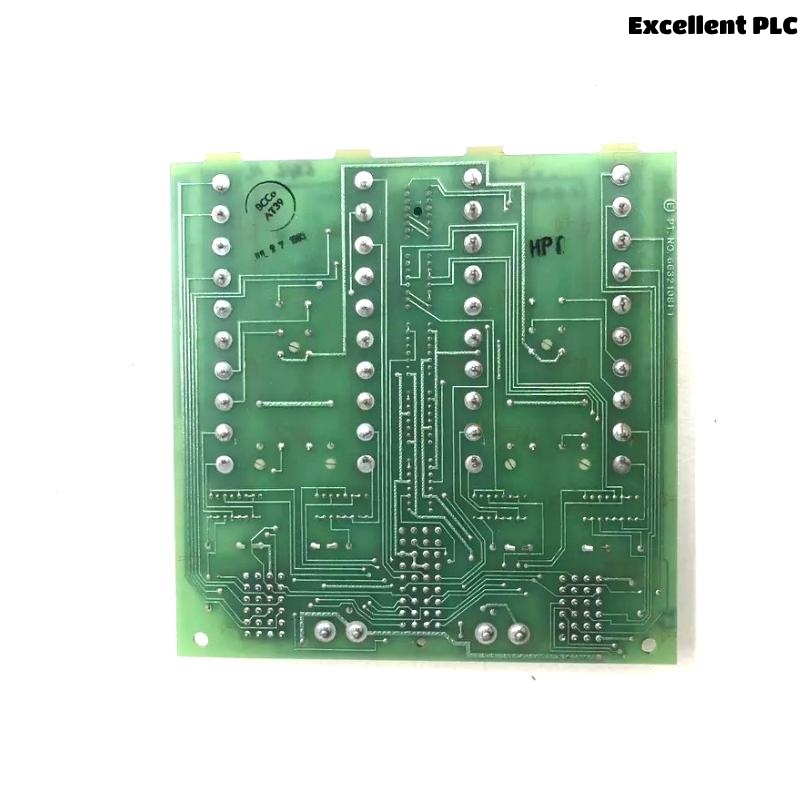

ABB Bailey NTCS01 Control I/O Termination Unit

Product Overview

The ABB Bailey NTCS01 Control I/O Termination Unit is an integral component used within Bailey INFI 90 and Symphony series Distributed Control Systems (DCS). This module serves as an I/O interface for termination and connection of control signals, enabling reliable communication between field devices and the central controller. It is specially designed for applications where precise, secure, and stable signal termination is essential in industrial automation.

Manufactured under ABB’s legacy Bailey brand, NTCS01 is engineered for high reliability in harsh industrial environments. It offers a structured approach for managing signal inputs and outputs, ensuring clean wiring, easy maintenance, and improved system diagnostics.


Technical Specifications

Parameter Description
Model Number NTCS01
Brand ABB Bailey
Series INFI 90 / Symphony
Function Control I/O Termination Unit
Power Supply Supplied via system bus
Termination Type Screw terminals
Compatible Modules I/O Modules of INFI 90 & Symphony systems
Mounting Type DIN Rail / Panel Mount
Signal Support Analog & Digital I/O signals
Material Industrial-grade insulation plastic
Operating Temperature 0°C to +60°C
Storage Temperature -40°C to +85°C
Humidity 5% to 95% non-condensing
Dimensions (W×H×D) 233.68 x 78.74 x 213.36 mm
Weight 0.399 kg
Agency Approvals CE, UL, CSA

Applications

The ABB NTCS01 module is widely used across various industries that require dependable I/O signal management in control systems. Common applications include:

  • Power Generation Plants: For turbine control and boiler automation.

  • Petrochemical Facilities: Ensuring safe and efficient process control.

  • Pulp & Paper Mills: Facilitating precise machinery operation and monitoring.

  • Water & Wastewater Treatment Plants: For process automation and SCADA integration.

  • Metallurgical Plants: Handling temperature, pressure, and actuator control signals.

  • Cement and Mining Industries: Enabling robust automation in dusty and high-load environments.


Key Advantages

  • Rugged Industrial Design: Built to operate in tough environments with high reliability.

  • Simplified Wiring: Organized terminal layout reduces installation errors and eases maintenance.

  • High Compatibility: Fully compatible with existing INFI 90 and Symphony control systems.

  • Diagnostic Accessibility: Supports efficient troubleshooting and system monitoring.

  • Longevity & Support: Designed for long-term availability with ABB’s strong lifecycle management.

  • Cost-Effective: Helps minimize downtime and reduce signal integrity issues.


Frequently Asked Questions (FAQ)

  1. What types of signals can be terminated using the NTCS01 unit?
    The NTCS01 is designed to terminate both analog and digital signals, making it versatile for interfacing with a wide variety of field instruments and control devices.

  2. Is the NTCS01 compatible with current ABB control systems?
    Yes, it is fully compatible with ABB’s INFI 90 and Symphony series DCS platforms, and remains supported for both legacy and ongoing system integrations.

  3. Can I use NTCS01 with redundant configurations?
    Absolutely. The unit supports redundant I/O architecture, which is often critical in high-availability process automation systems.

  4. What precautions should be taken during installation?
    Ensure all wiring follows standard grounding practices, and avoid installing near high-voltage lines to prevent electrical noise or signal interference.

  5. How is NTCS01 different from other termination modules like NTAI or NTDI series?
    While modules like NTAI and NTDI are specific to analog input or digital input, NTCS01 is a more general-purpose control I/O termination unit that provides flexible signal routing and consolidation.

  6. Is field maintenance or calibration required for this unit?
    No calibration is needed, but periodic checks for terminal tightness, oxidation, or wear on the screw contacts are recommended to ensure long-term reliability.

  7. Does ABB still provide spare parts and technical support for NTCS01?
    Yes, ABB maintains spare parts inventory and documentation for NTCS01 through its lifecycle service program for legacy DCS hardware.

  8. How does the NTCS01 improve signal quality or system stability?
    It reduces noise, prevents signal loss through clean termination, and offers a structured wiring method that minimizes cross-talk and grounding errors.

  9. Can the module be hot-swapped during system operation?
    No. The NTCS01 does not support hot-swapping. Power should be shut down or the I/O isolated during installation or replacement to prevent damage or system errors.

  10. What certifications or compliance standards does the NTCS01 meet?
    The unit complies with CE, UL, and CSA standards, ensuring it meets global industrial control equipment safety and performance requirements.
