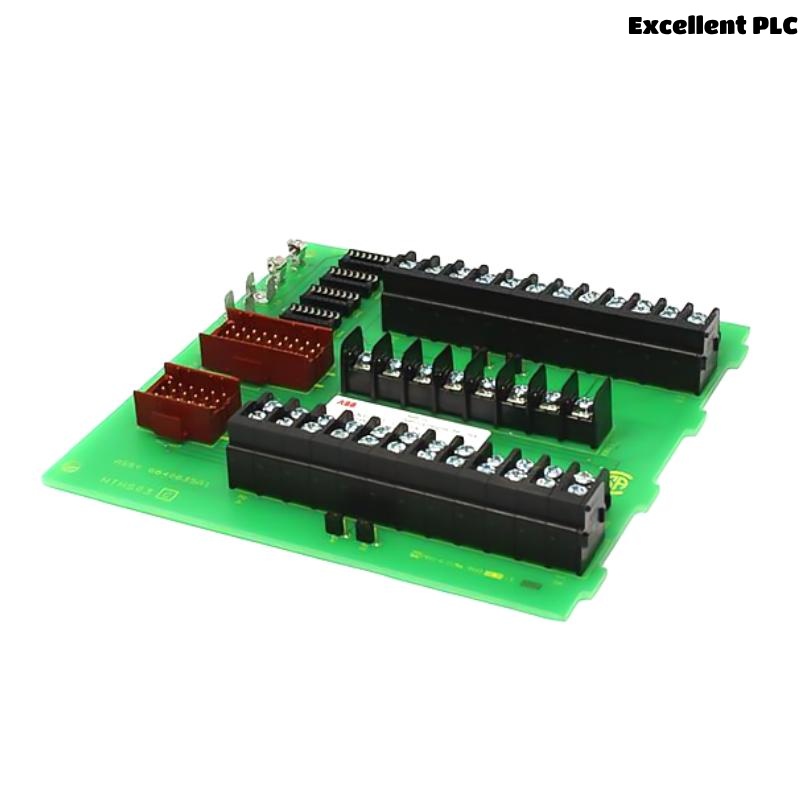

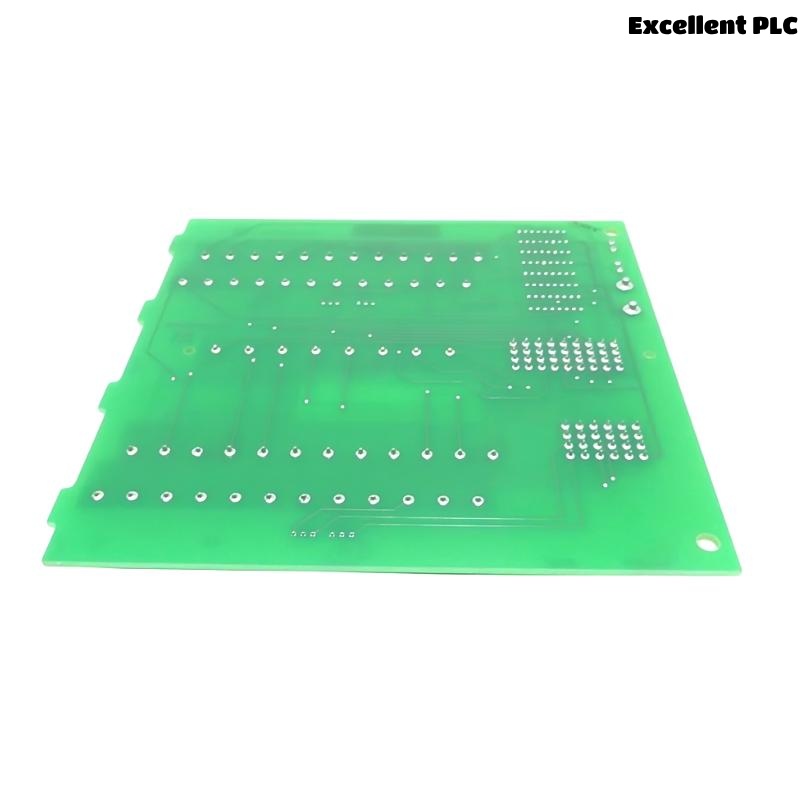

ABB Bailey NTHS03 Hydraulic Servo Termination Unit

Product Introduction

The ABB Bailey NTHS03 is a specialized Hydraulic Servo Termination Unit designed to interface with servo drive control loops within INFI 90 and Bailey Symphony distributed control systems (DCS). It functions as a critical connection point between control logic and hydraulic actuators, enabling precision motion and pressure control in turbine and valve automation applications.

Built for high reliability in demanding environments such as power generation and process industries, the NTHS03 simplifies the wiring and termination of servo control signals. It ensures consistent communication, signal isolation, and proper grounding of control inputs and feedback loops that are essential in hydraulic servo mechanisms.

Technical Specifications

Applications

The ABB NTHS03 termination unit is a key component in systems requiring precise control over hydraulic actuation. It is widely used in:

• Steam and Gas Turbine Control Systems: Interfaces control logic with hydraulic actuators that regulate steam valves or fuel systems.

• Hydroelectric Power Plants: Facilitates governor control signals between DCS and hydraulic systems managing water flow and turbine position.

• Petrochemical Refineries: Used in emergency shutdown systems where hydraulic actuators control high-pressure valves.

• Nuclear Facilities: Ensures precise servo feedback in safety-critical control circuits.

• Industrial Boilers and Compressors: Supports hydraulic modulating valves for combustion control.

• Marine and Offshore Platforms: Deployed in hydraulic positioners and actuators for engine and auxiliary equipment control.

In each of these scenarios, the NTHS03 plays a critical role in ensuring safe, accurate, and responsive system performance.

Product Advantages

• Reliable Signal Interface
  Provides a stable and organized termination point for control and feedback signals in hydraulic servo loops, reducing wiring errors and ensuring signal clarity.

• Simplified Maintenance and Troubleshooting
  Clearly labeled terminal blocks and accessible wiring improve maintenance workflows and reduce diagnostic time.

• Industrial-Grade Construction
  Built with high-quality materials suited for high-vibration and high-temperature industrial environments.

• System Compatibility
  Fully compatible with legacy and modern Bailey systems, including INFI 90, Net90, and Symphony series architectures.

• Flexible Mounting Options
  Can be installed in various panel configurations and fits seamlessly into DCS cabinets or standalone junction boxes.

• Electrical Isolation
  Reduces the risk of ground loops and cross-talk between channels, which is critical in sensitive feedback systems.

• Extended Serviceability
  Designed to function continuously with minimal degradation over time, supporting long-term industrial deployment.

Frequently Asked Questions (FAQ)

1. What is the primary function of the NTHS03 unit?
   It serves as a termination interface between the control system and hydraulic actuators in servo-based control loops.

2. Is the NTHS03 suitable for high-pressure or high-temperature environments?
   Yes, when installed within an enclosure, the unit performs reliably in industrial control rooms exposed to elevated environmental conditions.

3. Can it be used with modern ABB Symphony Plus systems?
   Yes, the NTHS03 remains compatible with Symphony Plus, especially in legacy system upgrades or hybrid DCS architectures.

4. Does this unit provide any kind of signal conditioning or amplification?
   No, the NTHS03 is strictly a passive termination unit. Signal processing occurs within the control modules.

5. What type of signals does it terminate?
   It accommodates analog control signals, position feedback, limit switches, and digital control loops related to servo mechanisms.

6. How is it mounted in the control cabinet?
   The unit is panel-mounted using screws or rails, and the layout allows for convenient front access to terminal blocks.

7. What kind of maintenance does it require?
   Minimal maintenance is needed—mainly periodic inspection for loose terminals or oxidized connections.

8. Can the NTHS03 be used in redundant systems?
   Yes, it can be used in systems where redundant hydraulic loops are controlled and monitored, ensuring operational continuity.

9. What protection features does the unit have?
   While it does not include active protection circuitry, it offers galvanic isolation and meets industrial insulation standards.

10. Is there a specific cable type recommended for wiring this unit?
    Shielded twisted-pair cables are recommended to minimize electrical noise and ensure accurate signal transmission.
