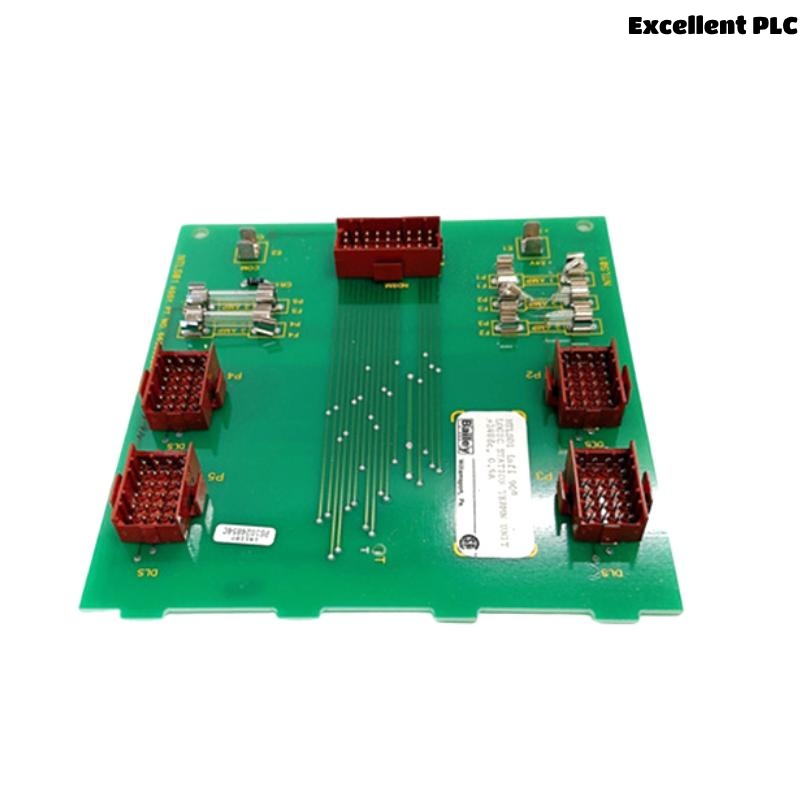

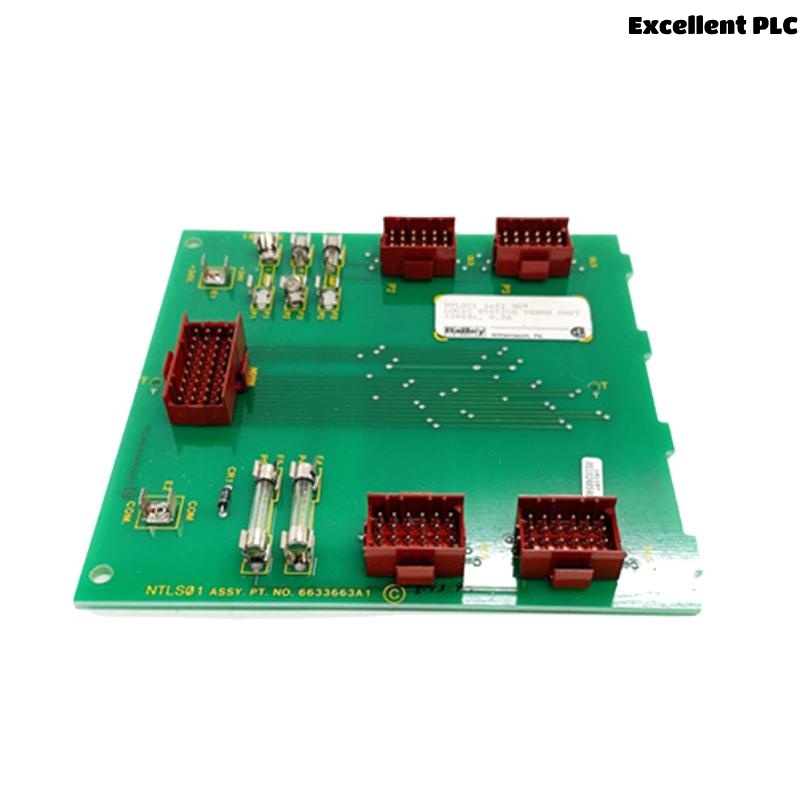

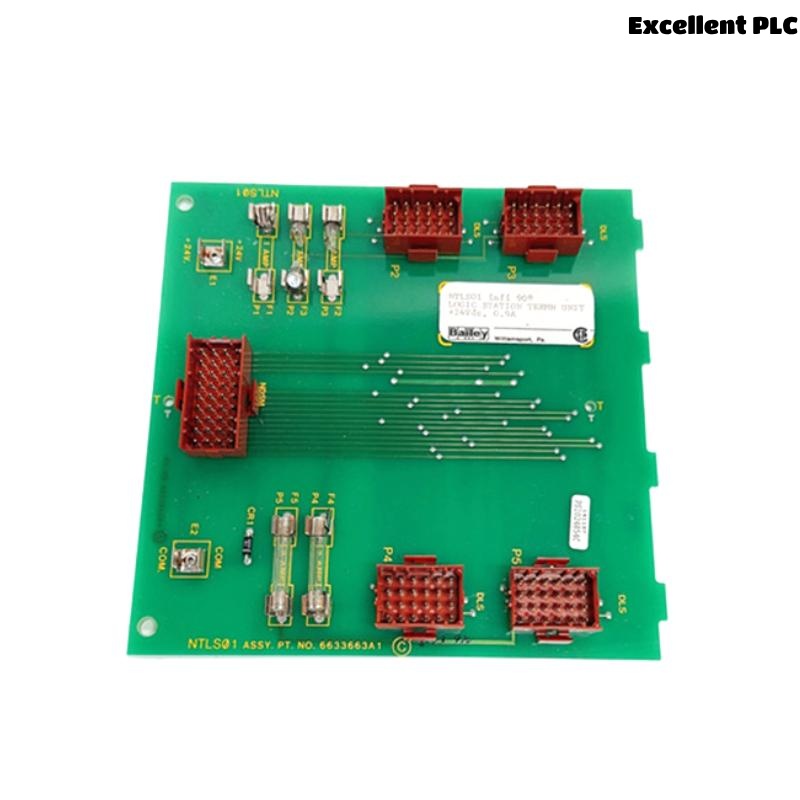

ABB Bailey NTLS01 Logic Station Termination Unit

Product Introduction

The ABB Bailey NTLS01 is a high-reliability Logic Station Termination Unit designed for interfacing the logic controller components of the Bailey INFI 90 and Symphony Distributed Control Systems (DCS). This unit serves as a critical field wiring interface that ensures clean, organized, and error-free signal termination between field devices and the logic control modules.

The NTLS01 plays a vital role in supporting the operation of logic stations (such as INLPM01 processors and logic modules) by terminating I/O signals and maintaining signal integrity throughout the system. Its robust design and field-proven performance make it essential for use in industries that demand reliable operation, such as power generation, oil & gas, water treatment, and industrial automation.

Technical Specifications

Applications

The NTLS01 is primarily used in logic control subsystems of Bailey DCS architectures, enabling effective communication between central processors and field control points. Key applications include:

• Power Generation Plants: Facilitates safe and efficient operation of turbine logic control, boiler management, and interlock logic.

• Oil & Gas Facilities: Handles termination of safety logic, permissive start/stop conditions, and motor control loops.

• Water and Wastewater Treatment: Connects sensor status signals and digital controls for pumps, blowers, and valves.

• Industrial Manufacturing: Supports machinery logic sequences in batch processes, material handling, and production lines.

• Chemical and Refining Plants: Used for terminating control logic signals for process interlocks, ESD systems, and control permissives.

• Transportation Systems: Assists in the coordination of logic-based infrastructure systems such as tunnel ventilation and signaling.

Product Advantages

• Optimized for INFI 90 and Symphony Systems
  Designed specifically to interface with ABB’s logic processors, ensuring seamless integration and dependable performance.

• Clean and Organized Wiring
  Reduces complexity in control cabinets and minimizes the risk of incorrect wiring through structured and labeled terminal points.

• Rugged Industrial Design
  Constructed with durable, flame-retardant materials suitable for high-vibration and high-temperature industrial environments.

• Minimal Maintenance
  With no moving parts or onboard electronics, the NTLS01 offers long service life with virtually no required maintenance.

• Field-Tested Reliability
  Proven through decades of deployment in mission-critical applications worldwide.

• Galvanic Isolation Support
  Helps ensure signal quality and noise immunity between field devices and the system controller.

• Simplified Troubleshooting
  Clear terminal designations make it easy for technicians to identify and isolate faults quickly.

Frequently Asked Questions (FAQ)

1. What is the NTLS01 used for in a Bailey DCS?
   It serves as a termination point for digital and logic control signals between the logic station processor and field equipment.

2. Is the NTLS01 an active or passive unit?
   It is a passive device with no active electronics, used solely for wiring and signal routing.

3. Can it be used with non-ABB systems?
   While it is designed for ABB systems, it may be adapted for use in other legacy systems with compatible signal levels and wiring standards.

4. What wiring types are supported?
   It supports standard industrial shielded twisted-pair or multi-core control cables with screw terminal terminations.

5. Is the unit hot-swappable?
   No, the termination unit is not hot-swappable and should only be modified when the system is powered down.

6. Does the NTLS01 support redundant configurations?
   Yes, it can be used in redundant logic station architectures by duplicating signal terminations for parallel logic processors.

7. How is it mounted in the control panel?
   It is typically mounted on a back panel inside a cabinet using screws or DIN rail brackets.

8. Does it provide signal filtering or conditioning?
   No, it is a passive wiring interface and does not alter or condition the signal in any way.

9. Can the NTLS01 be installed in outdoor environments?
   Only if housed within a weatherproof and temperature-controlled enclosure.

10. What maintenance procedures are recommended?
    Periodic inspection for secure terminal connections and cleanliness is sufficient; no internal service is needed.
