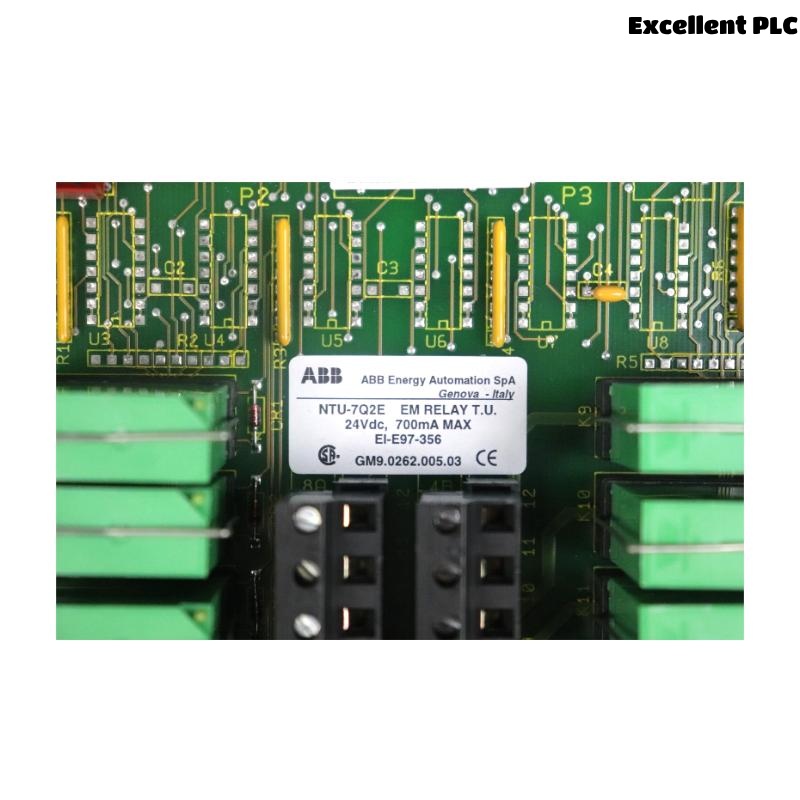

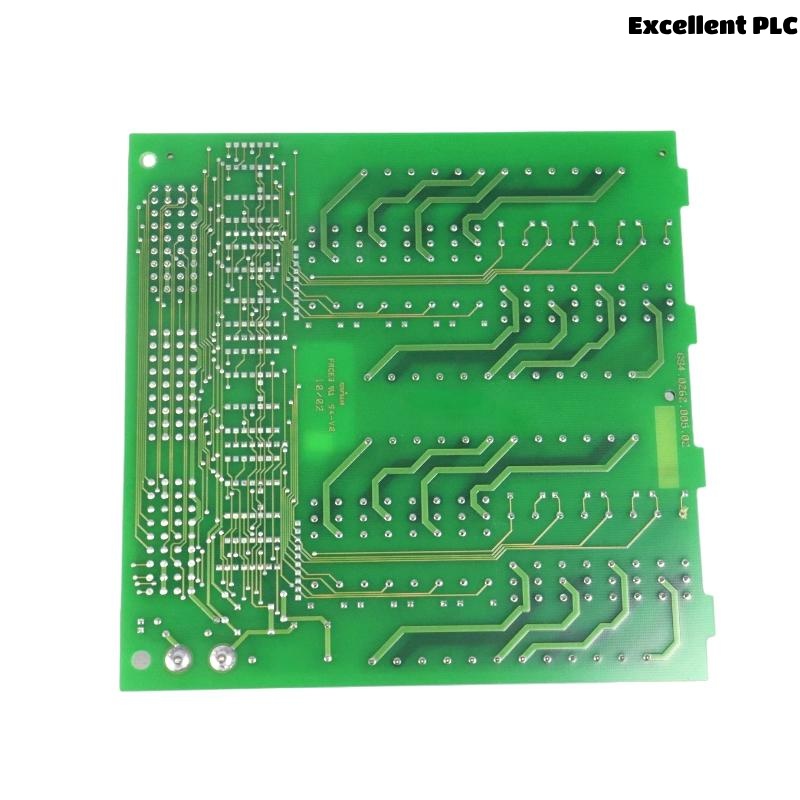

ABB Bailey NTU-7Q2E GM9.0262.0005.03 Digital Output Relay Terminal Unit

Product Introduction

The ABB Bailey NTU-7Q2E is a Digital Output Relay Terminal Unit designed specifically for interfacing discrete digital output signals with field actuators in Bailey INFI 90 and Net 90 Distributed Control Systems (DCS). Acting as a relay termination interface, it enables safe, efficient, and organized signal distribution from output modules such as IMDSM or IMDSO to external field devices like solenoids, contactors, alarms, or interlocking mechanisms.

This unit provides a passive, rack- or panel-mounted interface where digital logic-level signals are routed through relay contacts to field loads. The NTU-7Q2E supports standard ABB relay wiring topologies, ensuring minimal signal loss, robust termination, and protection from wiring errors. Its industrial-grade design ensures long operational life in demanding environments, making it a trusted component in process control systems across energy, petrochemical, and utility sectors.

Product Specifications

Product Applications

The NTU-7Q2E serves as a relay termination unit in critical process automation applications. Typical industrial uses include:

• Power Generation Plants: Sends ON/OFF signals to generator relays, turbine control valves, auxiliary drives, and switching relays.

• Oil & Gas Operations: Interfaces with pump control relays, emergency shutdowns (ESDs), and digital signal annunciators.

• Water and Wastewater Facilities: Connects control logic to blowers, motor contactors, valve actuators, and alarm systems.

• Pulp & Paper Manufacturing: Transfers control output signals to conveyor motor relays, cutter relays, or steam valves.

• Chemical & Refining Plants: Used in control systems to activate fail-safe output devices and programmable alarms.

• Metals and Mining: Delivers control logic outputs to hoisting systems, safety lockouts, and blast furnace interlocks.

Product Advantages

• Reliable Relay Termination: Supports clean and secure connection of digital output signals through relay contacts.

• Legacy Compatibility: Integrates seamlessly with ABB Bailey INFI 90 and Net 90 control platforms.

• Passive and Maintenance-Free: Requires no power input, reducing points of failure and simplifying design.

• Clear Terminal Labeling: Simplifies field wiring and inspection through organized screw terminal mapping.

• Industrial Durability: Built with conformal-coated PCBs and high-quality terminal hardware for harsh environments.

• Field Proven Design: Deployed globally across multiple industries for decades with consistent performance.

• Reduced Signal Interference: Relay-based switching minimizes issues caused by electrical noise and voltage spikes.

• Support for Multiple Relay Configurations: Easily adaptable to dry-contact, isolated, or dual-redundant wiring setups.

• Supports Safe Operation: Ensures correct output pathing to field actuators, reducing risk of misfire or failure.

• Backed by ABB Lifecycle Programs: Fully supported in spare part programs, repair logistics, and modernizations.

Frequently Asked Questions (FAQ)

1. What is the core purpose of the NTU-7Q2E in a DCS environment?
   It serves as a relay termination interface, connecting the output signals from I/O processors to field control devices like relays, contactors, and alarm mechanisms.

2. Is the NTU-7Q2E powered, or does it require auxiliary supply?
   No power supply is needed—this is a passive unit designed for secure relay termination.

3. Which types of output devices are typically wired through this module?
   Common connections include motor starters, solenoids, beacon alarms, control relays, and valve actuators.

4. Can the NTU-7Q2E handle different voltage outputs on a single board?
   The relay contacts isolate the signal, allowing different voltage zones to be controlled safely, provided wiring is correctly segregated and documented.

5. How are the relay outputs protected from overvoltage or spikes?
   The unit itself does not include surge protection; external relay protection circuits or snubber networks are advised for inductive loads.

6. What are the best practices for field wiring this module?
   Use shielded cable where necessary, avoid running signal wires near power lines, and always torque screw terminals to the specified value to avoid signal loss.

7. How does the NTU-7Q2E relate to the IMDSM or IMDSO output modules?
   It provides the physical interface that terminates the logic output lines from these modules to field wiring connected to devices.

8. Is it suitable for SIL-rated or safety instrumented systems (SIS)?
   The NTU-7Q2E can be part of a SIL-compliant chain if paired with certified output modules and actuators, but itself is not SIL-rated.

9. Can it be mounted on DIN rails or only panels?
   Though traditionally panel-mounted, adapters or custom brackets allow DIN mounting in modern installations.

10. What’s the proper maintenance approach for this unit?
    Periodically inspect for loose terminals, oxidation, and relay contact degradation. Cleaning and terminal re-tightening should be done during scheduled shutdowns.
