Product Introduction

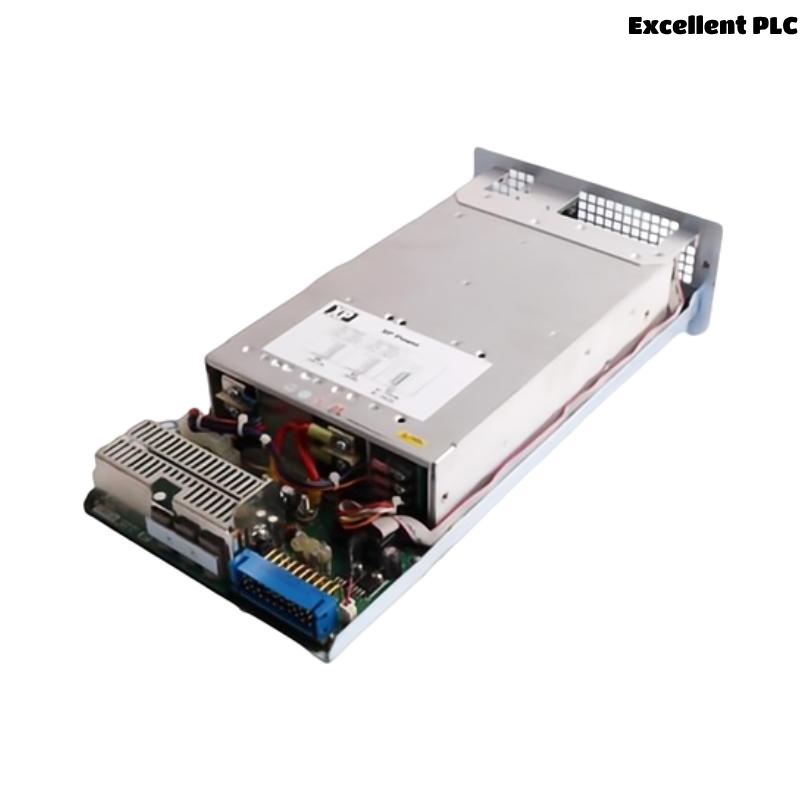

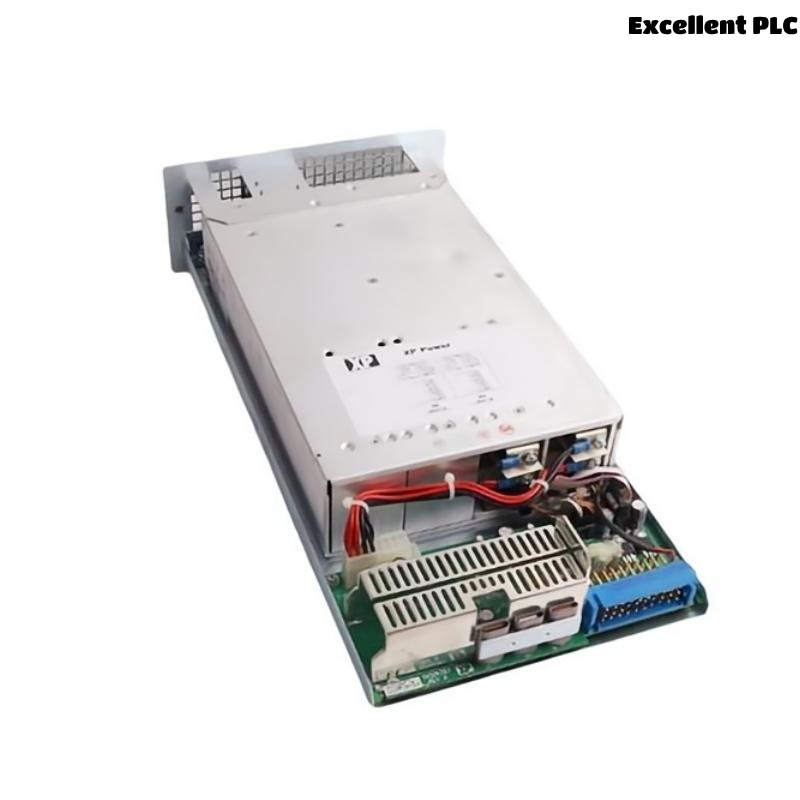

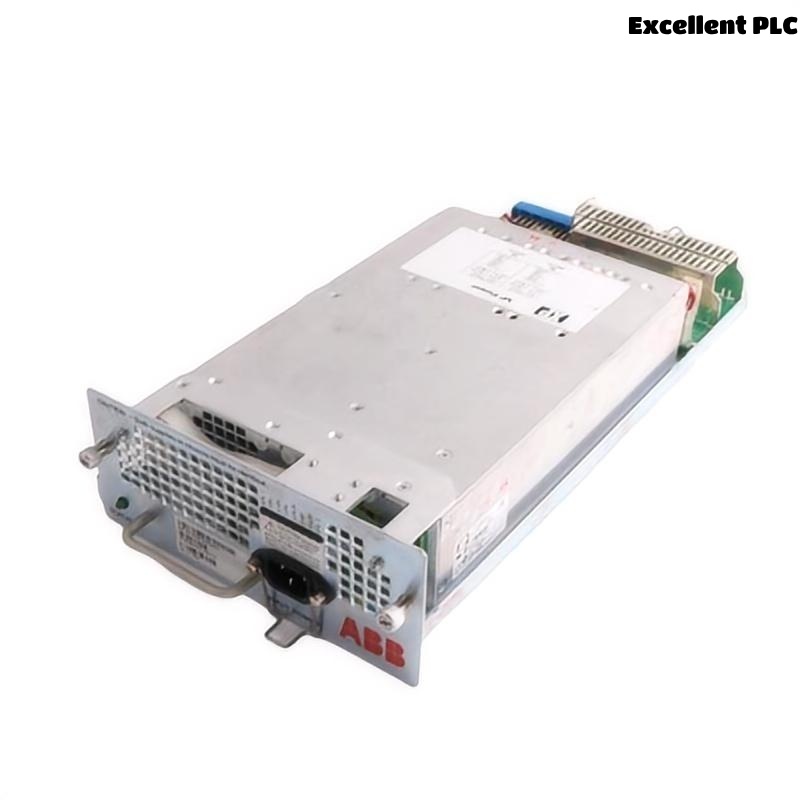

The ABB Bailey PHARPS03000000 is a high-reliability power supply module engineered for industrial automation systems within the Bailey INFI 90 Distributed Control System (DCS) architecture. This power module plays a critical role in providing stable and regulated power to various I/O modules, processors, and communication interfaces within the system.
Designed for continuous operation in demanding process environments, the PHARPS03000000 is built with redundancy and fault tolerance in mind. It ensures consistent voltage levels, overload protection, and surge resistance, making it an essential component for maintaining system integrity and operational uptime.
Its compact rack-mountable form factor and hot-swappable design make it ideal for mission-critical applications in industries such as power generation, petrochemicals, water treatment, and manufacturing. ABB’s commitment to long-term support for legacy systems further enhances the value of the PHARPS03000000 for customers maintaining mature installations.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | PHARPS03000000 |
| Manufacturer | ABB / Bailey |
| Series | INFI 90 |
| Function | Regulated Power Supply Module |
| Input Voltage | 120/240 VAC, 50/60 Hz |
| Output Voltage | +5V DC and ±24V DC (regulated) |
| Output Power Capacity | Up to 300W |
| Current Capacity | 5V at 20A, ±24V at 2A |
| Efficiency | >85% |
| Cooling Method | Natural convection (passive) |
| Protection Features | Overvoltage protection, short-circuit protection, thermal shutdown |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | 5–95% RH (non-condensing) |
| Mounting Type | Rack-mounted in INFI 90 system chassis |
| Hot-swappable | Yes |
| Certifications | CE, UL, CSA |
| Dimensions | 231.14 x 106.68 x 337.82 mm |
| Weight | 1 kg |
| System Compatibility | Bailey INFI 90 DCS, Network 90, Harmony Series |
Product Applications
The PHARPS03000000 module serves as a backbone power unit for various process automation environments where ABB’s INFI 90 control system is deployed. Its reliable and redundant design makes it suitable for:
-
Power Generation Facilities – Supports turbine control and monitoring systems.
-
Petrochemical Plants – Ensures stable power to safety-critical control modules.
-
Water & Wastewater Treatment – Delivers uninterrupted power for valve actuation, sensor input, and alarm systems.
-
Manufacturing Lines – Maintains system availability for robotic cells, PLCs, and HMIs.
-
Pulp & Paper Industry – Used in continuous paper processing systems where control uptime is critical.
-
Mining & Metals Processing – Powers ruggedized control racks exposed to vibration and harsh temperatures.
Product Advantages
-
High Reliability: Designed for continuous 24/7 operation in mission-critical industrial control systems.
-
Redundant Design: Supports load-sharing and failover scenarios in dual-supply configurations.
-
System Compatibility: Seamlessly integrates into existing ABB Bailey INFI 90 systems without requiring additional modifications.
-
Hot Swappable: Enables safe removal and replacement during operation without system shutdown.
-
Compact Form Factor: Fits neatly into system racks, maximizing space utilization.
-
Protected Output: Safeguards against overvoltage, overload, and thermal damage.
-
Long Lifecycle Support: Backed by ABB’s extended service and spare parts availability for legacy systems.
-
Ease of Maintenance: Front-access design simplifies installation and troubleshooting.
-
Global Compliance: Meets international safety and electrical standards for industrial use.
Frequently Asked Questions (FAQ)
1. What systems is the PHARPS03000000 compatible with?
It is specifically designed for ABB’s Bailey INFI 90 and Network 90 distributed control systems.
2. Can the module be replaced while the system is running?
Yes, it supports hot-swapping and can be removed or replaced without shutting down the system.
3. What voltage does the unit output?
It supplies regulated +5V DC and ±24V DC to support various system components.
4. Does it support dual-redundancy configuration?
Yes, it can be used in a dual power setup for redundancy and fault tolerance.
5. Is active cooling required?
No. It operates using passive convection cooling, with no need for fans or external cooling systems.
6. What are the physical dimensions of the module?
The unit measures 231.14 x 106.68 x 337.82 mm and weighs 1 kg.
7. What protections are built into the module?
It includes protection features such as overvoltage, short-circuit, and thermal shutdown.
8. Is the module still supported by ABB?
Yes, ABB offers continued support for the INFI 90 series, including spare parts and field service.
9. What standards does this power module comply with?
It is certified with CE, UL, and CSA standards for industrial electrical equipment.
10. Can this module be used in non-ABB systems?
It is specifically tailored for ABB Bailey systems and may not function properly in third-party environments.
Related Models (Same Series or Functionality)
| Model | Description | Output Voltage | Mounting Type | Weight |
|---|---|---|---|---|
| PHARPS02000000 | Power Supply Module (lower capacity) | +5V, ±24V DC | INFI 90 Rack | 1.8 kg |
| PHARPS04000000 | High output power supply module | +5V, ±24V DC | INFI 90 Rack | 2.0 kg |
| INNIS21 | Network Interface Module with power support | N/A | Rack-mounted | 1.3 kg |
| IMMFP12 | Controller Module with integrated power path | +5V regulated | INFI 90 Rack | 2.5 kg |
| NTAI05 | Analog Input Module (requires regulated power) | N/A | INFI 90 System | 0.7 kg |
| P-HC-BRC-300 | Controller requiring external power input | N/A | Baseplate installation | 2.6 kg |
