Product Introduction

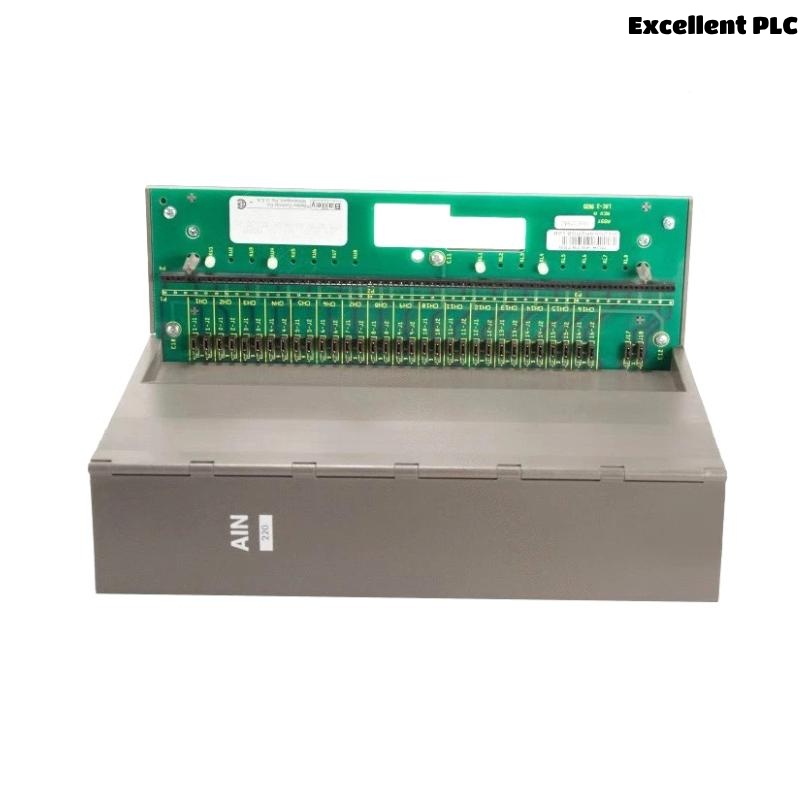

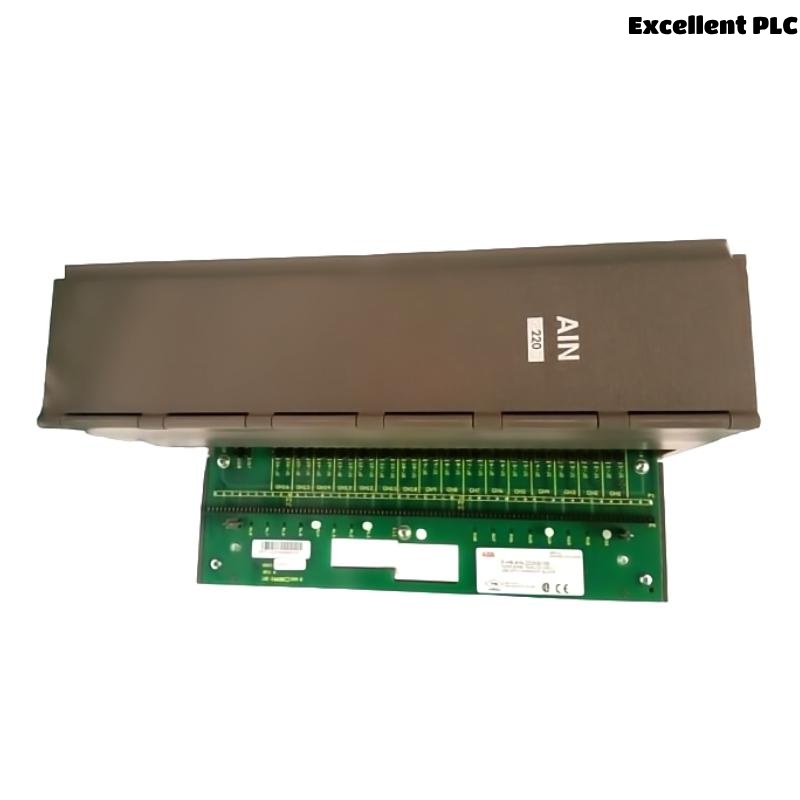

The ABB Bailey PHBAIN2200S100 is an analog input base module designed to serve as the foundational hardware for analog input (AI) channels in ABB’s INFI 90 and Network 90 distributed control systems (DCS). It provides a reliable, high-integrity interface for transmitting real-world analog signals—such as temperature, pressure, and flow—into the control system.
Engineered for industrial automation, the PHBAIN2200S100 accommodates analog input interface cards and offers stable mechanical and electrical connectivity. The unit supports differential analog signal wiring and shields to minimize electrical interference, making it ideal for precision process control applications.
Its rugged construction, secure rack-mounting design, and ease of integration with ABB’s I/O subsystems make it an essential part of process automation architectures used in power generation, chemical processing, and other heavy industries.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | PHBAIN2200S100 |
| Manufacturer | ABB Bailey |
| Product Type | Analog Input Base Module |
| System Compatibility | INFI 90, Network 90, Harmony Series |
| Supported Modules | Analog Input Interface Modules (e.g., IIA101, IIA102) |
| Channel Capacity | Supports 8 to 16 analog input channels (based on installed card) |
| Signal Type | mA (4–20 mA), Voltage (0–10V), RTDs, Thermocouples (via interface card) |
| Mounting Method | Rack-mounted on standard ABB I/O base rack |
| Wiring Interface | Removable terminal blocks with screw terminals |
| Shielding Support | Yes, supports shielded cable terminations |
| Material | Industrial-grade aluminum and PCB housing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to +85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Dimensions | 280 × 100 × 75 mm |
| Weight | 1.8 kg |
| Certifications | UL, CE, CSA |
Product Applications
The PHBAIN2200S100 is widely used in industrial environments requiring accurate and reliable analog data acquisition. Key application areas include:
-
Power Generation: Monitoring turbine temperatures, boiler pressures, and fuel levels.
-
Oil & Gas: Measuring process pressures, flows, and tank levels in upstream and downstream operations.
-
Chemical Processing: Handling temperature, pH, and reaction rate data in complex chemical reactions.
-
Water & Wastewater Treatment: Recording flow rates, chemical dosing levels, and tank levels.
-
Steel and Mining: Integrating analog sensors for load, torque, and speed monitoring.
-
Pharmaceutical Manufacturing: Acquiring analog sensor data for regulatory compliance and process integrity.
Product Advantages
-
Robust Signal Integration: Designed to host multiple analog input interface cards for versatile signal handling.
-
Noise Immunity: Built-in support for shielded wiring and grounding to minimize signal distortion.
-
Scalable Architecture: Easily integrates with larger DCS environments and allows for expansion.
-
Field-Proven Reliability: Used extensively in critical infrastructure and high-demand industrial applications.
-
Simplified Maintenance: Removable terminal blocks and modular assembly reduce downtime during servicing.
-
Flexible Signal Support: Compatible with various analog signal standards through dedicated interface modules.
-
Industrial Durability: Constructed from rugged materials for reliable operation in harsh conditions.
-
Standardized Mounting: Fits seamlessly into ABB’s INFI 90 and Network 90 system racks.
-
Vendor Support: Supported by ABB’s global service network, technical documentation, and spare parts availability.
-
Legacy and Modern Compatibility: Functions with both older and updated ABB automation infrastructure.
Frequently Asked Questions (FAQ)
1. What role does the PHBAIN2200S100 play in the control system?
It serves as the physical and electrical foundation for analog input interface modules, allowing field analog signals to be transmitted safely into the DCS.
2. Is this input base compatible with both 4–20 mA and voltage signals?
Yes, as long as the appropriate analog interface module is installed (e.g., IIA101 for 4–20 mA, IIA102 for voltage inputs).
3. Does the base provide grounding points for shielded signal wiring?
Yes, it includes grounding provisions to ensure proper shield termination, which is critical for signal integrity in industrial environments.
4. Can the PHBAIN2200S100 be installed in an existing INFI 90 rack without modification?
Yes, it is designed for direct integration into ABB’s standard rack systems without the need for custom brackets or wiring changes.
5. How is signal wiring managed with this module?
Field wiring connects to removable terminal blocks mounted on the base, simplifying installation and future maintenance.
6. Are there any on-board diagnostics or LEDs on this base unit?
No, the base itself does not include diagnostics. Signal status is monitored through the interface module and the DCS system.
7. Is the module suitable for use in electrically noisy environments?
Yes, when paired with shielded cables and proper grounding, the design supports stable signal transmission even in high-EMI areas.
8. Can this base support mixed signal types across channels?
No, all channels on a single interface module typically handle the same signal type. Mixing requires separate modules and bases.
9. How often does the base unit require maintenance?
It requires minimal maintenance. Periodic inspections for secure wiring and dust removal are generally sufficient.
10. What safety certifications does this module carry?
It is certified to industry standards including UL, CE, and CSA, making it compliant with most global electrical installation requirements.
Related Models (Same Series or Functionality)
| Model Number | Description | Signal Type | Channel Capacity | Weight |
|---|---|---|---|---|
| PHBAIN2100S100 | Analog Input Base with standard signal input | mA, V | 8–16 channels | 1.7 kg |
| PHBAIN3200S100 | Analog Input Base with enhanced EMI filtering | mA, RTD | 8–16 channels | 1.9 kg |
| PHBDIO2200S100 | Digital I/O Base Module | Digital | Up to 32 channels | 1.8 kg |
| PHBRTD2200S100 | RTD Input Base for temperature monitoring | RTD | 8–12 channels | 1.8 kg |
| PHBTHM2200S100 | Thermocouple Input Base | Thermocouple | 8–16 channels | 1.8 kg |
| PHBDAC2200S100 | Analog Output Base Module | 4–20 mA, 0–10V | 8–12 channels | 1.9 kg |
