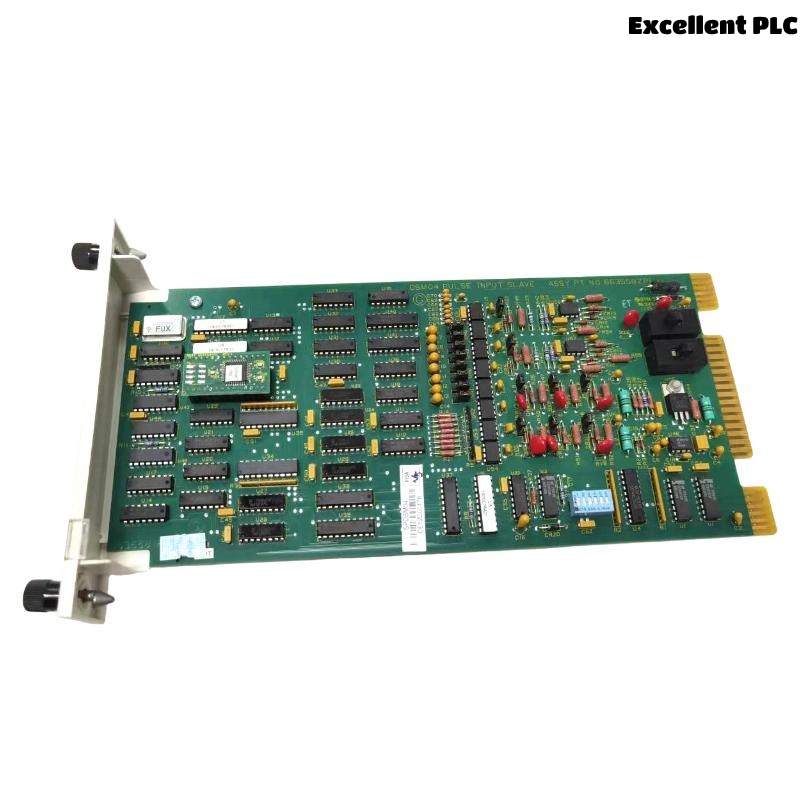

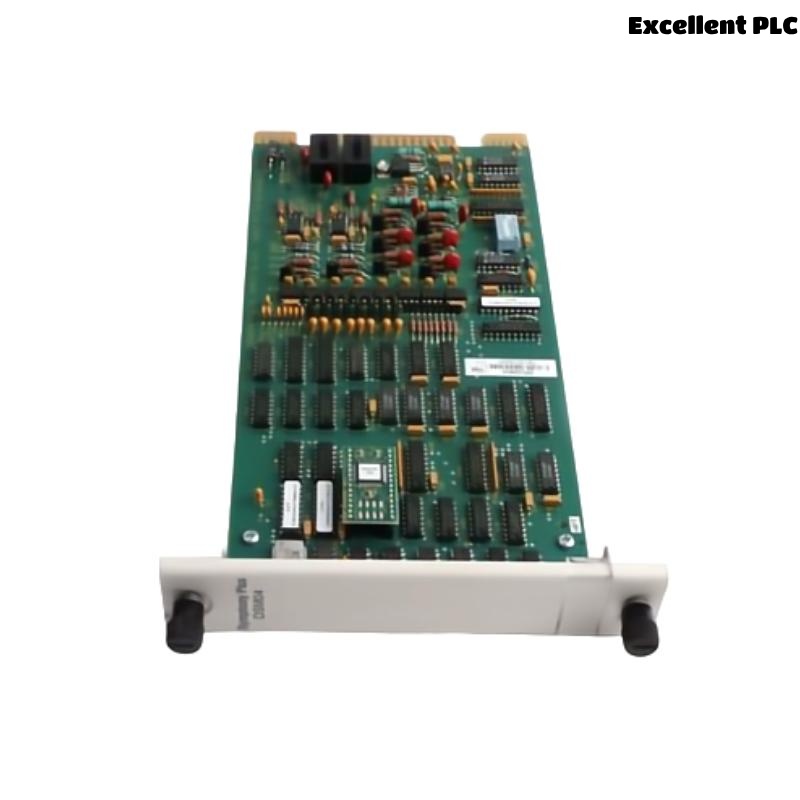

ABB Bailey SPDSM04 8-channel Pulse Input Module

Product Introduction

The ABB Bailey SPDSM04 is an 8-channel Pulse Input Module designed to interface pulse-generating field devices with ABB’s INFI 90 and Symphony series Distributed Control Systems (DCS). It provides accurate capture and time-stamping of high-speed pulse signals, allowing integration of frequency-based measurements such as flow, speed, and rotational counts into the control system.

Engineered with industrial-grade isolation and signal filtering, the SPDSM04 is capable of detecting digital pulse inputs from a wide range of sensors, including flow meters (with pulse output), turbine counters, proximity switches, and rotary encoders. The module supports frequency input up to several kilohertz, making it ideal for precision-critical monitoring in real-time automation environments.

Its compact design, high performance, and ABB’s legacy system compatibility make the SPDSM04 a critical component in industries requiring pulse-based measurements with dependable system integration.

Technical Specifications

Product Applications

The SPDSM04 Pulse Input Module is used in process control and automation systems where frequency or event-counting signals must be captured and processed accurately. Typical application areas include:

• Flow Monitoring
  Used with flow meters generating pulse output to track volumetric flow in water, oil, or chemical processes.

• Turbine and Generator Monitoring
  Captures RPM and cycle counts from turbine speed pickups and rotary encoders.

• Material Handling Systems
  Monitors pulse output from conveyor belt encoders and line counters for motion tracking.

• Batch Process Control
  Useful for totalizing discrete input pulses for fluid dispensing or product filling in batch systems.

• Power & Energy Applications
  Records electrical energy pulses from power meters or protective relays.

• Mechanical Systems
  Detects mechanical part rotation, camshaft positions, or proximity sensor pulses in real time.

Product Advantages

• High-Speed Pulse Capture
  Supports pulse rates up to 10 kHz with minimal latency, suitable for high-frequency applications.

• Optical Isolation Per Channel
  Ensures signal integrity and protects control equipment from voltage transients and electrical noise.

• Built-In LEDs
  Provides instant visual feedback of pulse activity on each channel for diagnostics and testing.

• Flexible Input Support
  Compatible with both voltage-based and dry contact pulse sources, expanding use cases.

• Legacy DCS Compatibility
  Integrates seamlessly with ABB’s INFI 90 and Symphony platforms without requiring extensive adaptation.

• Accurate Totalizing
  Enables precise accumulation and event logging of pulses for critical measurements.

• Compact Form Factor
  Saves cabinet space while delivering robust I/O density in harsh industrial environments.

• Field-Replaceable
  Plug-and-play architecture allows easy replacement with minimal system disruption.

• Supports Redundancy Architectures
  Can be configured within redundant node environments to ensure continuous data acquisition.

• Low Power Consumption
  Designed to operate efficiently with standard 24 VDC industrial power supplies.

Frequently Asked Questions (FAQ)

1. What kind of signals can the SPDSM04 receive?
   It accepts both voltage pulses (up to 24 VDC) and dry contact closures that generate discrete pulses.

2. Is the SPDSM04 suitable for use with turbine flow meters?
   Yes, it is commonly used to count high-frequency pulses from turbine flow meters and speed sensors.

3. Can the input channels operate simultaneously at high frequency?
   Yes, all 8 channels can operate independently and simultaneously at frequencies up to 10 kHz.

4. Do I need external signal conditioning?
   In most cases, the module’s built-in isolation and filtering suffice, but signal amplifiers may be used in low-level signal environments.

5. What is the minimum pulse width the module can detect?
   The SPDSM04 can reliably detect pulses with widths as short as 100 microseconds.

6. Is the module hot-swappable in a live system?
   While system-dependent, ABB’s rack configurations often allow safe hot-swapping with precautions.

7. How are the input terminals accessed for wiring?
   The module uses removable terminal blocks for field wiring, simplifying installation and maintenance.

8. Does it provide pulse totalization or just counting?
   The module provides pulse counting; totalization and further logic are handled in the DCS application.

9. Can this module be used outdoors?
   The module itself is not weatherproof and should be housed inside an enclosure rated for outdoor use.

10. Can I assign each input to a different DCS function or logic block?
    Yes, each channel can be independently mapped in the ABB control system using configuration tools.
