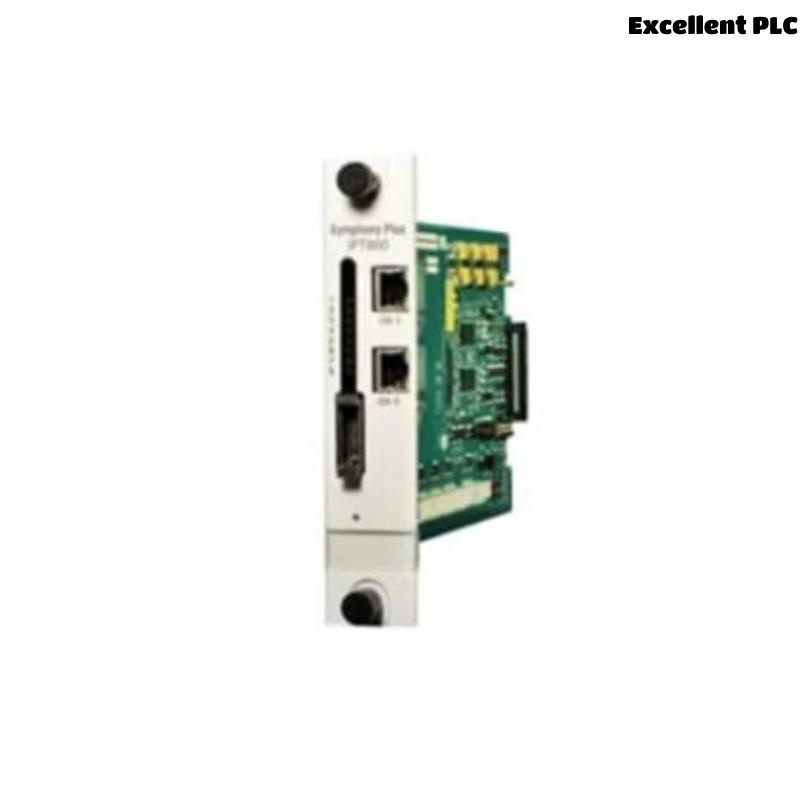

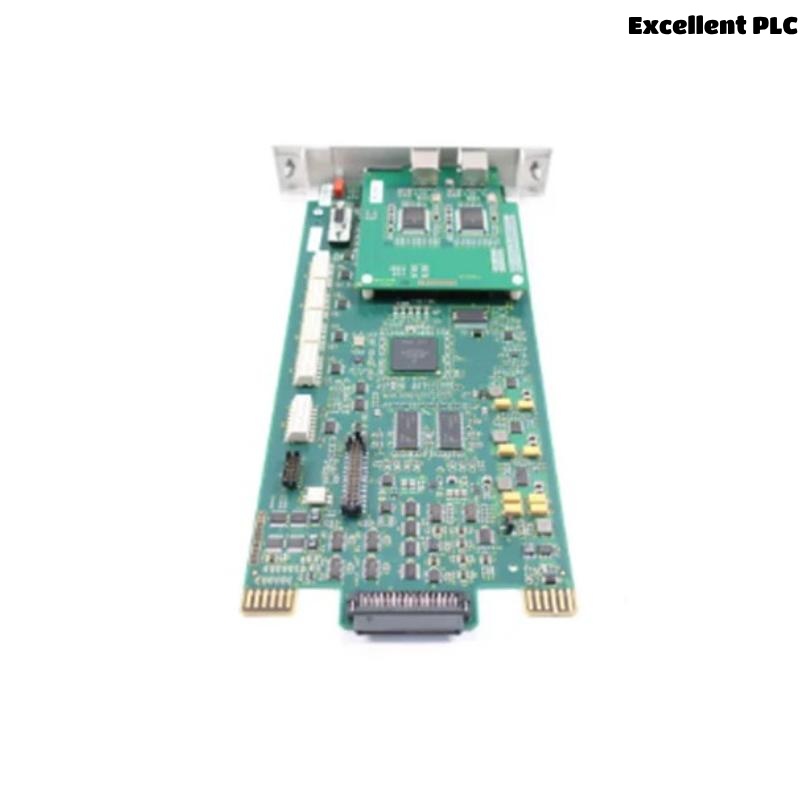

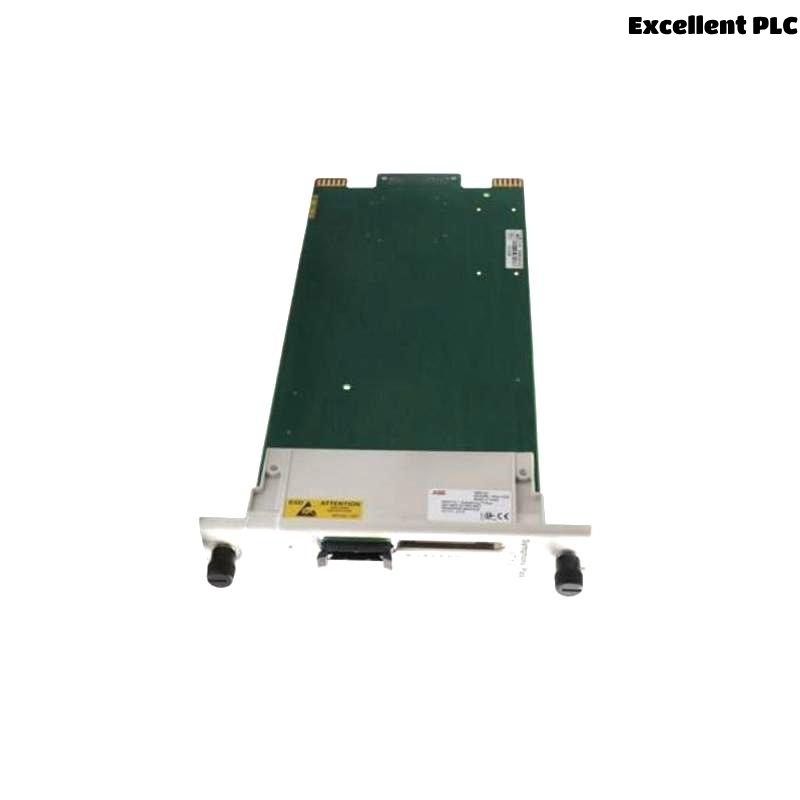

ABB Bailey SPIPT800 Transport Module

Product Overview

The ABB Bailey SPIPT800 Transport Module is a vital component designed for high-speed data communication within industrial control systems. Serving as an efficient transport interface, the module facilitates seamless and reliable data transfer between various system modules and controllers in the Bailey INFI 90 family. It ensures the timely and accurate movement of control and process information, supporting complex automation architectures.

Built with robustness and precision in mind, the SPIPT800 Transport Module handles large volumes of data efficiently, minimizing latency and enhancing overall system responsiveness. Its design accommodates industrial environmental conditions, guaranteeing consistent performance and integration flexibility for diverse automation applications.

Technical Specifications

Industry Applications

• Complex Process Automation Networks

• Power Plant Control Systems

• Oil & Gas Process Control

• Water and Wastewater Treatment Automation

• Large-scale Manufacturing Control Systems

• Chemical Processing Automation

• Mining and Metallurgy Control Networks

• Pharmaceutical Process Control

Key Advantages

• High Data Throughput: Supports up to 10 Mbps data transfer rate, enabling rapid communication.

• Reliable Transport Interface: Designed for secure and error-free data transport across the control network.

• Robust Design: Operates reliably under extreme temperature and humidity conditions.

• Easy Integration: Compatible with the Bailey INFI 90 system, facilitating straightforward installation.

• Galvanic Isolation: Protects against electrical interference, ensuring signal integrity.

• Compact Size: Space-saving form factor suitable for dense control cabinets.

• Certified for Safety: Meets multiple international safety and performance certifications.

• Low Latency: Ensures fast data relay for time-critical control processes.

Frequently Asked Questions (FAQ)

1. What is the primary function of the SPIPT800 Transport Module?
   It acts as a high-speed data transport interface within the ABB Bailey INFI 90 control system.

2. What data transfer rate does the SPIPT800 support?
   It supports data transfer speeds up to 10 Mbps.

3. Can the SPIPT800 operate in harsh industrial environments?
   Yes, it is rated for operation between -20°C and +70°C with high humidity tolerance.

4. What power supply is required for the SPIPT800?
   The module typically requires a 24 V DC power supply.

5. How is the module mounted?
   It supports DIN rail or panel mounting.

6. Does the module provide electrical isolation?
   Yes, galvanic isolation is provided to protect signal integrity.

7. Is the SPIPT800 compatible with all Bailey INFI 90 modules?
   Yes, it is designed for seamless integration with the Bailey INFI 90 platform.

8. What are the dimensions and weight of the module?
   Dimensions are 215.9mm × 88.9mm × 139.7 mm, weighing approximately 0.7 kg.

9. What types of connectors are used?
   It uses screw terminals and plug-in connectors for easy wiring.

10. Where can I find technical support for installation?
    ABB provides comprehensive documentation and customer support for installation and troubleshooting.
