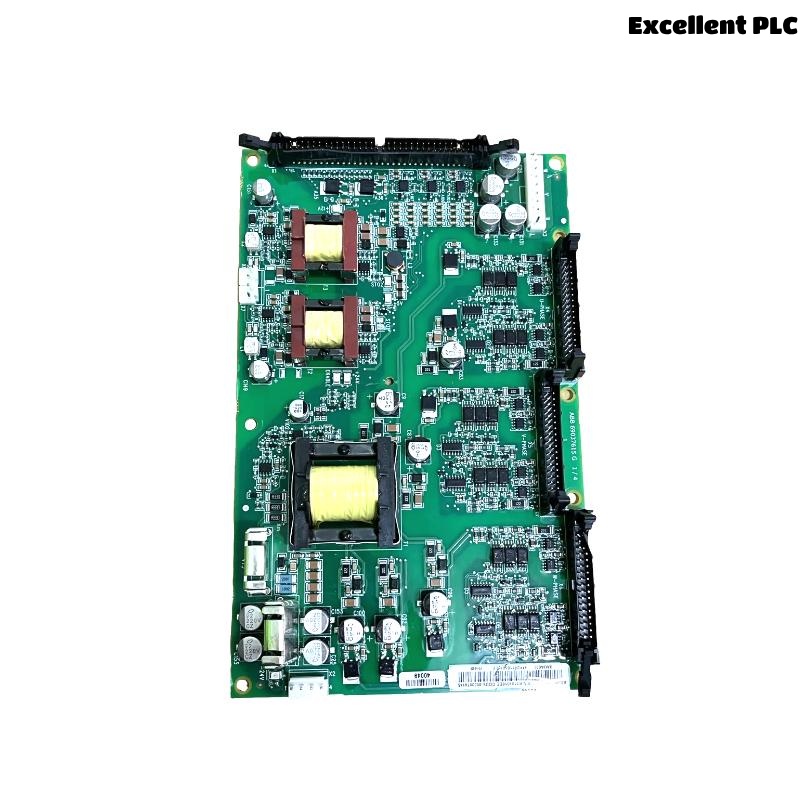

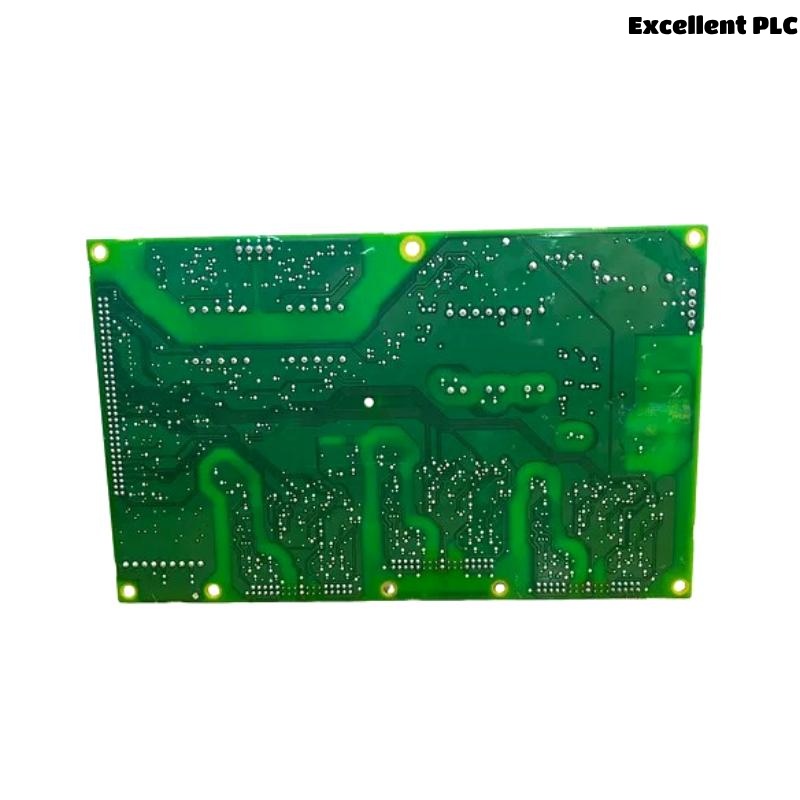

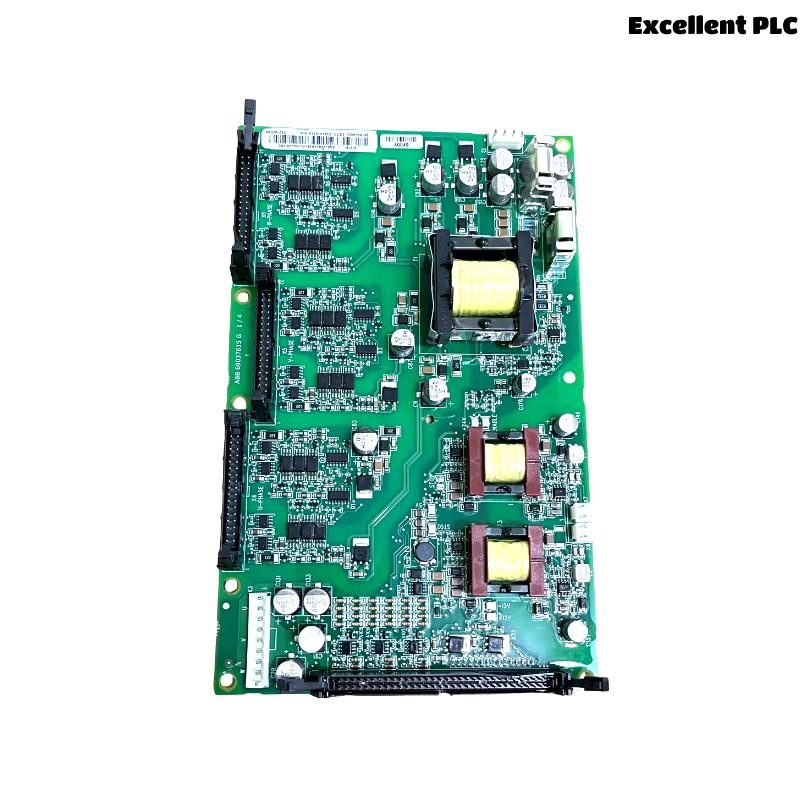

ABB BGDR-01C 3AUA0000074145 Gate Driver Board

Product Introduction

The ABB BGDR-01C Gate Driver Board (3AUA0000074145) is an integral component designed for precise control of IGBT (Insulated Gate Bipolar Transistor) power modules in ABB frequency converters and industrial drives. It provides the essential interface between the control logic of the drive system and the high-power semiconductor switching elements, ensuring accurate timing, isolation, and protection functionalities.

Built with ABB’s renowned engineering excellence, the BGDR-01C is optimized for high-speed switching, thermal stability, and long operational life in harsh industrial environments. It is primarily used in medium to high-power variable frequency drives (VFDs), making it a critical element in industries such as metals processing, marine propulsion, wind turbines, oil & gas, and more.

The BGDR-01C enhances the performance, efficiency, and safety of the entire drive system and is manufactured according to rigorous quality and compliance standards.

Product Specifications

Product Applications

The ABB BGDR-01C Gate Driver Board is widely used across industrial applications where precise power conversion and motor control are essential:

• Steel & Metal Processing: Rolling mills, extruders

• Marine & Offshore: Propulsion systems, thrusters

• Renewable Energy: Wind turbines, solar inverters

• Oil & Gas: Compressors, drilling rigs

• Pulp & Paper: Paper machines, calenders

• Cement & Mining: Conveyors, crushers

• Power Generation: Auxiliary motors in power plants

• Transportation: Railway traction systems

Product Advantages

• High-speed Gate Control: Supports fast switching frequencies up to 20 kHz for high-performance IGBT operation.

• Optical Isolation: Ensures robust isolation between the control side and high-voltage power stage.

• Comprehensive Protection: Built-in desaturation detection and short-circuit protection safeguard both IGBT modules and the entire drive.

• Wide Operating Range: Functions reliably in extreme temperatures and humidity conditions.

• Durable Construction: Conformal-coated PCB enhances protection against dust, moisture, and chemical exposure.

• Compact Design: Small footprint allows easy integration into drive cabinets.

• Long Service Life: Designed for reliability in 24/7 industrial applications.

• Compatibility: Seamlessly integrates with ABB medium and high-power drive platforms.

FAQ

1. What is the role of the BGDR-01C Gate Driver Board in a VFD system?
   It translates control signals from the drive controller into gate signals to drive IGBT power modules, while providing isolation and protection.

2. What types of semiconductors are supported by the BGDR-01C?
   The board is optimized for ABB-specified IGBT modules used in medium and high-power converter systems.

3. What protection mechanisms are built into the BGDR-01C?
   It features desaturation detection, short-circuit protection, and thermal monitoring for enhanced IGBT safety.

4. Is the BGDR-01C suitable for high-speed switching?
   Yes, it supports switching frequencies up to 20 kHz, enabling efficient and precise motor control.

5. How does the optical isolation benefit the system?
   Optical isolation ensures that the control logic remains electrically isolated from the high-voltage power stage, improving safety and noise immunity.

6. Is the BGDR-01C compliant with global certifications?
   Yes, it is CE marked, RoHS compliant, and recognized by UL.

7. What environmental conditions can the BGDR-01C operate in?
   It operates in a temperature range of -25 °C to +70 °C, and in humidity conditions up to 95% RH (non-condensing).

8. What is the expected service life of the BGDR-01C?
   The board is engineered for long service life in continuous industrial operation environments, typically exceeding 10 years.

9. Can the BGDR-01C be used in renewable energy systems?
   Yes, it is suitable for wind turbine converters, solar inverters, and other renewable energy platforms.

10. What maintenance is required for the BGDR-01C?
    Routine visual inspection and occasional cleaning of dust accumulation are sufficient; no active maintenance is required under normal conditions.
