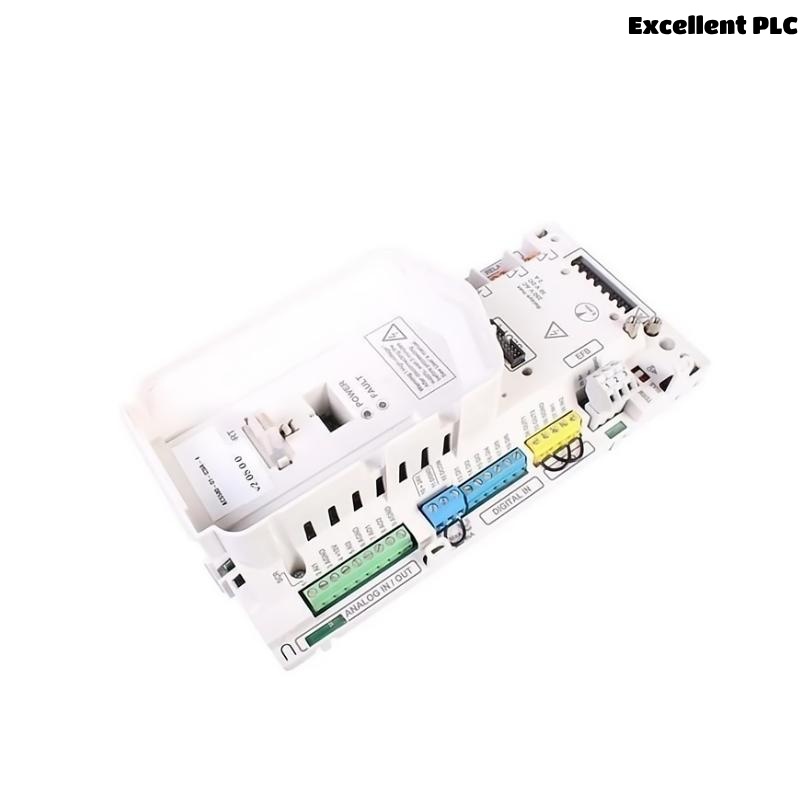

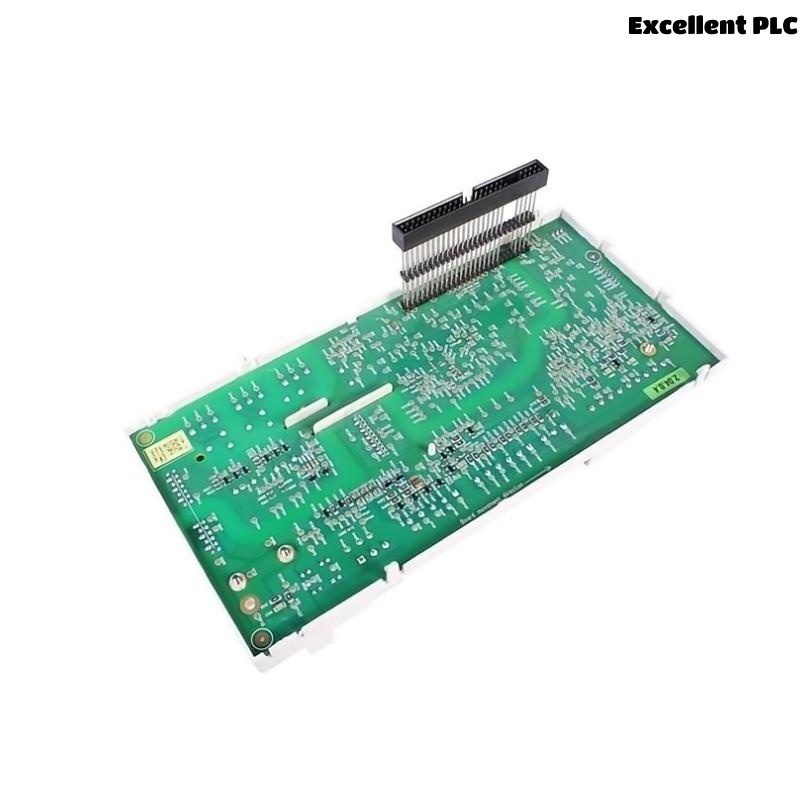

ABB CCU-23-S 3AXD50000034658 Control Unit

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The ABB CCU-23-S 3AXD50000034658 is a high-performance Control Unit engineered to serve as the intelligent brain of ABB’s variable speed drive systems, including advanced ACS880 industrial drive platforms. This module provides powerful processing, fast communication, and flexible integration capabilities, allowing plant engineers to optimize motor control, enhance process automation, and achieve significant improvements in system reliability and efficiency.

The CCU-23-S offers an expanded feature set compared to earlier control units, with enhanced computational power, extensive I/O management, and compatibility with a wide range of industrial protocols. Designed for demanding environments, this control unit delivers superior control accuracy, energy efficiency, and seamless integration into modern Industry 4.0 architectures.

Whether used in heavy industry, advanced manufacturing, or energy-intensive applications, the CCU-23-S helps drive system performance to new levels while ensuring long-term operational stability.

---
