Product Introduction

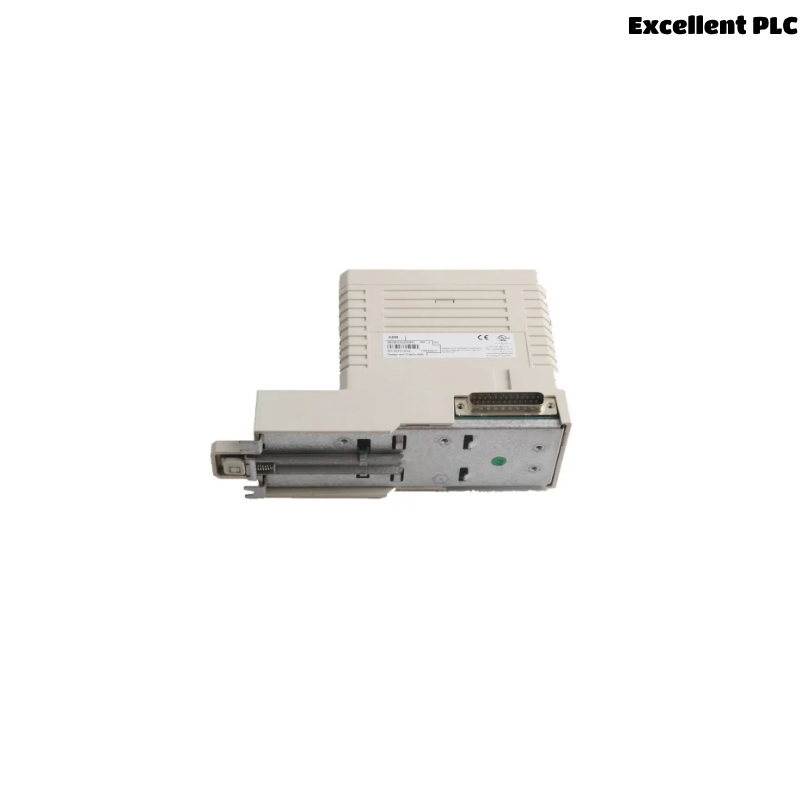

The ABB CI 773F 3BDH000395R0001 is a highly reliable and efficient PROFIBUS DP Master Module designed to facilitate communication between a central control system and distributed I/O devices over a PROFIBUS network. This module is an integral part of ABB’s 800xA automation platform, allowing for seamless integration of field devices such as sensors, actuators, and other controllers.
The CI 773F is engineered to support PROFIBUS DP (Decentralized Peripherals) networks, ensuring high-speed communication and efficient data exchange across the entire system. With its advanced features, the CI 773F serves as a communication bridge between the process control system and field devices, optimizing both performance and scalability.
Thanks to its compact design and lightweight construction, with dimensions of 28 × 135 × 75 mm and a weight of just 0.096 kg, the CI 773F can be easily integrated into tight spaces without sacrificing functionality. It supports a wide range of applications, from manufacturing automation to complex process control systems, and is ideal for industries such as chemical, petrochemical, food and beverage, and energy management.
Product Specifications
| Parameter | Details |
|---|---|
| Model | CI 773F |
| Product Code | 3BDH000395R0001 |
| Communication Protocol | PROFIBUS DP |
| Dimensions (W x H x D) | 28 × 135 × 75 mm |
| Weight | 0.096 kg |
| Power Supply | 24 V DC ±20% |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | DIN rail |
| Number of Ports | 1 (Master interface) |
| Supported Devices | Supports a wide range of PROFIBUS DP devices |
| Data Rate | Up to 12 Mbps |
| LED Indicators | Yes (for communication and status monitoring) |
| Redundancy Support | No |
| Certifications | CE, UL, RoHS compliant |
| Protection Class | IP20 |
Product Applications
-
Industrial Automation: The CI 773F serves as the communication interface for PROFIBUS DP devices in automation systems, providing real-time data exchange between field devices and central control systems.
-
Process Control: Ideal for industries like chemical, oil & gas, and power generation, the module facilitates the control of sensors, actuators, and other field instruments in a highly reliable manner.
-
Manufacturing Systems: The CI 773F is widely used in manufacturing plants for controlling production lines, assembly systems, and robotic equipment that require high-speed data communication.
-
Building Automation: It is also suitable for managing building systems such as lighting, HVAC, and security systems, ensuring efficient operations and real-time monitoring.
-
Energy and Utilities: The module helps control energy distribution networks by ensuring seamless communication between various devices like transformers, switches, and circuit breakers.
-
Food and Beverage: In this sector, the CI 773F supports quality control processes by integrating sensors and actuators used in packaging lines, filling systems, and other machinery.
Product Advantages
-
Fast Communication Speed: The CI 773F supports high-speed data rates of up to 12 Mbps, ensuring rapid communication across PROFIBUS DP networks for faster decision-making and control.
-
Compact Design: With dimensions of 28 × 135 × 75 mm and a weight of 0.096 kg, this module is lightweight and compact, making it easy to install in confined spaces without compromising performance.
-
Wide Compatibility: It supports a broad range of PROFIBUS DP field devices, including sensors, actuators, and control systems, making it versatile for various industrial applications.
-
Easy Integration: The CI 773F integrates seamlessly into the ABB 800xA control system, simplifying configuration and reducing the setup time for industrial automation systems.
-
Enhanced Reliability: With its robust design, the CI 773F is built to provide continuous, reliable communication in harsh industrial environments, ensuring system uptime and operational efficiency.
-
LED Indicators: The module features LED indicators for communication status and diagnostics, enabling easy monitoring and troubleshooting.
-
Energy Efficient: The module operates efficiently, consuming minimal power while providing high-speed communication capabilities.
-
Scalable: The CI 773F can be used in small-scale applications as well as large, complex systems, offering scalability for growing industrial needs.
-
Industry Certifications: The module is CE, UL, and RoHS certified, meeting stringent international standards for quality and safety.
-
Cost-Effective: Offering high performance at a competitive price, the CI 773F is an affordable solution for industries looking to optimize their automation systems.
Frequently Asked Questions (FAQ)
-
What is the CI 773F PROFIBUS DP Master Module used for?
The CI 773F serves as a communication interface between the central control system and PROFIBUS DP field devices, enabling real-time data exchange and control. -
What are the dimensions of the CI 773F?
The module has dimensions of 28 × 135 × 75 mm and weighs approximately 0.096 kg. -
What is the communication protocol supported by the CI 773F?
The module supports the PROFIBUS DP communication protocol for industrial automation systems. -
Can the CI 773F be mounted on a DIN rail?
Yes, the module is designed for easy DIN rail mounting, simplifying installation and system setup. -
What is the maximum data transfer rate of the CI 773F?
The module supports a data transfer rate of up to 12 Mbps. -
Is the CI 773F compatible with other PROFIBUS DP devices?
Yes, the CI 773F supports a wide range of PROFIBUS DP field devices, including sensors, actuators, and control systems. -
Does the CI 773F offer redundancy support?
No, the CI 773F does not support redundancy; however, it is designed to be highly reliable in industrial environments. -
What is the power supply requirement for the CI 773F?
The module operates with a 24 V DC ±20% power supply. -
What certifications does the CI 773F have?
The CI 773F is CE, UL, and RoHS compliant, ensuring it meets international safety and quality standards. -
Can the CI 773F be used in process control applications?
Yes, the CI 773F is ideal for process control systems, particularly in industries such as chemical, petrochemical, and manufacturing.
