Product Description

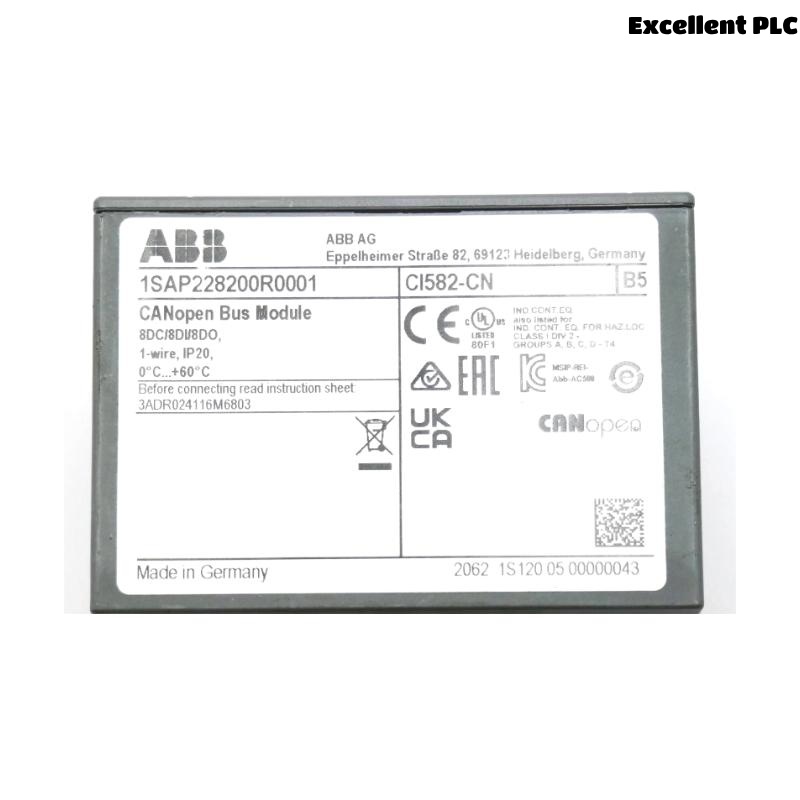

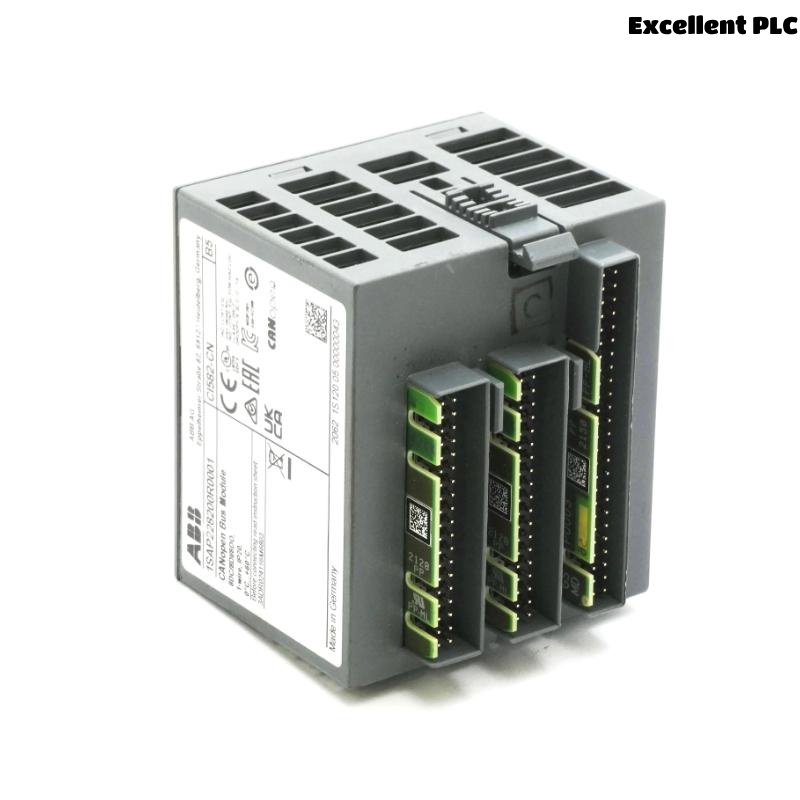

The ABB CI582-CN is a CANopen communication interface module designed for use with the AC500 and S500 systems. It integrates seamlessly into industrial automation environments, providing reliable communication and flexible digital I/O capability (8 DI, 8 DO, 8 configurable DC). The module supports various transmission rates and features galvanic isolation, making it suitable for demanding applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 1SAP228200R0001 |
| Interface | CAN |
| Protocol | CANopen |
| Digital Inputs | 8 |
| Digital Outputs | 8 |
| Configurable DC Channels | 8 |
| Transmission Rates | 10–1000 kbit/s |
| External Supply Voltage | 24 V DC |
| Mounting | DIN rail, horizontal/vertical |
| Dimensions (W × H × D) | 62 × 76 × 67.5 mm |
| Weight | 0.13 kg |
| Operating Temperature | 0°C … +60°C (horizontal) |
| Protection | IP20 |
| Galvanic Isolation | Yes |
| Processor | Hilscher NETX 100 |
| Max Power Dissipation | 6 W |
Applications
-
Industrial automation and control systems
-
Machine communication networks via CANopen
-
Distributed I/O in manufacturing plants
-
Process control environments requiring reliable, high-speed communication
Advantages
-
Compact design with DIN rail mounting
-
CANopen support with wide baud rate range
-
Individually protected I/O channels
-
Flexible configuration of channels as input/output
-
Robust against overloads, reverse polarity, and short circuits
-
Status indication via LEDs for easy diagnostics
FAQ
Q1: What protocol does the CI582-CN support?
A1: The CI582-CN supports the CANopen communication protocol.
Q2: How many digital inputs and outputs does the module have?
A2: It provides 8 digital inputs, 8 digital outputs, and 8 configurable DC channels.
Q3: Is the CI582-CN suitable for vertical mounting?
A3: Yes, but output load is reduced to 50% when mounted vertically.
Q4: What is the supply voltage for the module?
A4: The module operates on a 24 V DC supply voltage.
Q5: Does the module provide galvanic isolation?
A5: Yes, the CANopen interface is galvanically isolated from the rest of the module.
Q6: Can the CI582-CN be used in harsh industrial environments?
A6: Yes, it is designed for industrial use and is robust against electrical disturbances.
Q7: What is the maximum transmission rate supported?
A7: It supports up to 1 Mbit/s.
Q8: What is the weight of the CI582-CN?
A8: The weight is approximately 0.13 kg.
Q9: Are the I/O channels protected against incorrect wiring?
A9: Yes, they are protected against reverse polarity, short circuits, and overvoltage up to 30 V DC.
Q10: Does the module support auto baud rate detection?
A10: Yes, auto transmission rate detection is supported.
