Product Description

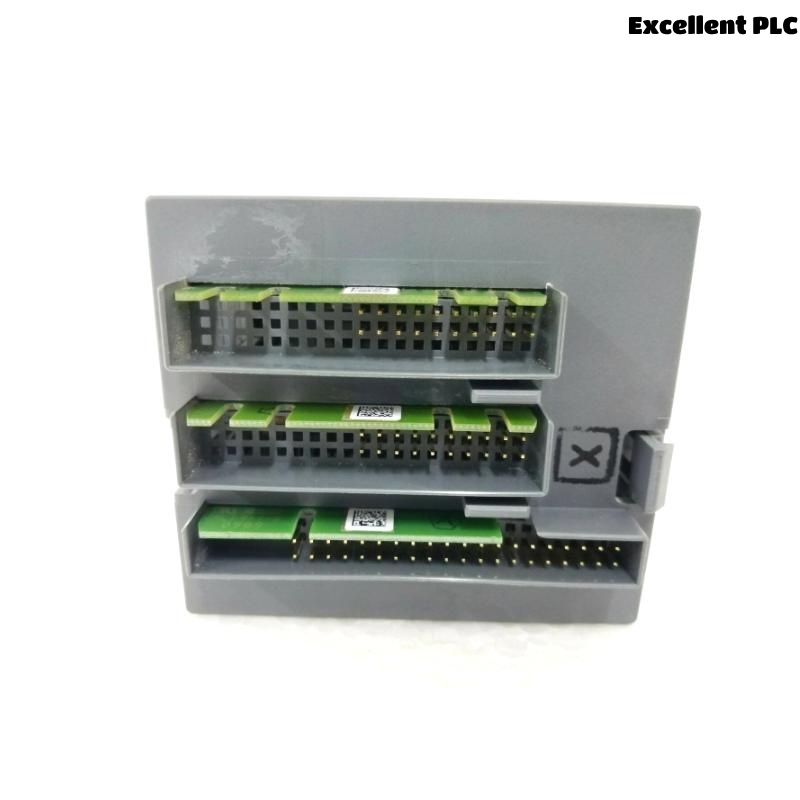

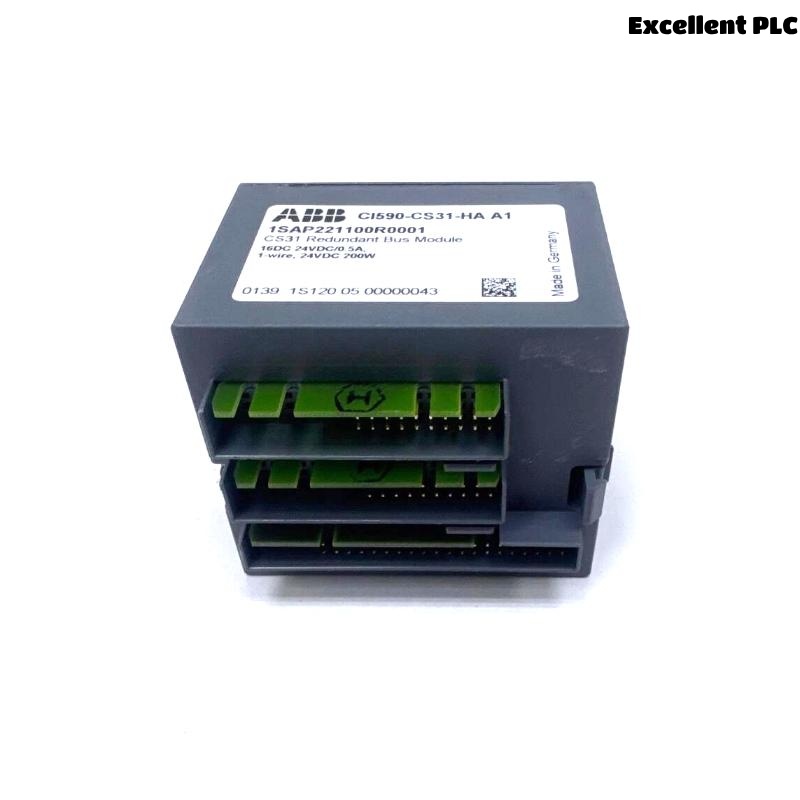

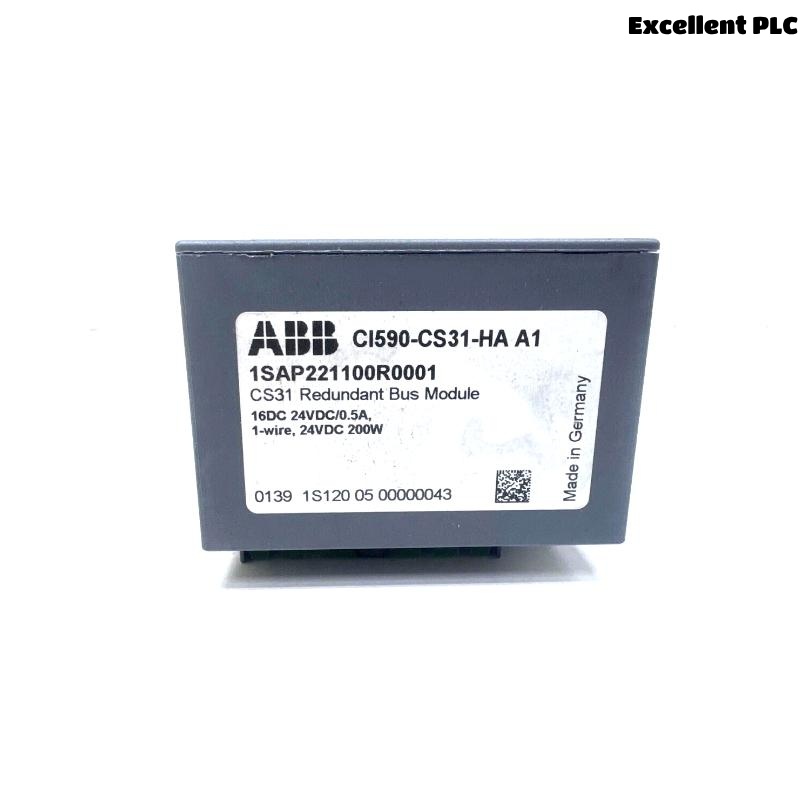

The ABB CI590-CS31-HA is a redundant communication interface module designed for the AC500 PLC series. It enables seamless connection of S500 I/O modules over the CS31 bus. The module supports up to 16 configurable digital inputs/outputs and is engineered for high reliability in industrial automation.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 1SAP221100R0001 |
| Bus Interface | CS31 (redundant) |
| Rated Supply Voltage | 24 V DC |
| Current Consumption | 50 mA (typical) |
| Max Power Dissipation | 6 W (outputs unloaded) |
| Digital I/O Channels | 16 (configurable) |
| Input Voltage Range | 24 V DC (signal 1: 15–30 V) |
| Output Current per Channel | 500 mA |
| Output Current Max (all) | 10 A |
| Mounting | DIN rail (horizontal/vertical) |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +70 °C |
| Dimensions | 62 × 76 × 67.5 mm |
| Weight | 0.119 kg |
Applications
-
Industrial automation systems using AC500 PLC
-
Redundant communication in critical control systems
-
Distributed I/O configurations with S500 modules
-
Applications requiring reliable galvanic isolation and fast response
Advantages
-
Supports redundant communication for higher reliability
-
Configurable digital I/O channels for flexible application
-
Integrated protection against short circuits and overvoltage
-
Compact design saves panel space
-
Easy diagnosis with 27 LED indicators
FAQ
Q1: What type of bus does the CI590-CS31-HA support?
A1: It supports the redundant CS31 communication bus.
Q2: How many digital I/O channels are available?
A2: The module has 16 configurable digital inputs/outputs.
Q3: Can the module operate vertically?
A3: Yes, it supports both horizontal and vertical mounting.
Q4: What is the maximum output current per channel?
A4: Each output can handle up to 500 mA at 24 V DC.
Q5: Does the module offer galvanic isolation?
A5: Yes, between I/O channels and the rest of the module.
Q6: Is this module suitable for harsh environments?
A6: It operates at up to 95% humidity without condensation and within -40°C to +70°C storage temperatures.
Q7: How are the inputs and outputs protected?
A7: All channels are protected against reverse polarity, short circuits, and temporary overvoltage up to 30 V DC.

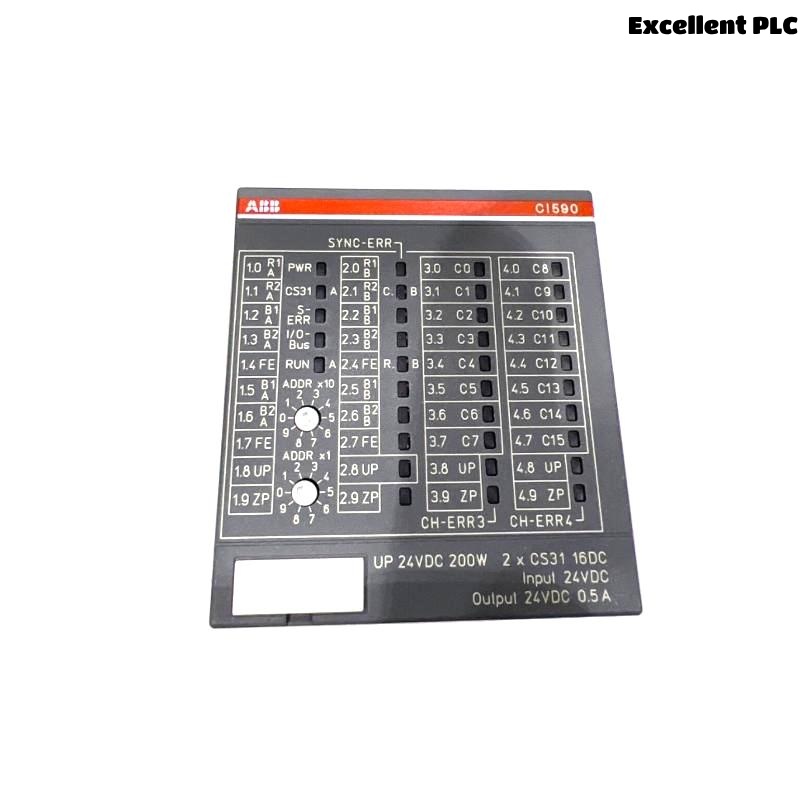

Q8: What kind of diagnostic features are available?
A8: It includes two rotary address switches and 27 LEDs for diagnostics.
Q9: What is the recommended mounting rail?
A9: A standard 35 mm DIN rail according to IEC 60715.
Q10: Does the module require external fusing?
A10: Yes, a 10 A fast protection fuse on the 24 V supply is recommended.
