Product Description

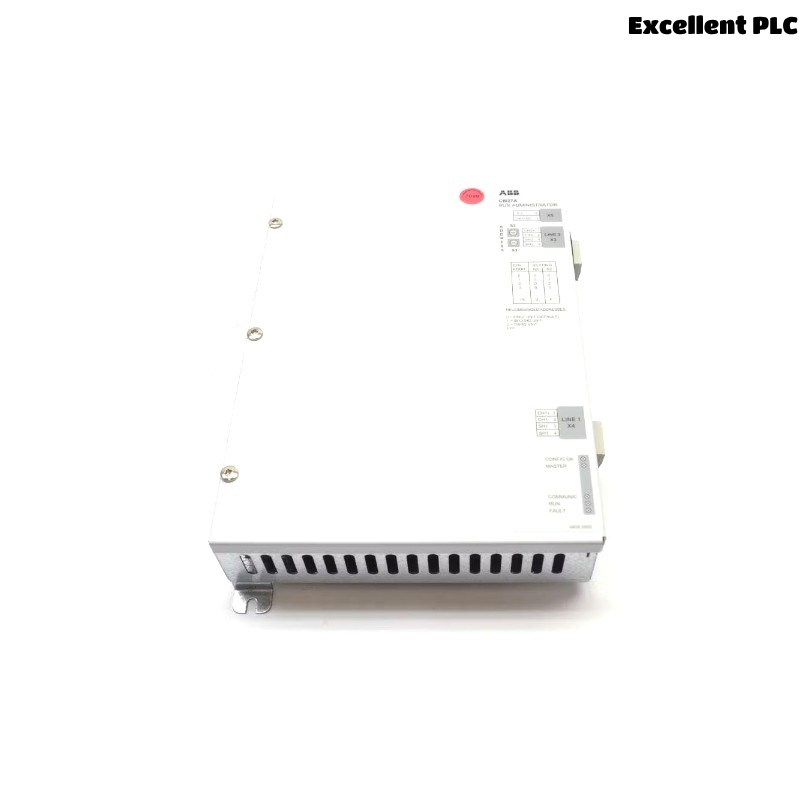

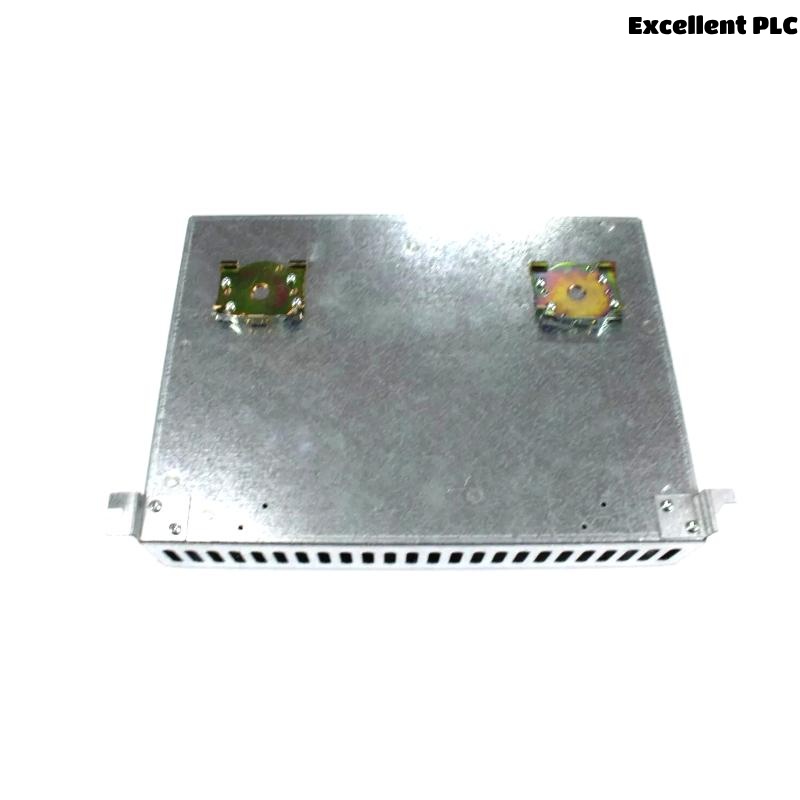

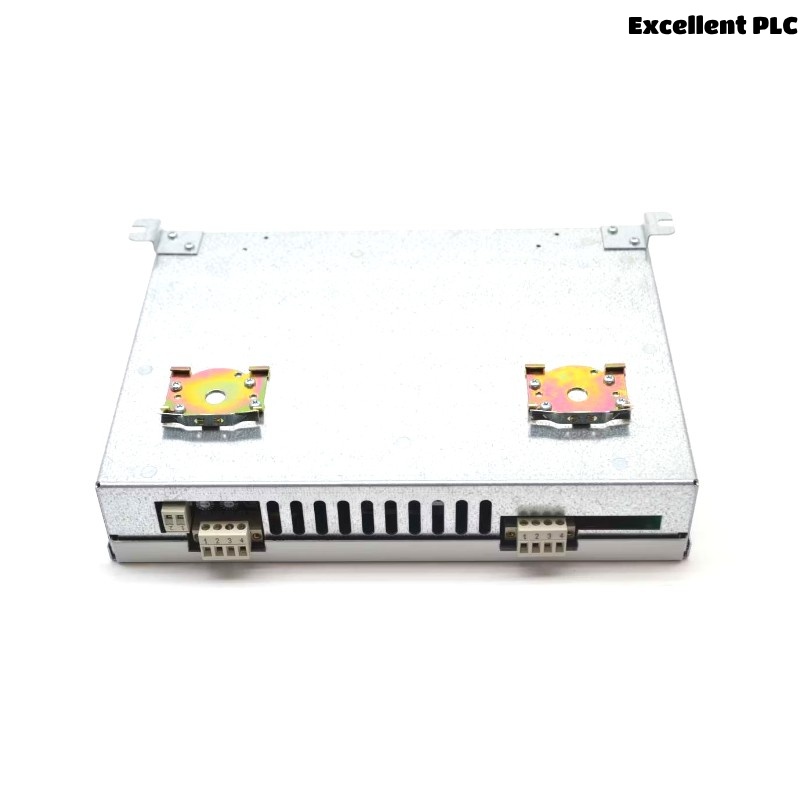

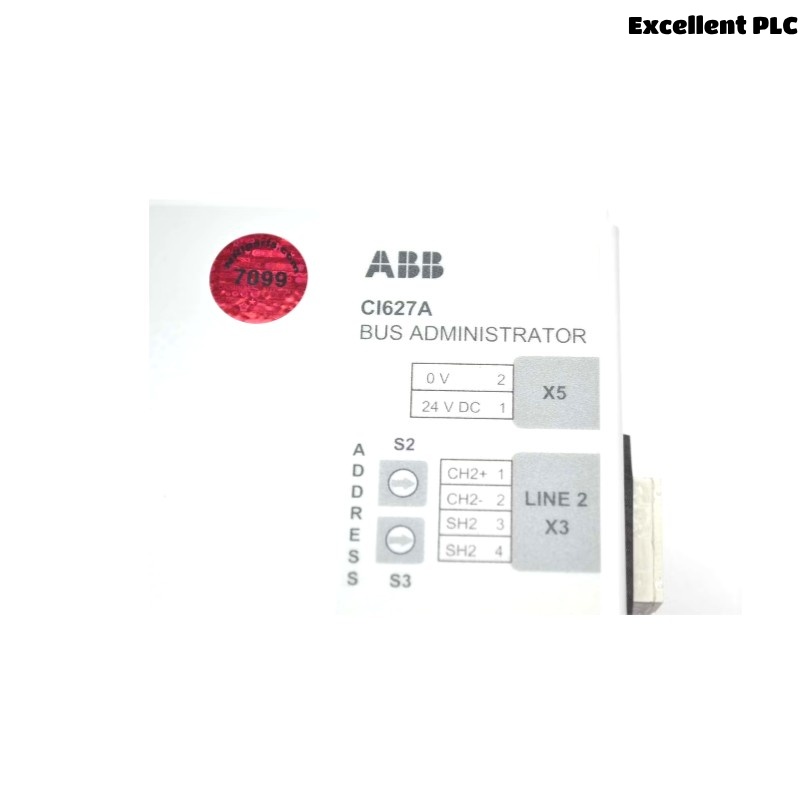

The ABB CI627A 3BSE017457R1 is a high-performance AF100 communication interface module designed for Advant Controller 110 and 160 systems. It connects the controller to the Advant Fieldbus 100 using redundant twisted pair connections with an integrated modem. It ensures reliable, redundant communication in industrial automation networks, providing high availability and robust data transfer.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CI627A |
| Part Number | 3BSE017457R1 |
| Interface Type | AF100 Communication Interface |
| Supported Media | Redundant Twisted Pair |
| Redundancy | Supported |
| Integrated Modem | Yes |
| Compatible Controllers | Advant Controller 110, 160 |
| Dimensions (H×W×D) | 26 × 75 × 75 mm |
| Weight | 0.2 kg |
Applications
-
Industrial process automation
-
High-reliability controller networks
-
Redundant communication systems
-
Advant Controller 110/160 integration into AF100 bus
-
Systems requiring minimal downtime and robust data exchange
Advantages
-
Full redundant media support for high availability
-
Integrated twisted pair modem reduces cabling complexity
-
Compact size and light weight for easy installation
-
Compatible with ABB Advant Fieldbus 100 and Advant Controllers
-
Enables seamless and reliable communication across industrial networks
Frequently Asked Questions (FAQ)
Q1: What controllers is the CI627A compatible with?
A1: The CI627A is designed for Advant Controller 110 and 160.
Q2: Does the CI627A support redundancy?
A2: Yes, it supports full redundant twisted pair media.
Q3: Is an external modem required?
A3: No, the CI627A includes an integrated twisted pair modem.
Q4: What type of fieldbus does the CI627A connect to?
A4: It connects to the Advant Fieldbus 100 (AF100).
Q5: What is the installation footprint of the module?
A5: The module measures 26 × 75 × 75 mm and weighs 0.2 kg.
Q6: Can the CI627A be used in non-redundant systems?
A6: Yes, but it is specifically designed to support redundant configurations.
Q7: What is the main benefit of using redundant twisted pair connections?
A7: It improves communication reliability and reduces the risk of downtime.
Q8: Does it require specific cabling?
A8: Yes, it uses standard twisted pair cabling compatible with AF100.
Q9: Is the CI627A hot-swappable?
A9: No, it should be installed or replaced with the system powered down.
Q10: What is the role of the integrated modem?
A10: It provides signal conversion and amplification for reliable bus communication.
