Product Introduction

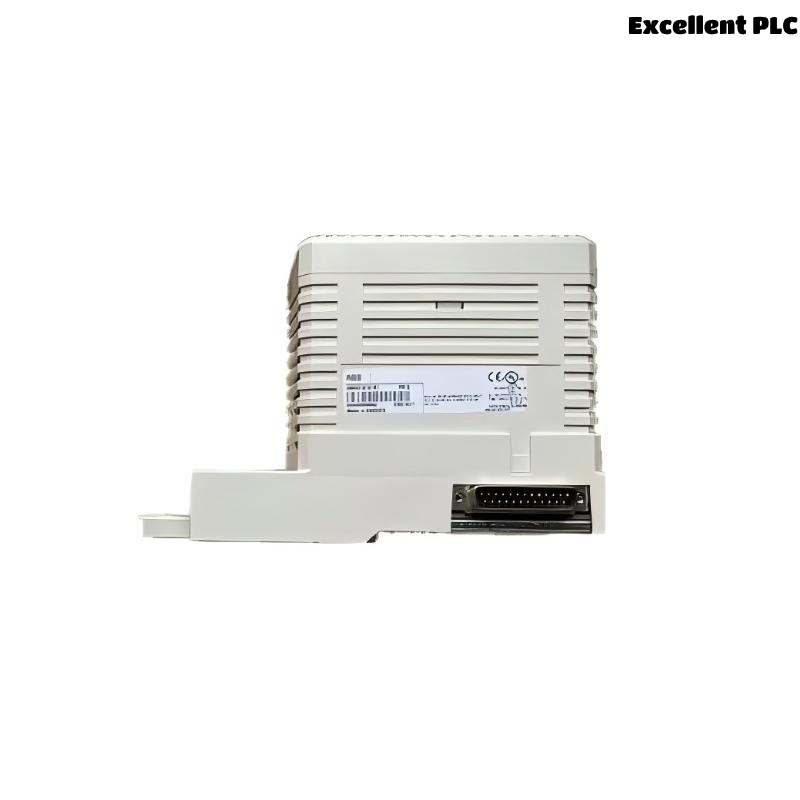

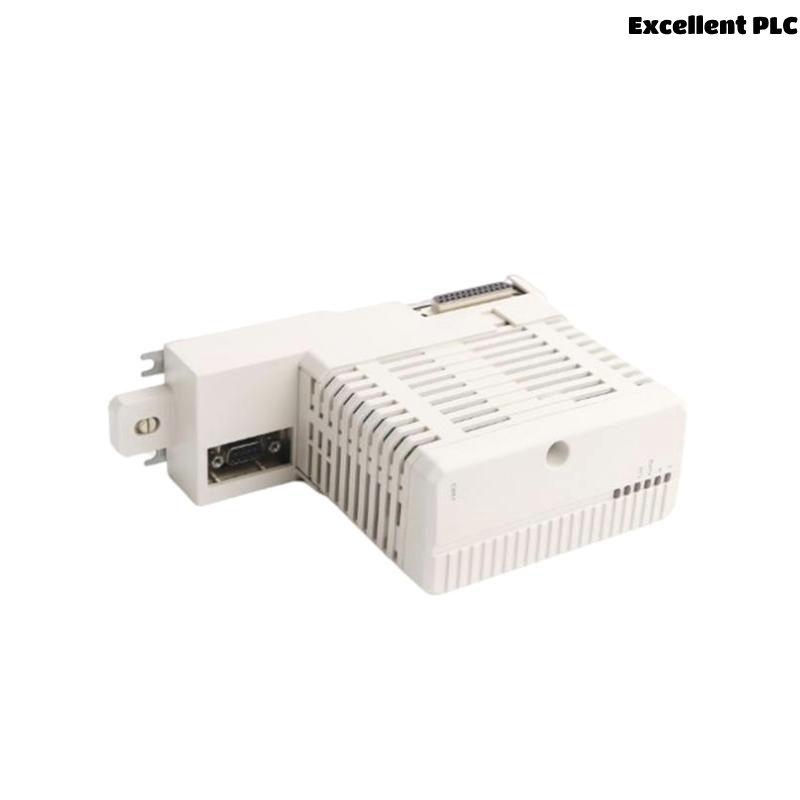

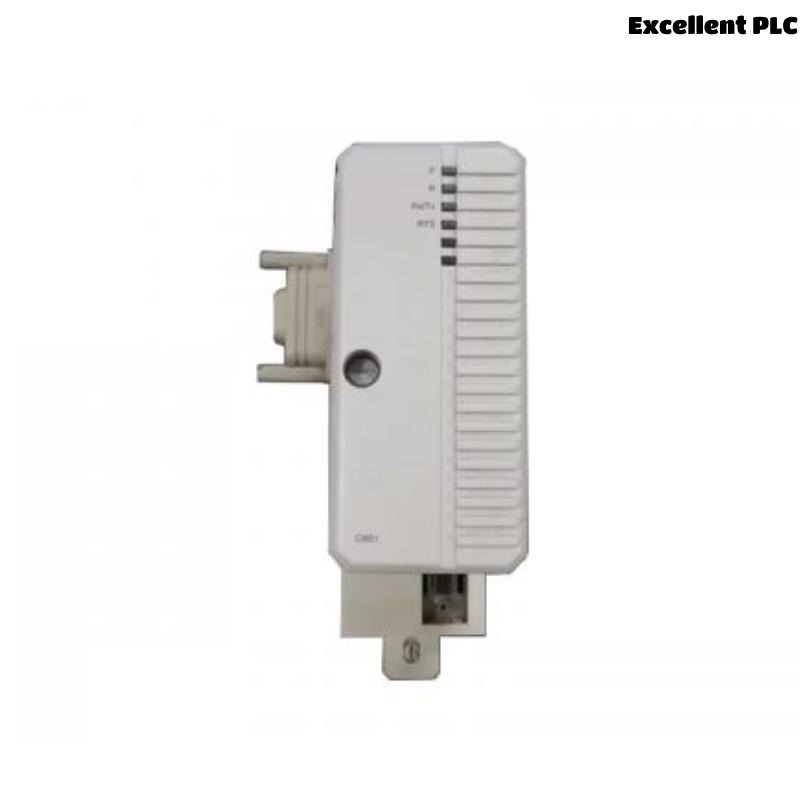

The ABB CI851K01 (3BSE018101R1) is an advanced interface module designed to facilitate robust and efficient communication between ABB’s AC 800M control system and the S800 I/O field modules. Acting as a gateway, this module enables smooth data exchange across the system’s decentralized I/O units and central processing units by supporting various industrial communication protocols.
Engineered with precision and durability, the CI851K01 is built to withstand demanding industrial environments, ensuring stable and uninterrupted performance. Its design prioritizes easy installation, maintenance, and scalability, making it an ideal choice for complex automation systems in power plants, manufacturing, and process industries.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | CI851K01 Interface Module |
| Part Number | 3BSE018101R1 |
| System Compatibility | ABB AC 800M, S800 I/O System |
| Communication Protocol | PROFIBUS-DP, Modbus (optional) |
| Power Supply | 24 V DC |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Mounting Type | DIN Rail |
| Dimensions (W x H x D) | 210 x 160 x 90 mm |
| Weight | 0.3 kg |
| IP Protection Class | IP20 |
| Certifications | CE, UL, RoHS Compliant |
Product Applications
The CI851K01 interface module is widely used in:
-
Power Generation: Enables reliable communication in thermal, hydroelectric, and renewable power plants.
-
Oil & Gas Industry: Integrates control systems with remote field I/O for pipeline monitoring and refinery automation.
-
Chemical Processing: Supports flexible and secure data transfer for process automation under harsh conditions.
-
Water and Wastewater Treatment: Provides robust data links between sensors and control units for efficient plant management.
-
Pharmaceutical Manufacturing: Ensures precise control and monitoring in compliance-regulated environments.
-
Industrial Manufacturing: Enhances real-time data exchange for assembly lines, packaging, and material handling.
Product Advantages
-
Versatile Communication: Supports multiple industrial protocols ensuring compatibility with various field devices.
-
Robust Design: Engineered to tolerate wide temperature and humidity ranges, vibrations, and electrical noise.
-
Compact and Lightweight: The module’s small footprint and low weight make it suitable for dense cabinet installations.
-
Easy Installation and Maintenance: DIN rail mounting and modular design allow quick setup and straightforward servicing.
-
Scalable Architecture: Seamlessly integrates with ABB’s modular automation systems, enabling future expansion.
-
High Reliability: Designed to deliver consistent and uninterrupted communication for mission-critical applications.
Frequently Asked Questions (FAQ)
Q1: What communication protocols does the CI851K01 support?
A1: It supports PROFIBUS-DP primarily, with optional Modbus communication available depending on configuration.
Q2: What are the physical dimensions and weight of the module?
A2: The dimensions are 210 x 160 x 90 mm and the weight is approximately 0.3 kg.
Q3: Can the CI851K01 operate in harsh industrial environments?
A3: Yes, it is designed to operate within -25°C to +70°C and withstand humidity levels from 5% to 95% non-condensing.
Q4: Is the module compatible with ABB AC 800M systems?
A4: Yes, it is specifically designed to interface with the AC 800M control systems and S800 I/O modules.
Q5: How is the CI851K01 mounted?
A5: It is mounted on a standard DIN rail for easy installation within control cabinets.
Q6: What power supply does the module require?
A6: It requires a 24 V DC power supply.
Q7: Does the module support hot-swapping?
A7: The module supports maintenance-friendly features but hot-swapping capability depends on the overall system configuration.
Q8: What certifications does the CI851K01 have?
A8: The module complies with CE, UL, and RoHS standards.
Q9: How can I monitor the module’s status and diagnostics?
A9: It supports standard PROFIBUS diagnostics and system monitoring tools available within ABB’s control environment.
Q10: Can the module be used in water treatment plants?
A10: Yes, it is widely used in water and wastewater treatment for reliable communication between sensors and controllers.
Related Models (Same Series or Interface-Compatible)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| CI850K01 | Interface Module for S800 I/O Systems | 210 x 160 x 90 | 0.3 kg |
| CI852K01 | PROFIBUS-DP Interface with Redundancy | 210 x 160 x 90 | 0.35 kg |
| CI853K02 | DeviceNet Interface Module | 210 x 160 x 90 | 0.33 kg |
| CI854K01 | Foundation Fieldbus Interface Module | 210 x 160 x 90 | 0.34 kg |
| CI855K01 | Modbus RTU Interface Module | 210 x 160 x 90 | 0.32 kg |
| CI856K01 | PROFIBUS-DP Fiber Optic Interface | 210 x 160 x 90 | 0.36 kg |
Popular ABB Modules (Same Brand)
| Model | Description | Communication Protocol | Dimensions & Weight |
|---|---|---|---|
| CI857K01 | Interface module for PROFIBUS-DPV1 | PROFIBUS-DPV1 | 210 x 160 x 90 mm, 0.3 kg |
| CI856K01 | Interface module for PROFINET I/O | PROFINET IO | 210 x 160 x 90 mm, 0.3 kg |
| CI858-1 | Interface module for IEC 61850 | IEC 61850 | 210 x 160 x 90 mm, 0.3 kg |
| CI860K01 | Interface module for Modbus TCP/IP | Modbus TCP/IP | 210 x 160 x 90 mm, 0.3 kg |
| CI853K01 | Dual-channel PROFIBUS interface | PROFIBUS-DPV1 | 210 x 160 x 90 mm, 0.3 kg |
| CI862K01 | CAN communication interface module | CANopen | 210 x 160 x 90 mm, 0.3 kg |
