Product Overview

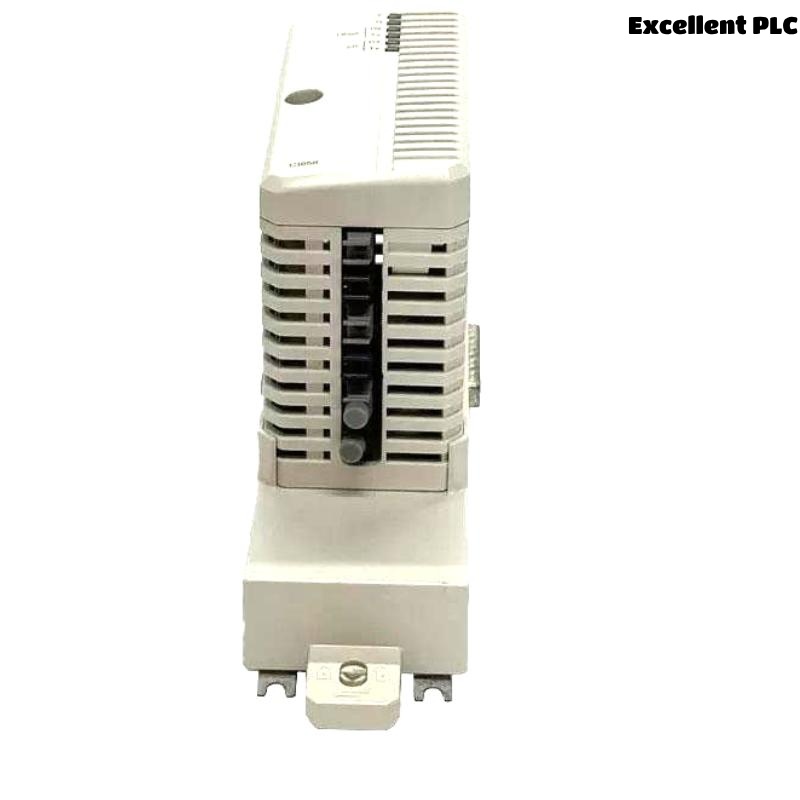

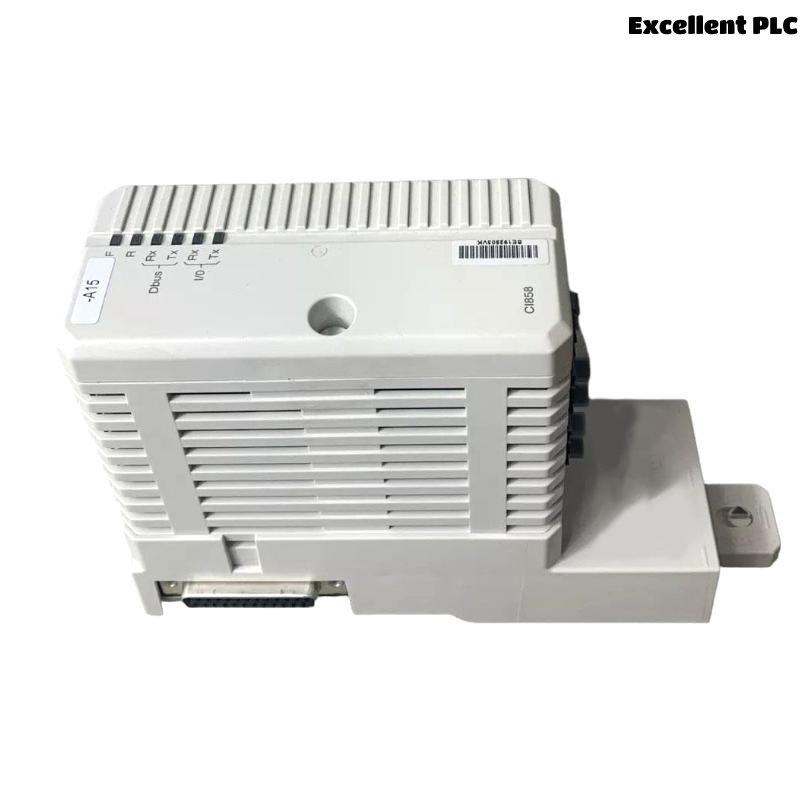

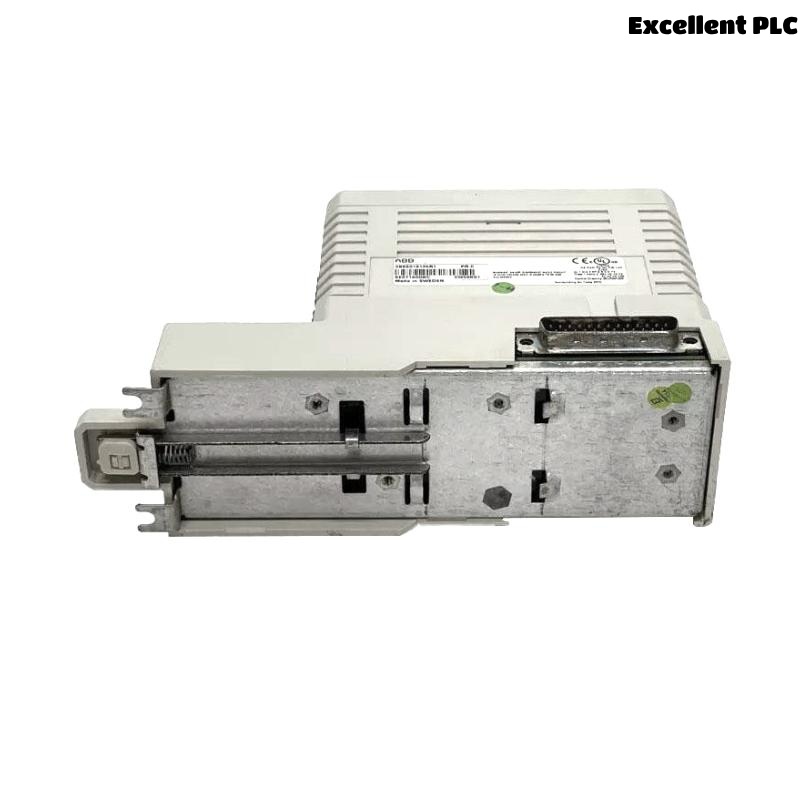

The ABB CI858K01 / CI858 (3BSE018135R1) is a communication interface module designed for seamless integration between ABB Drives and the AC 800M controller using ABB’s proprietary DriveBus protocol. It is particularly optimized for sectional drive systems, such as those in paper machines and rolling mills, enabling fast and reliable communication in industrial automation setups.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | 3BSE018135R1 |
| Communication Protocol | ABB DriveBus |
| Communication Speed | 8 Mbit/s |
| Connection Type | Optical |
| Max ABB Drives per CI858 | 24 |
| Max CI858 Modules per Controller | 2 |
| Hot Swap Support | Yes |
| External Power Requirement | None (powered via CEX-Bus) |
| 24V Current Consumption (typical) | 200 mA |
| Operating Temperature Range | +5°C to +55°C (+41°F to +131°F) |
| Storage Temperature Range | -40°C to +70°C (-40°F to +158°F) |
| Environmental Protection | IP20, G3 compliant to ISA 71.04 |
| Certifications | CE, RoHS, WEEE, ABS, BV, DNV-GL, LR |
| Dimensions (W x H x D) | 59 x 186 x 127.5 mm |
| Weight | 0.7 kg (700 g) |
Applications
-
Sectional drive systems for ABB paper machine controls
-
ABB rolling mill drive automation
-
Industrial communication interface between AC 800M controllers and ABB Drives
-
Systems requiring high-speed optical DriveBus communication
-
Applications requiring hot-swappable modules for minimized downtime
Product Advantages
-
High-speed communication via 8 Mbit/s optical DriveBus interface
-
Supports Hot Swap, ensuring easy module replacement without system interruption
-
No external power supply required—simplifies installation and reduces wiring
-
Reliable ABB brand quality with marine and industrial certifications
-
Expandable architecture, supporting up to 24 drives per CI858 and up to two CI858s per controller
-
Compact form factor with durable IP20 housing
Frequently Asked Questions (FAQ)
Q1: What protocol does the CI858 module use?
A1: It uses ABB’s proprietary DriveBus protocol for communication with ABB drives.
Q2: How many drives can a single CI858 module support?
A2: One CI858 can support up to 24 ABB drives.
Q3: Is the CI858 hot-swappable?
A3: Yes, it supports hot swapping for uninterrupted operation.
Q4: Does the CI858 require an external power supply?
A4: No, it is powered by the AC 800M controller via the CEX-Bus.
Q5: Can I connect multiple CI858 modules to one controller?
A5: Yes, up to two CI858 modules can be connected to a single AC 800M controller.
Q6: What type of connector does the CI858 use?
A6: It uses an optical connector for DriveBus communication.
Q7: What is the operating temperature range of this module?
A7: It operates between +5°C and +55°C.
Q8: Is the CI858 compliant with marine and industrial standards?
A8: Yes, it holds marine certifications (ABS, BV, DNV-GL, LR) and complies with CE, RoHS, and WEEE.
Q9: What are the physical dimensions of the module?
A9: 59 mm x 186 mm x 127.5 mm.
Q10: What is the typical current consumption at 24V?
A10: Approximately 200 mA.
