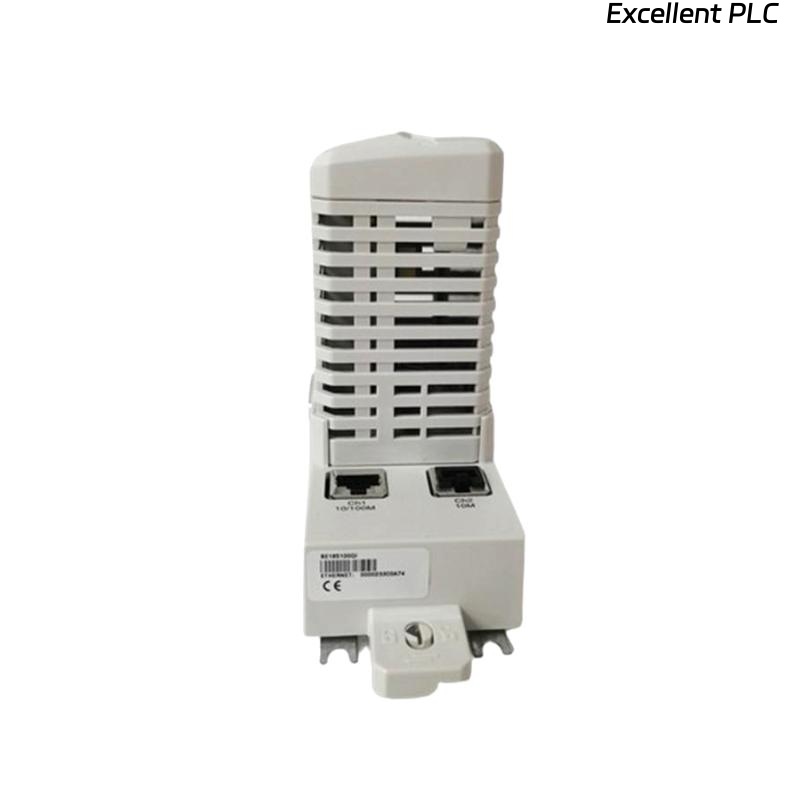

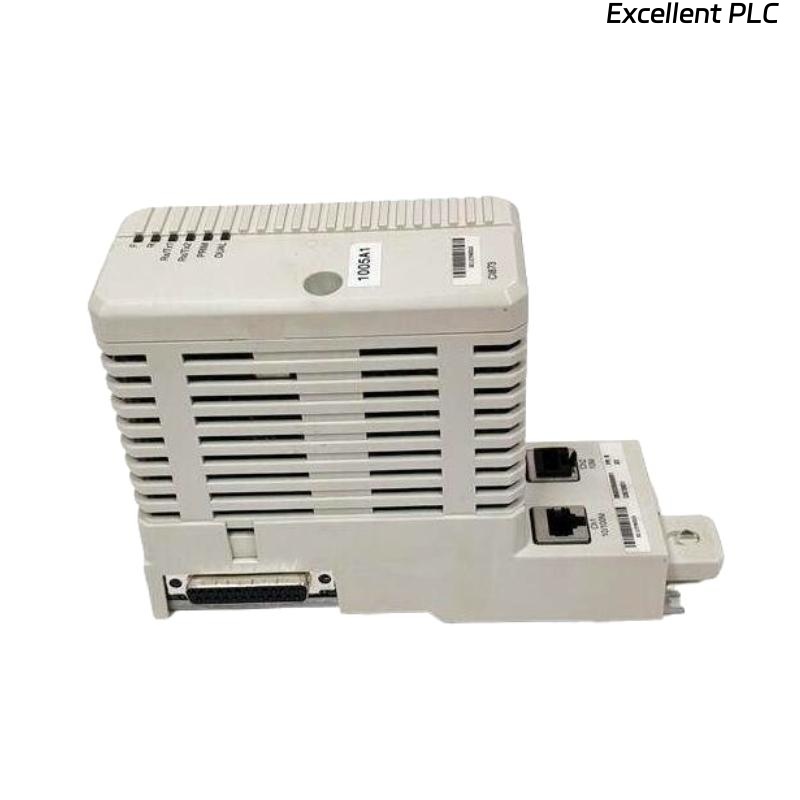

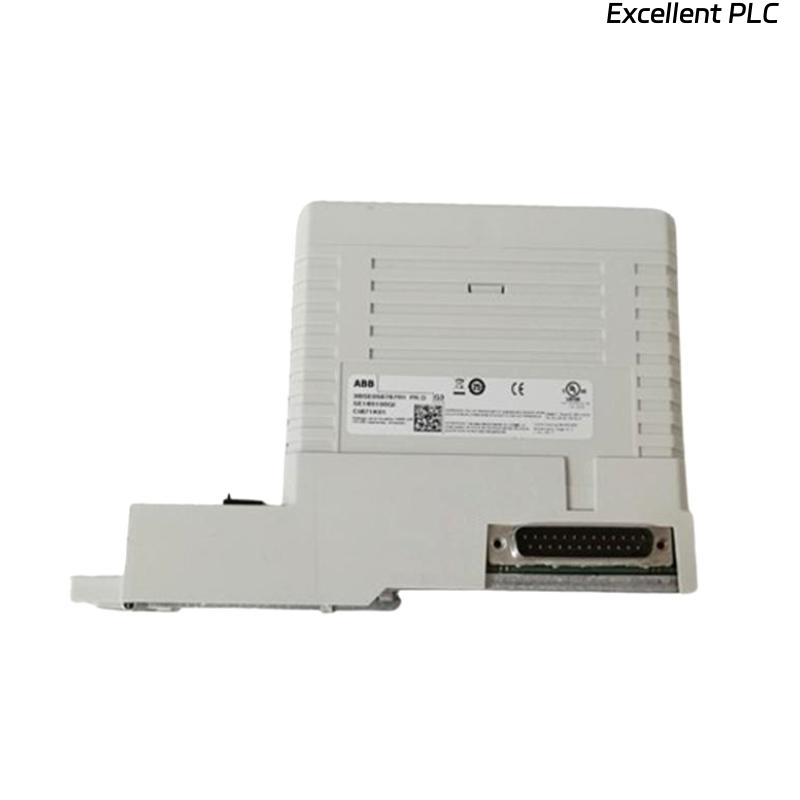

The ABB CI873K01 3BSE056899R1 Communication Interface Module is an advanced communication unit designed to integrate seamlessly within ABB’s AC 800M controller family. It acts as a bridge between control systems and field devices, ensuring high-speed, reliable, and deterministic communication in industrial automation networks.

This module enables efficient data transfer across distributed control systems, allowing operators to manage complex processes with precision and security. It supports multiple industrial communication protocols and provides flexible connectivity for fieldbus systems, Ethernet networks, and serial communication channels.

With a rugged design and high immunity to electrical interference, the CI873K01 is ideal for demanding environments such as power plants, petrochemical facilities, and manufacturing automation systems. Its plug-in configuration and diagnostic capabilities simplify integration, reduce commissioning time, and enhance system reliability.

---

Technical Specifications

---

Product Applications

The ABB CI873K01 3BSE056899R1 module is designed for industrial communication and automation control. It serves as a central link between process controllers and field devices, ensuring accurate and synchronized information flow across multiple system layers. Its typical applications include:

• Process Automation Systems: Provides real-time communication between controllers, I/O modules, and operator stations.

• Power Generation and Distribution: Integrates with ABB 800xA systems for turbine control, substations, and grid management.

• Petrochemical and Refining Plants: Ensures reliable fieldbus communication for instrumentation and safety systems.

• Pulp and Paper Industry: Supports large-scale control systems requiring deterministic data transfer for process stability.

• Metallurgy and Mining: Used in distributed control networks for conveyor systems, furnaces, and power control.

• Marine and Offshore Automation: Enables robust data exchange in dynamic environments with high vibration resistance.

The CI873K01 provides high interoperability, enabling communication with both ABB and third-party devices. It supports redundant configurations for enhanced system availability and integrates seamlessly with plant-wide monitoring systems.

---

Product Advantages

• High-Speed Data Communication: Supports up to 100 Mbps Ethernet with deterministic data transfer for real-time control.

• Flexible Protocol Support: Compatible with Modbus TCP, PROFIBUS, and Ethernet/IP, ensuring broad connectivity.

• Seamless Integration: Designed for ABB AC 800M and 800xA architectures, providing plug-and-play compatibility.

• Built-in Diagnostics: LED indicators and advanced fault detection features simplify troubleshooting and maintenance.

• Robust Design: Industrial-grade construction ensures resistance to temperature fluctuations, vibration, and electrical noise.

• Redundancy Ready: Supports redundant communication configurations for maximum system uptime.

• High Electromagnetic Immunity: EMC-compliant design ensures stable performance in electrically noisy environments.

• Compact and Modular: Space-saving design fits neatly within ABB control cabinets and modular racks.

• Energy Efficient: Low power consumption contributes to reduced system operational costs.

• Future-Proof Platform: Designed for scalability and compatibility with future ABB automation updates.

---

FAQ

1. Which ABB control systems are compatible with the CI873K01 module?
   It is fully compatible with ABB AC 800M, 800xA, and Symphony Plus control systems.

2. What communication protocols does the module support?
   It supports Ethernet/IP, PROFIBUS DP, Modbus TCP, and Foundation Fieldbus.

3. Can the CI873K01 be configured for redundant communication?
   Yes, it can be used in redundant network topologies for high availability applications.

4. How is diagnostic information provided by the module?
   Diagnostic information is displayed through LED indicators and available via system diagnostic tools.

5. Is the module capable of real-time data exchange?
   Yes, it provides deterministic communication suitable for real-time control environments.

6. How many Ethernet interfaces are included in the CI873K01?
   The module provides two RJ45 Ethernet ports for flexible networking.

7. Does the CI873K01 support mixed-protocol configurations?
   Yes, it can operate with multiple protocols simultaneously depending on system configuration.

8. What isolation protection does it provide between communication ports?
   It offers 1500 V DC galvanic isolation to protect against electrical disturbances.

9. How is the module mounted in the control cabinet?
   It can be installed via a standard DIN rail or directly into ABB rack systems.

10. What diagnostic tools are used for configuring and monitoring the CI873K01?
    Configuration and diagnostics can be performed using ABB’s Control Builder M engineering software.

---
