Product Overview

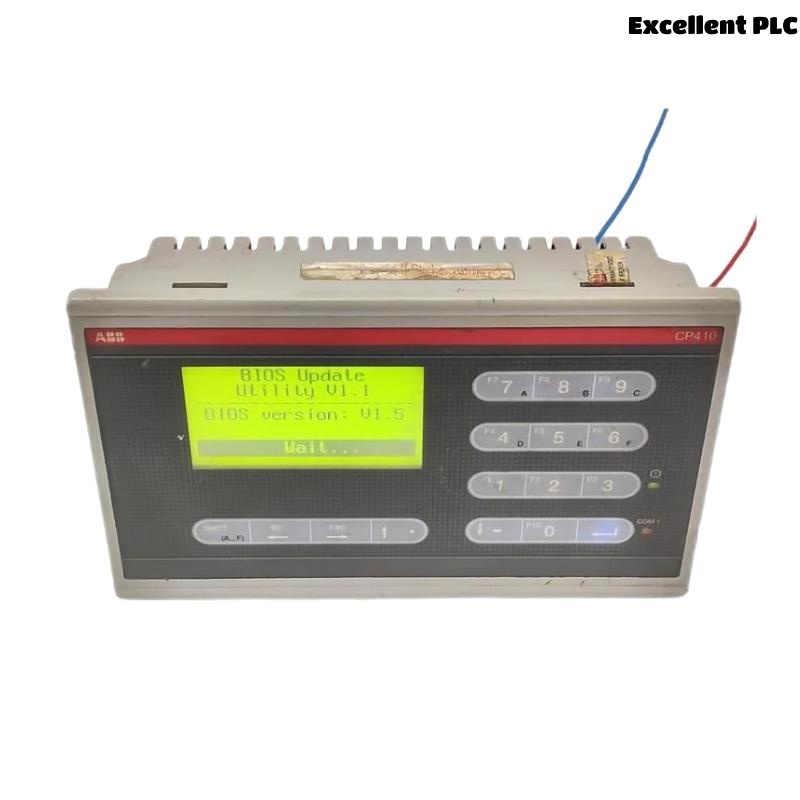

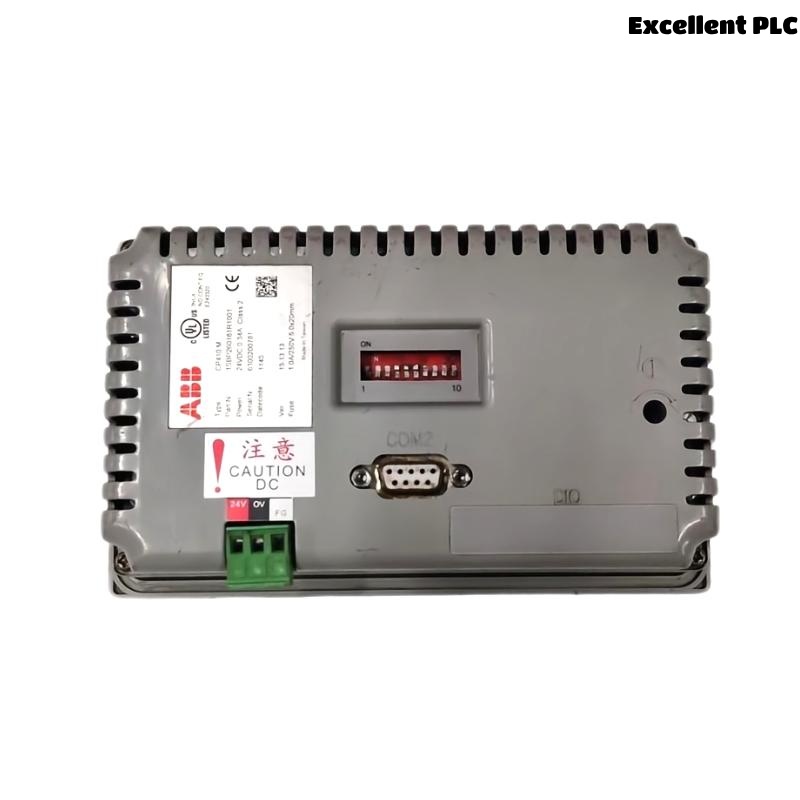

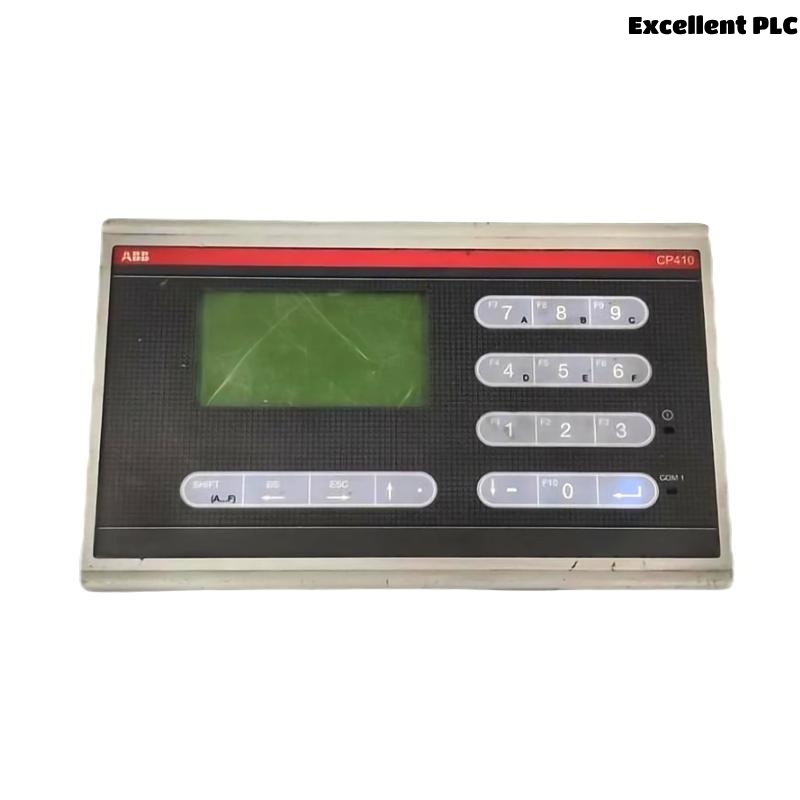

The ABB CP410M 1SBP260181R1001 Control Panel is a compact, user-friendly operator interface designed for use with ABB low-voltage variable speed drives, particularly the ACS355 and ACS310 series. This panel provides a convenient method for configuring, monitoring, and controlling drive parameters without the need for additional programming tools or a laptop.
Featuring an intuitive interface with a bright backlit display and soft-touch membrane keys, the CP410M makes it easy for operators and maintenance personnel to quickly access key drive functions. It allows real-time parameter changes, drive diagnostics, monitoring of process variables, and storage of parameter sets for faster commissioning or replacement of drives.
Engineered to meet the rugged requirements of industrial environments, the CP410M is compact, lightweight, and easy to mount on the drive or remotely via panel mounting accessories. It supports multiple languages and features plug-and-play compatibility with ABB drive families, helping to minimize downtime and speed up system configuration.
Product Specifications
| Parameter | Value |
|---|---|
| Model | CP410M |
| Product Code | 1SBP260181R1001 |
| Product Type | Control Panel / Operator Panel |
| Display Type | Monochrome LCD with backlight |
| Display Resolution | 2-line × 16-character |
| Keys | 6 membrane keys (Start/Stop, Up/Down, Left/Right, Enter) |
| Drive Compatibility | ABB ACS310, ACS355, ACS150, ACS550 |
| Supported Languages | Multi-language support |
| Parameter Storage | Up to 3 parameter sets |
| Operating Voltage | Powered by drive (5 VDC) |
| Communication Interface | Panel bus / Drive connector |
| Protection Class (Front) | IP54 (panel-mounted), IP20 (hand-held) |
| Operating Temperature Range | -10 °C to +50 °C |
| Storage Temperature Range | -20 °C to +70 °C |
| Humidity | 5% to 95% RH non-condensing |
| Mounting | Drive-mounted, handheld, or panel-mounted (with optional kit) |
| Certifications | CE, UL, cULus |
| Dimensions (W × H × D) | 173 x 105.5 x 7.8 mm |
| Weight | 0.37 kg |
| Compliance Standards | EN 61800-5-1, EN 61000-6-4, EN 61000-6-2 |
| Parameter Backup / Restore | Supported |
Applications
The ABB CP410M Control Panel is widely used in a variety of industrial and commercial settings where low-voltage drives are deployed:
-
Pumping Systems
Easy control and monitoring of pumps in HVAC, water treatment, and irrigation. -
HVAC Applications
Fan and compressor control in ventilation and air conditioning systems. -
Material Handling
Control of conveyor belts, hoists, and automated logistics systems. -
Food & Beverage
Adjustment of motor speeds in production lines and packaging equipment. -
General Industrial Automation
On-site parameter management for machine control systems. -
OEM Equipment
Factory-installed on OEM equipment for drive adjustment and diagnostics.
Product Advantages
-
User-Friendly Interface
Simple operation with soft-touch keys and clear LCD display. -
Quick Parameter Backup & Restore
Store up to 3 parameter sets for fast commissioning or drive replacement. -
Drive Compatibility
Fully compatible with multiple ABB low-voltage drive families. -
Multi-Language Support
Accessible to operators globally. -
Flexible Mounting
Use drive-mounted, handheld, or panel-mounted with an optional kit. -
No External Power Required
Powered directly from the drive (5 VDC), simplifying installation. -
Robust Industrial Design
IP54 rating for front face (when panel mounted), ideal for harsh environments. -
Improved Maintenance
Quick diagnostics and real-time status information reduce downtime. -
Compact & Lightweight
Saves space in crowded control panels. -
Reliable ABB Ecosystem
Designed, built, and supported by ABB for long-term performance.
Frequently Asked Questions (FAQ)
-
What drives is the CP410M compatible with?
It works with ABB ACS310, ACS355, ACS150, and ACS550 series drives. -
Does it support parameter backup and restore?
Yes, it can store and restore up to 3 parameter sets. -
Can it be panel-mounted?
Yes, with the optional panel-mounting kit, it achieves IP54 protection. -
Is it powered externally?
No, it draws power directly from the drive via the panel bus. -
What display format does it use?
2-line × 16-character monochrome LCD with backlight. -
Can it be used for troubleshooting?
Yes, it provides diagnostics and alarm display for the drive. -
Does it work in outdoor environments?
It is designed for indoor use. If outdoor use is required, additional protection is recommended. -
What languages are supported?
Multiple languages, configurable via the menu. -
Is it CE certified?
Yes, it meets CE, UL, and cULus standards. -
How is it connected to the drive?
Through the panel bus interface built into the drive.
