ABB CP450T 1SBP260188R1001 Touch Screen

Product Overview

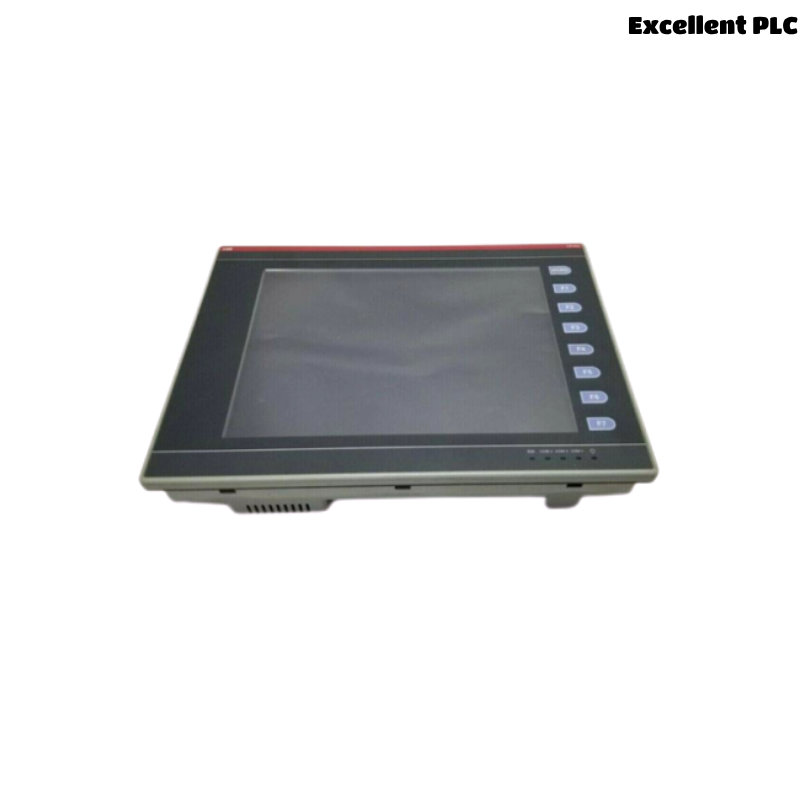

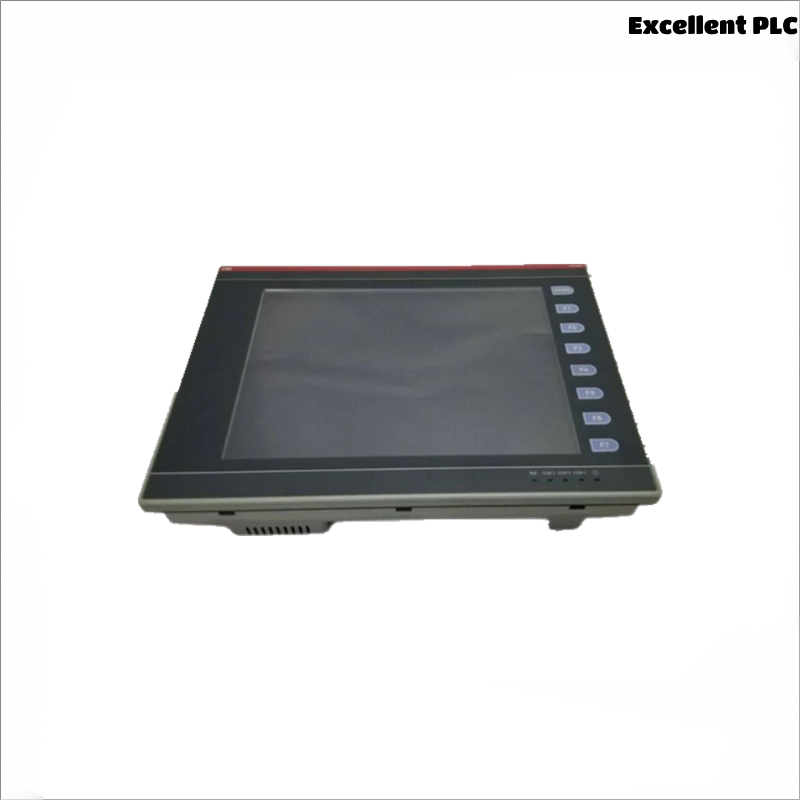

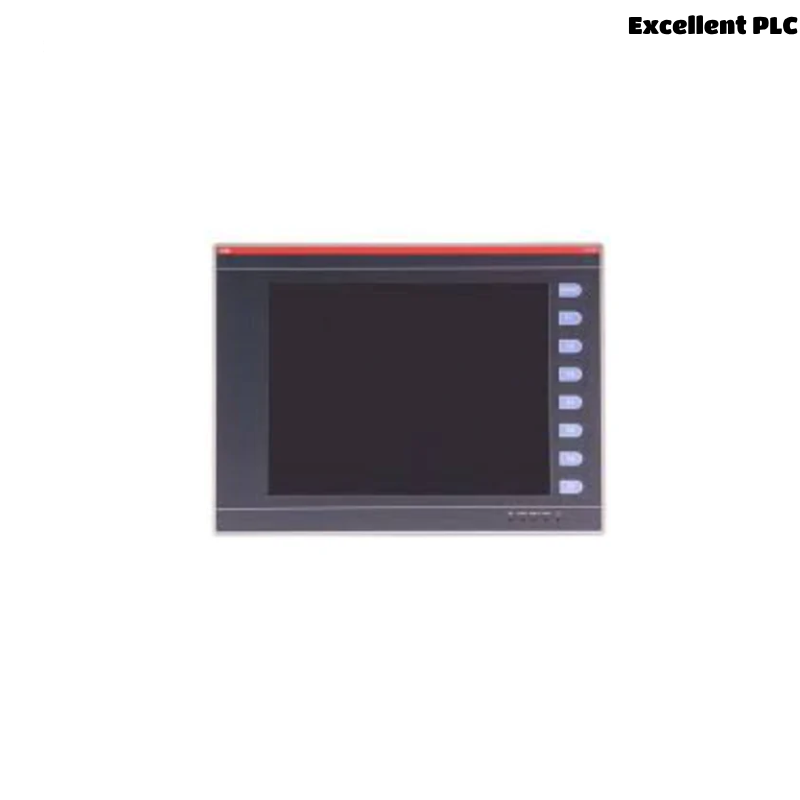

The ABB CP450T 1SBP260188R1001 is a rugged industrial Human‑Machine Interface (HMI) featuring a 10.4″ color TFT touch screen with 64 K colors and 7 programmable function keys. Designed for seamless integration with ABB AC500 PLCs and DCS systems, this operator panel provides intuitive control, visualization, and alarm handling in industrial automation environments.

Key Features

• 10.4″ TFT Touch Display, 640×480 resolution, 64 K colors

• Seven user-defined function keys for fast operation.

• Robust front panel: rated IP65/NEMA4X (indoor), dust- and splash-resistant.

• Embedded web server option for remote monitoring/configuration.

• Alarm, trend, recipe, macro & ladder support, and sub-screen features.

• Security: password protection with up to 9 user levels.

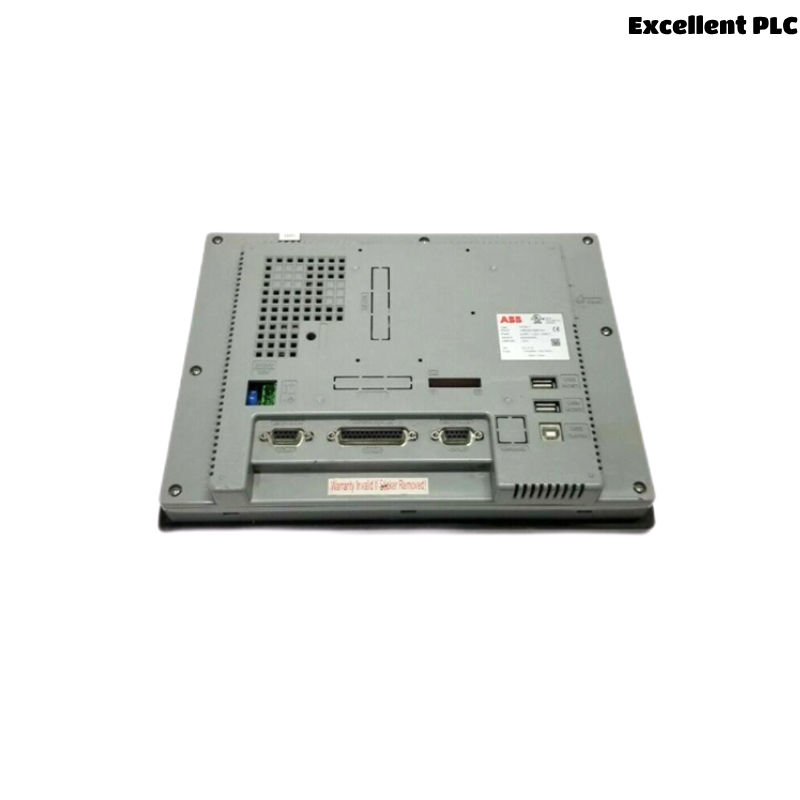

• Multiple communication interfaces: 3× serial (RS‑232/422/485), USB (2 host, 1 device), plus fieldbus via Modbus RTU/ASCII and AC500 drivers.

Technical Specifications

Typical Applications

• Industrial automation: Visualization & control in food, packaging, and manufacturing lines

• Power and utilities: HMI operator panels for substations and power plants

• Process industries: Oil & gas, chemicals, water treatment—monitoring and alarm handling

• Infrastructure control: HVAC, building management, material handling

Product Advantages

• Highly visible interface: Large 10.4″ display with vibrant colors for clear visualization

• Durable operator panel: IP65/NEMA4X front protects against dust and moisture

• Flexible integration: Extensive communication options including embedded web connectivity

• Customizable operations: Function keys, recipes, trending, alarms enhance usability

• Secure access: Multi-level password control protects HMI functionality

• Reliable design: Industry-grade components and certifications ensure longevity

Frequently Asked Questions (FAQ)

1. What are the display characteristics?
   A 10.4″ TFT with 640×480 resolution and 64 K colors provides high-quality visuals.

2. What connectivity does the HMI offer?
   It includes 3 serial ports, 3 USB ports, Ethernet (optional), with Modbus and AC500 support.

3. Is it suitable for dusty or wet conditions?
   Yes—it features IP65/NEMA4X protection on the front panel.

4. Does the HMI support password protection?
   Yes, with up to 9 user access levels.

5. What software features are included?
   Functions include alarm management, recipe handling, trends, macros, ladder logic, and sub-screens.

6. What power supply is needed?
   It requires a 24 V DC power supply, consuming around 30 VA.

7. What is the operating temperature range?
   From 0 °C to +50 °C (storage down to −10 °C).

8. What are its dimensions and weight?
   Measures 52 x 222 x 297 mm and weighs about 1.9 kg.

9. Is it certified for industrial use?
   Yes—it carries CE, UL, RoHS, and other industrial standard certifications.

10. Can it be integrated into SCADA or web platforms?
    Yes—optional embedded web server enables remote visualization and control.
