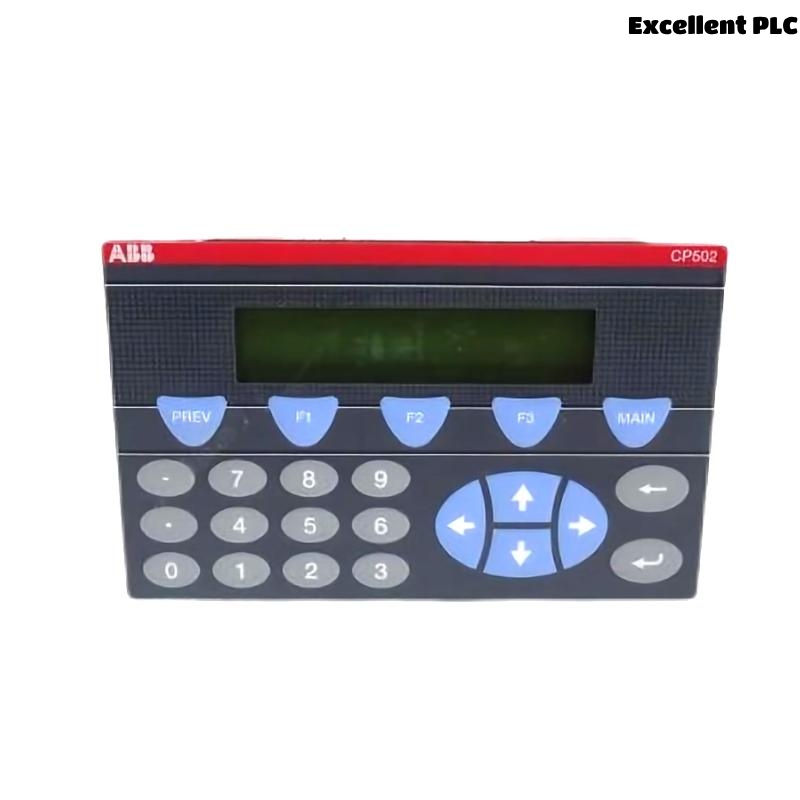

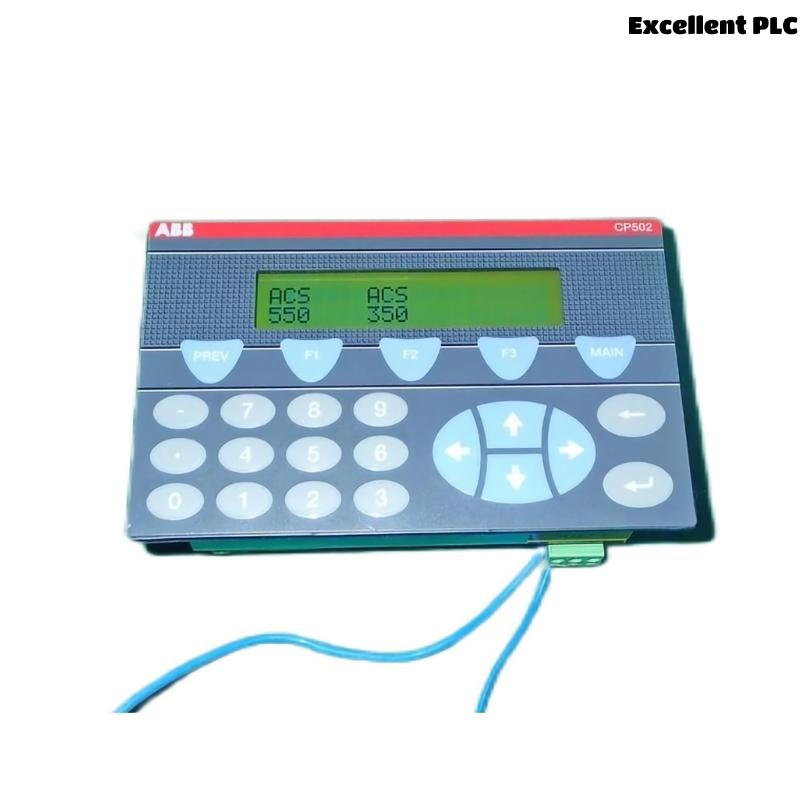

ABB CP502 1SBP260190R1001-A Control Panel

Product Introduction

The ABB CP502 1SBP260190R1001-A Control Panel is a robust, user-friendly operator interface designed to provide efficient control and monitoring for ABB automation systems. Built for industrial environments, the CP502 combines ergonomic design with reliable performance, enabling operators to interact with process control systems intuitively. The panel supports a broad range of control applications and is engineered to integrate seamlessly with ABB’s process automation and control platforms.

Its high-resolution display and responsive touch interface allow clear visualization of complex processes, making operational tasks easier and reducing the risk of errors. With its durable construction and flexible mounting options, the CP502 is ideal for use in demanding manufacturing, energy, and infrastructure settings.

Product Specifications

Product Applications

The ABB CP502 Control Panel is widely used across diverse industries to streamline control and monitoring operations. Its applications include:

• Process Industries: Chemical, petrochemical, and pharmaceutical plants benefit from clear process visualization and operator control.

• Power Plants: Used for controlling and monitoring turbines, boilers, and auxiliary systems with real-time feedback.

• Water and Wastewater Treatment: Provides an intuitive interface for managing pumps, valves, and treatment processes.

• Manufacturing: Supports automation systems in discrete and continuous manufacturing lines, enhancing efficiency.

• Infrastructure: Ideal for HVAC, lighting control, and building automation systems.

• Oil & Gas: Suitable for onshore and offshore applications requiring rugged and reliable control panels.

• Food & Beverage: Enables precise monitoring and control to ensure compliance with hygiene and quality standards.

Product Advantages

• User-Friendly Interface: High-resolution color display with resistive touchscreen offers clear, easy operation.

• Durable Design: IP65-rated front panel ensures resistance against dust and water, suitable for harsh environments.

• Seamless Integration: Compatible with ABB automation and control platforms, reducing system complexity.

• Flexible Communication: Supports Ethernet and USB interfaces for versatile connectivity options.

• Compact and Lightweight: Small footprint and low weight make installation straightforward even in space-restricted areas.

• Energy Efficient: Low power consumption reduces operational costs.

• Robust Performance: Designed to operate reliably within wide temperature and humidity ranges.

• Enhanced Safety: Meets international safety and electromagnetic compatibility standards.

• Simplified Maintenance: Modular design facilitates easy servicing and upgrades.

• Improved Productivity: Real-time process visualization helps operators make informed decisions quickly.

Frequently Asked Questions (FAQ)

1. What type of display does the CP502 use?
   It features a 2.8-inch color TFT LCD with a resolution of 320 x 240 pixels.

2. Is the CP502 touchscreen?
   Yes, it uses a resistive touchscreen for precise operator input.

3. What are the communication options available on the CP502?
   It supports Ethernet 10/100 Mbps and USB 2.0 interfaces.

4. What is the operating temperature range for the CP502?
   The panel operates reliably between 0 °C and +55 °C.

5. How is the CP502 mounted?
   The panel is designed for easy panel mounting with IP65 front protection.

6. Is the CP502 suitable for outdoor or harsh environments?
   Its IP65-rated front panel protects against dust and water, making it suitable for harsh indoor environments; outdoor use requires additional protection.

7. What power supply does the CP502 require?
   It operates on a 24 V DC power supply.

8. Can the CP502 be used with other ABB control systems?
   Yes, it integrates seamlessly with ABB automation systems and control platforms.

9. What kind of maintenance does the CP502 require?
   The CP502 is designed for low maintenance. Regular cleaning of the touchscreen and visual inspections are usually sufficient to keep it in good working condition.

10. Does the CP502 require special software for configuration?
    Configuration is typically performed via ABB’s standard engineering software tools compatible with CP series panels.
