Product Introduction

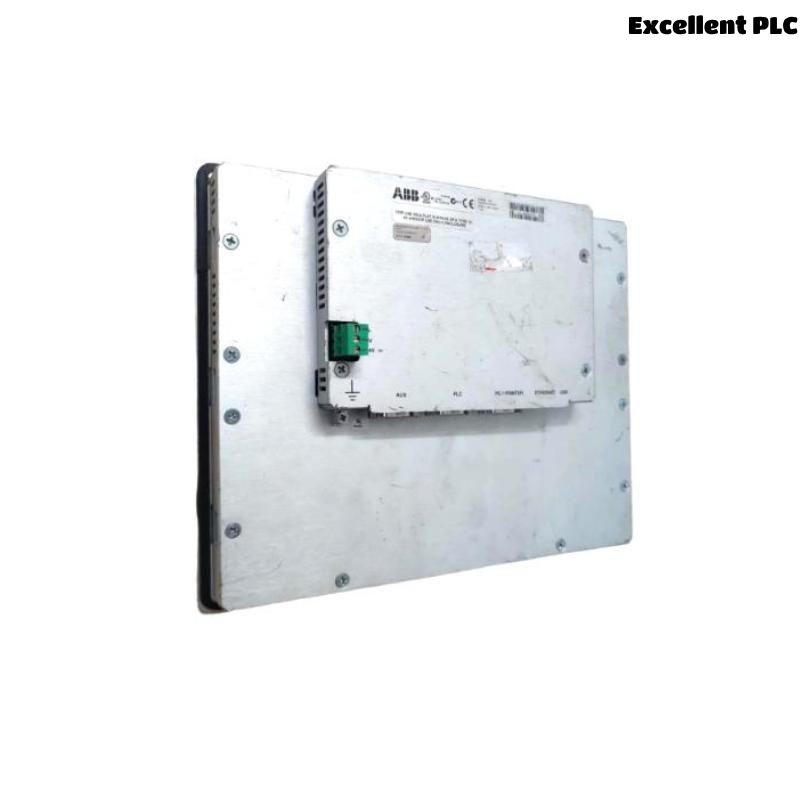

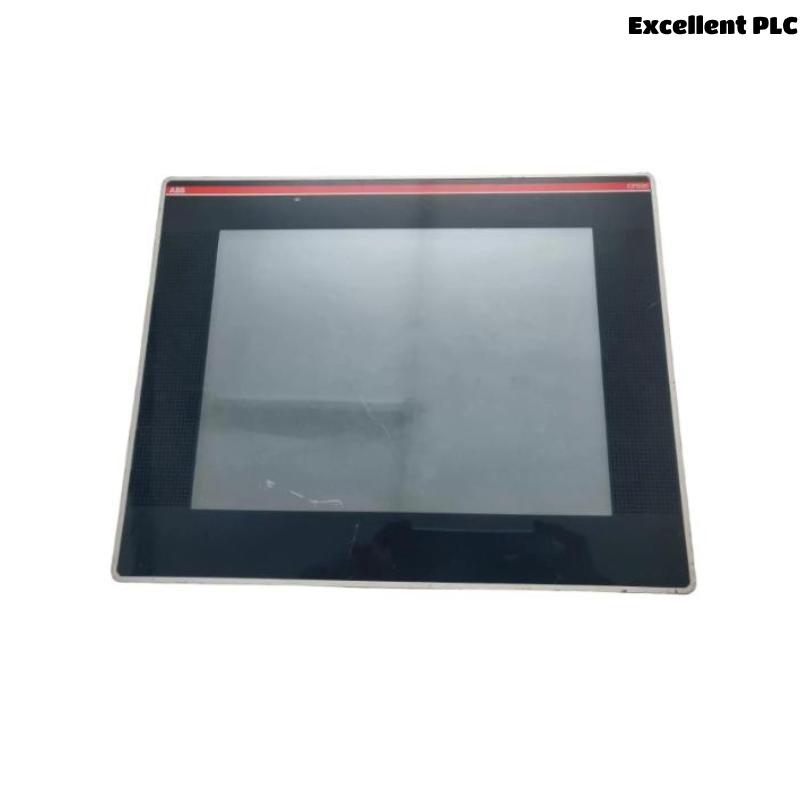

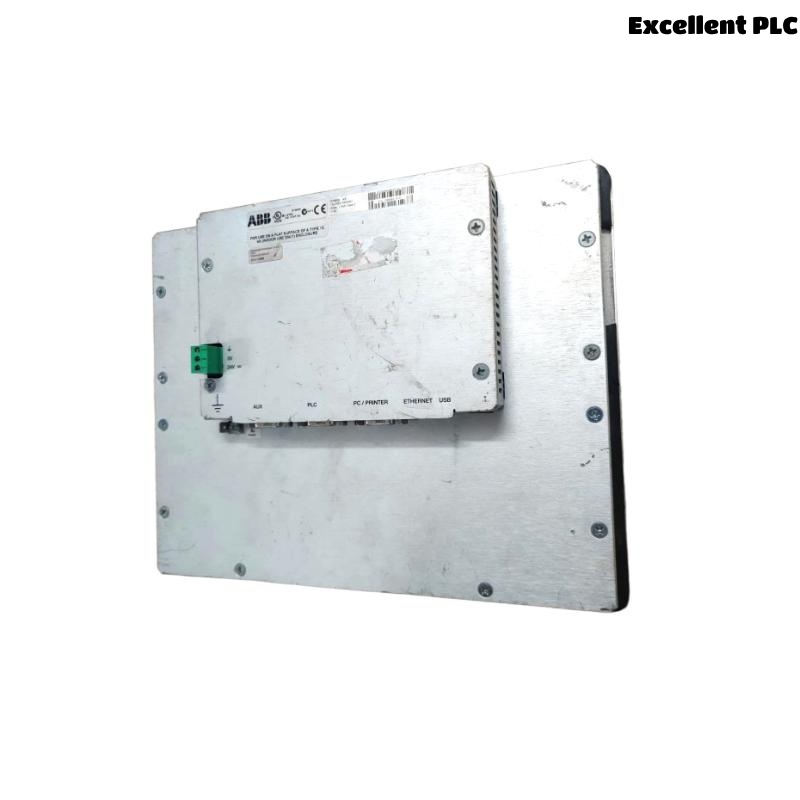

The ABB CP650 1SAP550100R0001 touchscreen is a high-performance, versatile operator interface designed for industrial automation applications. With its large, high-resolution display, this touchscreen allows operators to easily monitor and control machinery, production lines, and processes. The CP650 is engineered for user-friendly interaction, providing a clear and responsive interface for real-time data visualization and process control. Whether in manufacturing, power generation, or other critical industries, this touchscreen ensures efficient and reliable system operation.
Featuring a modern touchscreen interface and intuitive graphical user interface (GUI), the CP650 enhances operator efficiency by offering easy access to process variables, alarms, and system status. Its robust design ensures durability in harsh industrial environments while maintaining high reliability and low maintenance requirements.
Product Parameters
Below are the key technical parameters of the ABB CP650 touchscreen:
| Parameter | Value |
|---|---|
| Model | CP650 1SAP550100R0001 |
| Dimensions | 370 x 120 x 270 mm |
| Weight | 0.56 kg |
| Screen Size | 7 inch |
| Resolution | 800 x 480 pixels |
| Touch Type | Resistive touchscreen |
| Power Supply | 24 V DC |
| Operating Temp. | -20°C to 60°C |
| Storage Temp. | -30°C to 80°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Input/Output | 2 x Ethernet, 1 x USB |
| Certifications | CE, UL, IEC 61000-6-2 compliant |
Product Applications
The ABB CP650 1SAP550100R0001 touchscreen is suitable for a wide variety of applications in industrial environments. Its durable construction and versatile functionality make it ideal for:
-
Industrial Automation: Used for controlling and monitoring machinery, pumps, conveyors, and other automated systems in factories and production plants.
-
Manufacturing Process Control: Provides real-time monitoring and control of manufacturing equipment, ensuring efficiency and accuracy throughout the production line.
-
Power Plants: Ideal for power generation facilities where operators need to monitor equipment status, power generation, and distribution systems.
-
Oil and Gas: Facilitates monitoring of critical processes in refineries and oil rigs, providing operators with access to real-time data and alarms.
-
HVAC Systems: Used for controlling heating, ventilation, and air conditioning systems, optimizing energy consumption and performance.
-
Building Automation: Integrated into smart building systems for controlling lighting, security, and environmental systems.
The touch interface ensures quick access to all control settings, making it easier for operators to visualize and respond to real-time process changes.
Product Advantages
-
High-Resolution Display: With a 7-inch, 800 x 480 pixel screen, the CP650 offers a clear and detailed view of process parameters, making it easier for operators to monitor and control industrial processes.
-
Resistive Touchscreen: The resistive touchscreen provides excellent responsiveness, even in harsh environments where gloves or other protection gear may be worn by operators.
-
Durable and Robust: Built to withstand the rigors of industrial environments, the CP650 is designed to function reliably in temperatures ranging from -20°C to 60°C and can handle humidity levels from 5% to 95% (non-condensing).
-
User-Friendly Interface: The intuitive graphical user interface (GUI) makes it simple for operators to set up and manage control systems with minimal training.
-
Versatile Connectivity: With multiple Ethernet ports and USB support, the CP650 can easily integrate with a variety of industrial control systems and external devices, allowing for flexible system architectures.
-
Compact and Space-Efficient: The CP650’s compact design (370 x 120 x 270 mm) allows it to be easily installed in control panels or other confined spaces.
-
Low Power Consumption: Operating at 24V DC, the CP650 is energy-efficient, ensuring long-term use without excessive power demands.
-
Wide Environmental Range: Able to operate in challenging environments, this touchscreen is ideal for outdoor or extreme-temperature applications.
Frequently Asked Questions (FAQs)
-
What is the primary function of the ABB CP650 touchscreen?
The CP650 touchscreen is used to provide an intuitive user interface for controlling and monitoring industrial equipment, processes, and systems. -
What are the dimensions of the CP650 module?
The dimensions of the CP650 are 370 x 120 x 270 mm. -
How much does the CP650 touchscreen weigh?
The CP650 weighs 0.56 kg. -
What is the screen size and resolution of the CP650?
The CP650 features a 7-inch screen with a resolution of 800 x 480 pixels. -
What type of touchscreen does the CP650 use?
The CP650 uses a resistive touchscreen, providing excellent accuracy even with gloved hands. -
What is the operating temperature range for the CP650?
The CP650 can operate in temperatures ranging from -20°C to 60°C. -
How does the CP650 interface with other devices?
The CP650 features two Ethernet ports and a USB port for easy integration with external control systems and devices. -
Is the CP650 suitable for use in harsh industrial environments?
Yes, the CP650 is designed to withstand industrial environments with high humidity (5% to 95% non-condensing) and extreme temperatures. -
What power supply is required for the CP650?
The CP650 operates with a 24V DC power supply. -
What certifications does the CP650 have?
The CP650 is certified with CE, UL, and IEC 61000-6-2 standards, ensuring its reliability and safety in industrial applications.
Related Models
Here are some related models in the same series or compatible models:
| Model | Description |
|---|---|
| CP620 | Compact and versatile touchscreen for industrial applications with a similar interface. |
| CP640 | A larger touchscreen option with enhanced graphical capabilities for high-demand environments. |
| CP650R | Redundant version of the CP650, offering failover protection for critical control systems. |
| CP610 | A smaller version of the CP650, designed for more space-constrained environments. |
| CP660 | High-performance touchscreen for applications requiring advanced graphics and larger display sizes. |
| CP670 | A fully integrated touch control panel with support for industrial automation systems. |
