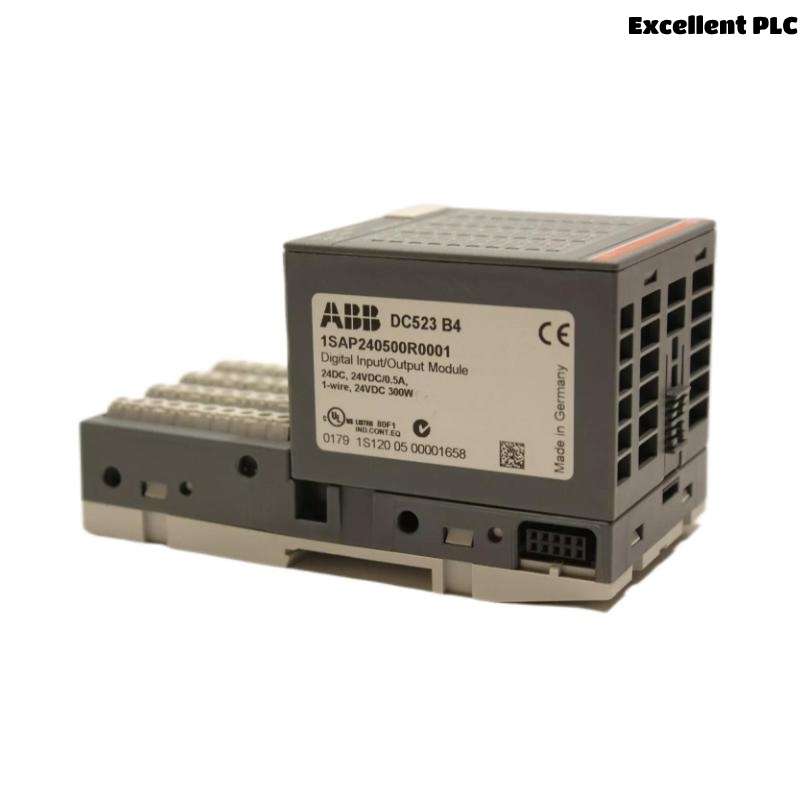

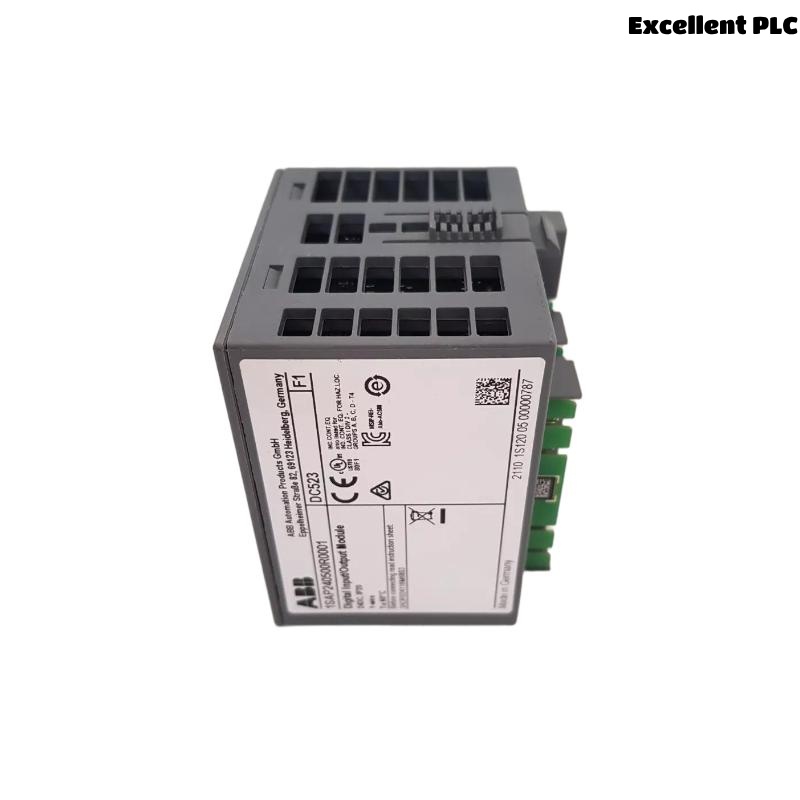

The ABB DC523 1SAP240500R0001 is a versatile digital input/output (I/O) module designed for use in industrial automation systems. This module is engineered to provide reliable and high-performance digital signal processing, which is crucial for controlling and monitoring a wide range of devices in various industrial applications.
It is specifically designed to support a variety of input and output configurations, enabling seamless integration with automation systems for the control of sensors, actuators, and other field devices. The DC523 module is part of ABB’s broad portfolio of industrial control products, known for their exceptional performance, reliability, and ease of integration into existing systems.
The module supports both input and output functions, allowing it to interface effectively with different types of digital signals, offering flexibility in controlling machines and processes. It is an essential component for enhancing operational efficiency in industrial environments by providing precise and fast control signals.
Product Parameters
Here are the key technical specifications of the ABB DC523 module:
| Parameter | Value |
|---|---|
| Model | DC523 1SAP240500R0001 |
| Dimensions | 62 x 76 x 67.5 mm |
| Weight | 0.115 kg |
| Input Type | Digital, 16 channels |
| Output Type | Digital, 16 channels |
| Input Voltage Range | 24V DC |
| Input Signal Type | Dry contact or 24V DC |
| Output Voltage | 24V DC |
| Output Current | 0.5 A per channel |
| Operating Temp. | -20°C to 60°C |
| Storage Temp. | -30°C to 80°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Mounting Type | DIN Rail |
| Protection Class | IP20 |
| Certification | CE, UL |
Product Applications
The ABB DC523 module is used in a wide range of industrial and automation applications. Its flexibility and reliable performance make it ideal for controlling and monitoring various digital inputs and outputs. Here are some typical applications:
-
Industrial Control Systems: Used to interface with digital sensors, switches, and other field devices, providing signals for process control and monitoring.
-
Machine Automation: The DC523 module helps control automated machinery by providing precise signals to actuators, enabling machines to operate according to programmed instructions.
-
Manufacturing Lines: Supports the monitoring of various processes, such as material handling, assembly, and packaging, by connecting to sensors and actuators along the production line.
-
Building Automation: Facilitates control over HVAC systems, lighting, and security systems in commercial and residential buildings.
-
Energy Management Systems: Integrated into energy distribution systems for controlling relays, circuit breakers, and other electrical equipment.
-
Telecommunications: Can be used for control and monitoring in telecom equipment that requires precise digital signal processing for optimal performance.
The DC523 module ensures high accuracy and responsiveness, making it a critical component in complex automation systems.
Product Advantages
-
High Channel Density: With 16 input and 16 output channels, the DC523 offers high-density signal processing, which is ideal for systems requiring multiple digital I/O operations.
-
Reliable Signal Processing: The module supports both dry contact and 24V DC input types, ensuring compatibility with a wide range of digital devices, and providing reliable signal processing.
-
Compact and Space-Efficient Design: The module’s compact dimensions (62 x 76 x 67.5 mm) make it easy to integrate into existing systems, even in confined spaces.
-
Wide Operating Temperature Range: Designed to function in harsh environments, the DC523 module operates within a temperature range of -20°C to 60°C, ensuring reliable performance in industrial settings.
-
Flexible Connectivity: It offers seamless integration with a variety of field devices through its 16 digital input and output channels, providing flexibility in system configuration.
-
Ease of Installation: The module can be easily mounted on a DIN rail, which simplifies installation in control cabinets or other industrial enclosures.
-
Protection Class IP20: The module is protected against dust and solid objects larger than 12 mm, ensuring durability and safety in typical industrial environments.
-
Low Power Consumption: Operating at 24V DC, the DC523 module is energy-efficient, which reduces the operational cost of the control system.
-
High Reliability: With its robust design and CE, UL certifications, the DC523 ensures high operational reliability and safety for mission-critical applications.
-
Cost-Effective: Offering a high level of functionality at a competitive price, the DC523 module provides excellent value for customers looking for a reliable digital I/O solution.
