Product Introduction

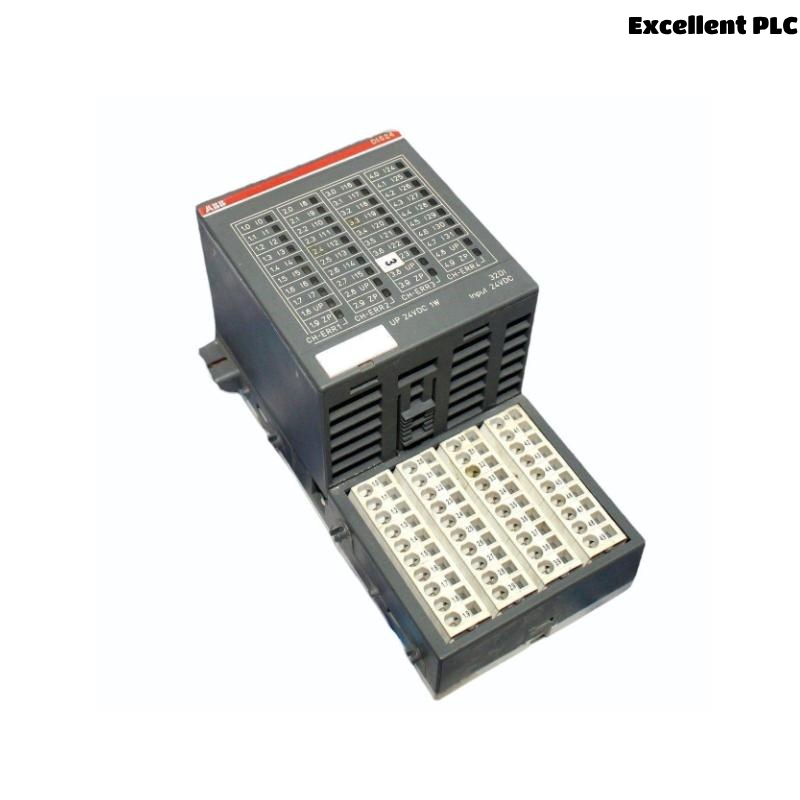

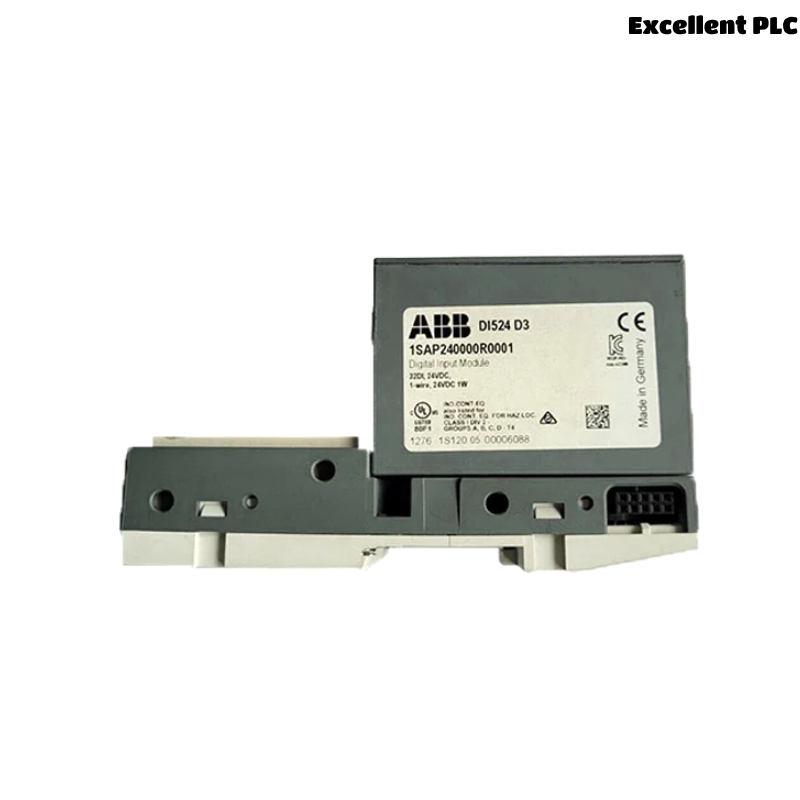

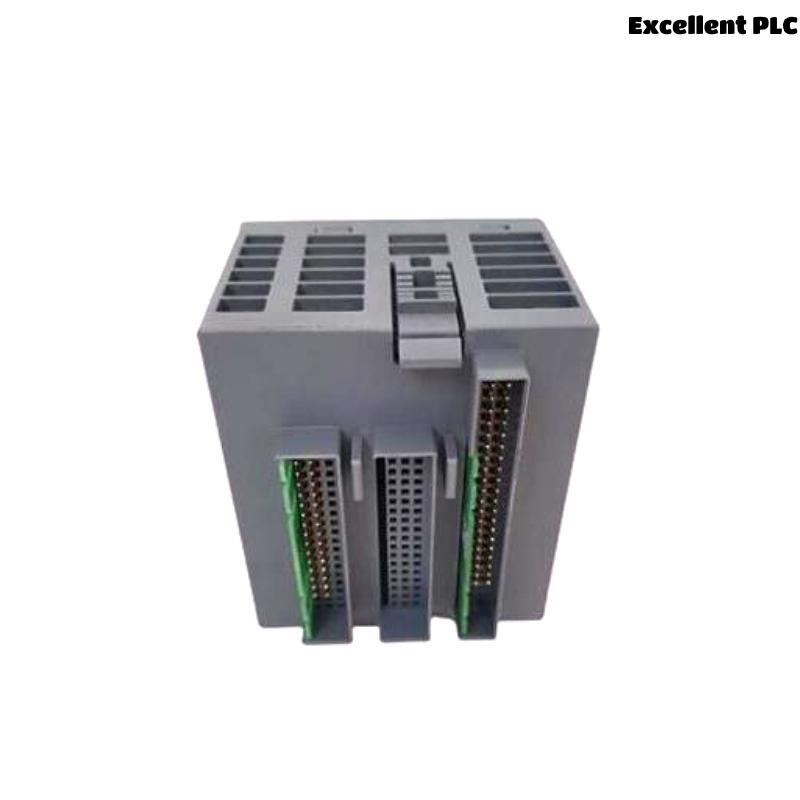

The ABB DI524 (1SAP240000R0001) is a high-performance digital input module designed for use with the ABB AC500 programmable logic controller (PLC) family. It provides a robust interface for reading discrete signals from field devices such as sensors, pushbuttons, and switches. Designed to meet demanding industrial automation requirements, the DI524 offers 16 digital inputs and integrates seamlessly into the AC500 system via a DIN rail-mounted modular form factor.
With wide voltage tolerance, LED channel status indication, and a fast input response time, the DI524 enables precise control and reliable monitoring in automation systems. The module is particularly valued for its ability to support 24 VDC inputs, commonly used in industrial signaling. Whether in process control, factory automation, or utility systems, the DI524 ensures consistent digital input acquisition for real-time logic execution.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Digital Input Module DI524 |
| Part Number | 1SAP240000R0001 |
| PLC System Compatibility | AC500 Series |
| Number of Inputs | 16 digital inputs |
| Input Type | Sink (PNP) |
| Input Voltage Range | 24 V DC (nominal), 15–30 V DC tolerated |
| Input Current | 4 mA typical at 24 V DC |
| Input Delay | < 4 ms |
| Isolation | Opto-isolated channels |
| Channel Status Indication | Yes (individual LEDs) |
| Module Supply Voltage | Supplied via system bus |
| Module Type | I/O Expansion Module |
| Mounting | DIN rail, modular |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP20 (module body) |
| Dimensions (W x H x D) | 62 × 76 × 67.5 mm |
| Weight | 0.124 kg |
| Certifications | CE, UL, cUL, RoHS, ATEX compliant |
Applications
The DI524 module is widely used in automation systems where monitoring of discrete field signals is required. Typical applications include:
-
Factory Automation: Reading digital signals from limit switches, proximity sensors, and pushbuttons in assembly lines.
-
Process Industries: Collecting feedback signals from valves, actuators, and contact sensors.
-
Machine Control: Interfacing with user control elements such as emergency stops and selector switches.
-
Building Management Systems: Monitoring door contacts, motion sensors, and manual override signals.
-
Energy Management: Digital state acquisition from battery breakers, switchgear, and protection devices.
-
Infrastructure Automation: Deployed in systems controlling elevators, escalators, and transport infrastructure.
Product Advantages
-
High Channel Density: 16 digital inputs in a compact module minimize space consumption in control panels.
-
Reliable Isolation: Optical isolation between channels enhances system reliability and prevents signal interference.
-
Flexible Voltage Range: Wide input voltage tolerance ensures compatibility with a broad range of field devices.
-
Simple Diagnostics: Channel-level LEDs provide immediate visual feedback for status and troubleshooting.
-
Plug-and-Play Integration: Seamlessly connects to AC500 CPUs and communication modules without extra wiring.
-
Industrial Durability: Designed for operation in harsh conditions with extended temperature and vibration tolerance.
-
Efficient Mounting: DIN rail mount design reduces installation time and supports modular expansions.
Frequently Asked Questions (FAQ)
-
Q: How many digital inputs does the DI524 module support?
A: The DI524 offers 16 individually isolated digital inputs. -
Q: Is the DI524 compatible with all AC500 CPUs?
A: Yes, it integrates with all CPU variants in the AC500 series via the system bus. -
Q: What type of digital signals can it read—PNP or NPN?
A: The DI524 is designed for PNP (sourcing) input signals. -
Q: Does the DI524 require a separate power supply?
A: No, it is powered via the system bus from the AC500 CPU or communication module. -
Q: Are input channels individually fused or protected?
A: Input protection is built-in via internal opto-isolation, but external fusing is recommended for safety. -
Q: How do I diagnose input failures?
A: Each channel has an LED indicator that turns ON when the input is active. -
Q: Can this module be hot-swapped?
A: No, power should be removed before replacing or installing modules for safety. -
Q: Is it possible to mix DI524 with analog or relay modules?
A: Yes, AC500 I/O modules are fully modular and can be mixed as needed. -
Q: Does ABB provide configuration software for the DI524?
A: Yes, it is configured using ABB’s Automation Builder software suite. -
Q: What environments is this module rated for?
A: It operates reliably in environments with temperatures from -25°C to +60°C and high humidity.
Related Models from the Same Series
| Model Number | Module Type | Channels | Input/Output Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| DI524 | Digital Input | 16 | Digital Input (24VDC) | 44.5 x 117 x 89 | 180 g |
| DO524 | Digital Output | 16 | Digital Output (24VDC) | 44.5 x 117 x 89 | 190 g |
| DX522 | Mixed I/O | 8 DI / 8 DO | Digital I/O (24VDC) | 44.5 x 117 x 89 | 195 g |
| AI523 | Analog Input | 8 | Voltage/Current Input | 44.5 x 117 x 89 | 200 g |
| AO523 | Analog Output | 4 | Voltage/Current Output | 44.5 x 117 x 89 | 200 g |
| CM592-ETH | Communication Module | N/A | Ethernet Fieldbus | 44.5 x 117 x 89 | 160 g |
