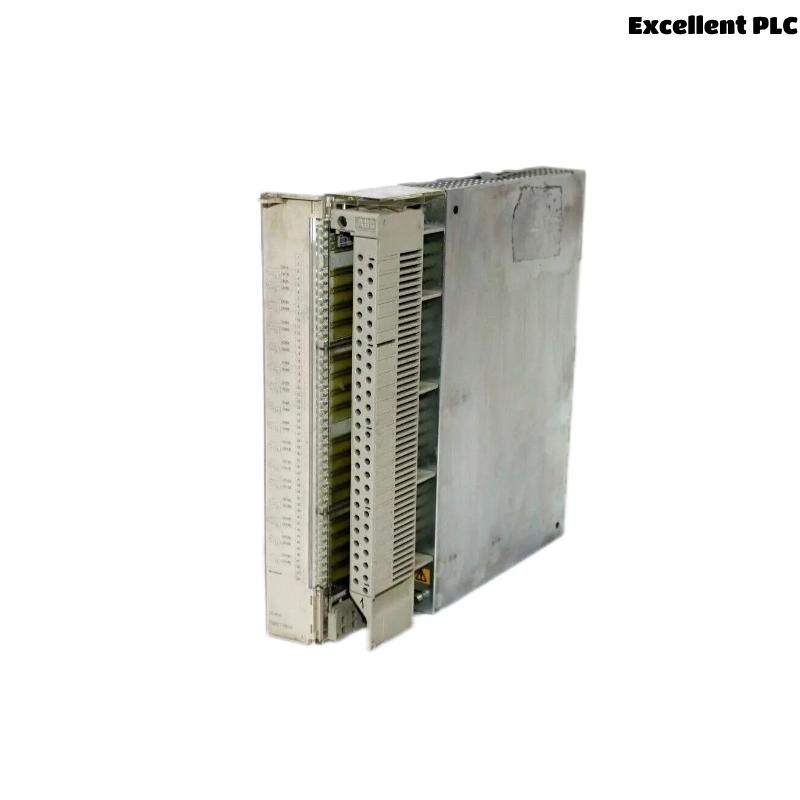

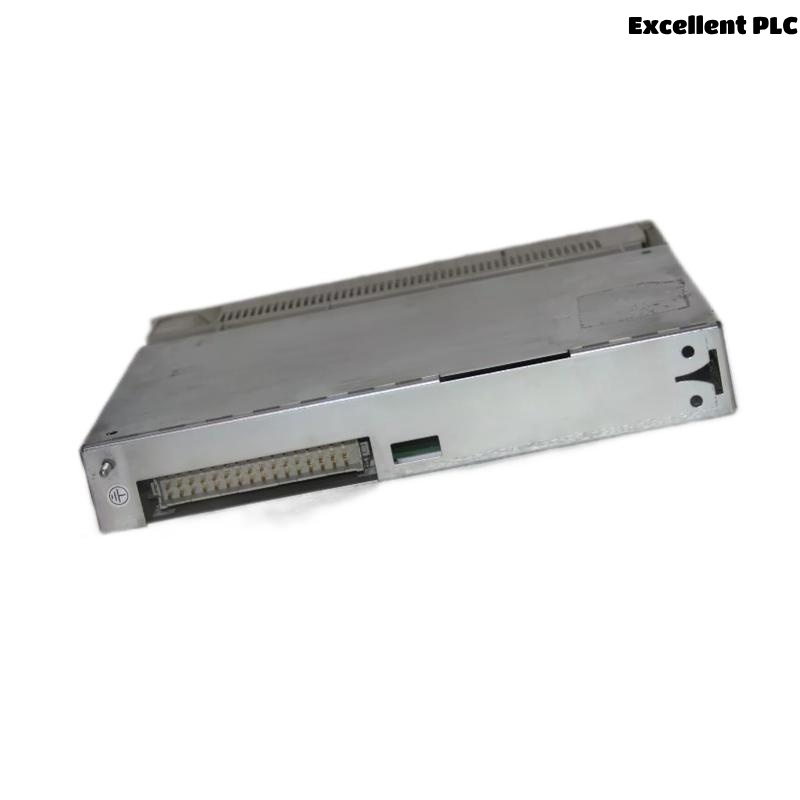

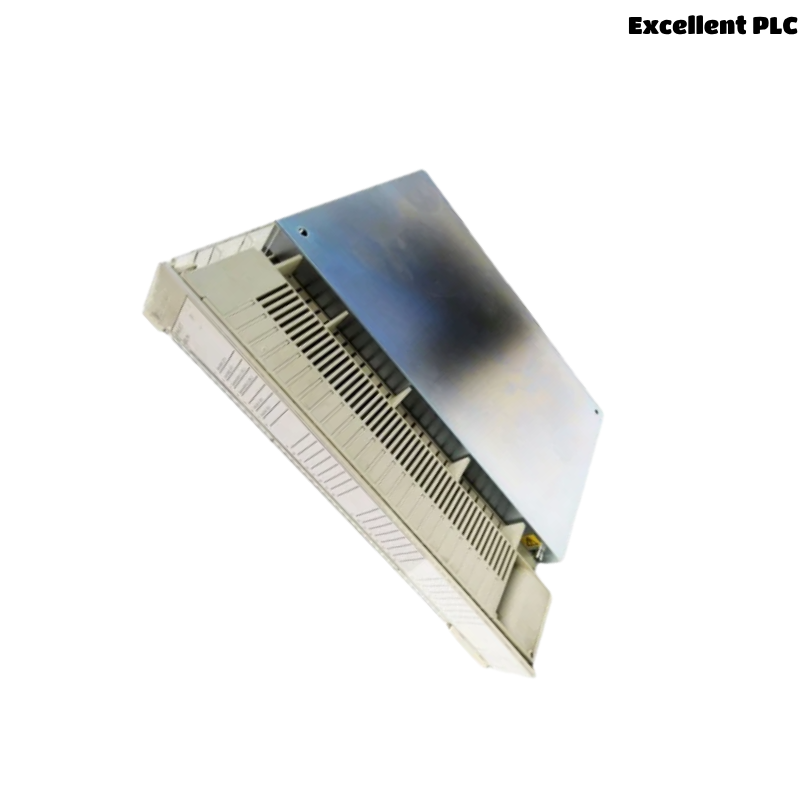

ABB DO630 3BHT300007R1 Digital Output Modules

Product Overview
The ABB DO630 (part number 3BHT300007R1) is a digital output module designed for ABB’s S800 modular I/O system, providing 32 transistor digital output channels. It is intended for industrial automation applications requiring large channel counts with high switching speeds and extensive diagnostic capabilities. The module is well-suited for controlling actuators, valves, relays, alarms, and other field devices requiring discrete on/off signals.

The DO630 ensures high reliability through galvanic isolation, robust diagnostics, and compact construction, making it ideal for harsh industrial environments. It integrates seamlessly into the ABB S800 I/O architecture and is compatible with AC 800M controllers.

Key Features

• 32 digital output channels per module

• Transistor (PNP) output type for fast and reliable switching

• Individual channel diagnostics: short-circuit, overload, and open load detection

• Galvanic isolation between outputs and system bus for noise immunity

• LED indicators for each channel and module status

• High switching frequency and fast response time

• Compact size to maximize panel space efficiency

• Compatible with ABB S800 I/O and AC 800M control systems

Technical Specifications

Product Advantages

• High Channel Count: Provides 32 digital outputs in one module, reducing the need for multiple modules.

• Fast and Reliable Switching: Transistor outputs allow rapid and consistent switching performance.

• Extensive Diagnostics: Ensures system integrity by detecting faults such as short circuits and open loads.

• Galvanic Isolation: Protects control electronics from noise and interference.

• Compact Design: Saves panel space while delivering high functionality.

• Wide Environmental Tolerance: Suitable for demanding industrial environments.

• Full Compatibility: Seamlessly integrates with ABB S800 I/O and AC 800M systems.

Industry Applications

• Control of actuators, valves, and relays in industrial automation

• Discrete control in manufacturing and processing plants

• Alarm and signaling systems in power plants and utilities

• Packaging and material handling equipment

• Water and wastewater treatment plant automation

• Oil and gas process control

• Building automation and HVAC control systems

Frequently Asked Questions (FAQ)

1. Q: How many output channels does the DO630 provide?
   A: The DO630 provides 32 digital output channels.

2. Q: What type of output transistors does the module use?
   A: It uses PNP transistor outputs.

3. Q: What is the maximum current per output channel?
   A: Each channel supports up to 0.5 A output current.

4. Q: Are diagnostics available on this module?
   A: Yes, it detects short-circuit, overload, and open load conditions.

5. Q: What is the operating temperature range?
   A: -25°C to +60°C.

6. Q: What are the physical dimensions of the module?
   A: 252mm  x 273mm x 40 mm.

7. Q: How is the module mounted?
   A: It can be mounted on DIN rails or within the S800 I/O chassis rack.

8. Q: Is the module compatible with ABB AC 800M controllers?
   A: Yes, it is fully compatible.

9. Q: What types of loads can the module switch?
   A: Resistive, inductive, and capacitive loads.

10. Q: How is the module powered?
    A: Via the S800 I/O backplane power supply.
