Product Description

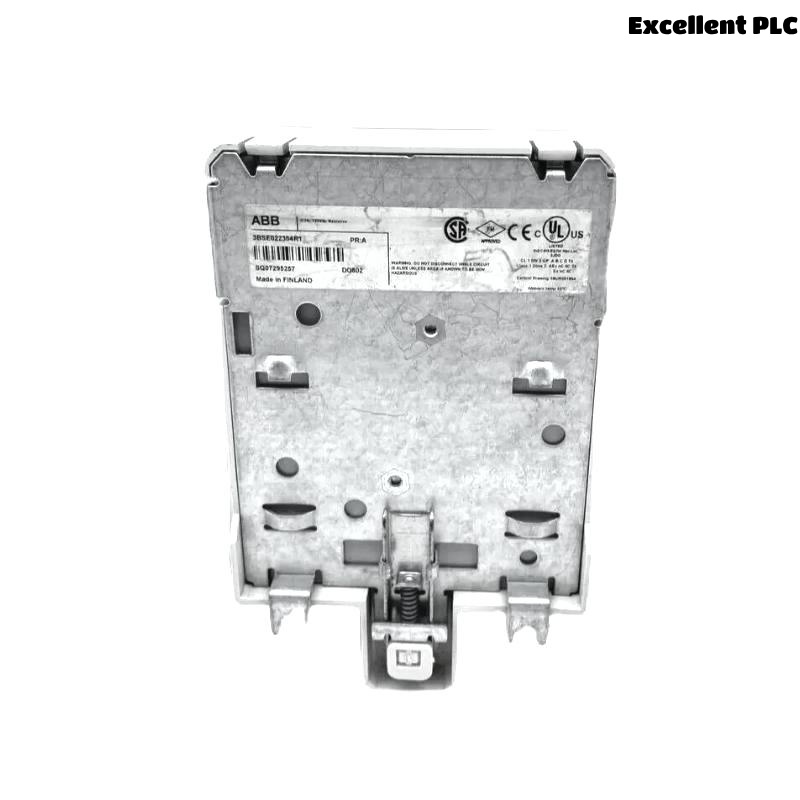

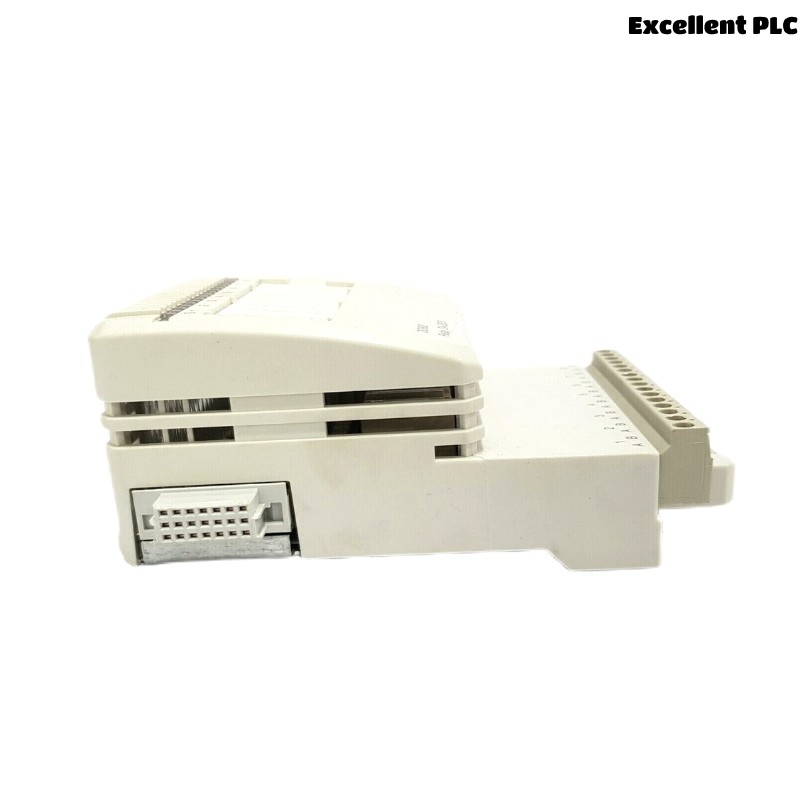

The ABB DO802 3BSE022364R1 is a high-performance Digital Output Module designed for the ABB S800 I/O system, widely used in industrial automation and process control environments. This module provides 16 individually isolated digital output channels, each capable of switching 24 V d.c. outputs for actuators and field devices. Utilizing high-efficiency transistor output circuits, the DO802 ensures reliable control signal transmission with built-in diagnostics for enhanced fault detection and system safety.
The DO802 module is equipped with output current monitoring and overload protection. It is designed to meet demanding industrial requirements with robust construction, EMI immunity, and thermal resistance. It integrates seamlessly into distributed control systems (DCS) for flexible I/O configurations, enabling centralized or decentralized installation with fieldbus communication.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product Type | Digital Output Module |
| Model Number | DO802 |
| Product Code | 3BSE022364R1 |
| Number of Channels | 16 |
| Output Type | Transistor (24 V d.c.) |
| Rated Output Voltage | 24 V d.c. (nominal) |
| Output Current | 0.5 A per channel (max) |
| Output Delay (typ.) | 0.1 ms ON / 0.2 ms OFF |
| Isolation | Channel-to-ground: 500 V d.c. |
| Diagnostics | Per-channel status, short-circuit and overload detection |
| Power Consumption | 5 V @ 120 mA |
| Field Supply Voltage | 24 V d.c. (19.2–30 V d.c.) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 86.1 mm × 110 mm × 58.5 mm |
| Weight | 0.24 kg |
| Mounting Type | DIN rail |
| Compliance | CE, RoHS, UL, CSA |
Product Applications
-
Distributed Control Systems (DCS): For controlling actuators in large-scale process industries such as oil & gas, chemical, and power generation.
-
Factory Automation: Used in manufacturing lines for operating solenoids, relays, and lamps.
-
Building Automation Systems: Controls HVAC systems, lighting, and alarms.
-
Energy and Utility Management: Supports smart grid devices and power distribution systems.
-
Infrastructure Monitoring: Railway signaling, water treatment facilities, and tunnel automation systems.
Product Advantages
-
High Density: 16-channel design reduces panel space requirements.
-
Individual Channel Isolation: Improves system reliability and safety by isolating each channel.
-
Built-in Diagnostics: Enables real-time fault detection and preventive maintenance.
-
Wide Operating Temperature: Ideal for harsh environments and field applications.
-
Flexible Mounting and Integration: Easily integrates into modular S800 systems via DIN rail.
-
Robust Design: Suitable for industrial environments with high EMI and vibrations.
Frequently Asked Questions (FAQ)
Q1: What is the maximum output current per channel?
A1: Each channel can provide up to 0.5 A maximum output current.
Q2: Does the DO802 module support output diagnostics?
A2: Yes, it supports per-channel status monitoring and diagnostics such as short-circuit and overload detection.
Q3: What is the isolation voltage between channels and ground?
A3: It provides 500 V d.c. isolation between channels and ground.
Q4: Can the DO802 be mounted on a DIN rail?
A4: Yes, the module is designed for standard DIN rail mounting.
Q5: What is the field voltage range for this module?
A5: The acceptable field supply voltage range is 19.2–30 V d.c.
Q6: Is the module hot-swappable?
A6: Yes, the DO802 supports hot-swapping when used in conjunction with the appropriate termination units.
Q7: What environmental standards does the DO802 comply with?
A7: The module complies with CE, RoHS, UL, and CSA certifications.
Q8: What is the delay time for switching output states?
A8: The typical delay is 0.1 ms for ON and 0.2 ms for OFF transitions.
Q9: What industries typically use the DO802 module?
A9: It is widely used in oil & gas, power generation, water treatment, and manufacturing automation.
Q10: How many output channels are available on the DO802?
A10: The module offers 16 individually isolated output channels.
Related Models (Same Series or Compatible with S800 I/O)
| Model Number | Description | Channels | Output Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| DO801 3BSE020510R1 | Digital Output Module (8 ch, 24V d.c.) | 8 | Transistor | 86.1 × 110 × 58.5 | 0.22 kg |
| DO803 3BSE022365R1 | Digital Output Module (16 ch, sink type) | 16 | Transistor | 86.1 × 110 × 58.5 | 0.24 kg |
| DI802 3BSE022362R1 | Digital Input Module (16 ch, 24V d.c.) | 16 | Input | 86.1 × 110 × 58.5 | 0.23 kg |
| DI803 3BSE022366R1 | Digital Input Module (8 ch, isolated) | 8 | Input | 86.1 × 110 × 58.5 | 0.23 kg |
| TU842 3BSE021446R1 | Compact 16-channel TU for DO802 | N/A | N/A | 86.1 × 110 × 58.5 | 0.18 kg |
| TU841 3BSE020824R1 | 8/16 channel TU for digital modules | N/A | N/A | 86.1 × 110 × 58.5 | 0.18 kg |
