Product Overview

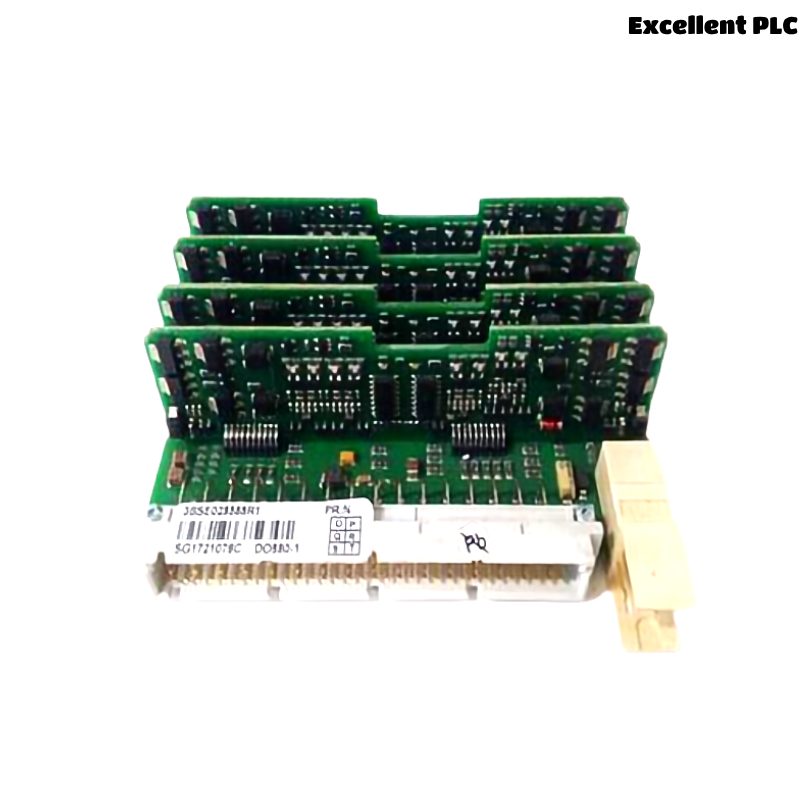

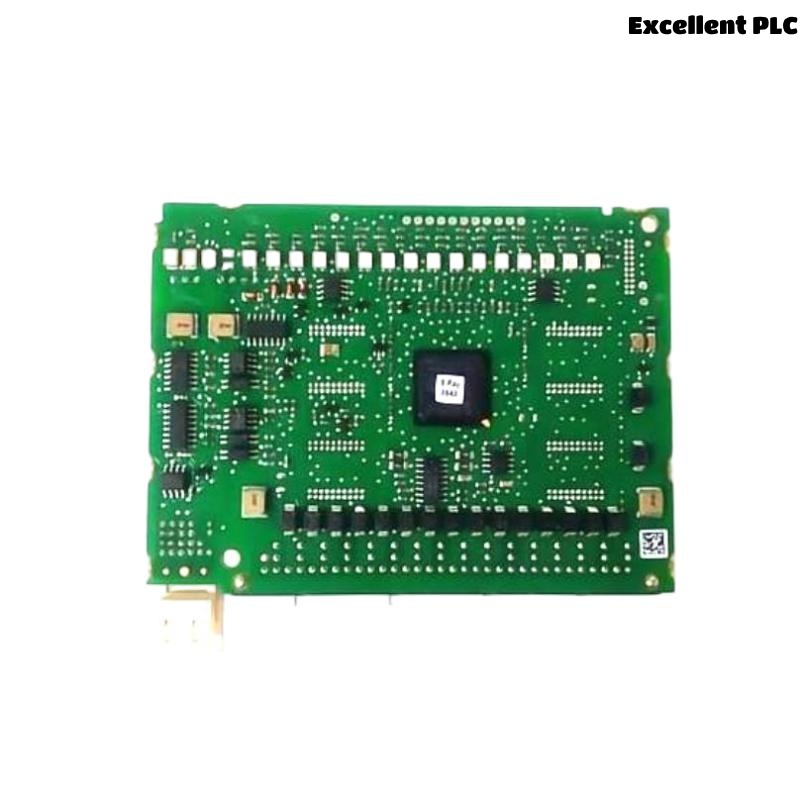

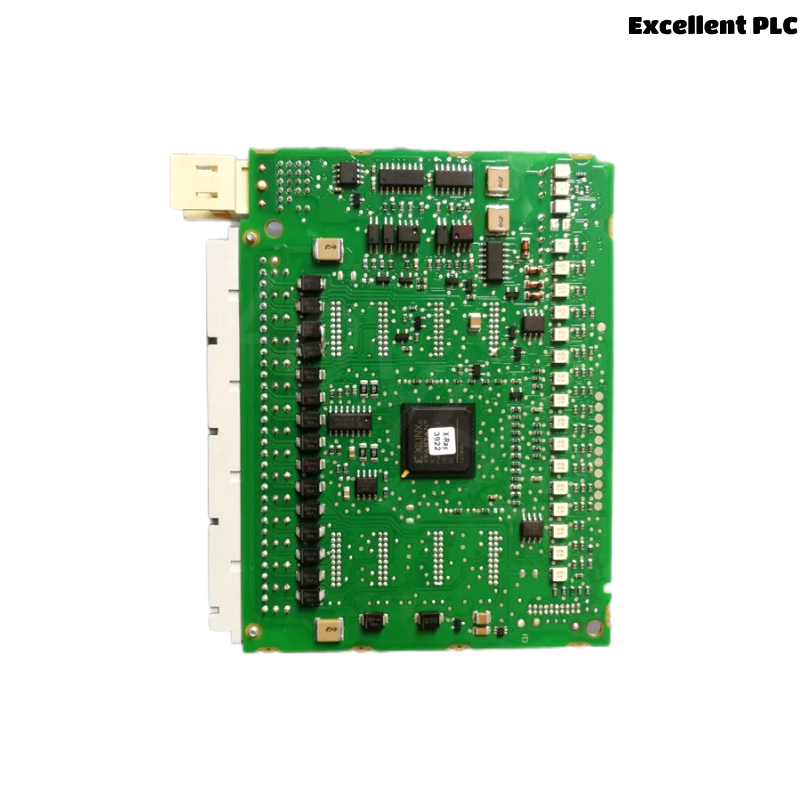

The ABB DO880-1 (Part Number: 3BSE028588R1) is a high-performance digital output module that is part of ABB’s S800 I/O series, used widely in ABB’s 800xA Distributed Control System (DCS). The module provides 16 discrete output channels, designed to switch 24 VDC signals to actuate field devices such as relays, contactors, solenoids, and indicator lamps.
This module offers excellent channel diagnostics, short-circuit protection, and field-side isolation, making it a reliable solution for output control in critical industrial processes. The DO880-1 is designed with performance, durability, and flexibility in mind—enabling it to handle demanding applications in power plants, manufacturing, transport, and process automation environments.
It is typically mounted on a terminal base (e.g., TU810V1) and is hot-swappable, meaning it can be replaced without interrupting system operations—supporting high system availability.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | DO880-1 |
| Part Number | 3BSE028588R1 |
| Product Type | Digital Output Module |
| System | ABB S800 I/O |
| Number of Channels | 16 |
| Output Type | 24 VDC, sourcing (positive logic) |
| Max Load per Channel | 0.5 A |
| Output Delay (ON/OFF) | Approx. 0.5 ms |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Isolation | Channel-to-bus and channel-to-channel isolation |
| Field Connection | Via terminal unit (TU series) |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Diagnostics | Channel fault detection, module health |
| Hot Swap Capability | Yes |
| Mounting Type | Mounted on S800 I/O terminal base |
| Dimensions (H × W × D) | 45 x 102 x 119 mm |
| Weight | 0.2 kg |
| Certifications | CE, UL, cUL, RoHS |
| Manufacturer | ABB Ltd. |
Applications
The DO880-1 module is widely used across various industries for direct control of binary output devices in real-time. It plays a vital role in distributing control signals from the automation system to the field.
-
Power Generation: Controls breakers, alarms, trip relays, and load disconnect devices.
-
Chemical and Petrochemical Plants: Activates solenoid valves, pneumatic actuators, and safety interlocks.
-
Factory Automation: Drives motors, pumps, conveyors, and visual indicators.
-
Mining and Metallurgy: Used to manage safety systems, ventilation fans, and emergency stop circuits.
-
Water Treatment Systems: Opens and closes valves and starts/stops pumps remotely.
-
Railway and Infrastructure: Controls signaling systems, gate control, and warning lights.
Its robust design and compact size make it suitable for both central cabinets and remote field installations.
Product Advantages
-
High-Density Output: 16 digital outputs in a compact footprint minimize panel space requirements.
-
Short-Circuit & Overload Protection: Each channel includes advanced protection to prevent field faults from affecting system operations.
-
Field-Isolated Channels: Enhanced electrical isolation improves reliability and reduces fault propagation.
-
Hot-Swappable: Modules can be replaced without system shutdown, ensuring high availability.
-
Diagnostic Feedback: Built-in status monitoring allows for fast identification of field or module issues.
-
Reliable Operation: Supports industrial-grade temperature and humidity conditions.
-
Flexible Mounting: Works with a variety of TU terminal blocks, allowing tailored field wiring.
-
ABB 800xA Integration: Seamless compatibility with AC800M controllers and Control Builder software.
Frequently Asked Questions (FAQ)
1. What does the DO880-1 module do?
It provides 16 digital output channels to control devices such as relays, solenoids, or lamps using 24 VDC signals.
2. Can the module be replaced without shutting down the system?
Yes, it is hot-swappable, allowing replacement without interrupting operation.
3. What protection features are included?
Each output has short-circuit and overload protection to safeguard connected devices and the module.
4. What is the maximum current output per channel?
Each channel supports up to 0.5 A at 24 VDC.
5. Is this module part of the ABB 800xA system?
Yes, it is designed for seamless integration with ABB’s S800 I/O system and 800xA platform.
6. How is field wiring connected?
Via an appropriate S800 terminal unit (e.g., TU810, TU830).
7. What type of logic does the output use?
Sourcing output logic (positive logic) is used.
8. Does it support channel diagnostics?
Yes, it supports channel diagnostics, enabling fault detection and system monitoring.
9. Can it be used in outdoor environments?
Only if installed in a properly sealed enclosure meeting IP66 or higher, as the module itself is not weatherproof.
10. How large is the module?
It measures 45 x 102 x 119 mm and weighs 0.2 kg.
Related Models from the S800 I/O Series
| Model Number | Description | Type | Channels | Voltage/Current | Weight (kg) |
|---|---|---|---|---|---|
| DO810 | Digital Output Module | 24 VDC Output | 16 | 0.5 A per channel | 0.27 |
| DO820 | Relay Output Module | Relay Output | 8 | 250 VAC / 2 A | 0.3 |
| DI810 | Digital Input Module | 24 VDC Input | 16 | 6 mA per channel | 0.25 |
| DI820 | Isolated Digital Input Module | 120 V AC/DC | 8 | 2 mA typical | 0.28 |
| AO810 | Analog Output Module | 0–20 mA Output | 8 | 12-bit resolution | 0.26 |
| TU810V1 | Terminal Unit for DO modules | Terminal Base | — | — | 0.15 |
