Product Introduction

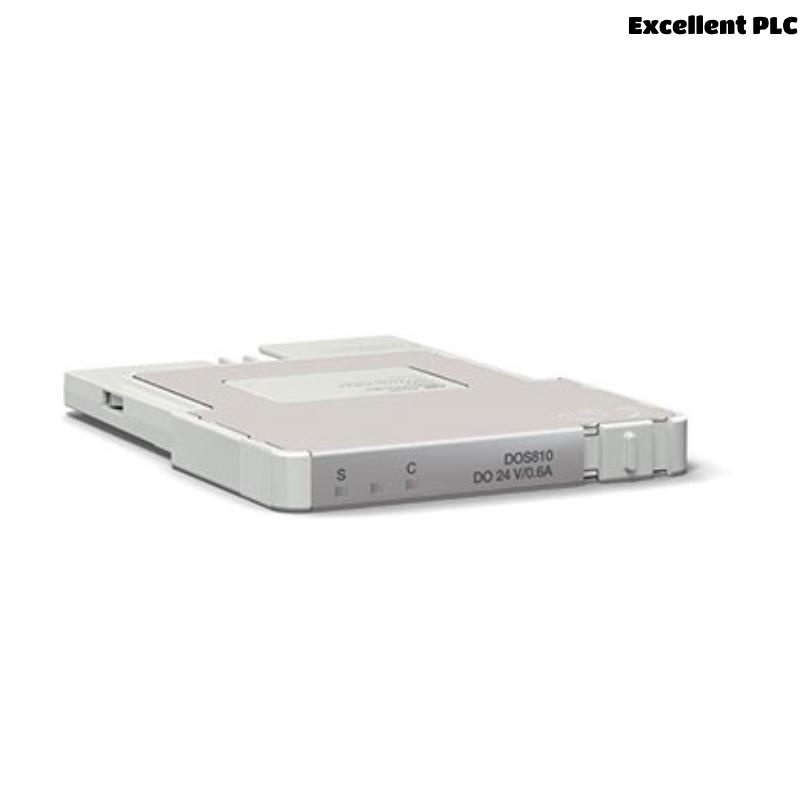

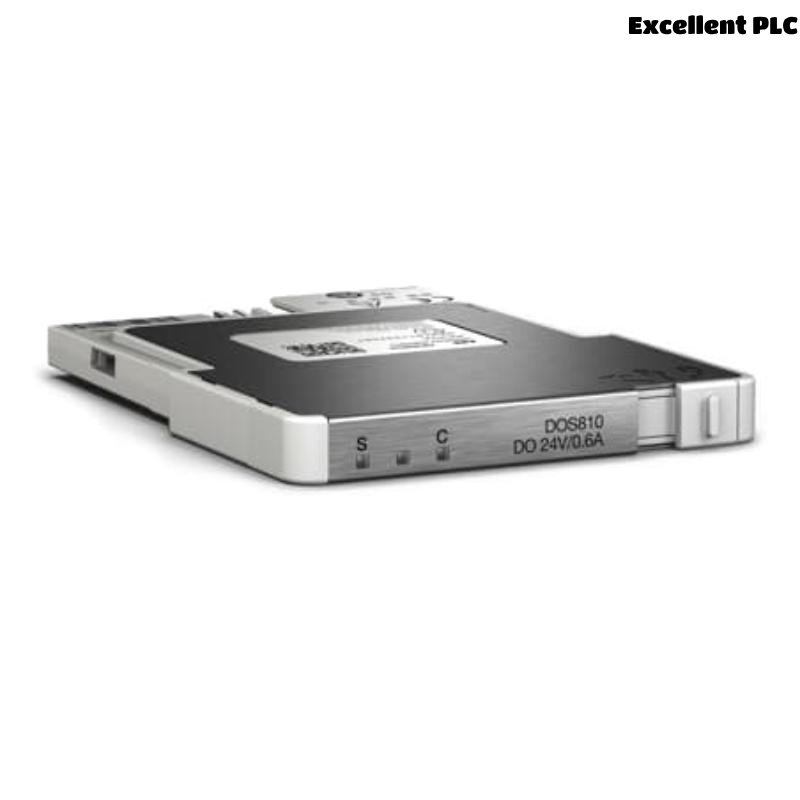

The ABB DOS810 3BSE078768R1 Digital Output Module is an advanced component designed to control a wide range of industrial devices. Part of ABB’s renowned distributed control systems, the DOS810 is designed to provide high precision and reliability in managing digital output signals for industrial automation applications. This module is highly versatile, offering exceptional performance in controlling actuators, solenoids, relays, and other digital devices in complex automation environments.
The module is engineered for integration into ABB’s extensive control system architecture, providing superior reliability and ensuring long-lasting performance. It is perfect for industrial applications that demand high operational uptime, seamless integration, and minimal maintenance.
With its robust design and superior engineering, the DOS810 is ideal for use in industries such as power generation, oil and gas, chemical processing, and manufacturing, where efficient control and reliable output signals are crucial for system stability and safety.
Product Parameters
| Parameter | Value |
|---|---|
| Model | DOS810 3BSE078768R1 |
| Dimensions (L x W x H) | 77.9 × 105 × 9.8 mm |
| Weight | 0.075 kg |
| Number of Channels | 8 Digital Outputs |
| Output Type | Sourcing |
| Output Voltage | 24 V DC |
| Current Output | 0.5 A per channel |
| Isolation | Galvanic Isolation |
| Environmental Rating | IP20 |
| Mounting | DIN Rail |
| Temperature Range | -20°C to +60°C |
Product Applications
-
Industrial Automation Systems:
The ABB DOS810 module is used widely in industrial automation systems for controlling various digital output devices such as solenoids, relays, and actuators. It provides reliable output control, making it ideal for manufacturing systems, automated machinery, and material handling applications. -
Power Plants and Energy Systems:
In power plants and energy systems, the DOS810 is used to control and monitor digital signals for critical components such as circuit breakers, transformers, and voltage regulators. Its reliable performance ensures minimal downtime and operational safety. -
Oil and Gas Industry:
The module plays an important role in the oil and gas sector, controlling a variety of devices used in extraction, refining, and distribution processes. Its precise control over digital outputs makes it an essential part of automation systems that ensure safe and efficient operation in the field. -
Chemical and Pharmaceutical Plants:
In chemical and pharmaceutical manufacturing, the DOS810 is utilized to control actuators and solenoids in high-precision processes. The module’s high reliability and accuracy ensure that stringent safety and operational requirements are met. -
Manufacturing and Assembly Lines:
On production and assembly lines, the DOS810 is used to control various components, including robotic arms, conveyor systems, and assembly equipment. The module’s ability to handle multiple digital outputs simultaneously makes it ideal for use in high-speed, high-demand environments. -
Building Automation:
The ABB DOS810 module is also used in building automation systems, controlling lights, HVAC systems, and other digital output devices to ensure efficient energy management and system performance.
Product Advantages
-
High Reliability and Precision:
The ABB DOS810 module offers outstanding reliability in industrial automation applications. Its precise control of digital output signals ensures the smooth operation of connected devices, minimizing operational downtime and preventing faults. -
Flexible Output Control:
With 8 digital outputs and sourcing capability, the DOS810 module is flexible enough to handle a variety of output devices. Its ability to provide reliable control for solenoids, relays, and actuators makes it a versatile choice for multiple applications. -
Space-Efficient Design:
The compact dimensions of the DOS810 (77.9 × 105 × 9.8 mm) make it ideal for environments with limited space. Its slim form factor allows for easy installation within control panels and automation systems without compromising on performance. -
Galvanic Isolation for Enhanced Safety:
The module features galvanic isolation, ensuring that the digital control signals are electrically separated from the connected output devices. This improves safety and prevents electrical faults from affecting the control system. -
IP20 Protection Rating:
The DOS810 is built with an IP20 protection rating, making it suitable for environments where protection from dust and accidental contact is necessary. However, it is not designed for outdoor use or exposure to water. -
Easy Installation and Maintenance:
Designed for DIN rail mounting, the DOS810 module is simple to install and can be easily integrated into existing control systems. Its modular design also allows for easy maintenance and replacement if needed, reducing downtime and improving system efficiency.
FAQ
1. What is the primary function of the ABB DOS810 module?
The DOS810 is a digital output module used to control various industrial devices such as solenoids, relays, and actuators in industrial automation systems.
2. How many output channels does the DOS810 have?
The DOS810 has 8 digital output channels, each capable of controlling a digital output device.
3. What is the voltage and current output of the DOS810 module?
The module operates at 24 V DC and provides 0.5 A of current output per channel.
4. What type of output does the ABB DOS810 module support?
The DOS810 module supports sourcing output, providing a stable and reliable control signal to connected devices.
5. What is galvanic isolation, and why is it important?
Galvanic isolation ensures that the control signals are electrically separated from the output devices, providing enhanced safety and preventing electrical faults from damaging the system.
6. What is the temperature range for the ABB DOS810 module?
The DOS810 can operate within a temperature range of -20°C to +60°C, making it suitable for various industrial environments.
7. How is the ABB DOS810 module mounted?
The DOS810 is designed for DIN rail mounting, making installation simple and secure within control panels.
8. Can the ABB DOS810 module control both AC and DC devices?
The module is designed for controlling DC devices, such as actuators and solenoids, with a 24 V DC output.
9. What is the environmental rating of the DOS810 module?
The ABB DOS810 has an IP20 protection rating, meaning it is protected from dust and accidental contact but is not waterproof.
10. In which industries is the ABB DOS810 module commonly used?
The DOS810 module is used in industries such as manufacturing, power generation, oil and gas, chemical processing, and building automation.
