Product Introduction

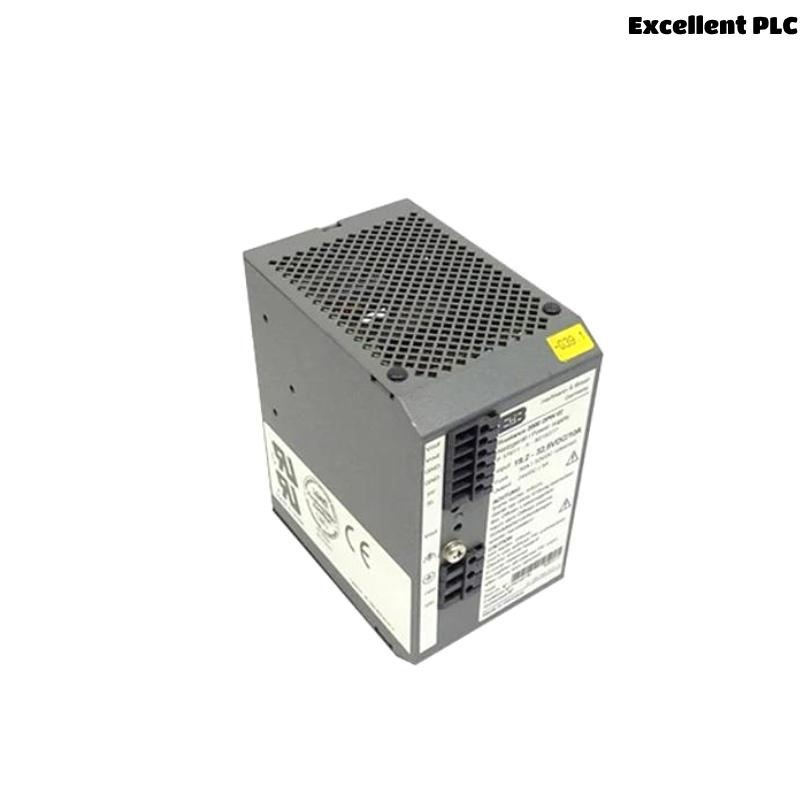

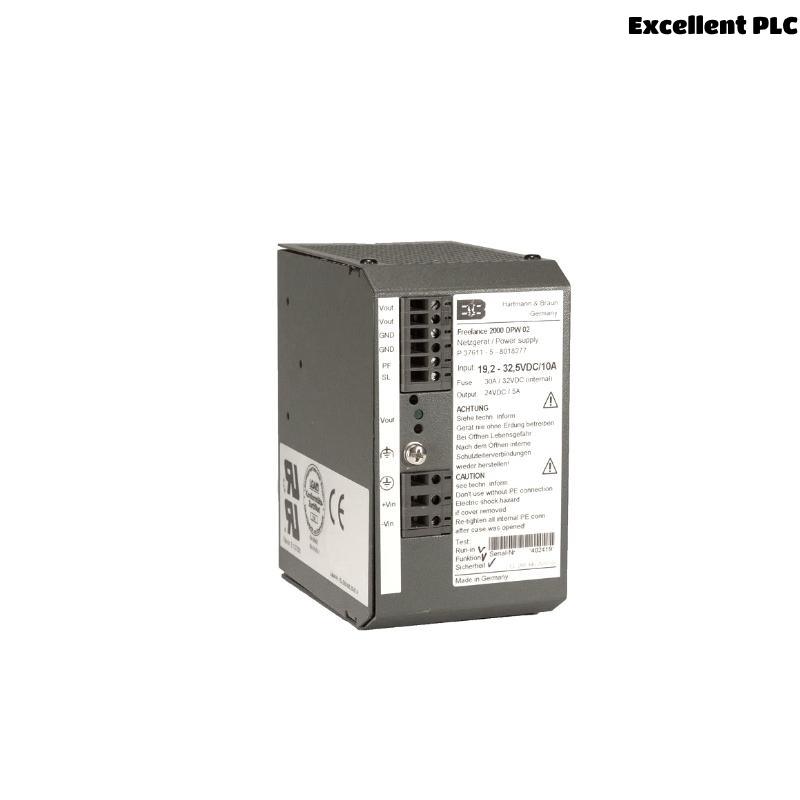

The ABB DPW02 Power Supply Module is a critical component in ABB’s industrial control systems, designed to provide regulated and reliable DC power to automation modules within DCS (Distributed Control Systems) such as INFI 90 or Symphony. This module converts AC mains voltage into multiple stable DC voltages required by various control boards, I/O modules, communication processors, and interface units.
Known for its rugged reliability and long operational life, the DPW02 is engineered for continuous, high-demand applications in industries like power generation, petrochemicals, water treatment, and manufacturing. It offers protection against overvoltage, short circuits, and internal thermal overloads, ensuring safe and uninterrupted operation of control system infrastructure.
Product Specifications
| Parameter | Details |
|---|---|
| Model | DPW02 |
| Product Type | Power Supply Module |
| Function | Converts AC input to regulated DC outputs |
| Input Voltage | 100–240 VAC ±10%, 50/60 Hz |
| Output Voltages | +5VDC, +15VDC, -15VDC, +24VDC (typical configuration) |
| Output Power | Up to 100 W |
| Ripple & Noise | < 50 mVp-p |
| Load Regulation | ±1% typical |
| Efficiency | > 80% |
| Protection Features | Overvoltage, Overcurrent, Short-circuit, Thermal shutdown |
| Cooling Method | Convection cooled (passive cooling) |
| LED Indicators | Power OK, Fault, Voltage Level |
| Mounting | DIN Rail or Rack-mounted in control cabinet |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% – 95% RH, non-condensing |
| Dimensions (L × W × H) | 152 x 127 x 254 mm |
| Weight | 0.9 kg |
| Compliance | CE, UL, CSA, RoHS |
| Typical System | INFI 90, Symphony DCS Platforms |
Product Applications
The ABB DPW02 Power Supply Module is widely used in industrial automation environments where stable and uninterrupted power delivery is vital. Some typical applications include:
-
DCS and PLC Systems: Powers I/O cards, CPU modules, communication processors in large-scale distributed control systems.
-
Electric Power Plants: Provides core power for substation automation and control systems.
-
Oil & Gas Refineries: Supports control of pumps, compressors, and valves through reliable energy supply.
-
Water & Wastewater Treatment: Ensures process automation components receive consistent voltage under varying loads.
-
Manufacturing Automation: Powers logic controllers and field devices in complex production lines.
-
Railway Infrastructure: Used in control cabinets for signaling and track control systems.
Product Advantages
-
High Reliability: Industrial-grade build with protection against faults ensures uninterrupted 24/7 performance.
-
Versatile Output: Provides multiple voltage outputs, eliminating the need for separate supplies.
-
Compact Footprint: Optimized for space-constrained cabinets without compromising output capability.
-
Fail-Safe Operation: Built-in diagnostic LEDs and multiple hardware-level protections prevent catastrophic failure.
-
Wide Input Range: Supports global voltage standards (100–240 VAC) for flexible installation across regions.
-
Low Maintenance: Passive cooling design reduces wear and tear, prolonging service life.
Frequently Asked Questions (FAQ)
-
Q: What control systems is the DPW02 compatible with?
A: It is designed for ABB INFI 90 and Symphony systems, but may also support other DCS setups requiring similar power specs. -
Q: Can the DPW02 operate in high-temperature environments?
A: Yes, it can operate in temperatures up to +60°C with natural cooling, ideal for industrial settings. -
Q: What protections are included in the DPW02 module?
A: It features overvoltage, overcurrent, short-circuit, and thermal overload protections. -
Q: What is the power output rating of the DPW02?
A: The output power is rated up to 100 watts with regulated multiple DC voltages. -
Q: How is the DPW02 mounted?
A: It supports both DIN rail and standard rack mounting within ABB control cabinets. -
Q: Is the power supply hot-swappable?
A: No, the DPW02 should be powered down and safely isolated before removal or replacement. -
Q: Are firmware updates necessary for DPW02?
A: No, this is a hardware-based power module and does not require firmware updates. -
Q: What kind of cooling does the DPW02 use?
A: It uses convection (passive) cooling without internal fans. -
Q: What is the expected lifespan of this power supply?
A: With proper ventilation and normal conditions, it can last over 10 years in continuous operation. -
Q: Does it include monitoring or diagnostics?
A: Yes, it has front-panel LEDs indicating status of voltage levels and fault conditions.
