Product Introduction

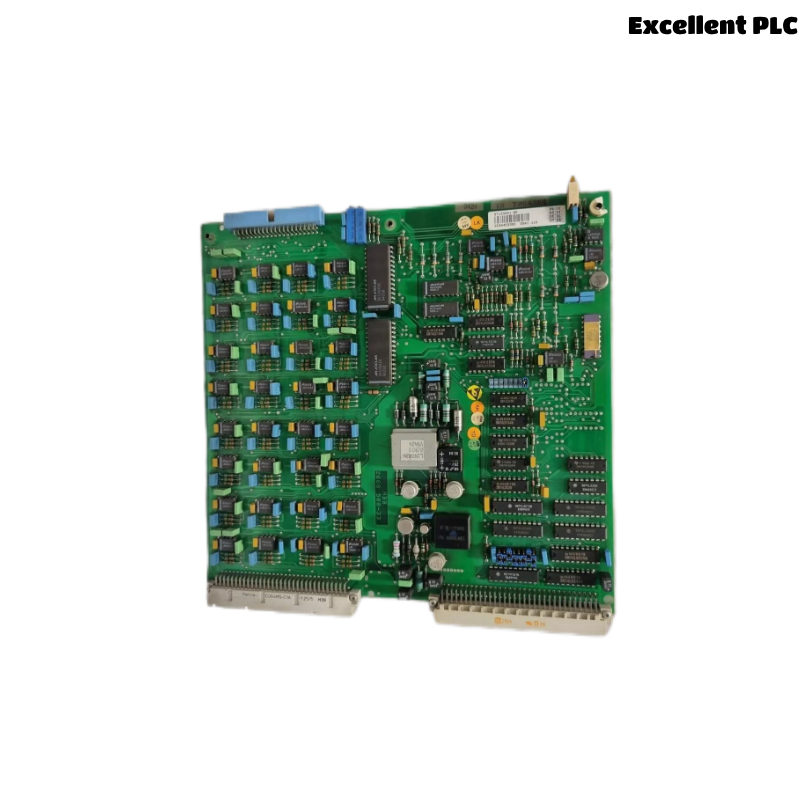

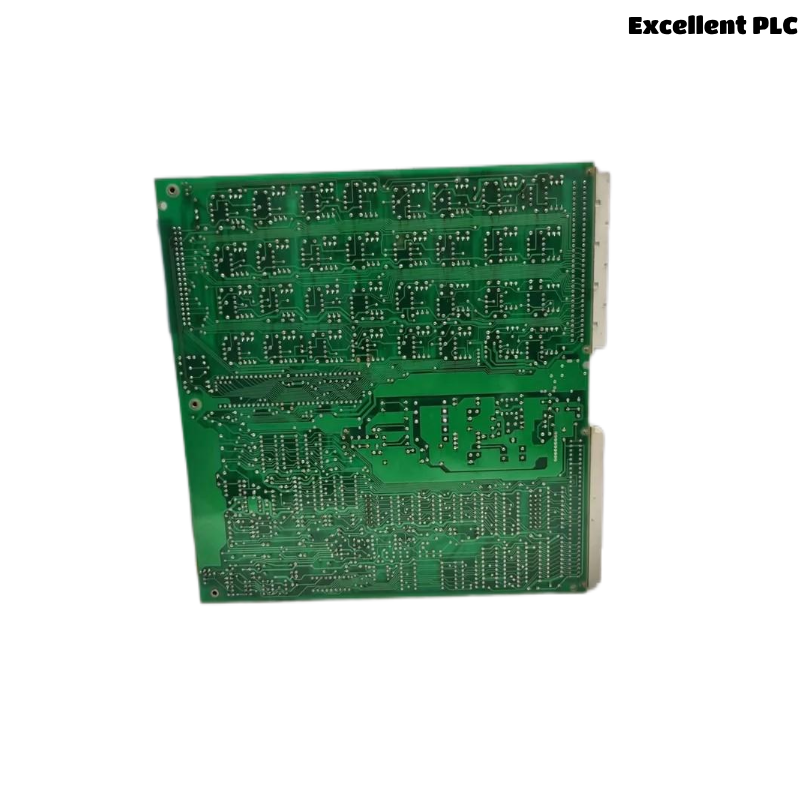

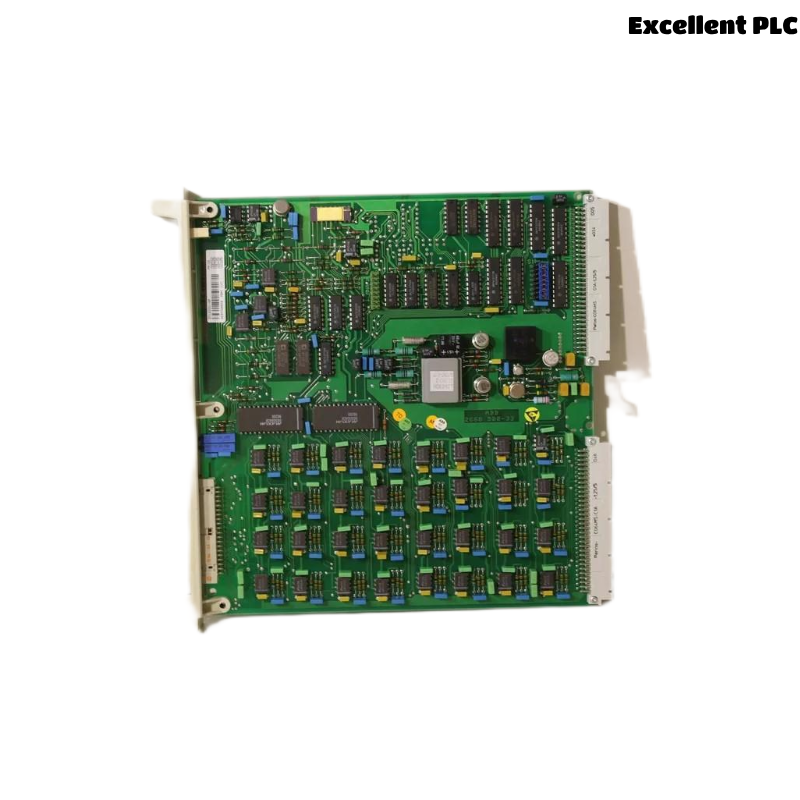

The ABB DSAI 133 57120001-PS is an advanced analog input module designed for high-performance industrial automation systems. As part of ABB’s Symphony and Advant Master product lines, this module enables accurate analog signal processing from a variety of sensors and devices, ensuring reliable data acquisition for control and monitoring applications. The DSAI 133 is especially valued for its robust design, long operational lifespan, and seamless integration into distributed control systems (DCS). It is widely implemented in power plants, oil & gas operations, and process automation industries.
Product Features and Advantages
-
High Accuracy: Supports precise analog signal acquisition to ensure accurate process measurements.
-
Durable Industrial Design: Engineered to perform reliably under demanding conditions such as extreme temperatures and electrical noise.
-
Plug-and-Play Compatibility: Integrates easily with existing ABB control systems with minimal configuration.
-
Enhanced Reliability: Utilizes high-quality components to reduce maintenance frequency and operational downtime.
-
Field-Proven Performance: Trusted in thousands of installations globally across critical industries.
-
Status Diagnostics: Built-in LED indicators and self-diagnosis capabilities enhance troubleshooting and operational transparency.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | ABB DSAI 133 57120001-PS |
| Type | Analog Input Module |
| Input Channels | 8 Channels |
| Input Signal Range | 0–10V, 4–20mA (depending on configuration) |
| Resolution | 12–16 bit (based on firmware) |
| System Compatibility | Symphony DCI, Advant OCS |
| Mounting Type | DIN Rail / Module Rack |
| Operating Voltage | 24 VDC |
| Power Consumption | 3.5 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 324 x 9 x 234 mm |
| Weight | 0.4 kg |
| Protection Class | IP20 |
| Certification | CE, RoHS |
| Country of Origin | Sweden |
Applications
-
Power Generation Plants: Monitors voltage, current, and temperature for turbines and generators.
-
Oil & Gas Refineries: Acquires analog feedback from pressure, flow, and level sensors.
-
Chemical Processing: Enables accurate process control for temperature and pH variables.
-
Water & Wastewater Treatment: Interfaces with sensors for flow rates, pressure, and chemical dosing.
-
Factory Automation: Suitable for centralized data acquisition systems.
Installation Instructions
-
Preparation: Ensure the power supply is disconnected before installation.
-
Mounting: Secure the module onto the DIN rail or system rack using provided clamps.
-
Wiring: Connect input signals to the terminal block according to the system wiring diagram.
-
Power Connection: Supply 24VDC to the appropriate terminals with proper grounding.
-
Configuration: Use the associated ABB control software to calibrate and map the input signals.
-
Testing: Once installed, perform functional tests and diagnostics using LED indicators or system software.
Frequently Asked Questions (FAQ)
Q1: What type of input signals can the DSAI 133 process?
A1: It supports standard analog signals such as 0–10V and 4–20mA, depending on system configuration.
Q2: Is the module compatible with Symphony or Advant systems?
A2: Yes, the DSAI 133 is fully compatible with both ABB Symphony and Advant control systems.
Q3: Does it support hot swapping?
A3: No, the module should only be installed or removed with power disconnected.
Q4: What is the typical response time of the module?
A4: The response time is dependent on system configuration but is typically under 100 ms.
Q5: Can the module operate in high humidity environments?
A5: Yes, it can operate in up to 95% non-condensing humidity.
Q6: What kind of maintenance does the DSAI 133 require?
A6: It requires minimal maintenance—primarily routine inspections and cleaning.
Q7: Are firmware updates available for this module?
A7: Firmware is fixed for most analog modules, but consult ABB support for any updates.
Q8: What is the weight of the DSAI 133 module?
A8: Approximately 0.45 kilograms.
Q9: Can the module be calibrated manually?
A9: Calibration is done digitally via system software tools.
Q10: What is the standard lead time for replacement units?
A10: Typically 2–4 weeks, depending on regional ABB distributor availability.
