Product Introduction

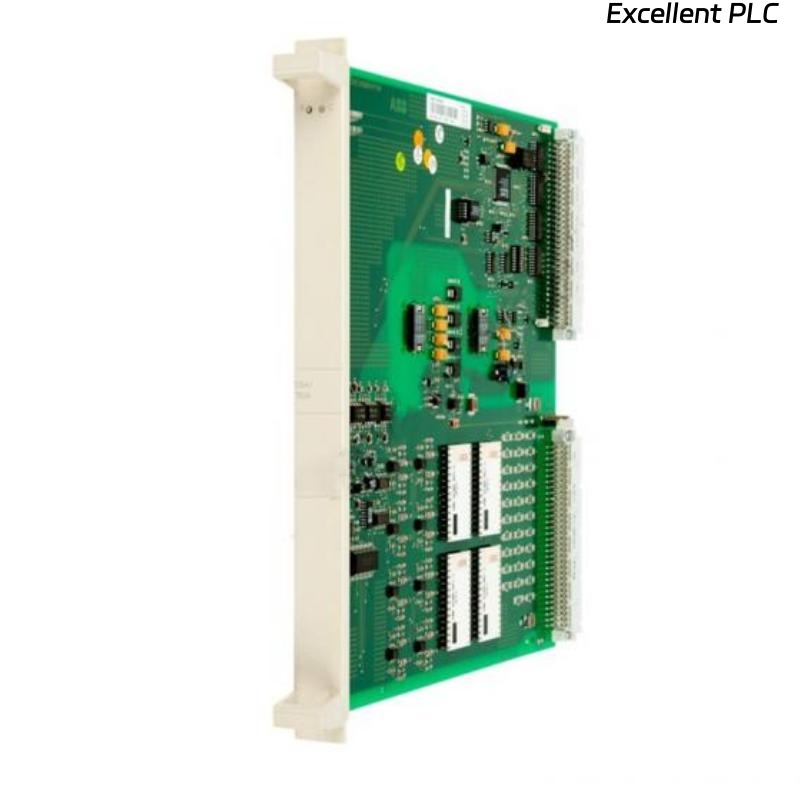

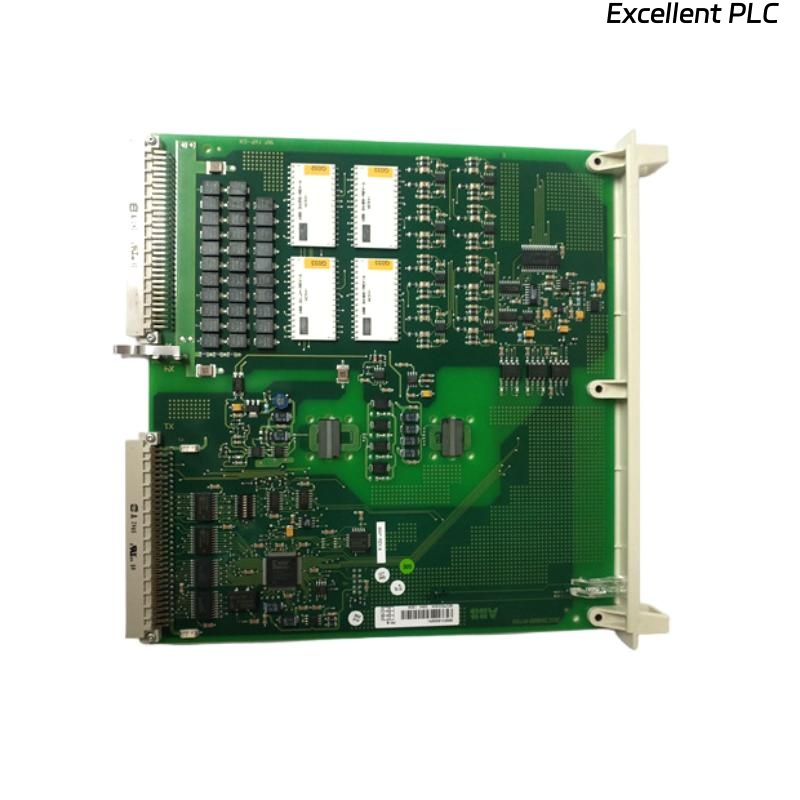

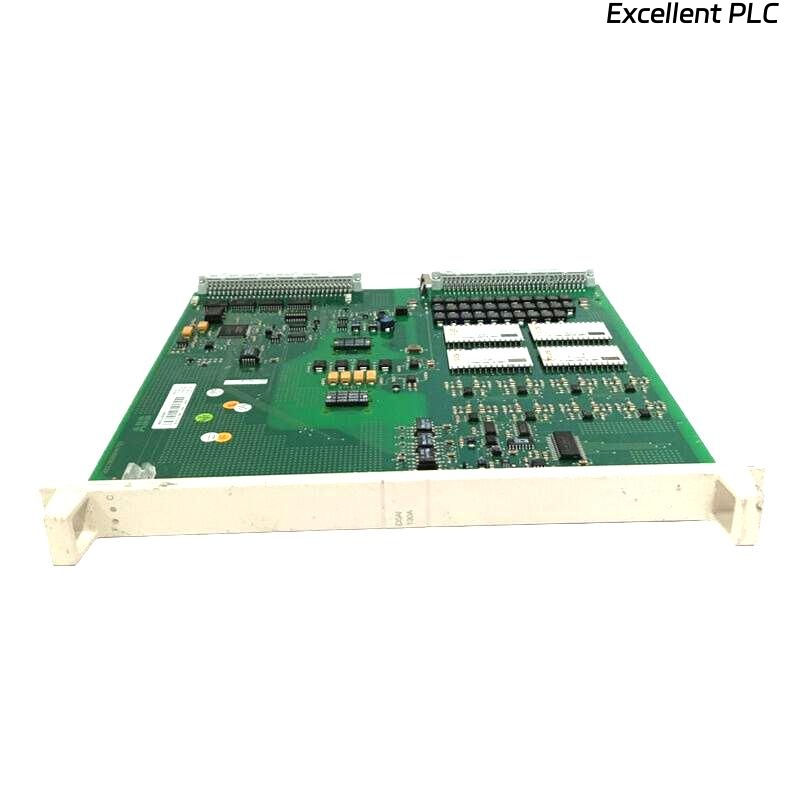

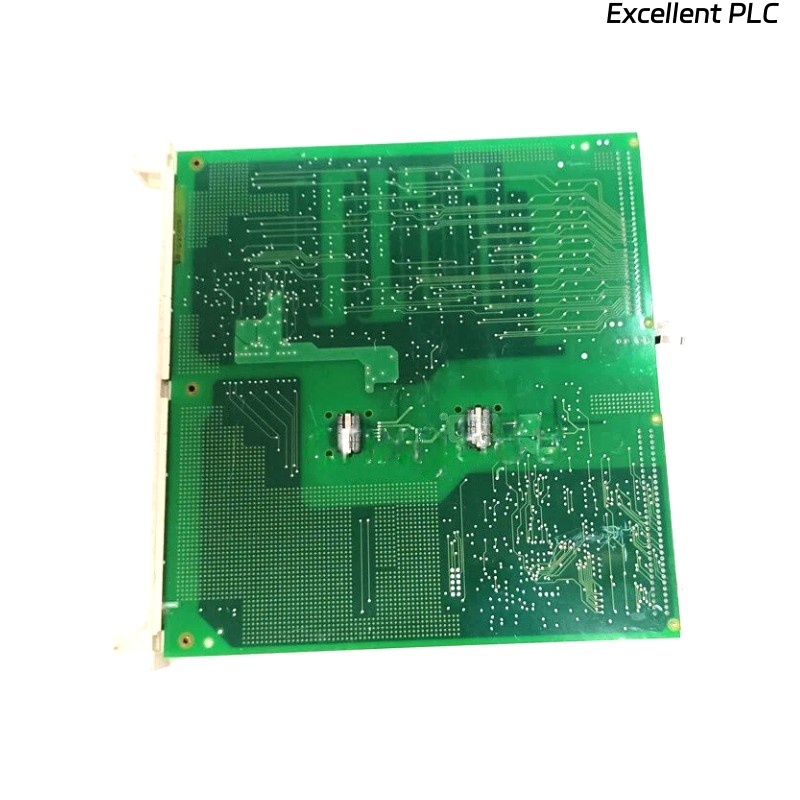

The ABB DSAI130A 3BSE018292R1 Analog Input Board is a high-performance module designed for industrial automation and process control systems. This board enables accurate and reliable analog signal acquisition from a wide range of sensors, ensuring precise monitoring of critical process variables. The DSAI130A is part of ABB’s well-established automation portfolio and is compatible with multiple control platforms, offering flexibility in system integration.
Engineered for demanding environments, this analog input board supports high-resolution signal conversion and robust electrical isolation, making it suitable for applications requiring both accuracy and operational reliability. With its modular design, the DSAI130A simplifies installation, maintenance, and future system upgrades, ensuring long-term value for industrial operators.
Product Advantages
-
High Accuracy and Resolution: Provides precise measurement of process variables with minimal signal noise.
-
Wide Compatibility: Supports multiple sensor types including 4–20 mA current loops, thermocouples, and resistance temperature detectors (RTDs).
-
Robust Design: Withstands harsh industrial environments with electrical isolation and surge protection.
-
Modular and Scalable: Easy to install and maintain, allowing system expansion without full replacement.
-
Fast Signal Processing: Low latency analog-to-digital conversion for real-time process monitoring.
-
Enhanced Safety: Built-in fault detection and diagnostics improve system reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | DSAI130A 3BSE018292R1 |
| Module Type | Analog Input Board |
| Input Channels | 16 differential channels |
| Signal Types Supported | 4–20 mA, 0–10 V, RTD, Thermocouple |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Sampling Rate | Up to 200 Hz per channel |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Power Supply | 5 VDC from backplane |
| Dimensions | 324 x 22.5 x 225 mm |
| Weight | 0.317 kg |
| Mounting | DIN rail / rack-mounted |
| Compliance | CE, UL, RoHS |
Product Applications
-
Power Generation: Monitoring of turbine temperatures, pressures, and flow rates.
-
Oil and Gas: Real-time measurement of well parameters and pipeline conditions.
-
Water Treatment: Process control and monitoring of chemical dosing systems.
-
Manufacturing: Monitoring of production lines, ensuring consistent quality control.
-
Chemical and Petrochemical Plants: Acquisition of temperature, pressure, and level signals for safe and efficient operations.
-
HVAC Systems: Precision control of environmental conditions in large facilities.
FAQ
Q1: What types of sensors are compatible with the DSAI130A?
A1: The module supports 4–20 mA current loops, 0–10 V voltage inputs, RTDs (Pt100/Pt1000), and thermocouples (Type J, K, T, E, N, R, S, B).
Q2: What is the maximum input voltage the board can handle?
A2: For voltage input channels, the maximum is 10 VDC; for current input channels, the maximum is 24 mA with 4–20 mA nominal range.
Q3: How does the module ensure signal accuracy?
A3: Through 16-bit ADC resolution, input signal filtering, and galvanic isolation between channels and backplane, minimizing noise and interference.
Q4: Can multiple boards be used together in one system?
A4: Yes, the board supports daisy-chaining in a rack, enabling expansion of analog input channels in large systems.
Q5: What is the channel sampling rate per input?
A5: Each channel can sample up to 200 Hz, suitable for most industrial process monitoring applications.
Q6: Does the board support hot-swapping?
A6: No, the DSAI130A must be powered down before installation or removal to avoid damage.
Q7: How does the module handle fault conditions?
A7: It features built-in diagnostics, reporting open circuits, short circuits, and out-of-range signals to the host controller.
Q8: What type of electrical isolation does the board provide?
A8: Each channel is electrically isolated up to 500 VDC from the backplane and other channels.
Q9: Is the DSAI130A suitable for high-temperature environments?
A9: The module operates reliably between -20°C and +70°C, meeting industrial environmental standards.
Q10: How is the module mounted and connected?
A10: It is designed for DIN rail or rack mounting and connects via the standard backplane interface of ABB automation systems.
Recommended Related Models
| Model Number | Description | Channels | Signal Type Supported | Dimensions (H×W×D) | Weight |
|---|---|---|---|---|---|
| DSAI120A | Analog Input Board, 8 channels | 8 | 4–20 mA, 0–10 V | 120 × 30 × 150 mm | 0.55 kg |
| DSAI140A | Analog Input Board, 32 channels | 32 | 4–20 mA, RTD | 180 × 30 × 150 mm | 0.85 kg |
| DSAI150A | Thermocouple Input Board | 16 | Thermocouple Type K | 120 × 30 × 150 mm | 0.60 kg |
| DSAI160A | High-Resolution Analog Input | 16 | 4–20 mA, 0–10 V | 120 × 30 × 150 mm | 0.65 kg |
| DSAI170A | Isolated Analog Input Board | 16 | RTD, 4–20 mA | 120 × 30 × 150 mm | 0.70 kg |
| DSAI180A | Multi-Signal Analog Board | 24 | 4–20 mA, Thermocouple | 150 × 30 × 150 mm | 0.75 kg |
