Product Introduction

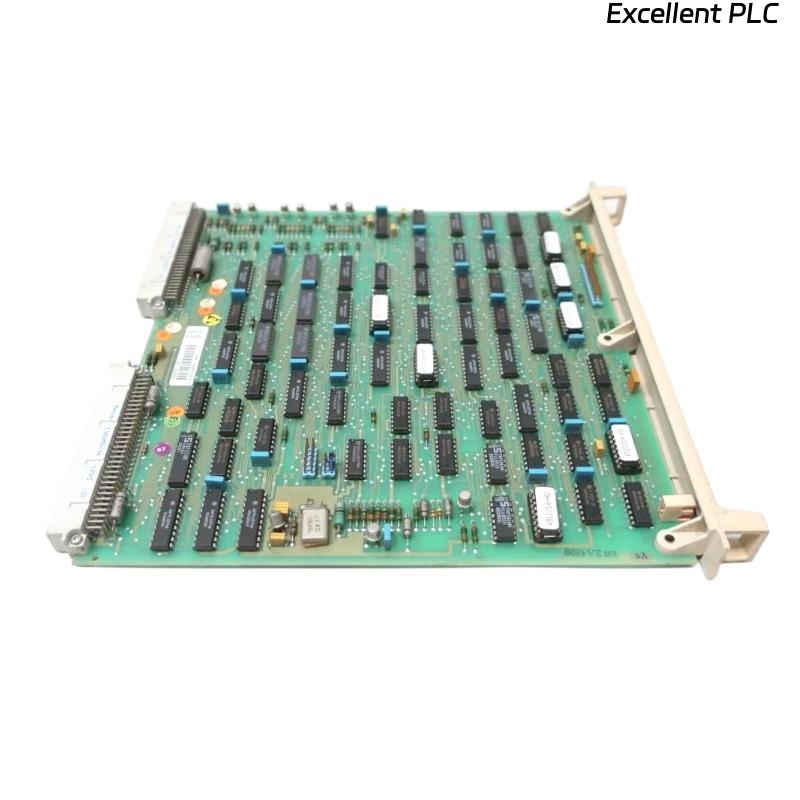

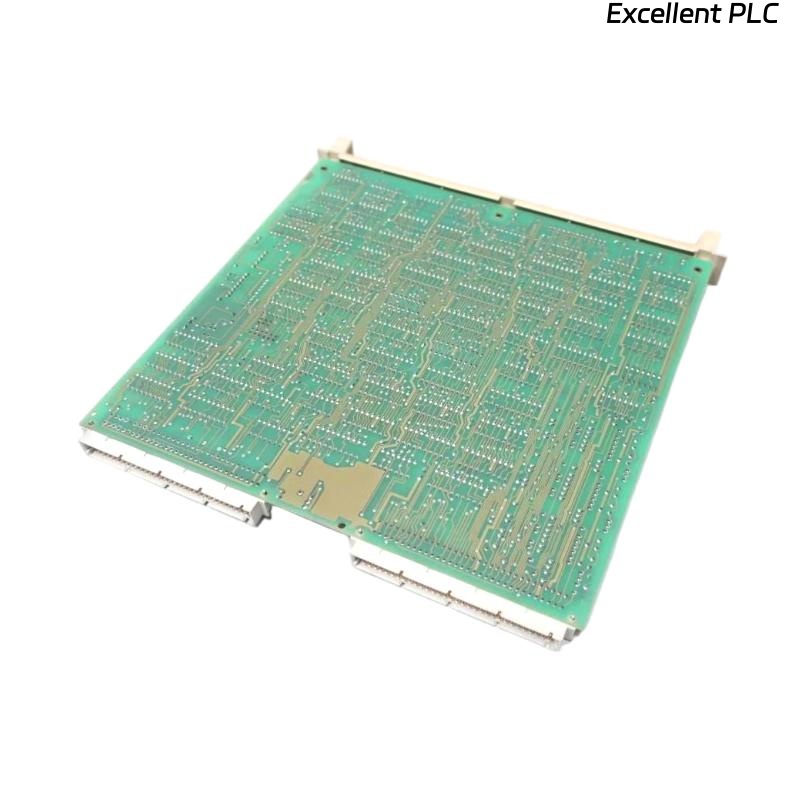

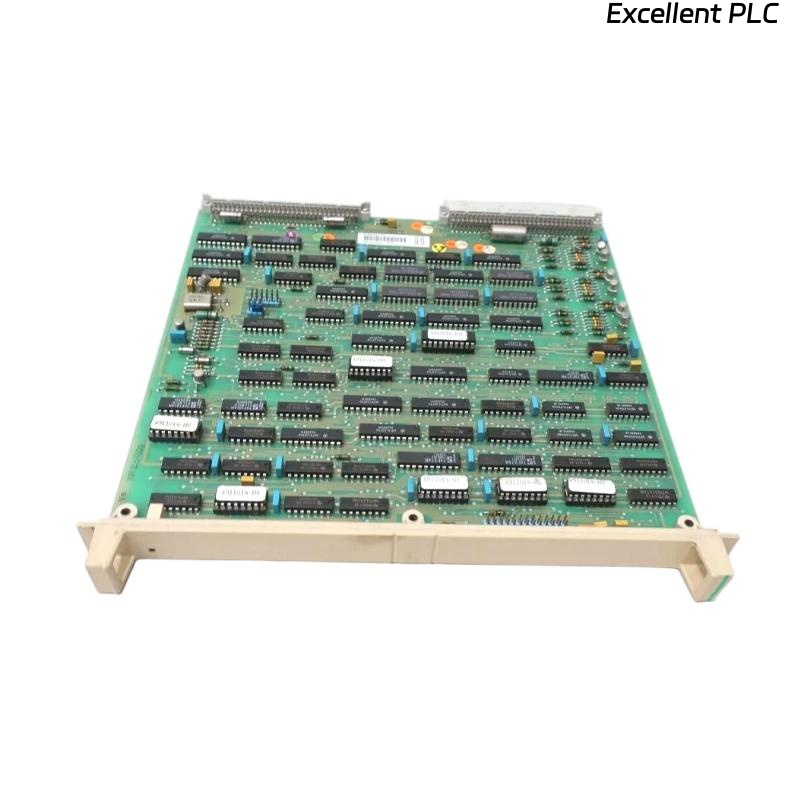

The ABB DSAV 111 57350001-CN is a high-performance video board designed for seamless integration with ABB’s Distributed Control Systems (DCS). This module provides advanced video input and output capabilities, enabling the display of critical video feeds directly onto the DCS operator interfaces. It is used in industrial environments where real-time video monitoring and control are essential for process management and security purposes.
The DSAV 111 module supports a wide range of video formats and interfaces, offering flexibility and reliability in capturing, processing, and displaying video signals. This is particularly useful in applications such as surveillance systems, process monitoring, and visual control of machinery and processes. The compact design and robust features of the DSAV 111 make it ideal for high-demand environments where video feeds are integral to safe and efficient operations.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ABB DSAV 111 57350001-CN |
| Input Type | Video Input/Output |
| Dimensions | 234 x 324 x 18 mm |
| Weight | 0.395 kg |
| Supported Video Formats | Composite Video, VGA, DVI, HDMI |
| Maximum Video Resolution | 1920 x 1080 (Full HD) |
| Video Frame Rate | 30 fps |
| Signal Output | VGA, DVI, HDMI |
| Power Supply | 24V DC ±20% |
| Operating Temperature | -20°C to 60°C |
| Mounting Type | DIN rail mounting |
| Protection | Over-voltage, Overcurrent |
Product Applications
The ABB DSAV 111 video board is used in industrial and control systems where video monitoring is required. It provides real-time video feeds that are essential for the following applications:
-
Industrial Process Monitoring: Enables real-time video integration into the control system to monitor machines, equipment, and critical infrastructure.
-
Surveillance Systems: Used in security systems to provide visual feeds from cameras integrated into the facility, improving safety and security.
-
Machine Vision: For monitoring and controlling automated machines, ensuring proper functioning and preventing failures through visual inspection.
-
Building Management Systems (BMS): Used in BMS for monitoring HVAC systems, fire alarms, and other critical infrastructure.
-
Power Plants and Energy Systems: Allows operators to visually monitor plant equipment, providing enhanced situational awareness.
-
Control Rooms: Ideal for control rooms where visual integration of processes and security systems enhances the ability to make informed decisions.
Product Advantages
-
High Video Quality: Supports Full HD resolution (1920 x 1080) with a 30 frames per second video frame rate, ensuring crisp, high-quality video output for real-time monitoring.
-
Versatile Video Interfaces: The DSAV 111 supports multiple video signal outputs including VGA, DVI, and HDMI, making it adaptable to a variety of video display devices.
-
Robust Protection: The module features over-voltage and overcurrent protection to safeguard against electrical issues and ensure longevity and reliability in industrial settings.
-
Wide Operating Temperature Range: With an operating range of -20°C to 60°C, the DSAV 111 is suitable for harsh industrial environments, providing flexibility for diverse applications.
-
Compact and Lightweight Design: The DSAV 111 is compact (234 x 324 x 18 mm) and lightweight (0.395 kg), making it easy to integrate into existing control systems with limited space.
-
Easy Installation: The module can be mounted easily on DIN rails, making installation and integration into control panels quick and straightforward.
-
Real-Time Video Display: Supports real-time video display, enabling operators to monitor and respond to process changes as they happen, ensuring quick corrective actions when necessary.
FAQ
1. What video formats does the DSAV 111 support?
The DSAV 111 supports a variety of video formats, including composite video, VGA, DVI, and HDMI, making it versatile for different display setups.
2. What is the maximum video resolution supported by the DSAV 111?
The module supports a maximum video resolution of 1920 x 1080 (Full HD), ensuring high-quality video output for detailed monitoring.
3. What is the video frame rate of the DSAV 111?
The DSAV 111 supports a video frame rate of 30 frames per second (fps), providing smooth and continuous video feed output.
4. What output signal types are supported by the DSAV 111?
The DSAV 111 supports VGA, DVI, and HDMI output signals, enabling compatibility with a wide range of video display devices.
5. What power supply does the DSAV 111 require?
The DSAV 111 operates on a 24V DC power supply with a ±20% tolerance, which is standard for most industrial control systems.
6. Can the DSAV 111 be used in extreme temperature environments?
Yes, the DSAV 111 is designed to operate in environments with temperatures ranging from -20°C to 60°C, making it suitable for diverse industrial settings.
7. How is the DSAV 111 mounted?
The DSAV 111 is designed for DIN rail mounting, which allows for easy installation and integration into existing control panels.
8. What protection does the DSAV 111 include?
The module includes over-voltage and overcurrent protection, ensuring the device’s safety and longevity during operation.
9. What industries commonly use the DSAV 111 video board?
The DSAV 111 is used in industries such as manufacturing, process control, power generation, surveillance, and building management, where real-time video feeds are essential.
10. Can the DSAV 111 be used for both video input and output?
Yes, the DSAV 111 supports both video input and output, allowing it to integrate video feeds into control systems for monitoring and decision-making.
