Product Introduction

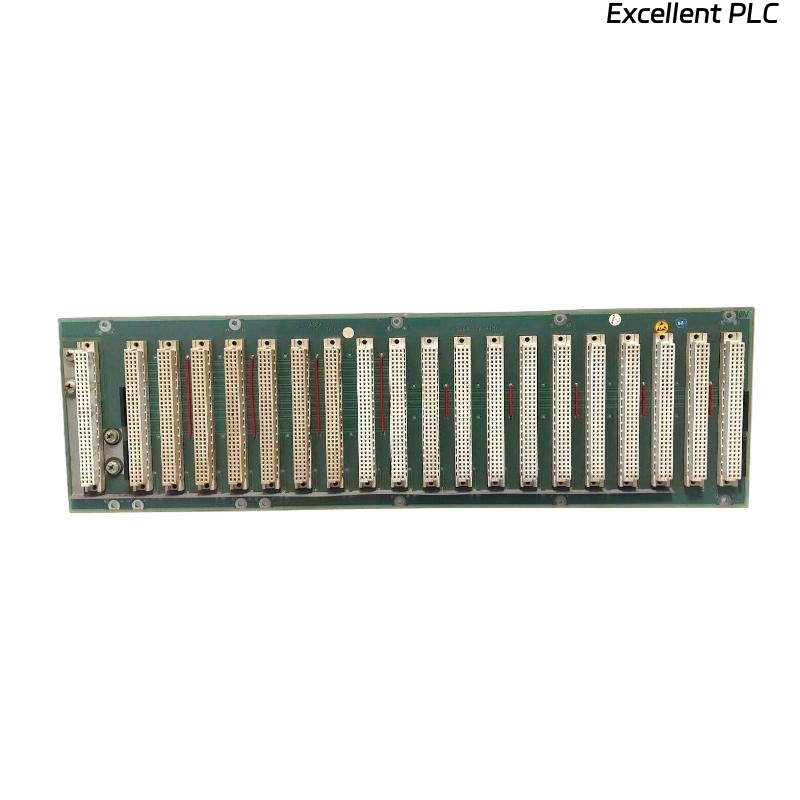

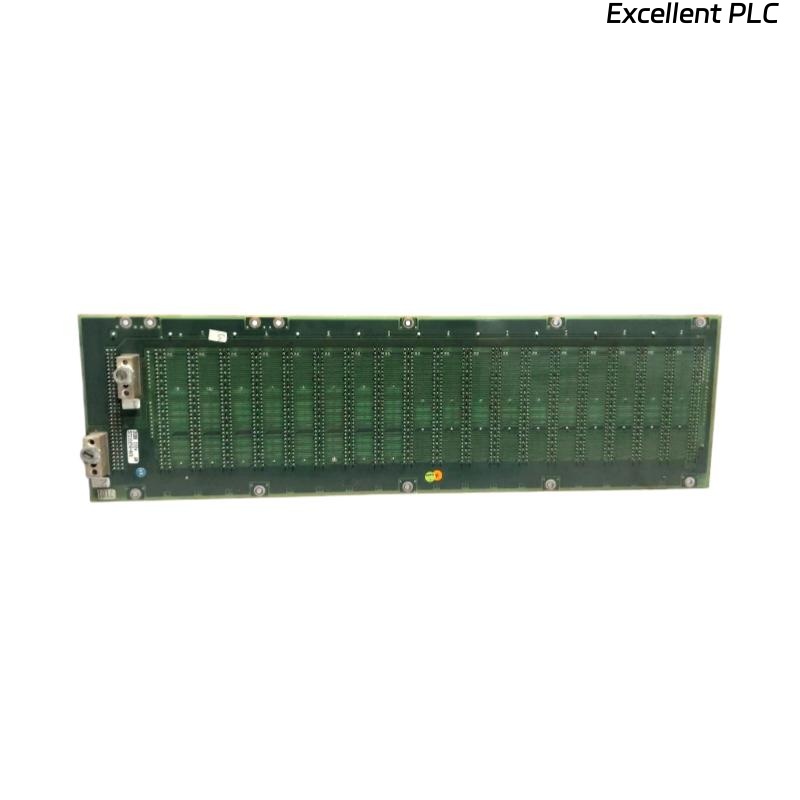

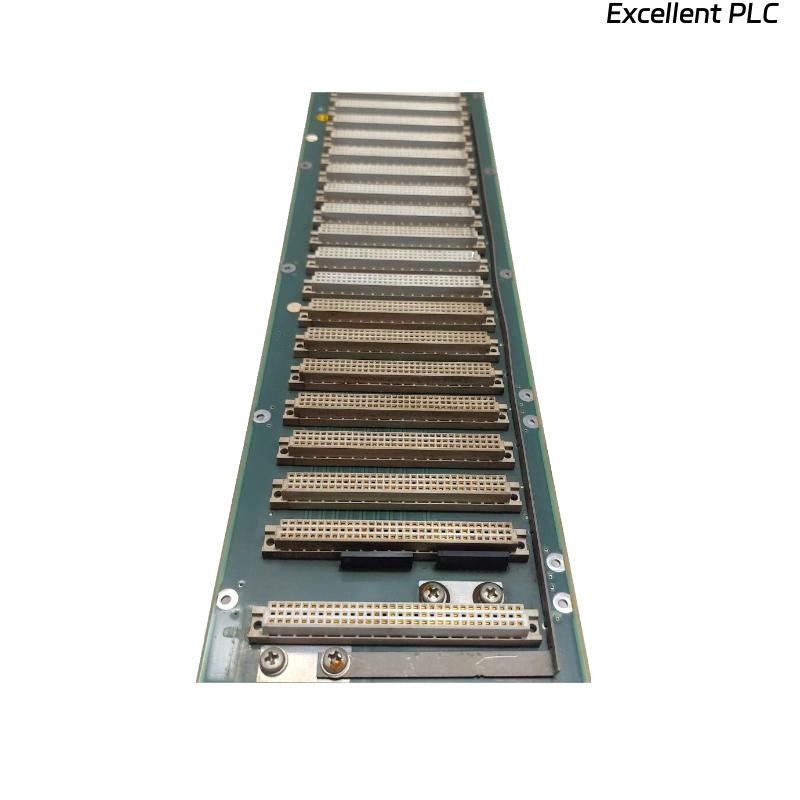

The ABB DSBB 102 57310256-A/1 is a high-quality bus backplane designed for use in ABB’s Distributed Control Systems (DCS). It serves as a critical communication hub within an industrial automation system, enabling the connection and data transfer between multiple system modules. The DSBB 102 backplane is designed to handle high-speed data transmission and ensure robust communication between input/output modules, control processors, and other devices in a modular control system.
This bus backplane is built to be integrated into complex automation systems, providing a reliable and scalable platform for industrial control applications. It is well-suited for industries requiring high-performance control systems, such as manufacturing, process control, and power generation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ABB DSBB 102 57310256-A/1 |
| Type | Bus Backplane |
| Dimensions | 215 x 100 x 30 mm |
| Weight | 0.5 kg |
| Input/Output Channels | 10+ Channels |
| Data Transfer Rate | High-Speed Data Transmission |
| Signal Type | Digital, Analog |
| Supported Modules | Compatible with ABB I/O Modules |
| Communication Protocol | Proprietary ABB Protocols |
| Power Supply | 24V DC ±20% |
| Mounting Type | DIN Rail Mounting |
| Operating Temperature | -20°C to 60°C |
| Protection | Over-voltage, Overcurrent |
Product Applications
The ABB DSBB 102 bus backplane is used in industrial control systems where multiple modules need to be connected and communicate with one another. Its applications include:
-
Distributed Control Systems (DCS): Used as the backbone for connecting control modules, input/output devices, and processors in a DCS setup.
-
Manufacturing Automation: Facilitates the communication between various automation modules, ensuring smooth operation of automated manufacturing lines and equipment.
-
Process Control Systems: Essential for connecting different control and I/O modules in industries such as chemical processing, oil and gas, and water treatment.
-
Power Generation: Enables communication between control modules and power generation equipment such as turbines, generators, and transformers.
-
Building Management Systems (BMS): Used to connect and manage various control systems for building operations such as lighting, HVAC, and security.
-
Energy Management: Helps integrate energy monitoring and control systems with the central DCS for optimized energy use and monitoring.
Product Advantages
-
High-Speed Data Transmission: The DSBB 102 ensures rapid communication between modules, minimizing data transfer delays and supporting real-time control and monitoring applications.
-
Scalable Integration: The bus backplane is designed to accommodate multiple I/O and control modules, allowing for system scalability as the application requirements grow.
-
Versatile Signal Support: Supports both digital and analog signals, making it adaptable for a variety of industrial control needs.
-
Proprietary ABB Protocols: Uses ABB’s proprietary communication protocols to ensure compatibility and reliability with other ABB components in the control system.
-
Compact and Lightweight: The compact dimensions (215 x 100 x 30 mm) and lightweight (0.5 kg) design make it easy to integrate into existing control cabinets without occupying much space.
-
Robust Protection Features: The DSBB 102 includes over-voltage and overcurrent protection, ensuring the safety and reliability of the system during operation.
-
DIN Rail Mounting: The module can be easily mounted on standard DIN rails, simplifying installation and making it ideal for industrial control panels.
FAQ
1. What types of signals does the DSBB 102 support?
The DSBB 102 supports both digital and analog signals, making it versatile for a wide range of industrial applications.
2. How many input/output channels does the DSBB 102 handle?
The DSBB 102 can handle 10+ channels, depending on the connected modules and system configuration.
3. What is the data transfer rate of the DSBB 102?
The DSBB 102 is designed to support high-speed data transmission, ensuring fast communication between connected modules.
4. What communication protocol does the DSBB 102 use?
The DSBB 102 uses ABB’s proprietary communication protocols, ensuring compatibility with ABB control modules and devices.
5. What power supply is required for the DSBB 102?
The DSBB 102 requires a 24V DC power supply with a ±20% tolerance.
6. What types of modules can be connected to the DSBB 102?
The DSBB 102 is compatible with a wide range of ABB I/O and control modules, offering flexibility for various industrial applications.
7. How is the DSBB 102 mounted?
The DSBB 102 can be mounted on a standard DIN rail, which is commonly used in industrial control systems for easy installation.
8. What protection features are included in the DSBB 102?
The DSBB 102 includes over-voltage and overcurrent protection to safeguard against electrical faults and ensure reliable operation.
9. Can the DSBB 102 be used in extreme temperatures?
Yes, the DSBB 102 operates within a temperature range of -20°C to 60°C, making it suitable for various industrial environments.
10. How does the DSBB 102 help improve system scalability?
The DSBB 102 allows easy integration of additional modules, enabling the system to scale as operational requirements increase without the need for complex reconfiguration.
