Product Introduction

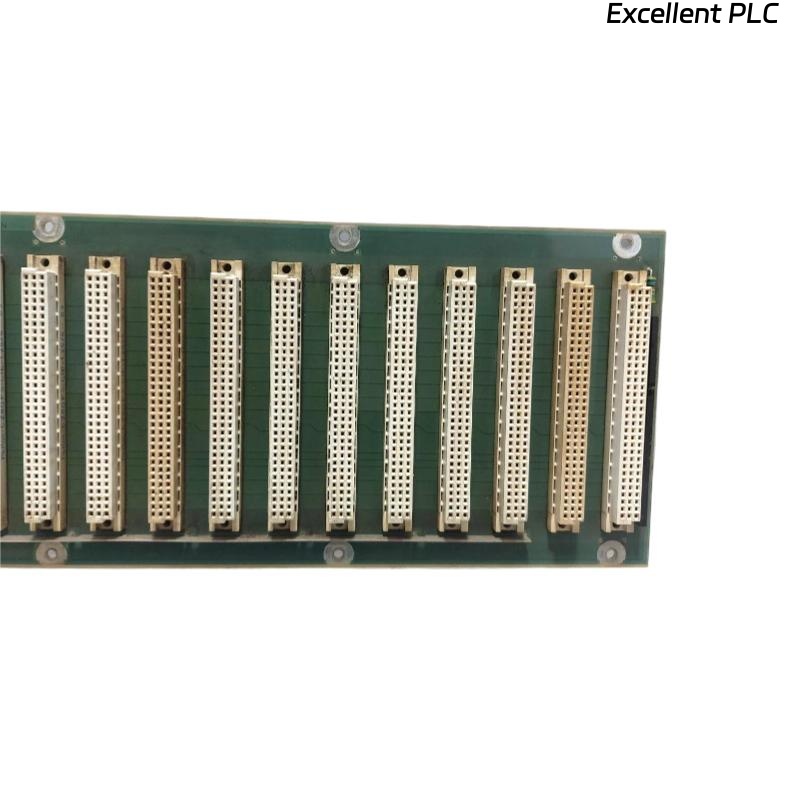

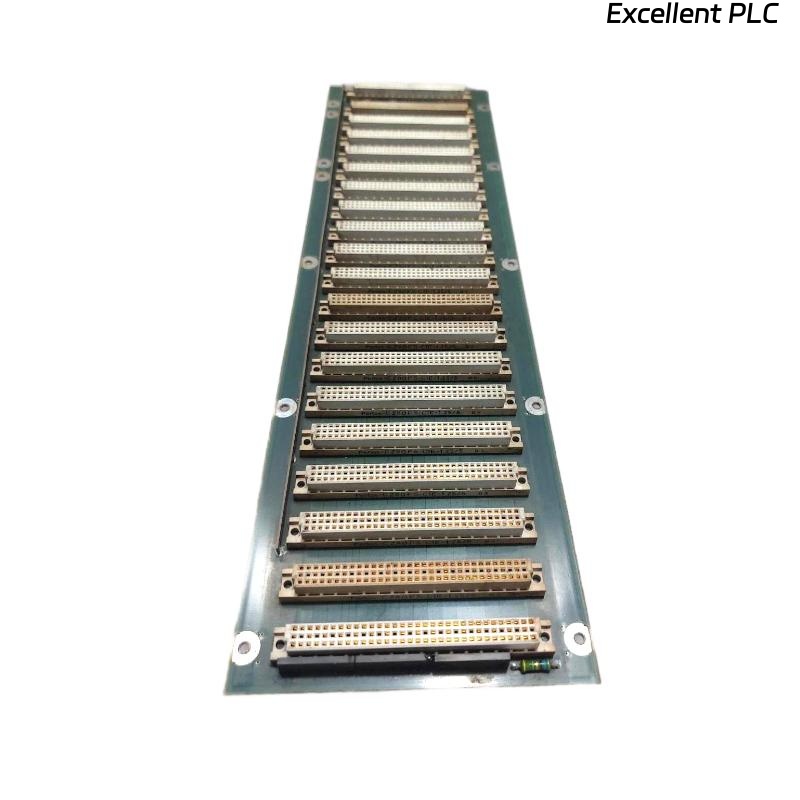

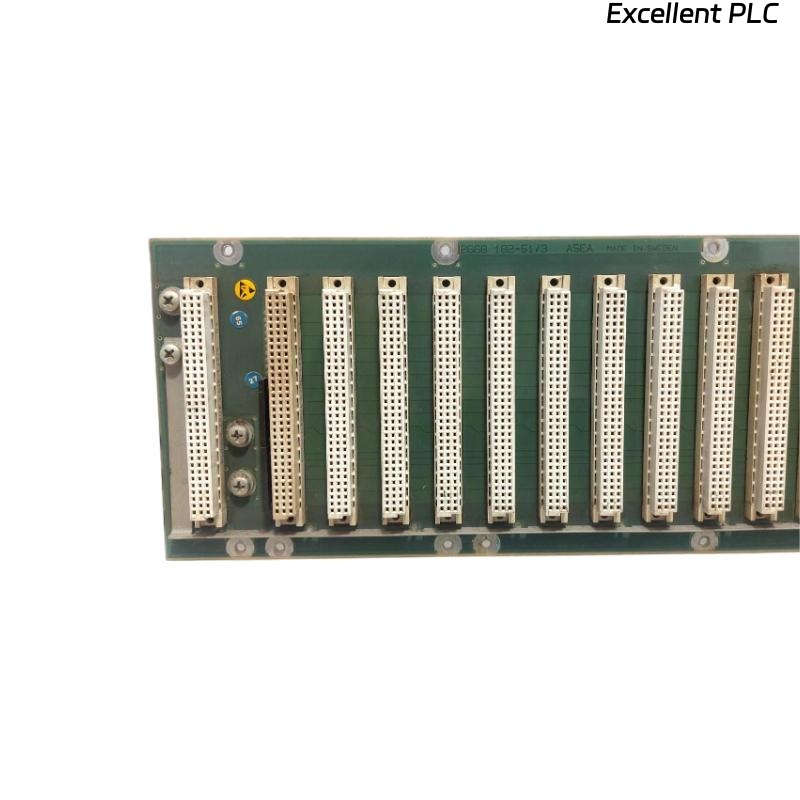

The ABB DSBB 104 57310256-AV/1 is a high-performance bus backplane designed for use in ABB’s Distributed Control Systems (DCS). This module facilitates reliable data communication between various I/O and control modules within a DCS, enabling efficient system integration and management. It acts as the central communication hub, connecting and supporting multiple field devices, processors, and control units.
The DSBB 104 backplane is built to handle high-speed data transmission, ensuring the seamless transfer of information between different components in a complex automation system. This bus backplane is ideal for industries where reliable, real-time communication and control are crucial, including manufacturing, energy management, process control, and power generation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ABB DSBB 104 57310256-AV/1 |
| Type | Bus Backplane |
| Dimensions | 215 x 100 x 30 mm |
| Weight | 0.5 kg |
| Input/Output Channels | 10+ Channels |
| Data Transfer Rate | High-Speed Data Transmission |
| Signal Type | Digital, Analog |
| Supported Modules | Compatible with ABB I/O Modules |
| Communication Protocol | ABB Proprietary Protocols |
| Power Supply | 24V DC ±20% |
| Mounting Type | DIN Rail Mounting |
| Operating Temperature | -20°C to 60°C |
| Protection | Over-voltage, Overcurrent |
Product Applications
The ABB DSBB 104 bus backplane is a vital component in various industrial control applications, providing scalable and reliable communication between multiple system modules. Its applications include:
-
Distributed Control Systems (DCS): The DSBB 104 serves as the backbone for connecting control modules, input/output devices, and processors in a DCS, ensuring efficient and real-time data exchange.
-
Process Control Systems: The module is used to interface with field devices like sensors and actuators in industries such as chemical, oil and gas, and pharmaceutical manufacturing.
-
Energy Management: The DSBB 104 helps connect power monitoring equipment, control systems, and energy meters in power generation and distribution applications.
-
Building Automation Systems (BMS): It enables integration and control of systems such as HVAC, lighting, and security, providing seamless communication within building automation setups.
-
Power Generation Systems: In power plants, the DSBB 104 facilitates communication between control systems and critical infrastructure like turbines, generators, and transformers.
-
Manufacturing Automation: The bus backplane integrates automation systems in production lines, enabling efficient communication between robots, controllers, and other machinery.
Product Advantages
-
High-Speed Data Transfer: The DSBB 104 supports high-speed data communication, ensuring fast and reliable transfer of information between system modules, which is essential for real-time control and monitoring.
-
Scalable and Modular Design: The backplane can support multiple I/O modules, allowing for flexible system expansion as needs evolve without requiring significant system reconfiguration.
-
Versatile Signal Support: The DSBB 104 supports both digital and analog signals, offering flexibility for integration with a wide range of industrial devices.
-
Reliability: Built with robust protection features like over-voltage and overcurrent protection, the DSBB 104 ensures safe and reliable operation in demanding industrial environments.
-
Compact and Lightweight: With dimensions of 215 x 100 x 30 mm and a weight of only 0.5 kg, the DSBB 104 is compact and easy to integrate into existing control panels or systems.
-
DIN Rail Mounting: The module can be easily mounted on a standard DIN rail, simplifying installation and system integration.
-
Temperature Tolerance: Operating within a temperature range of -20°C to 60°C, the DSBB 104 is suitable for use in various environments, including harsh industrial settings.
FAQ
1. What types of signals does the DSBB 104 support?
The DSBB 104 supports both digital and analog signals, making it versatile for various industrial control systems.
2. How many input/output channels does the DSBB 104 handle?
The DSBB 104 can handle 10+ channels, depending on the connected modules and system configuration.
3. What is the data transfer rate of the DSBB 104?
The DSBB 104 supports high-speed data transmission, enabling fast and reliable communication between connected modules.
4. What communication protocol does the DSBB 104 use?
The DSBB 104 uses ABB’s proprietary communication protocols to ensure compatibility and reliable integration with other ABB control modules.
5. What power supply is required for the DSBB 104?
The DSBB 104 operates on a 24V DC power supply with a ±20% tolerance, which is standard for most industrial systems.
6. How is the DSBB 104 mounted?
The DSBB 104 is designed for DIN rail mounting, making installation straightforward in control panels or cabinets.
7. What protection features are included in the DSBB 104?
The DSBB 104 includes over-voltage and overcurrent protection, ensuring the module’s durability and safety during operation.
8. What is the temperature range for the DSBB 104?
The DSBB 104 operates within a temperature range of -20°C to 60°C, making it suitable for a wide variety of industrial environments.
9. Can the DSBB 104 be used in large-scale systems?
Yes, the DSBB 104 is designed for scalability and can support the integration of multiple I/O and control modules, making it ideal for large systems.
10. What types of industries typically use the DSBB 104?
The DSBB 104 is used in industries such as manufacturing, process control, energy management, building automation, and power generation.
