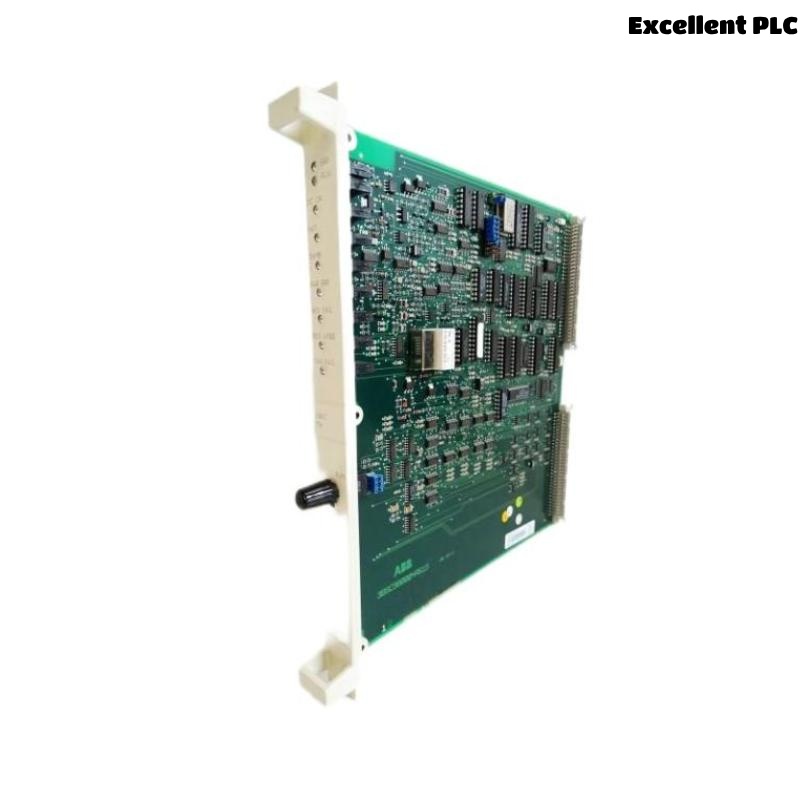

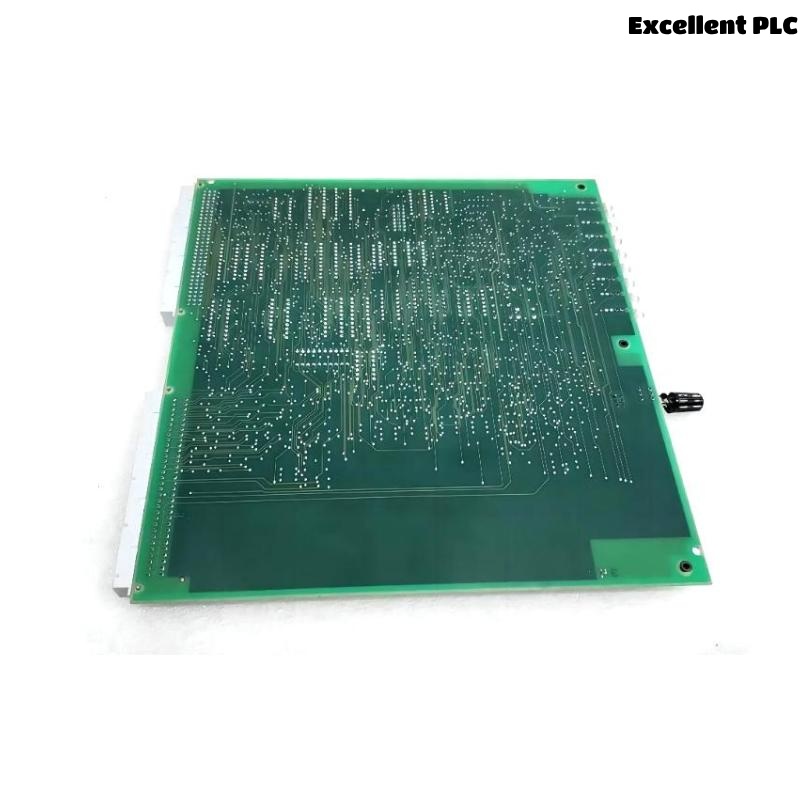

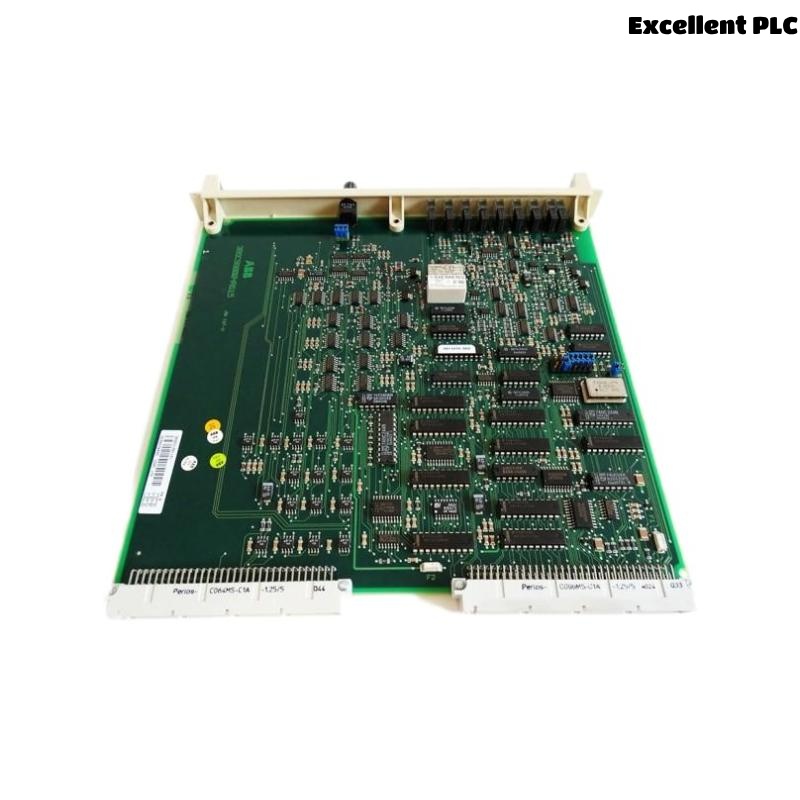

ABB DSBC 174 3BSE012211R1 Bus Extender

Product Overview

The ABB DSBC 174 3BSE012211R1 is a bus extender module designed for use within ABB’s Advant Controller 800 and AC 800M systems. It facilitates the extension of the CEX-Bus (Cluster Extension Bus), allowing distributed I/O stations or interface modules to communicate reliably over greater distances in a modular and scalable architecture. The module is typically used to expand the system beyond the local chassis while preserving the real-time characteristics and deterministic performance required by industrial control systems.

The DSBC 174 module is used in pairs—one master and one slave—connected by a fiber optic cable. This design ensures high-speed, noise-immune communication between separated clusters in an automation system, ideal for applications where components are installed in different enclosures or long distances apart.

Key Features

• Extends the CEX-Bus to remote racks via fiber optics

• Operates as either a master or slave, depending on configuration

• High-speed serial communication ensures real-time data exchange

• Fiber-optic isolation protects against electromagnetic interference (EMI)

• Plug-and-play support with AC 800M controllers and S800 I/O systems

• LED indicators for diagnostics, status, and communication health

• Supports redundant configurations for enhanced system availability

• Compact form factor, ideal for DIN-rail mounting in space-constrained cabinets

Technical Specifications

Industry Applications

• Distributed Control Systems (DCS) in power plants and utility networks

• Oil & Gas processing facilities with widely dispersed I/O racks

• Pharmaceutical production requiring equipment in clean and separate zones

• Metals and Mining automation where sensors and actuators are located over large areas

• Food and Beverage plants with spatially isolated control enclosures

• Chemical and Petrochemical systems where explosion-proof zoning requires separation

Product Advantages

• Long-Distance Communication: Enables remote communication between I/O modules and controllers via fiber optic media.

• Noise Immunity: Optical link protects against electromagnetic disturbances, ensuring reliable operation in harsh environments.

• Modular and Scalable: Easily expands system architecture without compromising performance.

• Redundancy Capable: Supports dual-redundant configurations for increased system reliability and uptime.

• Ease of Integration: Seamlessly integrates with AC 800M controllers, S800 I/O, and Advant Controller 800 systems.

• Efficient Diagnostics: Onboard LEDs help in quick identification of operational status and faults.

• Compact and Lightweight: Simplifies installation in existing panels without the need for additional space or heavy equipment.

Frequently Asked Questions (FAQ)

1. Q: What is the primary function of the DSBC 174 module?
   A: It extends the CEX-Bus to connect remote I/O or interface modules over long distances using fiber optics.

2. Q: Can the DSBC 174 be used in redundant configurations?
   A: Yes, it supports redundant configurations to enhance system reliability.

3. Q: Does it support both master and slave configurations?
   A: Yes, the module can be configured as either master or slave, depending on system architecture.

4. Q: What type of communication media does it use?
   A: It uses fiber optic cables for high-speed, noise-resistant data transfer.

5. Q: Is the DSBC 174 compatible with AC 800M controllers?
   A: Yes, it is fully compatible with AC 800M and other ABB DCS platforms.

6. Q: How many modules are required to create an extension link?
   A: A pair of DSBC 174 modules (one master, one slave) is required for each extended bus segment.

7. Q: Is the DSBC 174 suitable for hazardous environments?
   A: While not explosion-proof itself, it supports fiber-based isolation, which is beneficial for hazardous area installations.

8. Q: What kind of diagnostics are available on the module?
   A: It has LED indicators for power, transmit (Tx), receive (Rx), and operational status.

9. Q: How is the DSBC 174 powered?
   A: It is powered through the backplane connection, requiring no separate power source.

10. Q: Can this module be mounted directly in the field?
    A: Yes, as long as it is enclosed in a suitable cabinet with proper environmental ratings.
