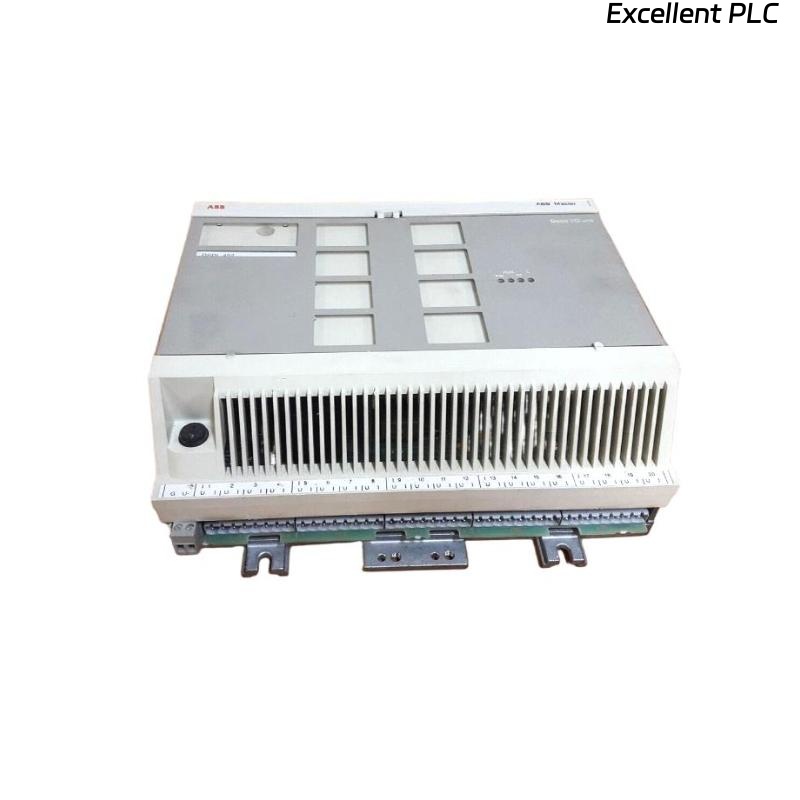

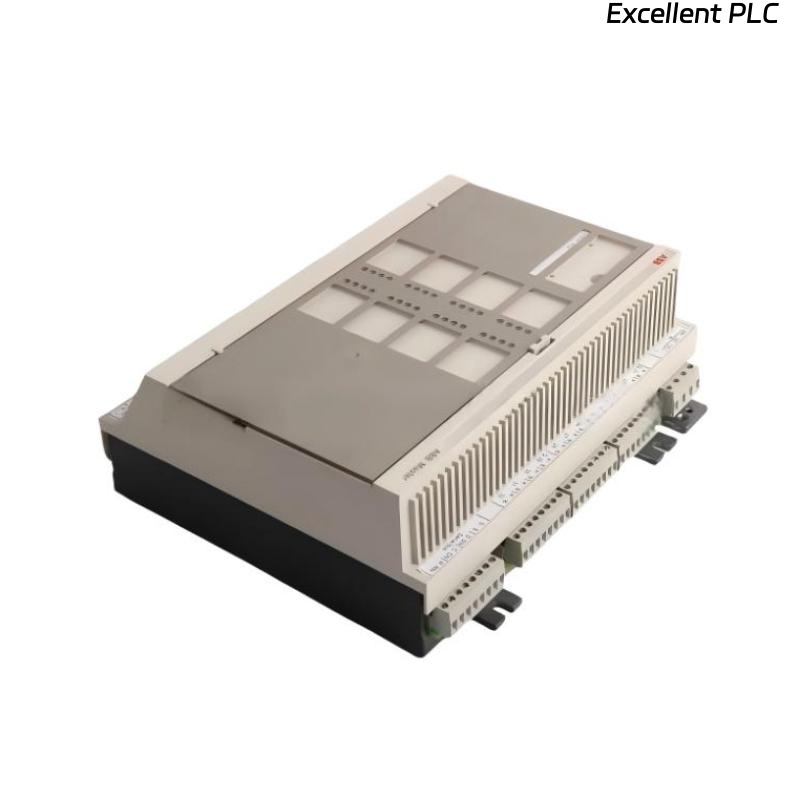

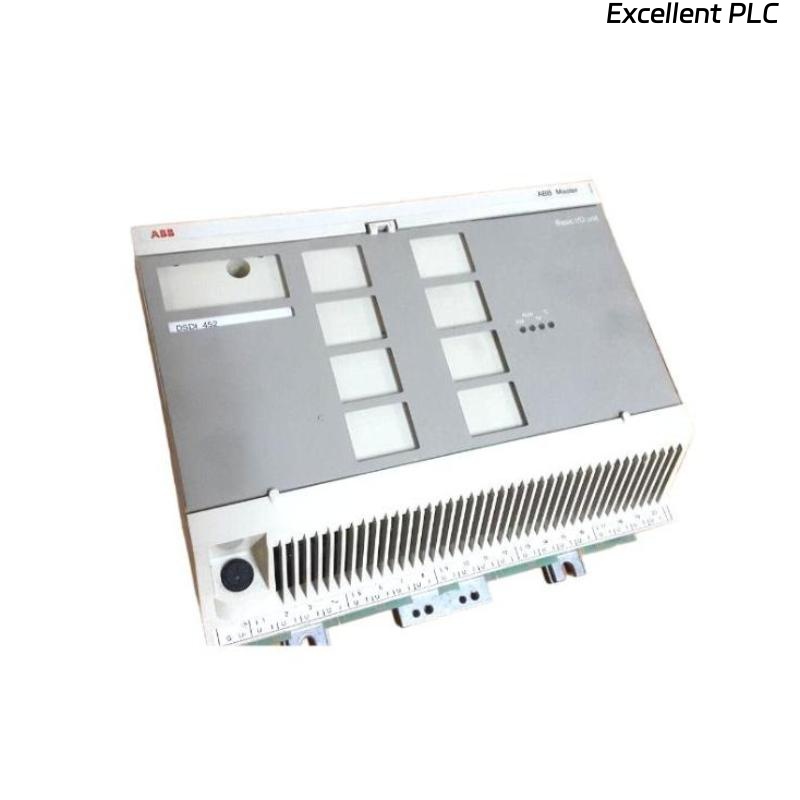

ABB DSDI 452 5716075-E Remote Input Unit

Product Introduction

The ABB DSDI 452 5716075-E remote input unit is a versatile and high-performance module designed to meet the needs of modern industrial control systems. It enables the remote monitoring and management of digital signals from various field devices, such as sensors, switches, and other digital input devices. The module converts these input signals into a form that can be processed by a central control system, making it an integral part of automation and monitoring setups.

Built with a focus on reliability and flexibility, the DSDI 452 is ideal for remote applications, where local control or data acquisition is required from multiple devices spread across a wide area. It is particularly well-suited for industries such as manufacturing, energy management, and infrastructure automation, where distributed control is crucial.

Product Specifications

Applications

The ABB DSDI 452 5716075-E remote input unit is designed for a variety of industrial applications that require remote monitoring and control. Some of the key applications include:

• Industrial Automation: Used to collect digital signals from remote field devices such as sensors, switches, and relays in large manufacturing plants and production lines.

• Remote Control Systems: Enables the management of distant control systems, providing seamless communication and data acquisition across various devices in a distributed environment.

• Energy Management: Ideal for monitoring electrical systems, substations, and energy distribution networks, helping to ensure efficient energy usage and system health.

• Building Automation: Used in smart buildings to monitor and control systems like HVAC, lighting, and security systems from a centralized remote location.

• Process Control: Frequently used in industries like chemicals and pharmaceuticals for remote monitoring of critical parameters in hazardous or hard-to-reach environments.

Advantages

• High Channel Density: The DSDI 452 offers 32 input channels, enabling it to handle large numbers of remote input signals simultaneously, which is ideal for complex control systems.

• Remote Monitoring: Its ability to handle remote inputs makes it ideal for applications where devices are spread across large areas or in locations difficult to access physically.

• Compact and Lightweight: Despite its high channel density, the module is compact (350 × 30 × 265 mm) and lightweight (2.6 kg), allowing for easy integration into space-constrained control panels and environments.

• Flexible Installation: The DSDI 452 is DIN rail-mounted, making it simple to install in various control panels and automation systems.

• Reliable in Harsh Environments: With an IP20 protection class, the module is resistant to dust and minor physical contact, ensuring its durability and long-term operation in industrial environments.

• Wide Temperature Range: The module operates effectively in temperatures ranging from -20°C to +60°C, making it suitable for use in a wide variety of environments.

FAQ

1. How many input channels are available on the DSDI 452?

   • The DSDI 452 features 32 input channels, allowing it to handle a high number of digital input signals simultaneously.

2. What type of input signals does the DSDI 452 support?

   • The DSDI 452 supports digital signals, specifically 0V or 24V DC, which are common in industrial applications.

3. What is the input voltage range for the DSDI 452?

   • The module operates with a 24V DC input voltage, which is standard for many industrial control systems.

4. Does the DSDI 452 offer any protection for its inputs?

   • Yes, the DSDI 452 includes short-circuit and overload protection, ensuring the safety of both the module and connected devices.

5. What is the protection class of the DSDI 452?

   • The DSDI 452 has an IP20 protection rating, which protects it from dust and accidental physical contact.

6. What is the operating temperature range for the DSDI 452?

   • The module can operate within a temperature range of -20°C to +60°C, making it suitable for various industrial environments.

7. How is the DSDI 452 mounted?

   • The DSDI 452 is designed for DIN rail mounting, providing easy installation in control panels and automation systems.

8. Can the DSDI 452 be used for remote monitoring?

   • Yes, the DSDI 452 is ideal for remote monitoring applications, where it collects digital signals from remote field devices.

9. Is the DSDI 452 suitable for energy management applications?

   • Yes, it is commonly used for monitoring electrical systems, substations, and energy distribution networks in energy management applications.

10. What are the advantages of using the DSDI 452 in industrial automation?

    • The DSDI 452 offers high input channel density, remote monitoring capabilities, and rugged protection features, making it an excellent choice for industrial automation systems.
