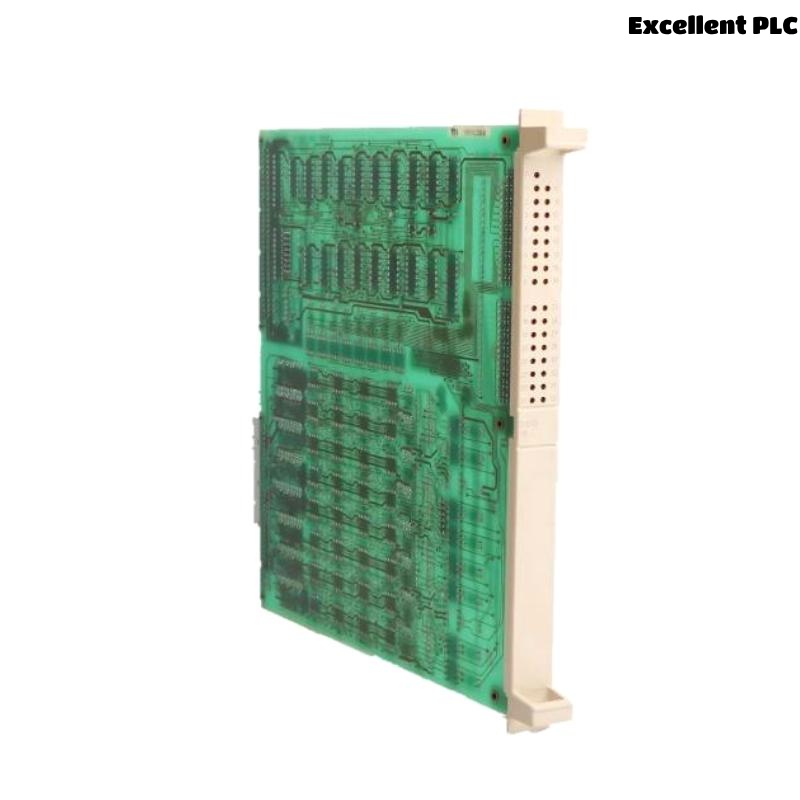

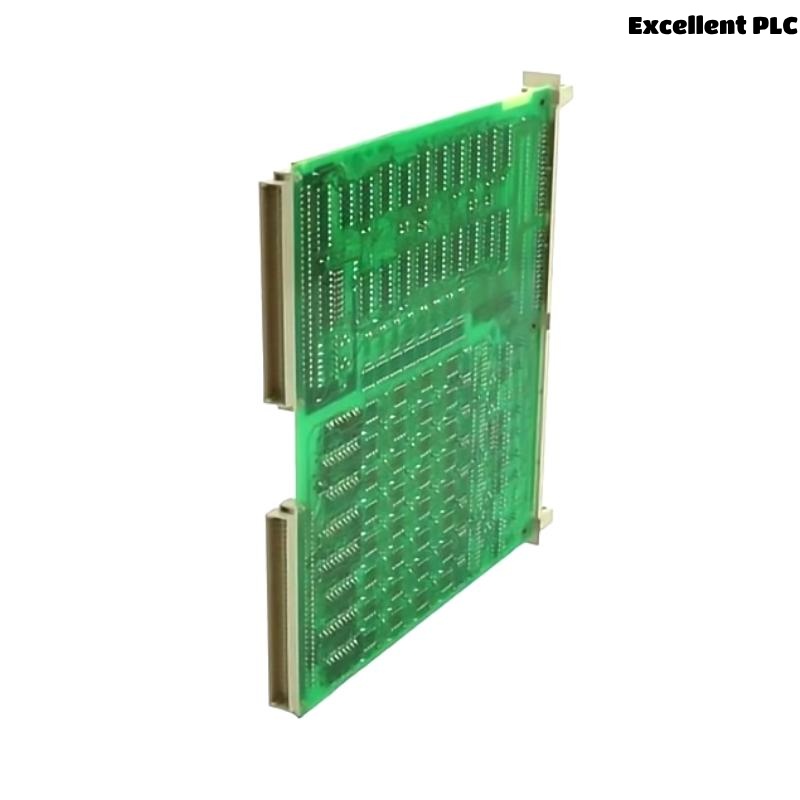

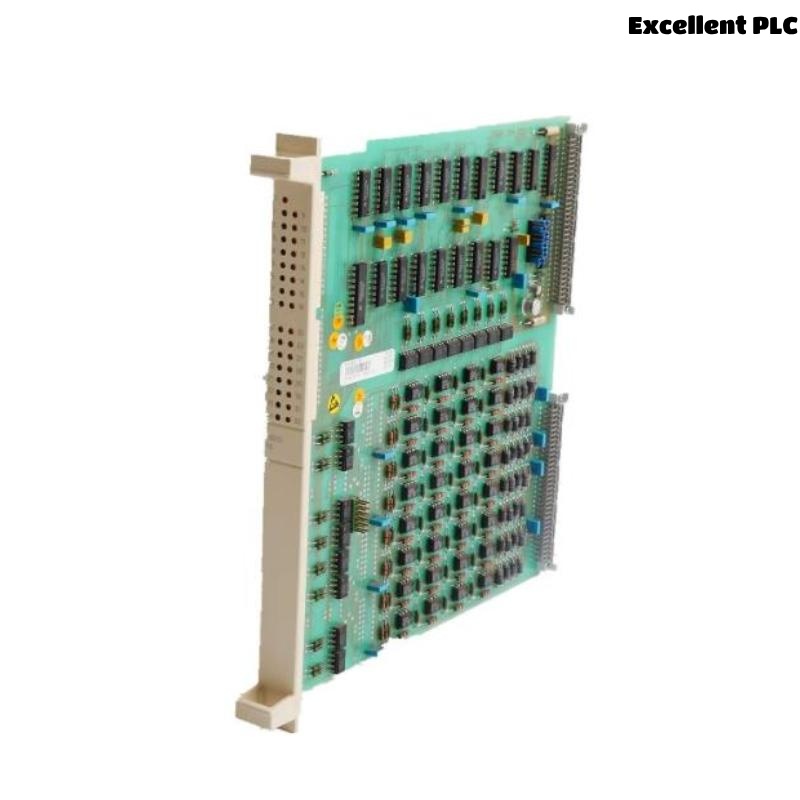

ABB DSDO 115 57160001-NF Digital Output Module

Product Introduction

The ABB DSDO 115 57160001-NF Digital Output Module is a high-performance I/O module designed for use in industrial automation systems. It is specifically developed to control and monitor digital output signals in process control applications. This module is part of the ABB series of I/O modules, which are recognized for their reliability, ease of integration, and robust performance in various industrial environments.

The DSDO 115 module interfaces with field devices to provide high-speed digital output, typically used for controlling actuators, valves, relays, or other digital output devices within a system. It is optimized for applications in industries such as power generation, oil & gas, manufacturing, and chemical processing.

This module supports a wide range of digital output devices, offering a flexible and scalable solution for process automation. With its compact form factor and high integration capabilities, the DSDO 115 provides a reliable and cost-effective solution for complex control systems.

Product Specifications

Product Applications

The ABB DSDO 115 57160001-NF Digital Output Module is designed for use in a variety of industrial applications where high-speed digital control is required. Some of the common applications include:

• Power Generation: Controls the operation of turbines, generators, and other power generation equipment by sending digital output signals to relays and actuators.

• Oil and Gas: Used to control valves, actuators, and other equipment on offshore platforms and in pipelines to ensure safe and efficient operation.

• Chemical Processing: Controls digital devices such as actuators, alarms, and process valves to regulate the flow of chemicals, ensuring the safety and efficiency of the system.

• Manufacturing Automation: Provides output signals for controlling assembly line equipment, robots, conveyors, and other machinery in automated manufacturing processes.

• Water Treatment: Controls pumps, valves, and other equipment in water treatment plants, helping maintain smooth operations and quality control.

• HVAC Systems: Used for controlling heating, ventilation, and air conditioning systems, adjusting temperature and humidity levels based on real-time data.

• Industrial Control Systems: Acts as part of the backbone of a process control system, providing digital output control for a wide range of applications in automated environments.

Product Advantages

• High-Speed Control: With a response time of less than 5 ms, the DSDO 115 ensures that digital output devices are controlled almost instantaneously, which is critical for real-time applications.

• Robust Design: The module features galvanic isolation between input and output, protecting the system from voltage spikes and electrical noise.

• Flexible Integration: Compatible with ABB’s Distributed Control Systems (DCS) and other industrial automation systems, the DSDO 115 can be easily integrated into various setups.

• High Output Current: Each channel can handle up to 0.5 A of current, making the module suitable for controlling powerful devices like relays and actuators.

• Compact Form Factor: With dimensions of only 324 × 22.5 × 234 mm, this module offers high functionality in a compact design, ideal for space-constrained environments.

• Energy Efficient: Consuming only 3 W of power, the module offers an energy-efficient solution for industrial control applications.

• High Reliability: The module is built to operate in harsh environments, with a wide operating temperature range of -20°C to +60°C and protection against short circuits and overvoltage conditions.

• Easy Installation: The DSDO 115 can be easily mounted on a DIN rail, simplifying installation and reducing setup time.

• Comprehensive Protection: Equipped with short-circuit and overvoltage protection, the module ensures safe and reliable operation in industrial settings.

Frequently Asked Questions (FAQ)

1. Q: What is the maximum current the DSDO 115 module can output per channel?
   A: The module can output a maximum of 0.5 A per channel.

2. Q: What is the operating temperature range of the DSDO 115 module?
   A: The module operates within a temperature range of -20°C to +60°C.

3. Q: Can the DSDO 115 be used in hazardous environments?
   A: While the module is built for industrial applications, it is important to check for specific certifications for hazardous environments. The DSDO 115 is CE and UL certified, providing safety and reliability.

4. Q: How many digital output channels does the DSDO 115 module support?
   A: The DSDO 115 supports 16 digital output channels.

5. Q: What is the power consumption of the DSDO 115 module?
   A: The module has a typical power consumption of 3 W.

6. Q: Does the DSDO 115 module provide any form of protection?
   A: Yes, it includes short-circuit protection and overvoltage protection to safeguard the system.

7. Q: How is the DSDO 115 module mounted?
   A: The module is mounted using a DIN rail, which is standard for industrial control systems.

8. Q: What types of devices can be controlled using the DSDO 115 module?
   A: The module can control devices such as actuators, relays, valves, and other digital output devices.

9. Q: What is the response time of the module?
   A: The module has a response time of less than 5 ms.

10. Q: What certification does the DSDO 115 module hold?
    A: The module is CE, UL, and RoHS certified, ensuring compliance with international safety and environmental standards.
