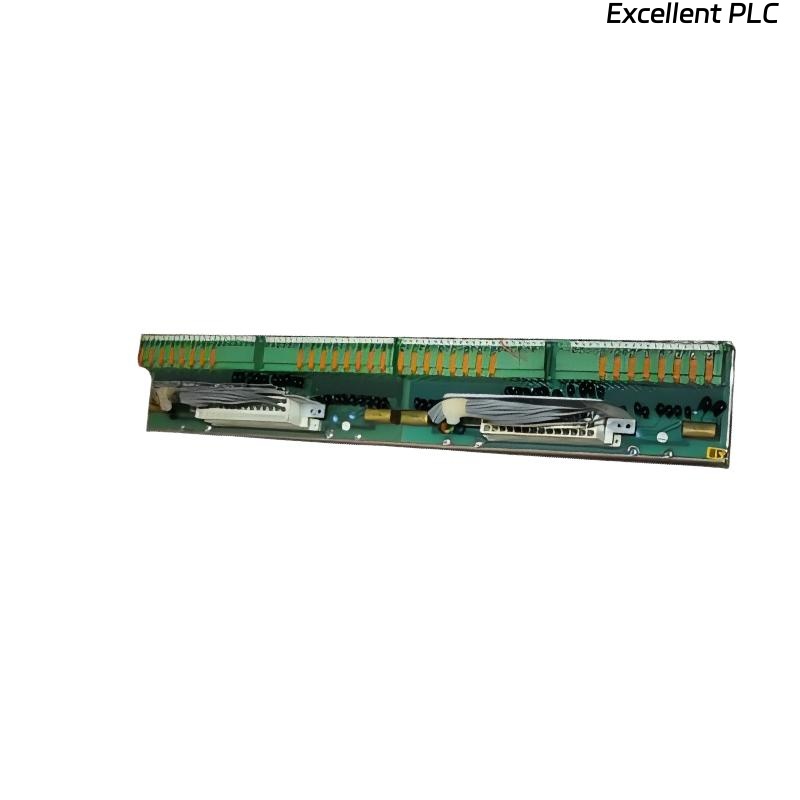

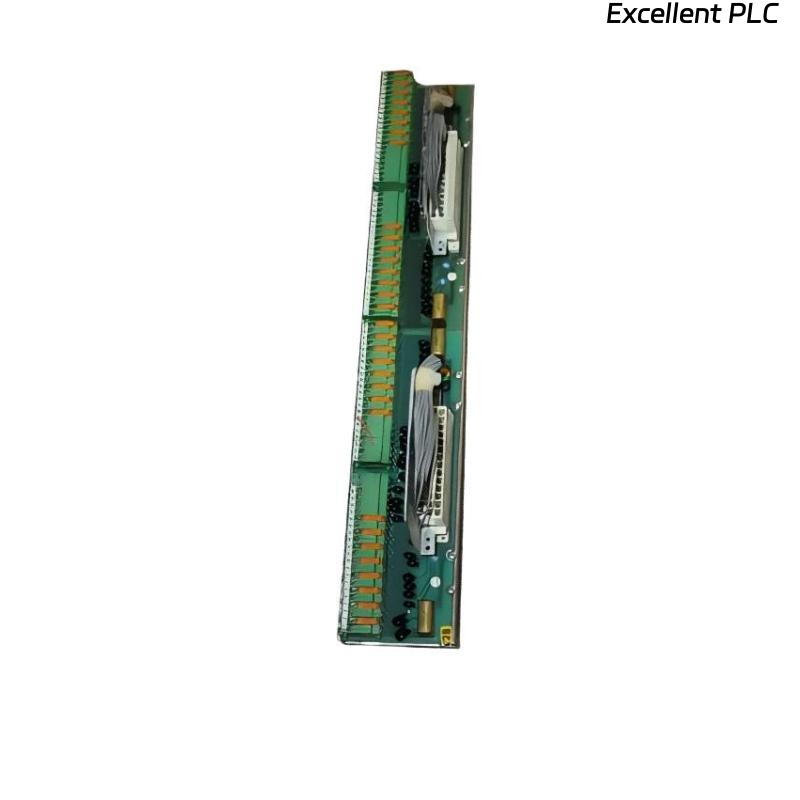

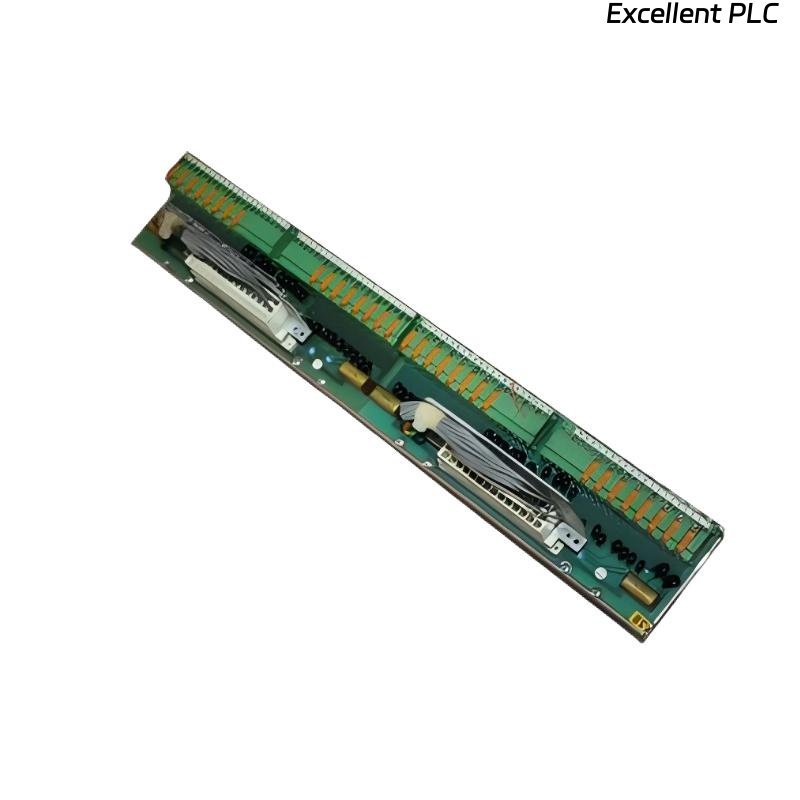

ABB DSDO 130 57160001-AP Digital Output Module

Product Introduction

The ABB DSDO 130 57160001-AP is a robust digital output module designed for integration in industrial control systems. It is part of ABB’s comprehensive portfolio of automation solutions that provide high performance, reliability, and scalability. The DSDO 130 module is ideal for controlling digital devices such as actuators, relays, or indicators in complex automation systems.

This module excels in delivering output signals to external devices, ensuring seamless communication between controllers and connected field equipment. Whether you’re designing new systems or upgrading existing ones, the DSDO 130 offers flexibility, ease of integration, and dependable performance in even the most demanding environments. The compact design and simple installation methods, combined with its advanced features, make it a go-to solution for various industrial applications.

Product Specifications

Applications

The ABB DSDO 130 module is designed to work in a wide range of industrial automation applications, including:

• Industrial Automation Systems: Ideal for controlling field devices such as relays, actuators, and valves within factory automation environments.

• Process Control: Used for controlling devices in process automation, where reliable digital outputs are required for controlling machinery or systems.

• Building Automation: Perfect for managing building systems like lighting control, heating, and ventilation, as well as other critical infrastructure.

• Energy Distribution Systems: Employed in energy management systems for controlling switches and breakers in substations or power distribution networks.

• Remote Control Systems: Utilized in remote monitoring and control systems where digital outputs are required to activate or deactivate external devices.

Advantages

• High Channel Density: The DSDO 130 features 16 output channels, making it ideal for applications that require controlling multiple devices simultaneously.

• Compact Design: Its compact size (342 × 30 × 30 mm) allows for easy integration into space-limited control systems, providing flexibility in installation.

• Reliable Output Control: The module delivers stable and reliable digital outputs with an output voltage range of 24V DC, ensuring smooth operation of connected field devices.

• Easy Installation: The DSDO 130 is designed for simple DIN rail mounting, which reduces installation time and complexity, enabling faster setup in control panels.

• Robust Protection: With an IP20 protection class, the DSDO 130 offers protection from dust and minor physical contact, making it suitable for most industrial environments.

• Wide Operating Temperature Range: The module is designed to operate effectively in temperatures ranging from -20°C to +60°C, ensuring versatility across various industrial applications.

FAQ

1. How many output channels are available on the DSDO 130?

   • The DSDO 130 has 16 output channels, enabling control of multiple devices simultaneously.

2. What type of output signals does the DSDO 130 handle?

   • The module processes digital signals, specifically 0V or 24V DC, suitable for industrial control systems.

3. What is the output voltage range of the DSDO 130?

   • The output voltage range for the DSDO 130 is 24V DC, a standard voltage for many industrial output devices.

4. What is the protection class of the DSDO 130?

   • The module has an IP20 protection class, which ensures protection from dust and accidental contact.

5. How is the DSDO 130 mounted?

   • The DSDO 130 is mounted on a DIN rail, making it easy to integrate into existing control panels.

6. What is the operating temperature range for the DSDO 130?

   • The module operates effectively within a temperature range of -20°C to +60°C, which makes it suitable for various industrial environments.

7. Can the DSDO 130 be used in process control applications?

   • Yes, it is designed for process control applications, where controlling devices such as valves, actuators, and relays is required.

8. Can the DSDO 130 be used for remote control applications?

   • Yes, the DSDO 130 is perfect for remote control systems where you need to send digital output signals to field devices from a central control location.

9. What are the advantages of using the DSDO 130 in industrial automation?

   • The DSDO 130 offers multiple output channels, reliability, ease of installation, and robust protection features, making it ideal for industrial automation.

10. How does the DSDO 130 integrate into a control system?

    • The module integrates easily into industrial control systems using standard DIN rail mounting, and it communicates with other automation components using 24V DC output signals.
