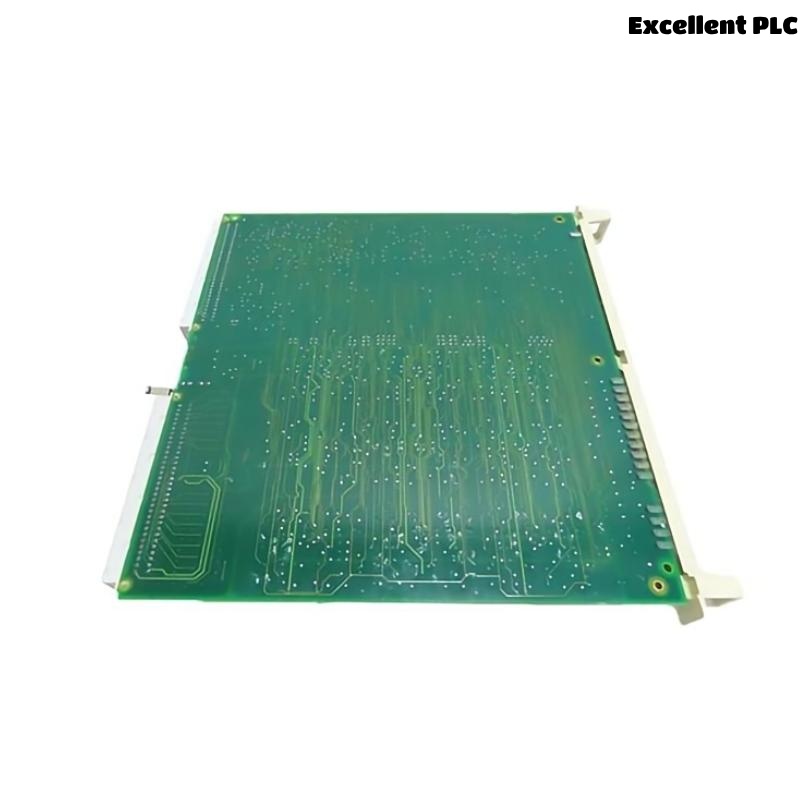

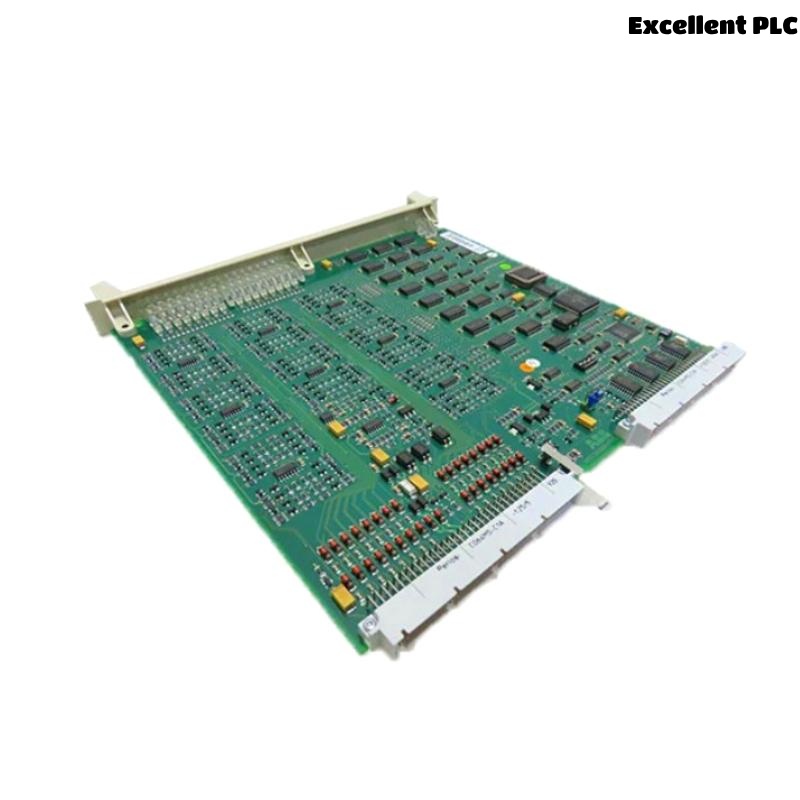

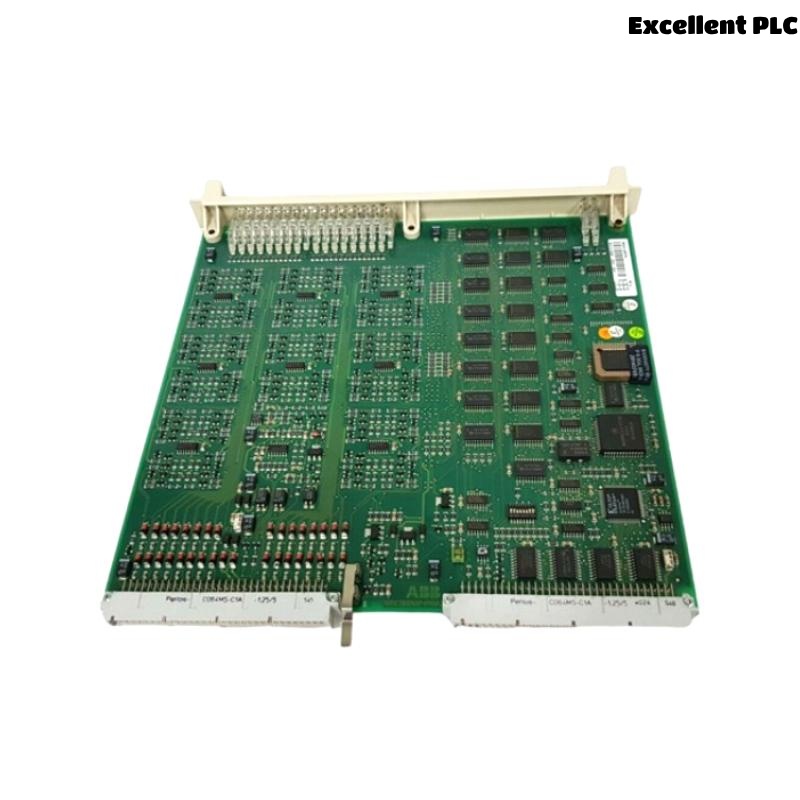

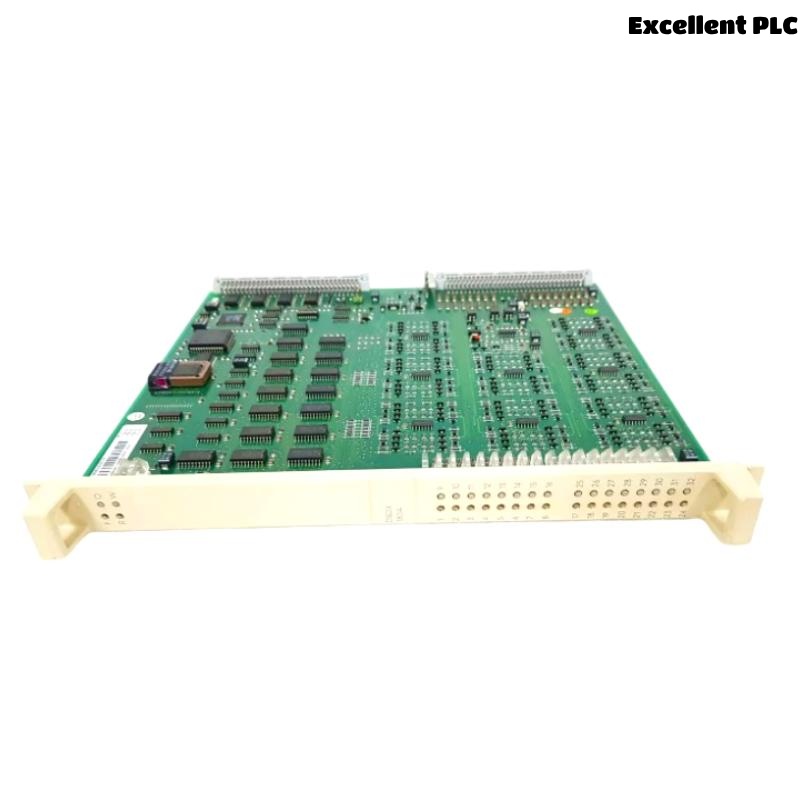

ABB DSDX180 3BSE003859R1 Digital Input/Output Module

Product Introduction

The ABB DSDX180 3BSE003859R1 Digital Input/Output Module is a versatile and highly reliable component designed for industrial automation systems. It is part of ABB’s extensive line of I/O modules that facilitate efficient data acquisition and control in complex process environments. The DSDX180 module supports both digital input and digital output operations, enabling real-time control and monitoring of industrial processes.

This module is optimized for use in ABB’s Distributed Control Systems (DCS) and is built to meet the needs of demanding applications such as power generation, chemical processing, manufacturing, and infrastructure automation. It allows for seamless integration into existing automation systems and provides flexibility for expansion. With its robust design, the DSDX180 ensures reliable operation in industrial environments, contributing to the enhanced performance and safety of automation systems.

The DSDX180 module is ideal for situations where space is limited, as it combines the functionality of both input and output modules in one compact device. It also provides high-speed signal processing and features advanced protection mechanisms, ensuring the safety and longevity of both the module and the connected systems.

Product Specifications

Product Applications

The ABB DSDX180 3BSE003859R1 Digital Input/Output Module is ideal for use in a wide range of industrial automation applications, offering both control and monitoring capabilities. Some of the key applications include:

• Power Generation: Used to control and monitor turbines, generators, and auxiliary systems within power plants.

• Oil & Gas: Helps in controlling field devices such as valves, actuators, and relays for pipeline management, offshore platforms, and refinery operations.

• Chemical Processing: Integrates with sensors and actuators to regulate chemical production, mixing, and treatment processes.

• Manufacturing: Facilitates real-time control of production lines, machinery, and assembly robots in automated manufacturing plants.

• Water Treatment: Controls pumps, valves, and treatment units in water and wastewater facilities, ensuring efficient and safe operation.

• HVAC Systems: Controls heating, ventilation, and air conditioning systems, adjusting the environment based on real-time data for improved energy efficiency.

• Building Automation: Manages lighting, security systems, and environmental control in large buildings, ensuring system optimization and energy conservation.

Product Advantages

• Dual Functionality: The DSDX180 combines both digital inputs and digital outputs into a single module, saving valuable space and simplifying system design.

• Fast Response Times: With a response time of less than 5 ms for both input and output signals, the module ensures quick and precise control in real-time applications.

• High Reliability: Built with advanced protection features such as short-circuit and overvoltage protection, the DSDX180 ensures safe and reliable operation in demanding environments.

• Wide Compatibility: The module is compatible with ABB’s Distributed Control Systems (DCS) as well as third-party systems, offering flexibility and ease of integration.

• Compact Design: The compact size (130 x 120 x 40 mm) of the module makes it ideal for installations with limited space, providing a high-density I/O solution.

• Energy Efficiency: Consuming only 4 W of power, the module is energy-efficient and reduces overall system power consumption.

• Environmental Protection: With an IP20 rating, the module is protected from dust and environmental contaminants, ensuring reliable operation in industrial settings.

• Wide Temperature Range: The module operates efficiently in temperatures ranging from -20°C to +60°C, making it suitable for diverse industrial environments.

• Easy Installation: The DSDX180 can be easily mounted on a DIN rail, simplifying installation and reducing setup time for engineers.

• Enhanced Safety: Galvanic isolation between input and output ensures that the module protects connected equipment from electrical faults.

Frequently Asked Questions (FAQ)

1. Q: How many digital inputs and outputs does the DSDX180 module support?
   A: The DSDX180 supports 16 digital inputs and 16 digital outputs.

2. Q: What is the maximum output current per channel for the DSDX180?
   A: The module can handle up to 0.5 A of output current per channel.

3. Q: What is the typical power consumption of the DSDX180 module?
   A: The typical power consumption is 4 W.

4. Q: Can the DSDX180 module be used in hazardous environments?
   A: While the module is rated IP20, it should be used in environments protected from dust and moisture. For hazardous areas, please check additional certifications.

5. Q: What is the operating temperature range of the module?
   A: The DSDX180 operates within a temperature range of -20°C to +60°C.

6. Q: How is the DSDX180 module mounted?
   A: The module can be easily mounted on a standard DIN rail.

7. Q: Does the DSDX180 module have short-circuit protection?
   A: Yes, it includes short-circuit protection for both input and output channels.

8. Q: What is the response time for both input and output signals?
   A: The module has a response time of less than 5 ms for both input and output signals.

9. Q: What kind of protection does the DSDX180 provide against electrical faults?
   A: The module provides short-circuit protection and overvoltage protection, ensuring safe operation in industrial environments.

10. Q: Is the DSDX180 compatible with third-party systems?
    A: Yes, it is compatible with ABB’s DCS systems as well as other industrial control systems.
