Product Overview

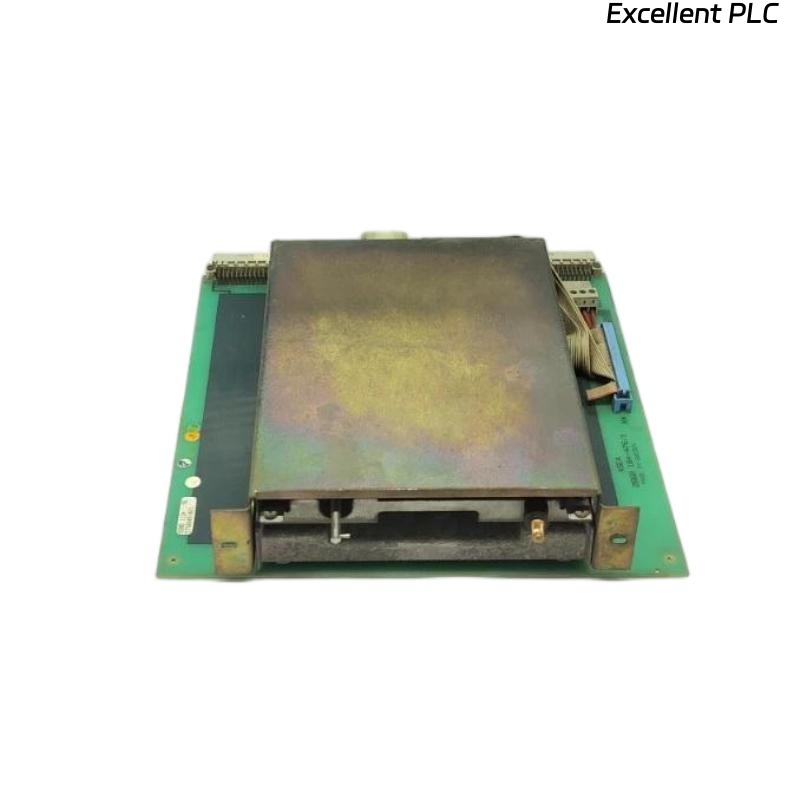

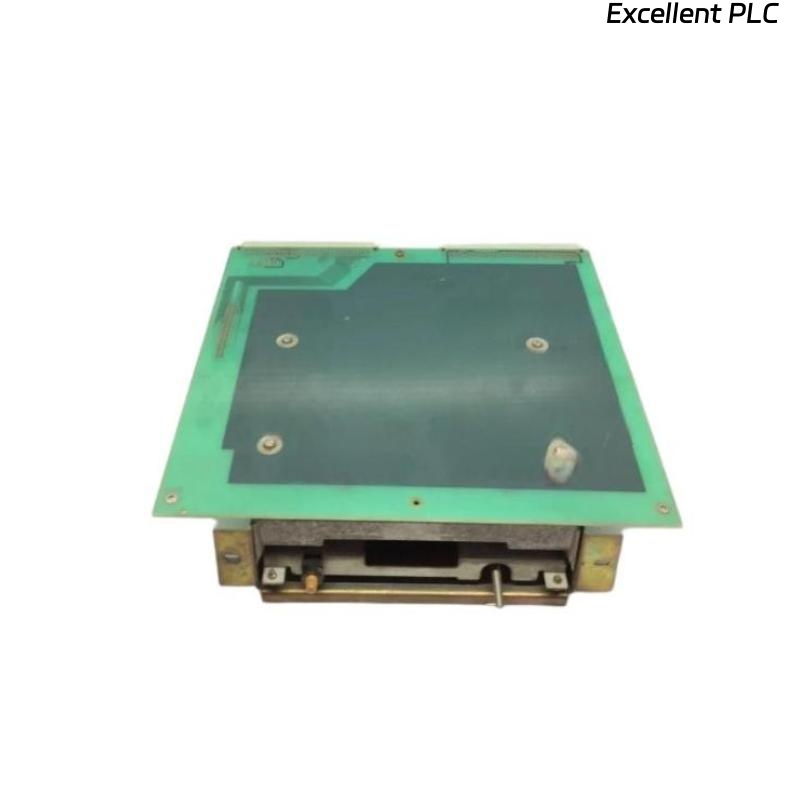

The ABB DSMD 113 5736045-N is a high-performance diskette unit designed for use with ABB’s automation systems, providing reliable data storage and retrieval capabilities via floppy disk technology. This device is particularly useful in environments where legacy diskette storage solutions are required, ensuring data is securely stored and easily accessible.
Built to withstand industrial conditions, the DSMD 113 is a reliable component in any ABB system, facilitating smooth integration and ensuring optimal performance in critical applications. It allows the system to save configuration files, diagnostic data, and other critical information that may need to be transferred, backed up, or retrieved from disk.
With its durable construction and compatibility with ABB’s extensive range of automation systems, the DSMD 113 diskette unit is an ideal solution for industries requiring secure, low-cost, and efficient data storage on floppy disks.
Product Specifications
| Specification | Details |
|---|---|
| Model | DSMD 113 5736045-N |
| Dimensions (L x W x H) | 133 x 155 x 50 mm |
| Weight | 1.8 kg |
| Storage Medium | 3.5-inch Floppy Disk |
| Interface | Standard Floppy Disk Interface |
| Data Transfer Rate | Standard data transfer rate |
| Power Supply | 24 V DC |
| Operating Temperature | -20°C to +70°C |
| Compatibility | Compatible with standard 3.5-inch floppy disks |
| Mounting Type | DIN Rail Mounting |
Product Applications
The DSMD 113 5736045-N diskette unit is commonly used in industries where diskette storage is still a requirement or where legacy systems rely on this technology for storing and retrieving operational data. Its key applications include:
-
Data Backup: Enables the backup of system configurations, process data, and diagnostic logs onto floppy disks, ensuring critical information is preserved and easily accessible.
-
System Configuration: It is often used to save and transfer configuration settings for ABB automation systems, which can then be restored or used for other systems.
-
Diagnostics: Ideal for capturing operational logs and diagnostics data, allowing for later review or analysis, especially in systems that require non-volatile storage for troubleshooting.
-
Manufacturing Systems: Frequently used in manufacturing environments for transferring system parameters and operational settings.
-
Process Control: Common in process control environments, where real-time data needs to be stored and accessed for review or backup.
Product Advantages
-
Reliable Data Storage: The DSMD 113 provides a stable and reliable medium for storing critical data, ensuring it is preserved even in harsh industrial conditions.
-
Low-Cost Solution: As floppy disks are relatively inexpensive, this unit offers a cost-effective solution for long-term data storage in industrial systems.
-
Easy Integration: Designed to be easily integrated into existing ABB automation systems, reducing installation time and complexity.
-
Wide Compatibility: Compatible with standard 3.5-inch floppy disks, making it versatile and easy to use with existing storage infrastructure.
-
Durable Construction: Built to withstand the demands of industrial environments, including high vibration and temperature extremes, ensuring long-term durability.
-
Power-Efficient: Operating on a 24 V DC supply, the DSMD 113 is energy-efficient, making it suitable for continuous operations.
-
Compact Design: Its compact form factor makes it easy to install in tight spaces, saving valuable real estate in control cabinets or equipment racks.
FAQ
1. What is the main function of the DSMD 113 diskette unit?
The DSMD 113 is designed to read from and write data to 3.5-inch floppy disks, providing a reliable data storage solution for ABB automation systems.
2. How does the DSMD 113 compare to other diskette units?
The DSMD 113 is a highly reliable unit that offers compatibility with standard 3.5-inch floppy disks, making it suitable for systems that rely on legacy diskette technology.
3. Is the DSMD 113 compatible with all floppy disks?
Yes, the DSMD 113 is compatible with standard 3.5-inch floppy disks, which are commonly used in industrial applications.
4. Can the DSMD 113 be used in high-temperature environments?
Yes, the DSMD 113 can operate in environments with temperatures ranging from -20°C to +70°C, making it suitable for many industrial settings.
5. What type of power supply does the DSMD 113 require?
The DSMD 113 requires a 24 V DC power supply to function properly.
6. Can the DSMD 113 store large amounts of data?
While the unit is compatible with 3.5-inch floppy disks, the storage capacity is limited by the capacity of the disks themselves (typically around 1.44 MB per disk).
7. How does the DSMD 113 improve system performance?
By providing a reliable and simple way to store configuration data and diagnostic logs, the DSMD 113 helps improve system reliability and ease of maintenance.
8. Is the DSMD 113 suitable for use in industrial control systems?
Yes, the DSMD 113 is designed specifically for use in industrial control systems, offering ruggedness and reliability for continuous operation.
9. Can the DSMD 113 be used for both data storage and data transfer?
Yes, the DSMD 113 can store data on floppy disks and also be used to transfer data between devices in ABB automation systems.
10. How is the DSMD 113 installed?
The DSMD 113 can be easily mounted on a DIN rail, making installation and integration into ABB automation systems straightforward.
