Product Overview

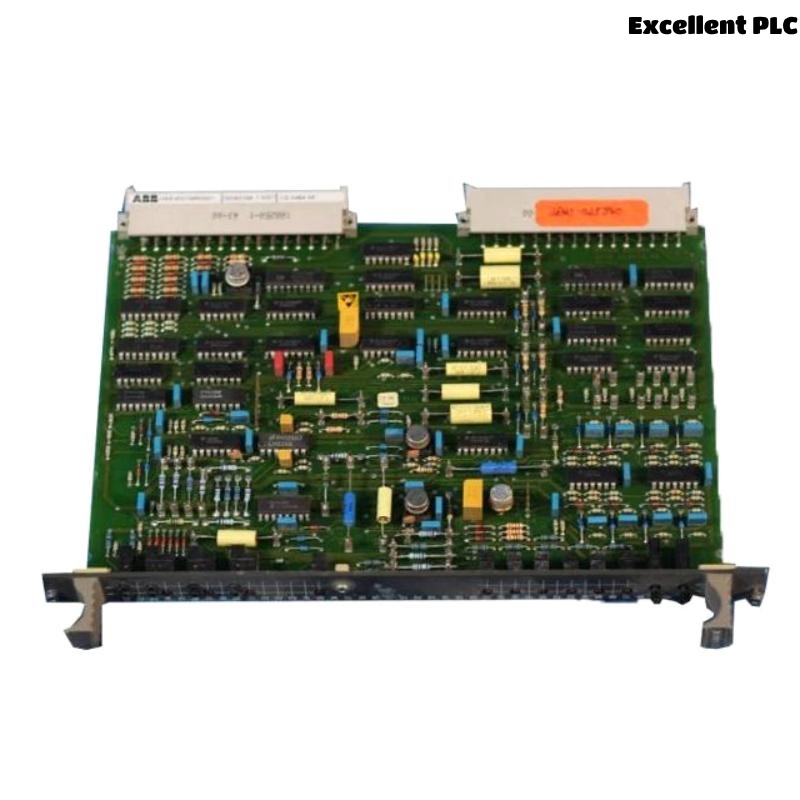

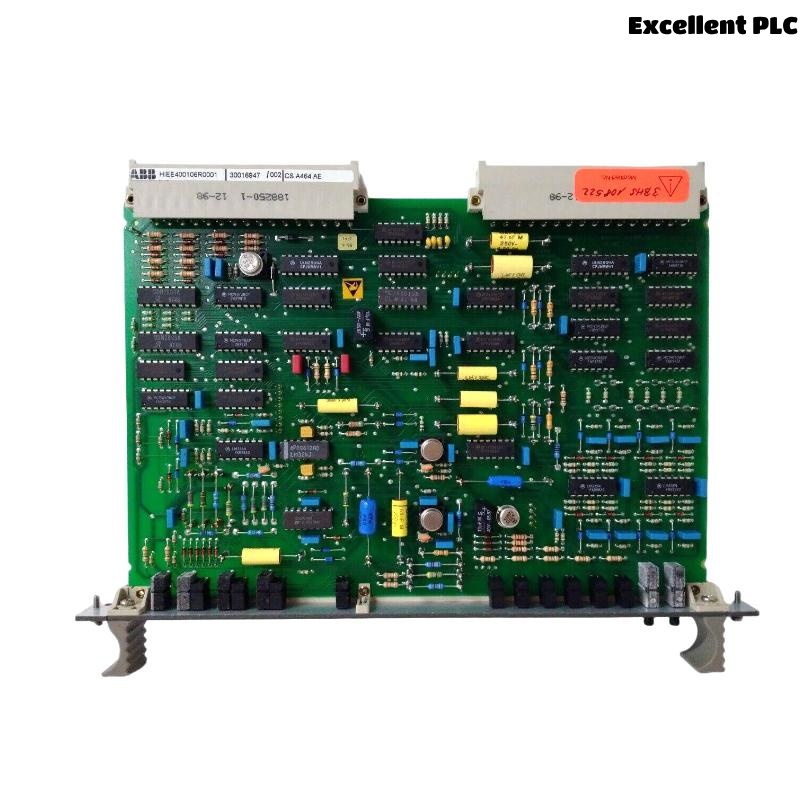

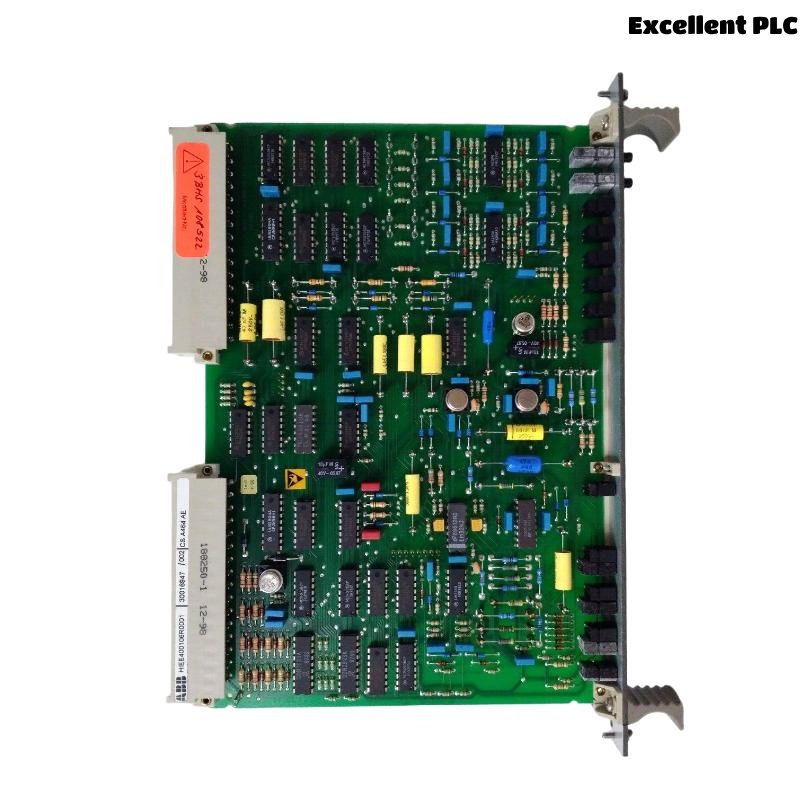

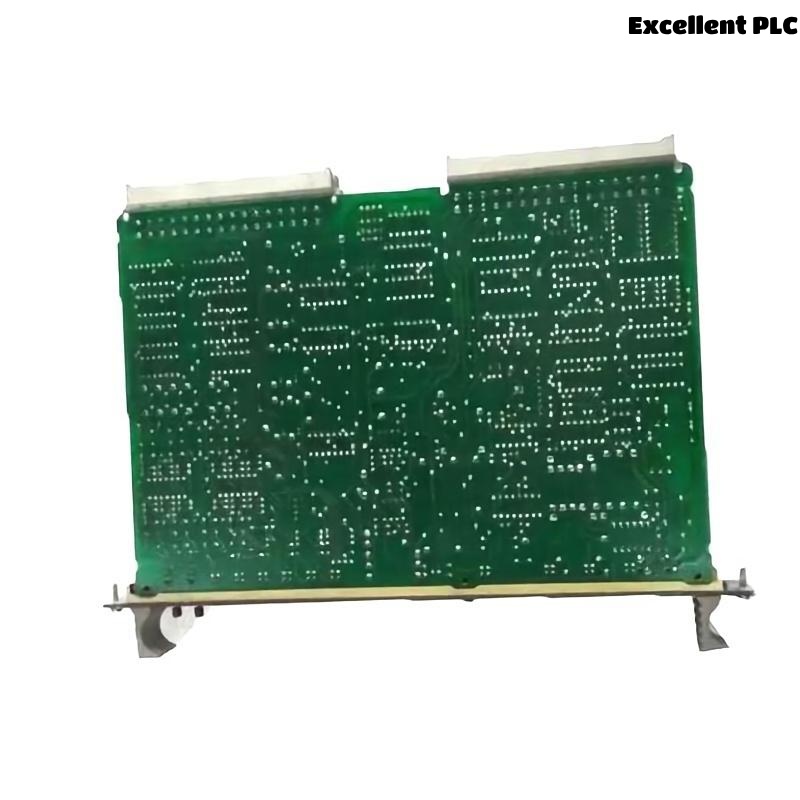

The ABB DSPU/41/953 Distributed Signal Processing Unit is a highly reliable and versatile device designed for efficient data acquisition and processing within industrial control systems. As part of ABB’s Distributed Control Systems (DCS) architecture, the DSPU/41/953 supports the decentralized collection and conditioning of sensor signals, enabling improved system responsiveness and scalability.
This unit is engineered to withstand harsh industrial environments while delivering accurate and stable signal processing. Its modular design ensures easy integration and maintenance, making it suitable for a wide range of industrial applications where precision, reliability, and real-time data handling are paramount.
Specifications
| Parameter | Details |
|---|---|
| Product Name | Distributed Signal Processing Unit |
| Model Number | DSPU/41/953 |
| Manufacturer | ABB |
| Signal Inputs | Multiple analog and digital channels |
| Input Voltage | 24 V DC nominal with industrial tolerance |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Communication Interfaces | ABB proprietary fieldbus, Modbus, Ethernet (optional) |
| Mounting Type | Rack-mounted |
| Dimensions (L x W x H) | 275 x 130 x 45 mm |
| Weight | 1.2 kg |
| Certifications | CE, UL, RoHS |
Applications
The DSPU/41/953 unit is widely employed across industries requiring reliable and distributed signal processing for enhanced control and monitoring capabilities:
-
Power Generation and Distribution – Real-time monitoring of turbine and generator instrumentation.
-
Oil & Gas – Distributed data acquisition across extensive refinery and pipeline operations.
-
Chemical and Petrochemical Plants – Precise control of complex chemical processes through accurate signal conditioning.
-
Water and Wastewater Treatment – Control and monitoring of treatment processes with reliable sensor inputs.
-
Metallurgy and Mining – Signal processing under challenging environmental conditions.
-
Pharmaceutical Manufacturing – Ensuring compliance with stringent process control regulations.
-
Food and Beverage Industry – Consistent quality control based on real-time data acquisition.
-
Automotive Manufacturing – Integration with automated production and robotics systems.
Advantages
-
Decentralized Signal Processing:
Enhances system performance by distributing signal handling closer to the source. -
High Accuracy and Noise Immunity:
Designed to maintain signal integrity in electrically noisy industrial environments. -
Robust and Durable:
Engineered for continuous operation in harsh conditions, including temperature extremes and humidity. -
Flexible Communication Support:
Multiple protocol compatibility ensures easy integration into various control networks. -
User-Friendly Maintenance:
Modular components and built-in diagnostics streamline troubleshooting and reduce downtime. -
Optimized for Scalability:
Facilitates expansion as industrial processes grow and require more data points. -
Compliance with Standards:
Meets international certifications ensuring safety and environmental compliance.
Frequently Asked Questions (FAQ)
1. What types of signals can the DSPU/41/953 process?
It can handle a range of analog inputs (current and voltage) and digital signals from various field devices.
2. How does the DSPU/41/953 communicate with central control systems?
The unit supports ABB’s proprietary fieldbus protocol, as well as Modbus and optionally Ethernet communication protocols.
3. What is the operating temperature range of the unit?
The unit operates reliably between -20°C and +65°C.
4. How many input channels does the DSPU/41/953 support?
It supports multiple configurable analog and digital input channels, tailored to system requirements.
5. What diagnostic tools are included in the DSPU/41/953?
Onboard diagnostics include self-testing, status LEDs, and error reporting for easy fault detection.
6. Can firmware updates be performed remotely?
Yes, firmware updates are done remotely via ABB’s system management software.
7. Is the DSPU/41/953 suitable for installation in hazardous areas?
While designed for industrial environments, use in hazardous areas requires proper certifications and protective measures.
8. How is power supplied to the DSPU/41/953?
It requires a stable 24 V DC power source with appropriate electrical protections.
9. Does the unit support integration with legacy ABB control systems?
Yes, it is compatible with many existing ABB DCS platforms.
10. What maintenance procedures are recommended for the DSPU/41/953?
Routine visual inspections and diagnostic checks are recommended; the modular design allows for easy replacement of faulty modules.
Related Models from the Same Series
| Model | Part Number | Description |
|---|---|---|
| DSPU/41/950 | 57315001 | Standard distributed signal processing unit |
| DSPU/41/952 | 57315002 | Mid-range signal processing with additional communication options |
| DSPU/41/954 | 57315004 | Extended I/O capacity and diagnostics |
| DSPU/41/955 | 57315005 | Ruggedized model for extreme environments |
| DSPU/41/956 | 57315006 | High-speed processing capabilities |
| DSPU/41/957 | 57315007 | Advanced diagnostics and monitoring features |
