Product Introduction:

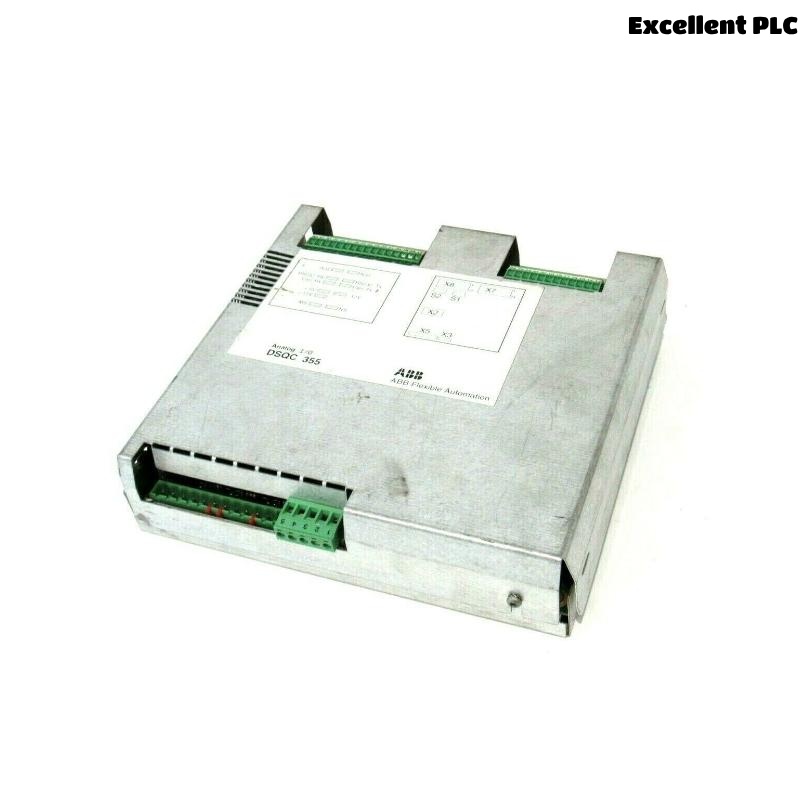

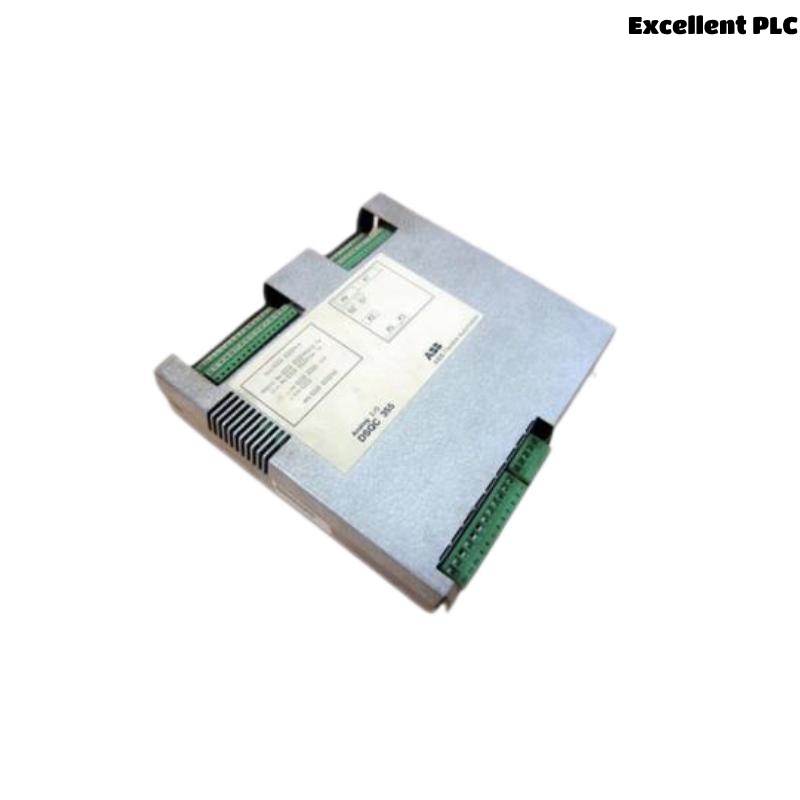

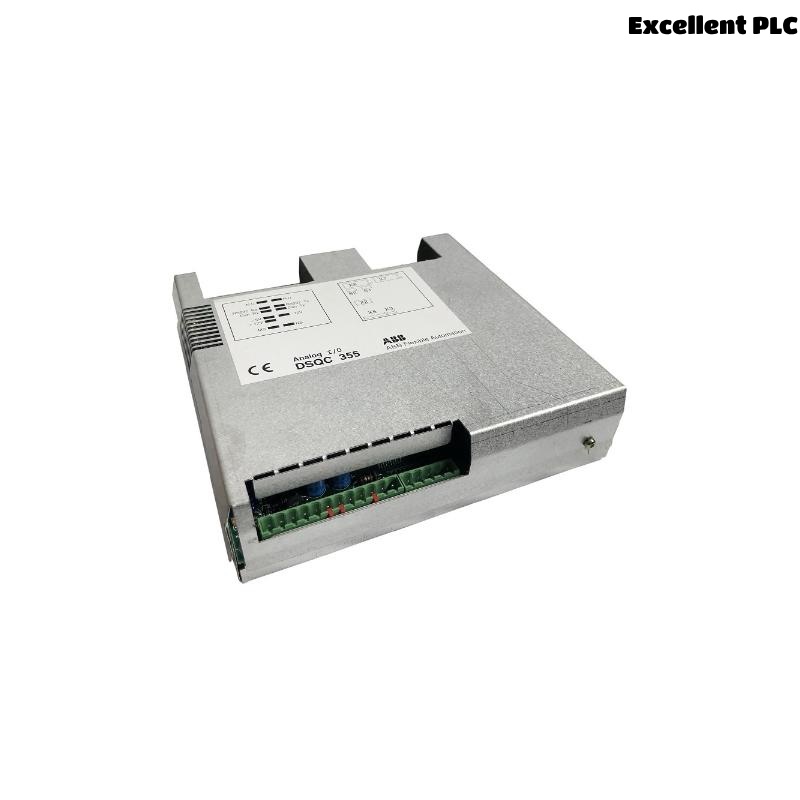

The ABB DSQC 355 3HNE00554-1 is a key component used in ABB’s robotic automation systems. It serves as a communication and control interface for ABB robots, providing seamless interaction between the robot’s controller and its operational environment. This component is essential for the integration of ABB’s robots in various industrial settings, from manufacturing lines to automation processes.
The DSQC 355 3HNE00554-1 is designed to handle high-performance tasks, such as precise control of robotic movements, and to facilitate high-speed data exchange between different parts of a robotic system. Its robust design and advanced features ensure optimal reliability and efficiency, making it an ideal choice for industries requiring automated solutions.
Product Specifications:
Below are the technical specifications for the ABB DSQC 355 3HNE00554-1:
| Parameter | Specification |
|---|---|
| Model | DSQC 355 3HNE00554-1 |
| Dimensions | 150 × 100 × 50 mm |
| Weight | 1.2 kg |
| Input Voltage | 24 V DC |
| Power Consumption | 25 W |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Communication Interface | EtherCAT, TCP/IP |
| Compatibility | ABB IRB Robots, Robot Controllers |
| Mounting Type | DIN Rail |
| Max Current | 1 A |
| Environmental Rating | IP20 |
Product Applications:
The ABB DSQC 355 3HNE00554-1 is widely used in the following applications:
-
Industrial Automation: Used in manufacturing and assembly lines to control and automate robotic movements.
-
Robotic Control Systems: Integrates with ABB’s robotic arms for precise movement control and operational data exchange.
-
Packaging & Palletizing: Commonly used in automated packaging and palletizing applications.
-
Material Handling: Supports systems designed for the transportation and sorting of materials in warehouses or production facilities.
-
Quality Testing Systems: Employed in quality control systems where high precision and automation are essential.
Product Advantages:
-
High Performance: Ensures fast and reliable communication between robotic controllers and automation systems, optimizing operational efficiency.
-
Easy Integration: Compatible with ABB’s robotic systems, making it a plug-and-play solution for many industrial environments.
-
Compact Design: Its compact form factor saves space in automated systems, ensuring better flexibility in installations.
-
Durability: Built to withstand demanding industrial environments with robust protection against dust and moisture (IP20 rating).
-
Energy Efficient: Consumes minimal power, helping reduce energy costs over time.
-
Wide Compatibility: Compatible with a wide range of ABB robotic systems and controllers, enabling versatile use in various automation projects.
FAQ:
-
What is the DSQC 355 3HNE00554-1 used for?
-
The DSQC 355 is primarily used to connect and control ABB robotic systems, facilitating communication between robotic controllers and other automation components.
-
-
How do I install the DSQC 355 3HNE00554-1?
-
The DSQC 355 is designed to be mounted on a DIN rail and can be easily integrated into your existing system. Simply connect the required input and communication interfaces.
-
-
What is the operating voltage for the DSQC 355?
-
The DSQC 355 operates with a 24 V DC input voltage.
-
-
Can I use the DSQC 355 with any ABB robot?
-
Yes, it is compatible with most ABB IRB robots and their controllers.
-
-
What is the temperature range for this product?
-
The product operates between 0°C and 55°C and can be stored between -20°C and 70°C.
-
-
Is the DSQC 355 energy efficient?
-
Yes, it consumes only 25 W of power, making it energy efficient for industrial applications.
-
-
What is the environmental rating of the DSQC 355?
-
The product has an IP20 environmental rating, meaning it is protected from dust and moisture but should not be exposed to direct water jets.
-
-
How long does the DSQC 355 last?
-
The DSQC 355 is built for durability and is designed to last for many years with proper maintenance and care.
-
-
Can this device be used for robotic applications in a high-humidity environment?
-
With its IP20 rating, the DSQC 355 is designed for general industrial environments but should not be used in environments with high humidity without additional protective measures.
-
-
What kind of maintenance does the DSQC 355 require?
-
Minimal maintenance is required. Regular checks for dust accumulation and ensuring the unit is securely mounted are recommended.
-
Recommended Related Models:
Here are 6 models that are either part of the same series or closely related to the ABB DSQC 355 3HNE00554-1:
| Model | Description |
|---|---|
| ABB DSQC 354 | A similar communication module for ABB robots. |
| ABB DSQC 333 | I/O interface module for ABB robotic systems. |
| ABB DSQC 306 | Power supply unit for ABB robot controllers. |
| ABB DSQC 379 | A controller for ABB IRB robots for high-performance tasks. |
| ABB DSQC 331 | A communication board used in ABB robot arms. |
| ABB DSQC 360 | Used for control and communication in robotic automation systems. |
