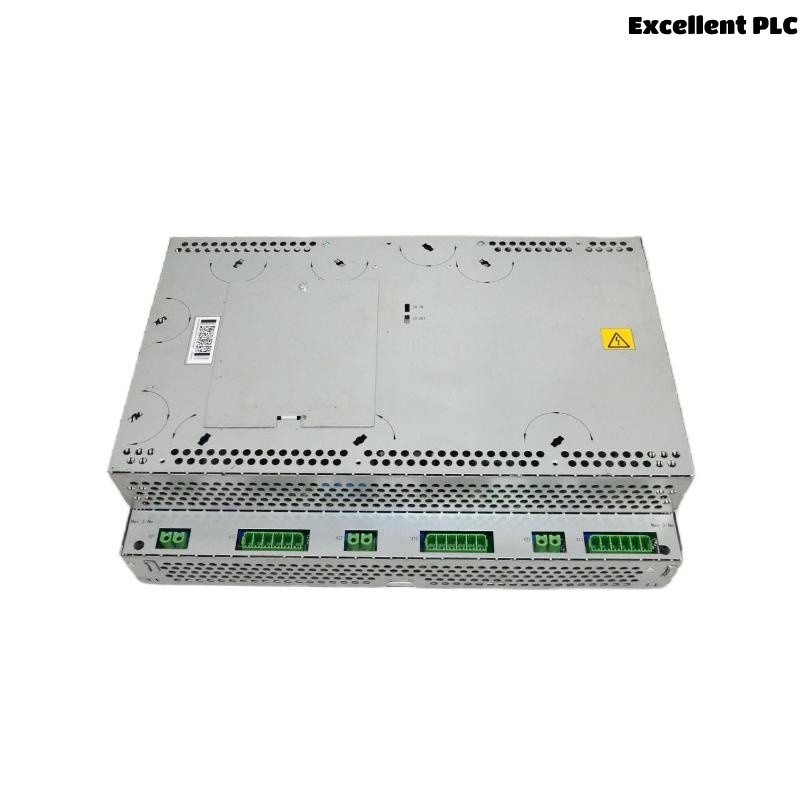

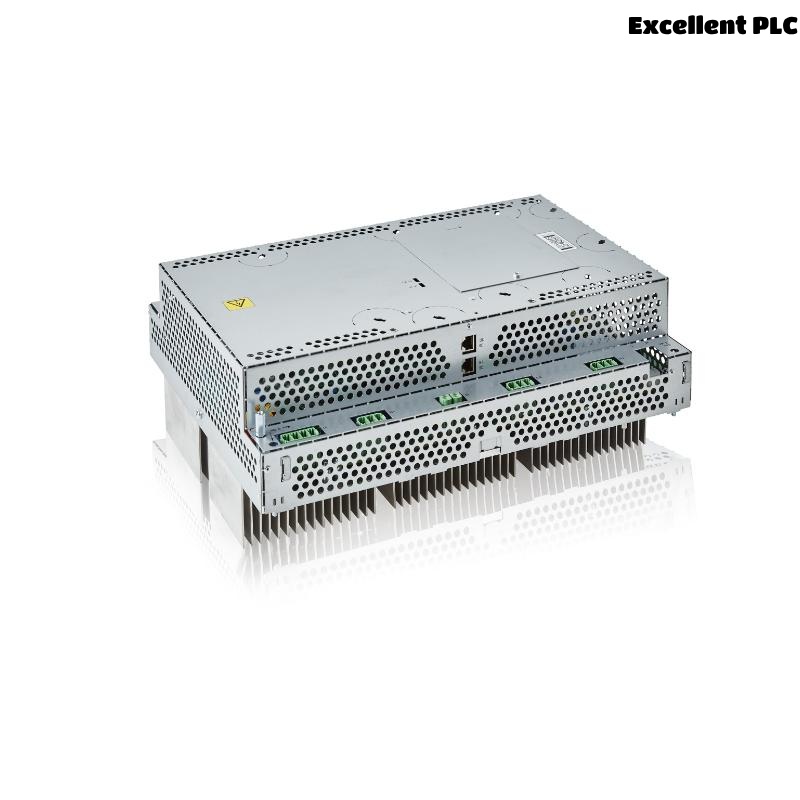

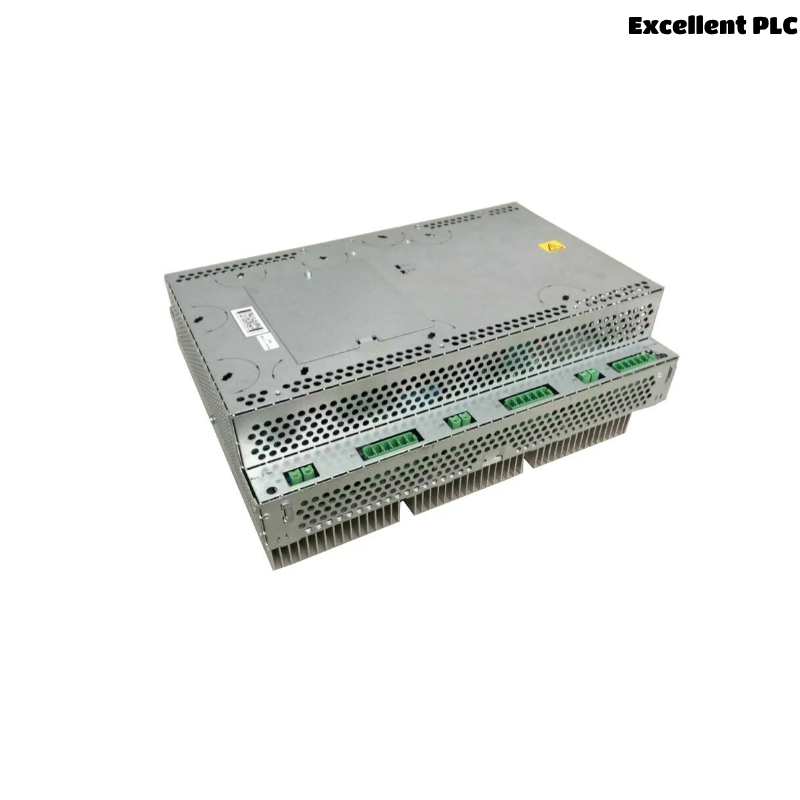

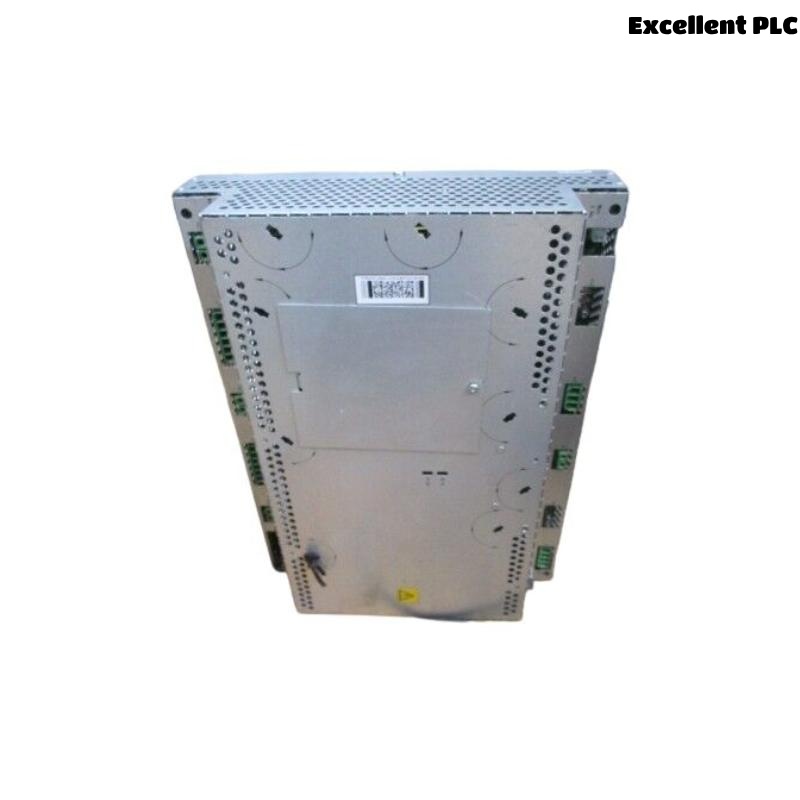

ABB DSQC 663 3HAC029818-001 Robot servo drive unit

Manufacturer:ABB

Product Number:DSQC 663 3HAC029818-001

Condition:Robot servo drive unit

Origin:Sweden

Dimensions:430x 179x 335 mm

Weight:12.33 kg

Views:113

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
  • Product Ratings
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

ABB DSQC 663 3HAC029818-001 Robot servo drive unit

Product Introduction

The ABB DSQC 663 3HAC029818-001 is a high-performance axis control unit designed for use within ABB’s industrial robotics systems, particularly in the IRC5 robot controller platform. Acting as a critical interface between the main controller and the robot’s servo drives, it enables precise control of multiple motion axes. With robust architecture and proven reliability in harsh industrial environments, the DSQC 663 is engineered for long-term performance in demanding applications.

It plays a central role in orchestrating robotic arm movement, ensuring high-speed synchronization and accurate feedback across various axes. As a plug-in board, it also allows for modular expansion and easy replacement in ABB robot control cabinets.


Product Advantages

  • Precision Control: Offers high-resolution signal processing for coordinated multi-axis motion control.

  • Reliable Feedback Integration: Facilitates communication with resolver/encoder feedback systems for real-time positioning.

  • Industrial Durability: Designed to endure vibration, temperature fluctuations, and electrical noise in factory environments.

  • Plug-and-Play Replacement: Designed for quick integration into ABB’s IRC5 controller with minimal configuration.

  • Diagnostics Support: Built-in diagnostic LEDs and intelligent feedback circuits enable easy troubleshooting.

  • Compatibility: Fully compatible with a range of ABB robots including the IRB 2400, IRB 4600, and others using the IRC5 controller.


Technical Specifications

Parameter Specification
Product Name DSQC 663
ABB Part Number 3HAC029818-001
Function Axis Computer / Axis Control Board
Supported Controller IRC5
Robot Compatibility IRB 2400, IRB 4400, IRB 4600, IRB 6650S, etc.
Dimensions 430x 179x 335 mm
Weight 12.33 kg
Mounting Type Plug-in PCB for internal rack/controller installation
Signal Type Digital control + resolver/encoder input
Input Voltage Range Supplied through controller bus (nominal 24V DC logic power)
Operating Temperature 0°C to +55°C
Storage Temperature -25°C to +70°C
Humidity Range 5% to 95% (non-condensing)
Certifications CE, RoHS, ABB Quality Compliance

Product Applications

  • Industrial Robotics: Key component in controlling articulated robotic arms across manufacturing lines.

  • Automated Welding Cells: Coordinates movement across multiple axes for precision welding tasks.

  • Material Handling Systems: Supports synchronized motion in pick-and-place and palletizing applications.

  • CNC and Machining Robots: Ensures high-speed control for robotic milling, cutting, and assembly processes.

  • Packaging Automation: Enables repeatable, accurate motion for high-throughput packaging lines.


Compatible/Paired Models

  • ABB IRC5 Controller Mainframe

  • DSQC 679 Axis Computer (alternative axis board)

  • DSQC 608 Drive Units

  • DSQC 679/679A Signal Interface

  • IRB Series Robots: IRB 2400, IRB 4600, IRB 6600

  • DSQC 601 I/O Boards


Installation Instructions

  1. Power Down the System: Ensure all power to the controller is turned off before installation.

  2. Discharge Static Electricity: Use an ESD wrist strap before handling the PCB.

  3. Insert Into Slot: Carefully slide the DSQC 663 board into the designated slot on the IRC5 controller backplane.

  4. Secure the Board: Confirm that it clicks into position and fasten any necessary retention screws.

  5. Reconnect Cables: Connect any encoder or resolver feedback cables as specified in the wiring diagram.

  6. System Boot and Test: Restore power, boot the controller, and verify board recognition via the robot teach pendant or control software.

  7. Run Diagnostics: Use ABB RobotStudio or IRC5 diagnostics to validate operation.


10 Human-Style FAQs

Q1: What is the main function of the ABB DSQC 663 board?
A1: It serves as the axis control board in ABB’s IRC5 system, managing motion control across robotic joints.

Q2: Can I use this board in the older S4C+ controllers?
A2: No, the DSQC 663 is specifically designed for the IRC5 system and is not backward compatible with S4C+.

Q3: How do I know if my DSQC 663 board is faulty?
A3: Common indicators include axis motion errors, blinking status LEDs, or failure of robot axes to initialize.

Q4: Is it possible to replace the DSQC 663 by myself?
A4: Yes, it is a modular board. However, ABB recommends certified personnel due to safety and calibration procedures.

Q5: Does this board control all axes simultaneously?
A5: It handles multiple axes based on robot configuration, typically up to 6, depending on the system setup.

Q6: What is the difference between DSQC 663 and DSQC 679?
A6: Both are axis control boards, but DSQC 679 includes additional diagnostic functions and is used in extended applications.

Q7: Is this board refurbished or new when purchased from third-party suppliers?
A7: It depends on the vendor. Always request condition reports; some units are reconditioned, others are new old stock.

Q8: Can I use it with IRB 120 robots?
A8: No, the IRB 120 typically uses different compact control systems; DSQC 663 is more suited for mid to large robots.

Q9: What if the firmware version doesn’t match the controller?
A9: Firmware mismatch may result in boot errors. ABB service tools or updates may be needed to align versions.

Q10: Is DSQC 663 still in production?
A10: It is being phased out in newer systems but remains widely available through ABB channels and aftermarket suppliers.


Recommended Models (Same Series or Related)

  1. DSQC 679 – Axis control board with extended diagnostics

  2. DSQC 652 – Axis interface board

  3. DSQC 663A – Variant of DSQC 663 with updated firmware

  4. DSQC 608 – Drive unit interface module

  5. DSQC 639 – Main computer board for IRC5

  6. DSQC 609 – Axis power interface board


Popular ABB Models (Same Brand)

Model Number Description Dimensions (mm) Weight (kg) Voltage
DSQC 679 Advanced Axis Computer 215 × 175 × 30 0.52 24V DC
DSQC 652 Axis Interface Board 180 × 160 × 20 0.42 24V DC
DSQC 639 IRC5 Main Control Board 250 × 200 × 35 0.70 24V DC
DSQC 608 Drive Unit Control Interface 200 × 150 × 30 0.46 24V DC
DSQC 679A Axis Control with Additional Logging 220 × 170 × 30 0.54 24V DC
DSQC 501 Older-generation axis control board 210 × 160 × 25 0.48 24V DC
DSQC 346G Power supply interface for ABB robots 180 × 140 × 25 0.40 24V DC
DSQC 236G Safety board for robot systems 190 × 150 × 20 0.41 24V DC
