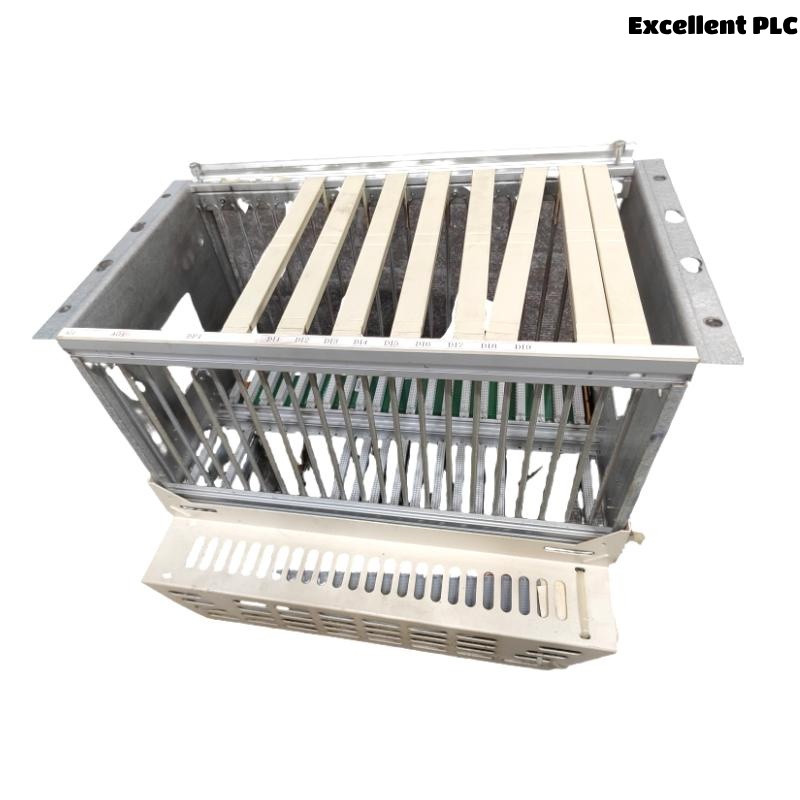

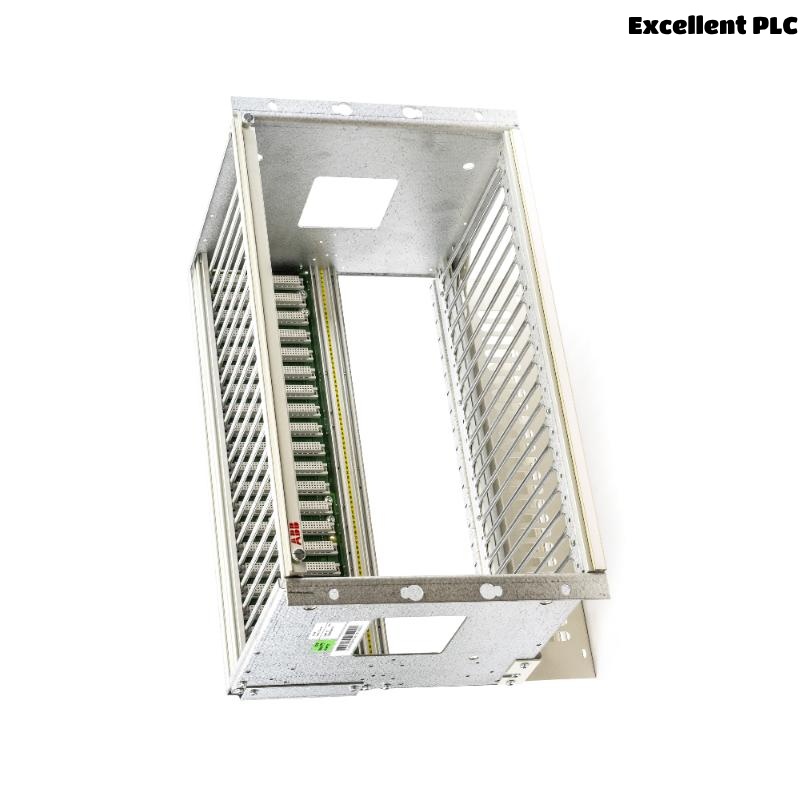

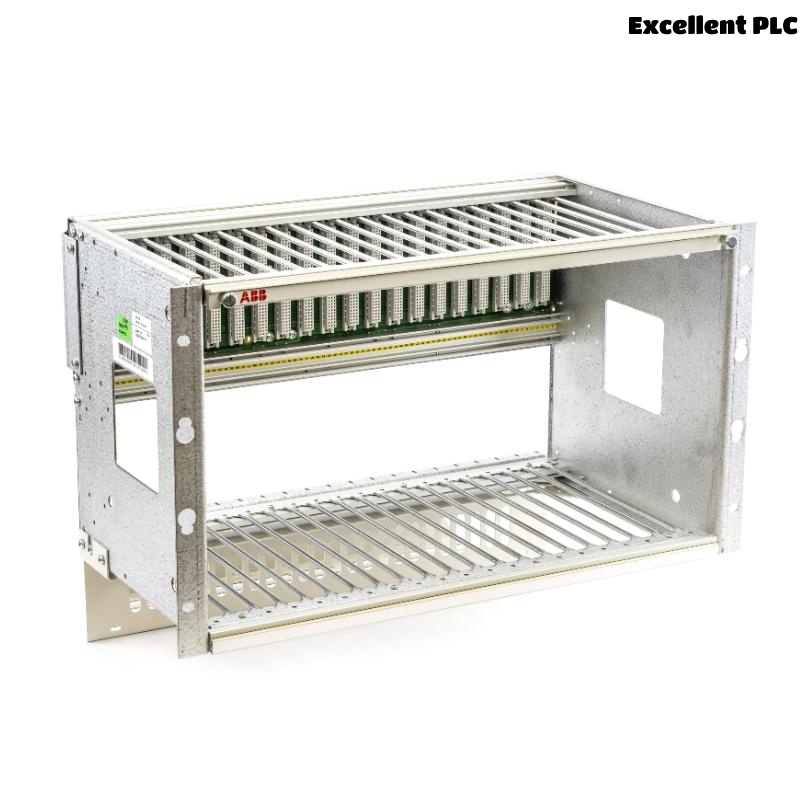

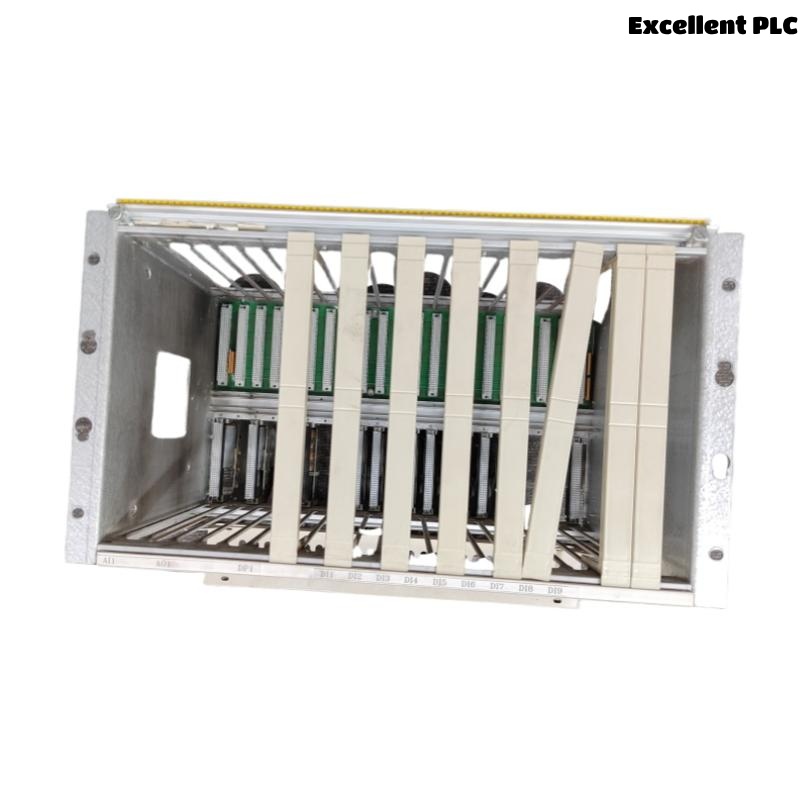

ABB DSRF 197 3BSE019297R1 I/O Equipment Frame

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The ABB DSRF 197 3BSE019297R1 is a robust and reliable I/O equipment frame designed for accommodating I/O modules in industrial automation systems. Developed as part of ABB’s System 800xA product line, the DSRF 197 serves as a physical and electrical foundation for mounting and interfacing various input/output modules that connect process signals with controllers.

This frame is engineered for high-density I/O configurations in harsh industrial environments where space efficiency, signal reliability, and long-term stability are critical. It ensures easy installation of field wiring and provides secure backplane communication for connected I/O units. Used widely in process industries, the DSRF 197 supports modular system architectures and simplifies system integration and expansion.

The rugged mechanical design, combined with ABB’s quality assurance, makes the DSRF 197 ideal for demanding automation applications requiring high availability, flexible deployment, and streamlined maintenance.

---

Product Specifications

---

Product Applications

The DSRF 197 is widely deployed in industries where large-scale, high-speed signal processing is required. Some common applications include:

• Power Generation Plants
  Supports distributed I/O configurations for turbines, boilers, and substations.

• Oil & Gas Facilities
  Provides modular I/O housing for upstream, midstream, and downstream operations.

• Chemical and Petrochemical Processing
  Enables flexible instrumentation and automation of reactors, mixers, and compressors.

• Water and Wastewater Treatment
  Offers robust mounting for analog and digital input/output signals for pumps, valves, and sensors.

• Pharmaceutical Manufacturing
  Facilitates validated process control with easy I/O module changes.

• Metals and Mining
  Used in remote operations for integrating digital field data into centralized control systems.

---

Product Advantages

The ABB DSRF 197 delivers a range of benefits that contribute to improved performance, reduced maintenance time, and seamless scalability:

• Modular Design
  Allows for easy I/O expansion, upgrades, or replacement without system disruption.

• Mechanical Robustness
  Built for industrial environments with enhanced durability under vibration, temperature, and dust exposure.

• Efficient Wiring Access
  Simplifies cable routing and wiring through organized access points.

• Backplane Integration
  Provides secure data and power transfer between modules through the integrated backplane.

• Versatile Mounting Options
  Suitable for both DIN rail and panel installations, adapting to cabinet designs.

• Reduced Downtime
  Enables quick replacement of faulty modules thanks to tool-free access and hot-swap capability.

• Full System Compatibility
  Seamlessly integrates with ABB’s System 800xA, AC 800M controllers, and S800 I/O series.

• Global Certifications
  Ensures compliance with international safety and performance standards.

---

Frequently Asked Questions (FAQ)

1. What role does the DSRF 197 play in an ABB automation system?
   The DSRF 197 serves as a structural and electrical foundation for mounting multiple I/O modules. It allows process signals from the field to be efficiently routed to the control system via ABB’s modular hardware architecture.

2. How is the frame connected to the system controller?
   The DSRF 197 includes a built-in backplane that connects to the controller through dedicated interface modules, ensuring both power distribution and communication between the modules and the system CPU.

3. What types of modules are typically installed in the DSRF 197?
   Modules such as analog input/output, digital input/output, and communication modules from the ABB S800 I/O series are commonly used in this frame.

4. Can the DSRF 197 support redundant system configurations?
   Yes, it is suitable for use in redundant control environments. The frame supports configurations that ensure uninterrupted operation in critical systems.

5. What mounting options does this frame support?
   The unit is designed for standard DIN rail mounting and can also be secured in control panels or enclosures depending on site requirements.

6. Is this frame suitable for environments with high vibration or electrical noise?
   Absolutely. The mechanical and electrical design of the DSRF 197 ensures reliable operation in electrically noisy and vibration-prone industrial settings.

7. Are there specific environmental conditions it must operate within?
   Yes, it operates best in environments ranging from -25°C to +70°C and should be installed in cabinets that maintain appropriate ventilation and protection.

8. How do technicians perform troubleshooting on the frame and connected modules?
   ABB provides diagnostic tools within the System 800xA environment that allow technicians to monitor status, detect faults, and perform module-level diagnostics efficiently.

9. Does the DSRF 197 support future system expansion?
   Yes, its modular layout allows new modules to be added without major system modifications, making it an ideal choice for plants anticipating future upgrades.

10. Is this product certified for international industrial use?
    The frame is certified to international standards including CE, UL, and CSA, ensuring it meets safety and performance regulations across global installations.

---
