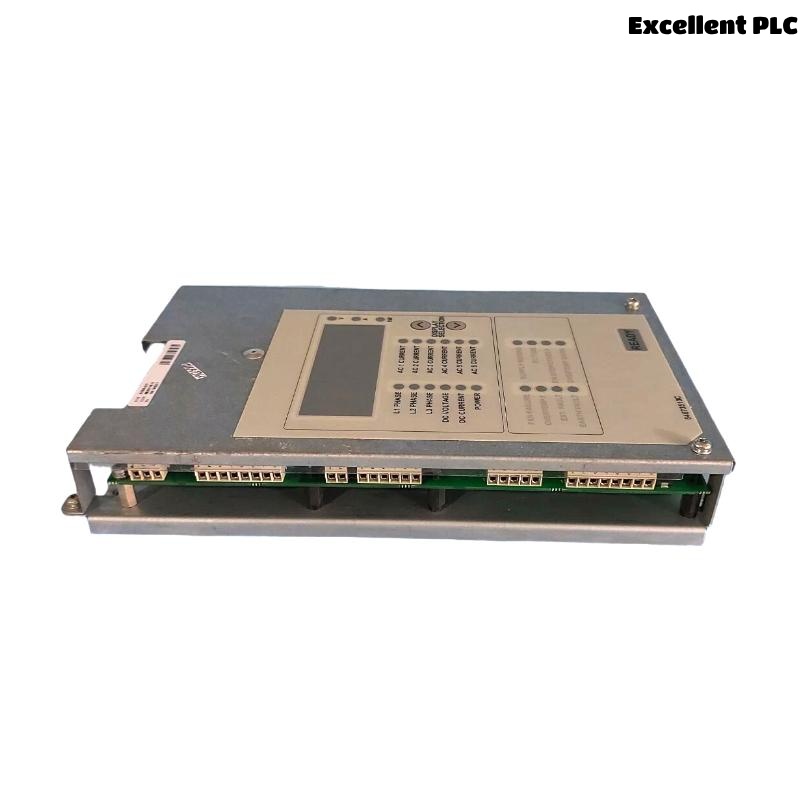

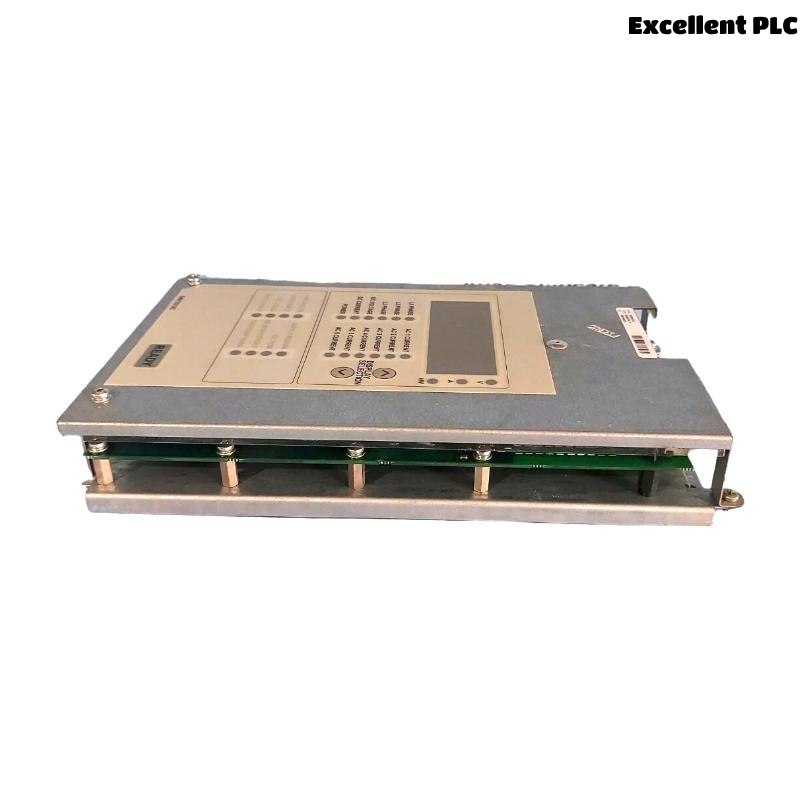

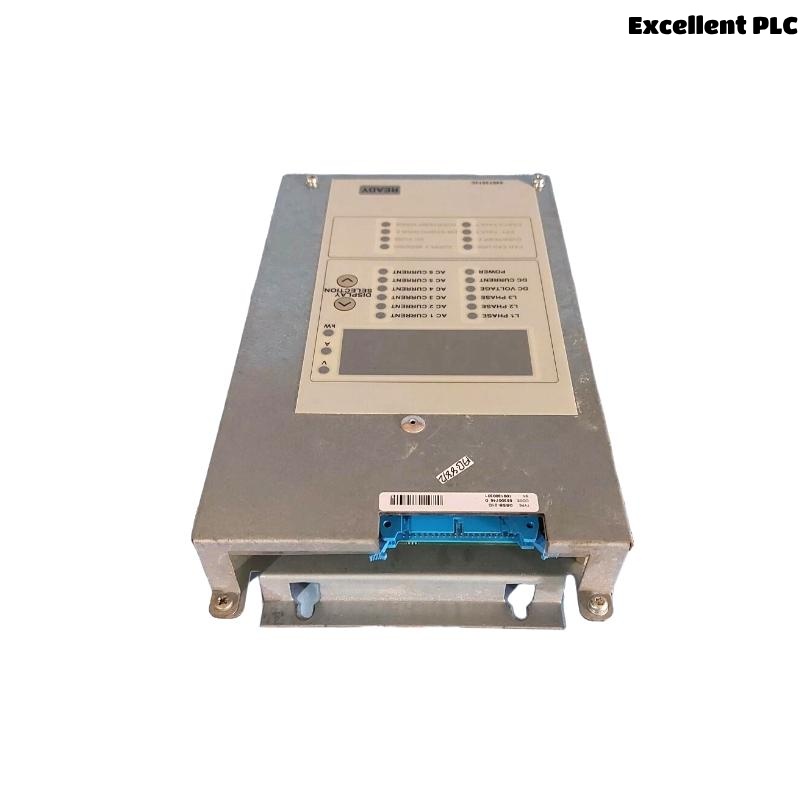

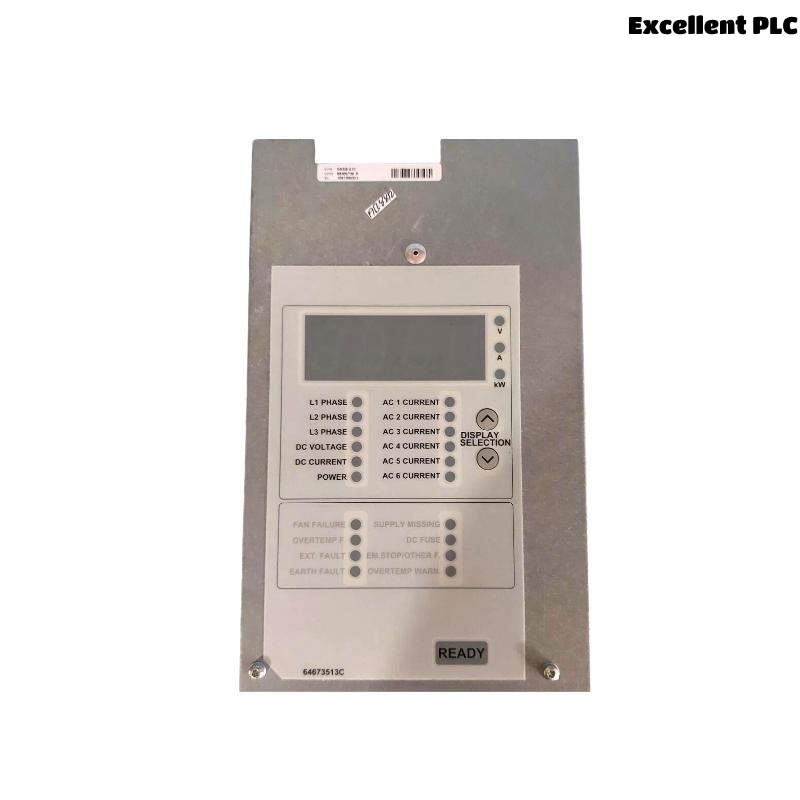

ABB DSSB-01C 68300746 Main Control Board for DSU Unit

Manufacturer:ABB

Product Number:DSSB-01C 68300746

Product Type:Main Control Board for DSU Unit

Origin:Sweden

Dimensions:506 x 226 x 56 mm

Weight:1.8 kg

Views:135

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
  • Product Ratings
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

ABB DSSB-01C 68300746 Main Control Board for DSU Unit

Product Introduction

The ABB DSSB-01C 68300746 Main Control Board for DSU Unit is a critical component designed to provide reliable control and monitoring for the DSU (Drive System Unit) in industrial automation systems. The main control board acts as the brain of the DSU unit, managing the overall operation and communication between the various components in the system.

This main control board is used primarily in ABB’s Drive Systems for controlling electric motors and other mechanical processes in industrial applications. The DSSB-01C ensures stable and efficient operation of the DSU, enabling precise control of motor speeds, torque, and positioning. Designed for rugged industrial environments, this board offers excellent performance, stability, and durability, which are essential for continuous and reliable system operation.

With robust features such as diagnostic capabilities, communication interfaces, and advanced control algorithms, the DSSB-01C is an essential part of ABB’s industrial drive solutions. It ensures seamless integration into automation systems, providing users with improved operational control and enhanced system reliability.


Product Specifications

Parameter Specification
Model Number DSSB-01C 68300746
Device Type Main Control Board for DSU Unit
Input Voltage 24 VDC (nominal)
Power Consumption 10 W (typical)
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Dimensions (WxHxD) 506 x 226 x 56 mm
Weight 1.8 kg
Communication Interfaces Ethernet, Modbus, RS232/RS485
Mounting Rack-mounted
Status Indicators Power, Status, Fault
Protection Features Overvoltage, short-circuit protection
Environmental Protection IP20 (Dustproof)
LED Indicators Power, Status, Error
Certifications CE, UL, RoHS
Compatibility Compatible with ABB DSU systems, PLC systems, and drive solutions

Product Applications

The ABB DSSB-01C 68300746 Main Control Board for DSU Unit is used in a variety of industrial applications requiring precise motor control, automation, and monitoring. Some of the most common applications include:

  • Industrial Drives: Provides main control functionality in ABB’s drive systems, ensuring efficient and reliable control of motor speeds, torque, and direction.

  • Automation Systems: Integrates into complex automation systems to control and monitor motors and other connected equipment, ensuring smooth and efficient operation.

  • Manufacturing Plants: Used to control conveyor systems, robotic arms, and other automated machinery in production lines, improving operational efficiency.

  • Power Generation: Plays a key role in controlling motors for generators, turbines, and other power plant equipment, enhancing system reliability and performance.

  • Material Handling Systems: Controls the operation of motors and drives used in material handling, such as hoists, conveyors, and cranes, ensuring precise control and safety.

  • Water Treatment Plants: Supports the control of pumps, valves, and motors used in water treatment and pumping systems, ensuring optimal performance and energy efficiency.

  • HVAC Systems: Used to control motors in heating, ventilation, and air conditioning systems, optimizing energy consumption and maintaining stable environmental conditions.

  • Pumping Stations: Controls motors in industrial pumps, ensuring smooth operation and long-term reliability in fluid transport systems.


Product Advantages

  • Reliable Performance: The DSSB-01C board ensures high reliability and performance in managing the DSU unit, which is essential for the uninterrupted operation of motor control systems.

  • Versatile Compatibility: The board is compatible with a wide range of ABB’s DSU and drive systems, as well as PLC systems, providing flexible integration into existing automation setups.

  • Advanced Communication Interfaces: With Ethernet, Modbus, and RS232/RS485 interfaces, the board enables easy integration and communication with other devices and systems, allowing for remote monitoring and control.

  • Precise Control: The board allows precise control of motor functions such as speed, torque, and positioning, which is critical for applications that require high levels of accuracy.

  • Compact Design: With its compact size (506 x 226 x 56 mm), the board is space-efficient and can be easily integrated into a variety of industrial control cabinets and enclosures.

  • Protection Features: Equipped with overvoltage and short-circuit protection, the DSSB-01C helps prevent damage to connected equipment, increasing the lifespan of the system.

  • Easy Diagnostics: The board offers built-in diagnostic capabilities, helping users quickly identify issues and reduce system downtime.

  • Environmental Durability: With an operating temperature range of -20°C to +60°C, the board is designed to perform reliably even in harsh industrial environments.

  • Global Certifications: The board is certified for safety and environmental standards (CE, UL, RoHS), ensuring compliance with international regulations.

  • Efficient Power Consumption: With typical power consumption of just 10 W, the DSSB-01C is an energy-efficient solution for industrial control applications.


Frequently Asked Questions (FAQ)

  1. Q: What is the input voltage required for the DSSB-01C board?
    A: The board operates on a 24 VDC input voltage.

  2. Q: What communication interfaces does the DSSB-01C support?
    A: The DSSB-01C supports Ethernet, Modbus, and RS232/RS485 communication interfaces.

  3. Q: What is the typical power consumption of the DSSB-01C board?
    A: The typical power consumption is 10 W.

  4. Q: What is the operating temperature range of the DSSB-01C?
    A: The operating temperature range is -20°C to +60°C.

  5. Q: How is the DSSB-01C mounted?
    A: The board is rack-mounted, making it easy to integrate into existing control cabinets.

  6. Q: Does the DSSB-01C have protection features?
    A: Yes, it includes overvoltage and short-circuit protection to safeguard the system.

  7. Q: Is the DSSB-01C compatible with other ABB systems?
    A: Yes, it is fully compatible with ABB DSU systems, PLC systems, and other drive solutions.

  8. Q: Can the DSSB-01C be used in harsh industrial environments?
    A: Yes, the board is designed for use in industrial environments and can operate within a temperature range of -20°C to +60°C.

  9. Q: What certifications does the DSSB-01C have?
    A: The board is CE, UL, and RoHS certified, meeting international safety and environmental standards.

  10. Q: Does the DSSB-01C offer diagnostic features?
    A: Yes, the board includes diagnostic indicators such as Power, Status, and Error LEDs for easy troubleshooting.


Related Models and Variants

Model Number Description Key Feature
DSSB-02C Secondary Control Board for DSU Unit Provides backup control capabilities
DSSB-03C Advanced Control Board for DSU Enhanced processing speed and features
DSSB-04C Modular Main Control Board for DSU Modular design for flexible integration
DSSB-05C Dual-Channel Control Board Supports redundant control systems
DSSB-06C Communication Board for DSU Focuses on communication interfaces
DSSB-07C High-Speed Control Board Faster processing and response time

Popular ABB Brand Models

Model Number Description Application Focus
800xA-Controller Distributed Control System Controller Centralized control for automation
800xA-IO I/O Interface Module Interfaces between sensors and controllers
PM891 Modular PLC Controller Scalable and modular PLC system
AC500 PLC System Advanced process control
800xA-Operator Operator Interface Module Interface for user control
DCS5000 Process Control System Automation for complex systems

Frequently Asked Questions (FAQ)

  1. Q: What is the input voltage required for the DSSB-01C board?
    A: The board operates on a 24 VDC input voltage.

  2. Q: What communication interfaces does the DSSB-01C support?
    A: The DSSB-01C supports Ethernet, Modbus, and RS232/RS485 communication interfaces.

  3. Q: What is the typical power consumption of the DSSB-01C board?
    A: The typical power consumption is 10 W.

  4. Q: What is the operating temperature range of the DSSB-01C?
    A: The operating temperature range is -20°C to +60°C.

  5. Q: How is the DSSB-01C mounted?
    A: The board is rack-mounted, making it easy to integrate into existing control cabinets.

  6. Q: Does the DSSB-01C have protection features?
    A: Yes, it includes overvoltage and short-circuit protection to safeguard the system.

  7. Q: Is the DSSB-01C compatible with other ABB systems?
    A: Yes, it is fully compatible with ABB DSU systems, PLC systems, and other drive solutions.

  8. Q: Can the DSSB-01C be used in harsh industrial environments?
    A: Yes, the board is designed for use in industrial environments and can operate within a temperature range of -20°C to +60°C.

  9. Q: What certifications does the DSSB-01C have?
    A: The board is CE, UL, and RoHS certified, meeting international safety and environmental standards.

  10. Q: Does the DSSB-01C offer diagnostic features?
    A: Yes, the board includes diagnostic indicators such as Power, Status, and Error LEDs for easy troubleshooting.

Related Models and Variants

Model Number Description Key Feature
DSSB-02C Secondary Control Board for DSU Unit Provides backup control capabilities
DSSB-03C Advanced Control Board for DSU Enhanced processing speed and features
DSSB-04C Modular Main Control Board for DSU Modular design for flexible integration
DSSB-05C Dual-Channel Control Board Supports redundant control systems
DSSB-06C Communication Board for DSU Focuses on communication interfaces
DSSB-07C High-Speed Control Board Faster processing and response time

Popular ABB Brand Models

Model Number Description Application Focus
800xA-Controller Distributed Control System Controller Centralized control for automation
800xA-IO I/O Interface Module Interfaces between sensors and controllers
PM891 Modular PLC Controller Scalable and modular PLC system
AC500 PLC System Advanced process control
800xA-Operator Operator Interface Module Interface for user control
DCS5000 Process Control System Automation for complex systems
