Product Introduction:

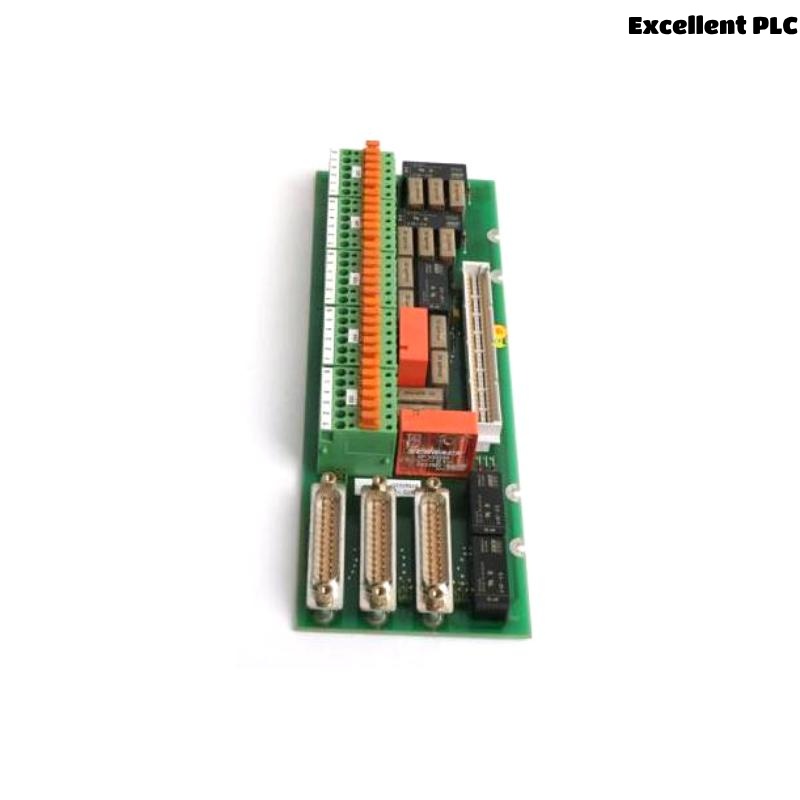

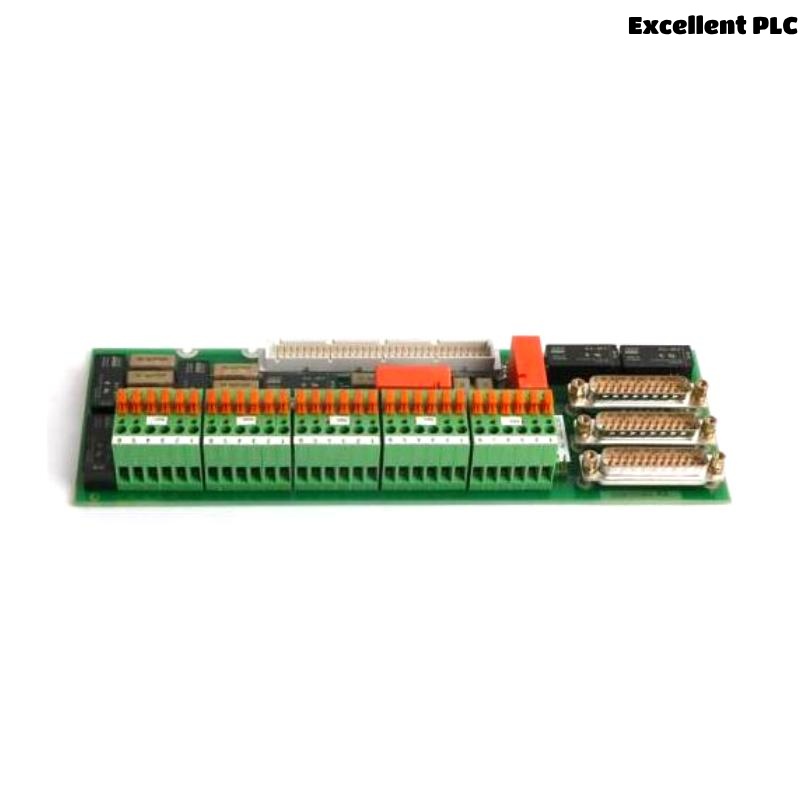

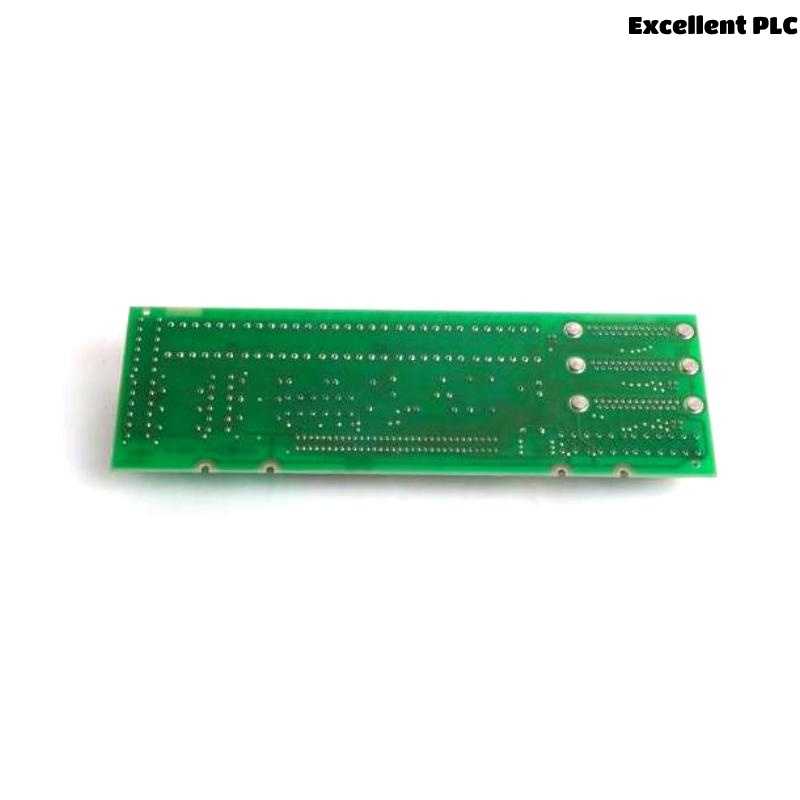

The ABB DSTC 170 57520001-BK is a reliable and efficient connection unit designed to streamline communication and power distribution in various industrial control systems. Part of the ABB system integration offerings, the DSTC 170 module plays a pivotal role in providing reliable and stable connections between multiple devices within automation and control networks.
This connection unit is specifically engineered to support complex industrial systems, facilitating seamless communication between controllers, field devices, and other components. With its compact design and durable build, the DSTC 170 ensures stable and uninterrupted operation in harsh environments, making it an excellent choice for industries such as manufacturing, energy, and process control.
The DSTC 170 is built to handle heavy-duty operations, ensuring that industrial networks remain operational at all times. Whether deployed in distributed control systems (DCS) or supervisory control and data acquisition (SCADA) systems, the DSTC 170 guarantees optimal data flow and communication.
Product Parameters:
| Parameter | Value |
|---|---|
| Model Number | DSTC 170 57520001-BK |
| Dimensions (W × H × D) | 260 x 100 x 40 mm |
| Weight | 0.41 kg |
| Power Supply | 24 V DC ± 20% |
| Current Consumption | Approx. 200 mA |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting Type | DIN Rail |
| Interfaces | RS-232, RS-485 |
| Protection Rating | IP20 (Industrial Standard) |
Product Applications:
The ABB DSTC 170 57520001-BK connection unit is designed for a broad range of industrial applications that require efficient communication, data transmission, and power distribution. Its versatile functionality makes it suitable for the following applications:
-
Automation Systems: The module facilitates communication between distributed control systems (DCS), controllers, and field devices, ensuring smooth operation of industrial automation processes.
-
Manufacturing and Process Control: Ideal for integration in production lines, the DSTC 170 allows for real-time data exchange between sensors, controllers, and actuators.
-
Energy Management: It ensures continuous data flow from energy meters to central control units, aiding in energy consumption monitoring and optimization.
-
SCADA Systems: Used in SCADA systems for centralized monitoring and control of industrial processes, the DSTC 170 ensures reliable data transfer and connection stability.
-
Building Automation: The module is well-suited for use in HVAC systems, lighting control, and other building automation tasks, allowing for remote monitoring and management.
-
Substation Automation: In electrical substations, it ensures reliable communication between protection relays, control systems, and monitoring units, critical for grid stability.
Product Advantages:
-
Reliable Communication: The DSTC 170 provides stable and uninterrupted communication between devices, even in high-noise environments, making it essential for industrial automation and control systems.
-
Compact and Lightweight: With dimensions of 260 x 100 x 40 mm and a weight of just 0.41 kg, the unit is compact and easily integrates into control panels with limited space.
-
Versatile Connectivity: Supporting both RS-232 and RS-485 communication protocols, the DSTC 170 can be integrated with a wide range of field devices and controllers.
-
High Temperature Tolerance: The module operates effectively in a wide temperature range, from -20°C to +60°C, making it suitable for harsh industrial environments.
-
Efficient Power Consumption: The DSTC 170 operates with minimal power consumption of approximately 200 mA, reducing overall system energy costs.
-
Durability: The module is designed to withstand the harsh conditions commonly found in industrial settings, ensuring long-term operational stability.
-
Easy Installation: With DIN rail mounting, the unit can be easily installed in standard industrial cabinets, ensuring a hassle-free setup.
-
Protection Rating: Rated at IP20, the unit is well-protected against dust and physical contact, ensuring durability and operational safety in industrial environments.
-
Enhanced Flexibility: The DSTC 170 is compatible with a variety of ABB’s automation and control systems, making it a flexible solution for different industrial applications.
-
Scalable Integration: The unit supports scalable integration, enabling users to expand or modify their systems as required without significant reconfiguration.
FAQ:
-
What is the primary function of the ABB DSTC 170 connection unit?
-
The primary function of the DSTC 170 is to provide stable and reliable communication between industrial devices, ensuring smooth data flow in automation and control systems.
-
-
What are the communication protocols supported by the DSTC 170?
-
The DSTC 170 supports RS-232 and RS-485 communication protocols, allowing it to connect with a wide range of devices in industrial networks.
-
-
What is the power supply requirement for the DSTC 170?
-
The DSTC 170 requires a 24 V DC power supply with a tolerance of ±20%.
-
-
What is the operating temperature range of the DSTC 170?
-
The DSTC 170 operates effectively within a temperature range of -20°C to +60°C.
-
-
What is the protection rating of the DSTC 170?
-
The unit has an IP20 protection rating, ensuring basic protection against dust and physical contact.
-
-
How is the DSTC 170 mounted?
-
The module is mounted on a DIN rail, making it easy to install in industrial control panels.
-
-
What is the weight of the DSTC 170 module?
-
The DSTC 170 weighs 0.41 kg, making it lightweight and easy to handle.
-
-
Can the DSTC 170 be used in outdoor applications?
-
The module is designed for indoor use in controlled environments, with an operating temperature range suited for industrial conditions.
-
-
Is the DSTC 170 compatible with other ABB systems?
-
Yes, the DSTC 170 is designed to be compatible with various ABB automation and control systems, offering seamless integration.
-
-
What is the storage temperature range for the DSTC 170?
-
The DSTC 170 can be stored in temperatures ranging from -40°C to +85°C.
-
Model Recommendations (Same Series or Related Modules):
| Model | Description |
|---|---|
| DSTC 171 | A variant of the DSTC 170 offering enhanced communication capabilities. |
| DSTC 172 | Provides additional I/O ports for greater connectivity in large systems. |
| DSTC 160 | A more compact model for smaller industrial applications. |
| DSTC 180 | Offers advanced diagnostic features for real-time system monitoring. |
| DSTC 190 | An upgraded model with enhanced power supply handling and higher communication speed. |
| DSTC 165 | A cost-effective solution for basic communication tasks in smaller systems. |
