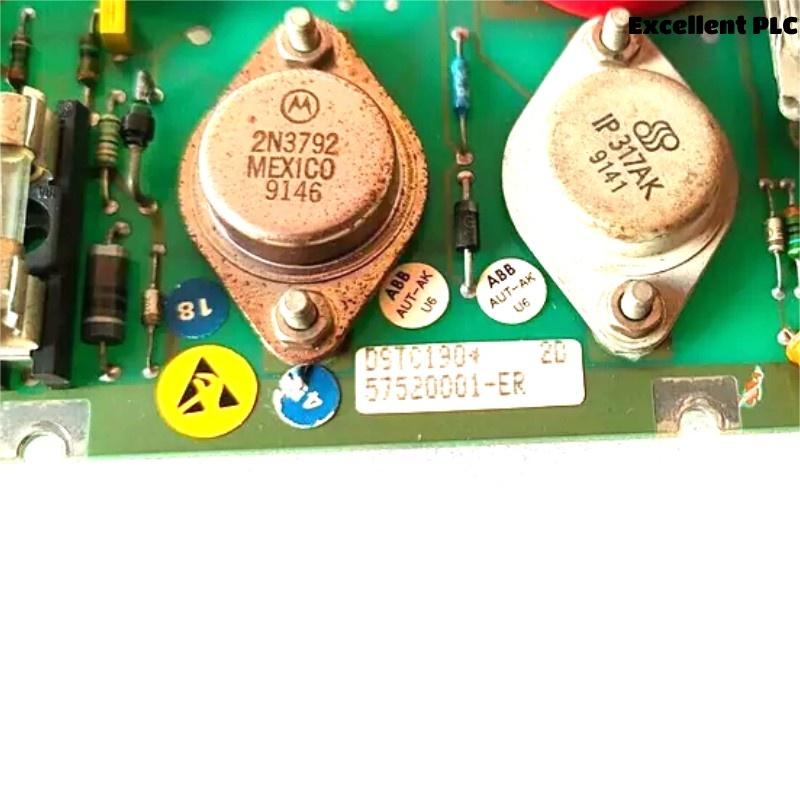

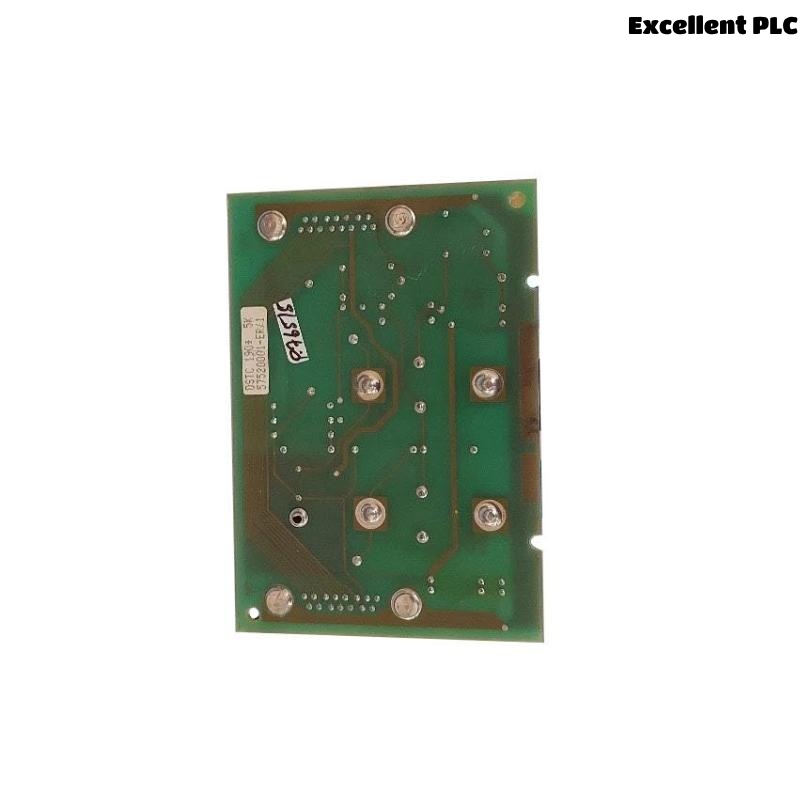

ABB DSTC 190 57520001-ER Connection unit

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview: ABB DSTC 190 57520001-ER

---

The ABB DSTC 190 57520001-ER is an advanced digital output module designed for integration into ABB’s Distributed Control Systems (DCS), particularly within the Symphony Harmony series. Engineered for high-reliability environments, it serves as a robust interface between the control processor and the final control elements such as actuators, relays, and solenoids. This unit supports seamless data communication and deterministic control, making it highly suitable for continuous process industries such as power generation, petrochemicals, water treatment, and pulp & paper.

The module’s architecture features isolated outputs, fault diagnostics, and a compact footprint, allowing easy installation in rack-mounted systems. ABB’s stringent manufacturing standards ensure the DSTC 190 offers long-term stability and consistent output control even in harsh industrial conditions.

---

Product Advantages

---

1. Industrial Reliability: Built to withstand vibrations, temperature fluctuations, and electromagnetic interference common in industrial environments.

2. Compact Design: The module features a modular, space-saving structure ideal for high-density I/O installations.

3. Diagnostic Capability: Includes built-in diagnostics for fault detection, minimizing downtime and facilitating faster maintenance.

4. Seamless Integration: Fully compatible with ABB’s Symphony Harmony DCS and other ABB legacy systems.

5. Isolation Protection: Galvanic isolation between channels reduces the risk of signal interference and improves operational safety.

6. High-Speed Output Switching: Capable of handling rapid control signal transitions, which is critical for real-time process control.

---

Technical Specifications

---

---

Applications

---

• Power Generation: Supports critical turbine control, boiler automation, and auxiliary systems.

• Petrochemical & Refining: Manages safety interlocks, emergency shutdown (ESD) systems, and process sequencing.

• Water & Wastewater Treatment: Ideal for controlling pump stations, filtration units, and chemical dosing systems.

• Pulp and Paper Industry: Ensures stable and efficient operation of paper machines and process heaters.

• Metals & Mining: Controls furnace ignitions, motor starters, and material conveyors.

• Cement & Building Materials: Used in batching control, conveyor operations, and kiln management.

---

Installation Instructions

---

1. Power Down the System: Ensure the rack and all peripheral devices are powered off before installation.

2. Verify Slot Compatibility: Confirm that the module slot is compatible with DSTC 190 specifications.

3. Insert Carefully: Align the module’s edge connector with the backplane and gently insert until fully seated.

4. Secure with Screws: Fasten the module with retaining screws to prevent vibration-related dislodgment.

5. Reconnect Power: Restore system power and perform initial diagnostics to ensure full module recognition.

6. Configure via DCS Interface: Load the corresponding module profile and assign I/O addresses via the Harmony Control Configurator.

---

10 Common FAQs (Q&A)

---

Q1: What type of output is supported by DSTC 190?
A1: It provides 16 channels of current-sourcing digital outputs (24VDC).

Q2: Is the DSTC 190 hot-swappable?
A2: No, the module must be installed and removed with the system powered down.

Q3: Which control systems are compatible with DSTC 190?
A3: It is fully compatible with ABB Symphony Harmony and legacy ABB DCS platforms.

Q4: Does this module provide isolation between channels?
A4: Yes, it offers galvanic isolation between each output channel and system ground.

Q5: Can DSTC 190 be used in safety-critical applications?
A5: Yes, when used with certified DCS safety layers, it meets functional safety requirements.

Q6: What is the operating temperature range of this module?
A6: The module operates between 0°C and +60°C.

Q7: What are the diagnostic features included?
A7: Channel-level fault detection, short-circuit alerts, and overcurrent indication.

Q8: How often should the module be maintained or inspected?
A8: Routine inspection every 6–12 months is recommended in dusty or high-load environments.

Q9: What happens if one output channel fails?
A9: The remaining channels continue functioning; diagnostics help identify the faulty output.

Q10: Can this module drive inductive loads directly?
A10: For inductive loads like relays or solenoids, a flyback diode is recommended to prevent damage.

---

Recommended Related Models (Same Series or Compatible)

---

1. DSTC120 – Digital Output Module, 8 Channels

2. DTCA711A – Analog Output Module, High Accuracy

3. DSTA160A – Digital Input Module, 16 Channels

4. DSBC173A – CPU Communication Module

5. IMFEC12 – Fieldbus Controller Interface

6. DSAI130A – Analog Input Module, 8 Channels

---

Popular ABB DCS Modules (Comparison Table)

---
