Product Introduction

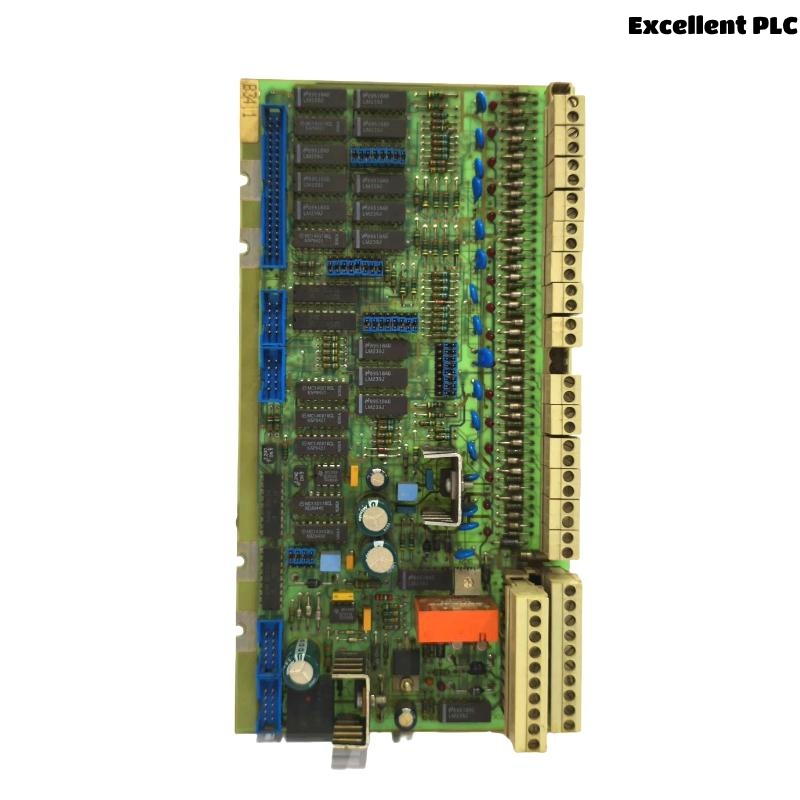

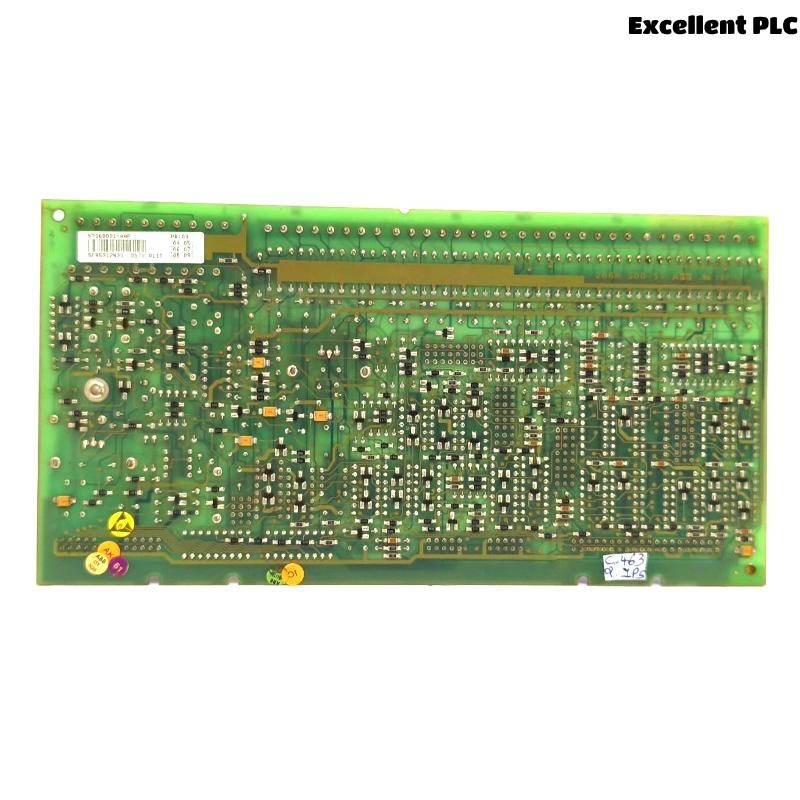

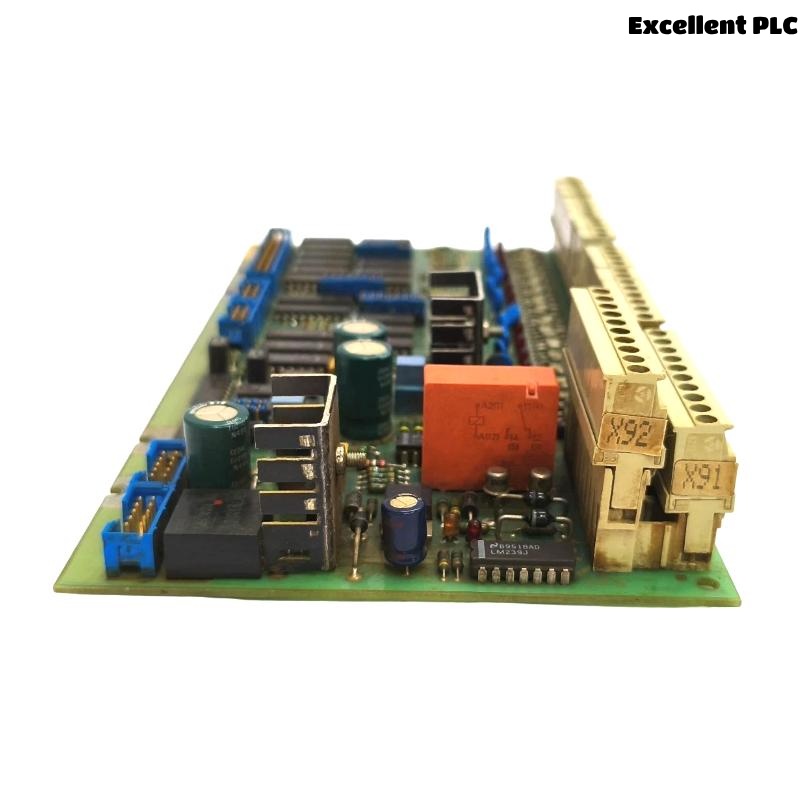

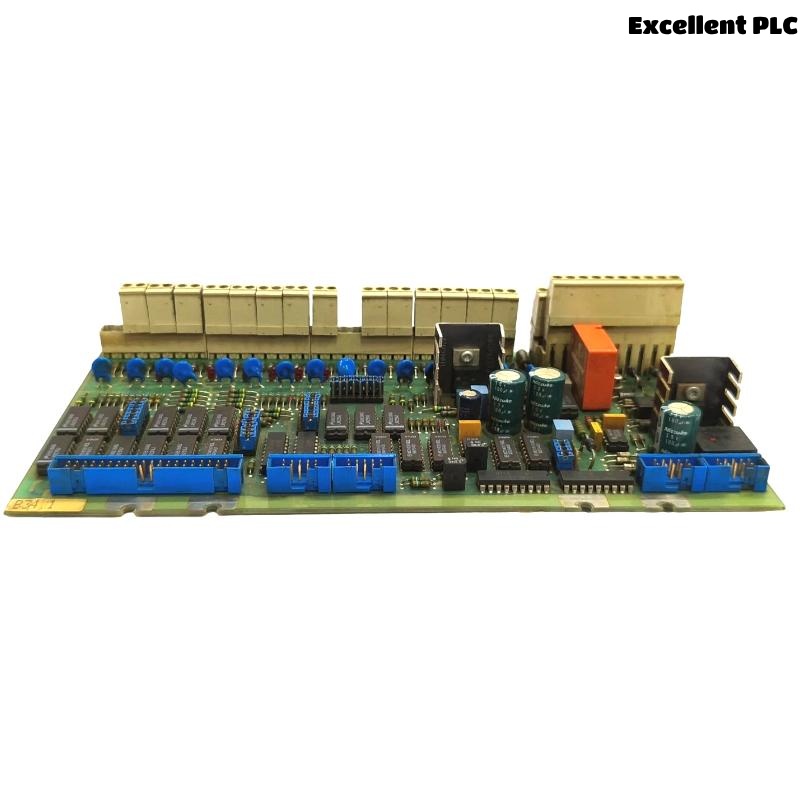

The ABB DSTX W110 3BSC980006R113 is a high-performance digital input printed circuit board (PCB) designed specifically for use in demanding industrial automation systems. Engineered by ABB, a global leader in automation and power technologies, this module plays a critical role in processing discrete digital signals from field devices such as sensors, switches, and relay contacts.
As part of ABB’s Symphony and Advant distributed control system (DCS) platforms, the DSTX W110 3BSC980006R113 offers reliable, real-time monitoring and integration within control architectures that require durability, speed, and seamless compatibility. Its robust construction ensures dependable performance in harsh industrial environments, making it a trusted component across power, utility, and manufacturing sectors.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | ABB DSTX W110 3BSC980006R113 |
| Product Type | Digital Input PCB Board |
| Part Number | 3BSC980006R113 |
| Input Channels | 32 digital inputs |
| Input Voltage Range | 24 V DC nominal (±10%) |
| Input Signal Type | Dry contact (sinking input) |
| Input Delay | ≤ 5 milliseconds |
| Isolation Method | Optical isolation per channel |
| Diagnostics | Built-in per-channel status monitoring |
| Operating Voltage | 24 V DC |
| Power Consumption | < 6 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN rail or rack-mounted |
| Certifications | CE, RoHS, ISO 9001 |
| Dimensions (W × H × D) | 250 × 120 × 65 mm |
| Weight | 0.3 kg |
Product Applications
The ABB DSTX W110 3BSC980006R113 is used across a wide array of industrial automation and process control environments. Its primary function is to interface digital input signals to higher-level controllers within a DCS or PLC system. Application areas include:
-
Power Generation – Nuclear, hydro, and thermal power plants for real-time input monitoring.
-
Oil & Gas – Signal acquisition in pipeline management and drilling operations.
-
Chemical & Petrochemical – Monitoring safety interlocks and emergency shutdown systems.
-
Metals & Mining – Control of heavy-duty equipment and digital sensing in rough conditions.
-
Water & Wastewater Treatment – Signal collection from float switches, valves, and flow meters.
-
Factory Automation – Interfaces for sensors, buttons, and safety barriers in smart manufacturing systems.
Product Advantages
-
High Signal Density
Supports up to 32 digital inputs, making it suitable for systems with multiple field devices. -
Excellent Signal Isolation
Each input is optically isolated to reduce noise and protect from voltage spikes or ground loops. -
Rapid Response Time
Low input delay ensures fast and accurate signal capture, essential for safety-critical operations. -
Flexible Mounting Options
Can be installed in DIN rail or rack configurations, enhancing installation flexibility. -
Built-in Diagnostics
Provides individual channel diagnostics to simplify maintenance and minimize downtime. -
Rugged Industrial Design
Withstands harsh operating environments, including high humidity, dust, and temperature variation. -
Seamless ABB Integration
Fully compatible with ABB’s Symphony, Advant, and related systems for straightforward deployment. -
Compact and Lightweight
Saves cabinet space and is easy to handle during installation or replacement.
Frequently Asked Questions (FAQ)
1. What role does the DSTX W110 3BSC980006R113 play within a DCS?
This PCB board acts as a digital input interface that captures and processes discrete signals from field instruments like push buttons, proximity switches, and relays, enabling real-time monitoring in distributed control systems.
2. Is this board hot-swappable in ABB control systems?
No, the DSTX W110 should not be hot-swapped. For safety and reliability, the system should be powered down before installation or removal.
3. Can this board be configured for both sourcing and sinking inputs?
The DSTX W110 is typically designed for sinking (NPN) input logic. Configuration for sourcing may require different hardware or system-level adjustments.
4. How is signal integrity maintained across input channels?
Each channel is individually optically isolated, minimizing the risk of electrical interference and ensuring high signal reliability even in noisy industrial environments.
5. What kind of maintenance is recommended for this board?
While the board is designed for minimal maintenance, it’s advisable to conduct annual inspections for dust accumulation, terminal integrity, and connector wear.
6. How are faults or errors on the board detected?
The DSTX W110 includes built-in diagnostic features that allow technicians to detect channel-level faults through status LEDs or control system alerts.
7. Is the board compatible with third-party DCS systems?
While optimized for ABB systems like Symphony and Advant, compatibility with third-party systems depends on I/O architecture and communication interfaces. Integration should be verified on a case-by-case basis.
8. Are there redundancy features supported by this board?
Redundancy is not built into the board itself, but it can be deployed in redundant architectures where dual-channel input paths or controller-level redundancy is configured.
9. Does the DSTX W110 require external wiring accessories?
Yes, for proper installation, it may require ABB-specific terminal blocks, mounting kits, and shielded cabling to ensure safe and compliant wiring.
10. What protections does the board offer against power surges?
The board is designed with surge protection circuits and isolation barriers to guard against voltage spikes, ensuring long-term operational safety.
Related Models (Same Series / Functionality)
| Model Number | Description | Function | System Compatibility |
|---|---|---|---|
| DSTX W110 57160001-AAP | Digital Input Board | 32 DI Channels | Symphony / Advant |
| DSTD 110A 57160001-TZ | Digital Output Connection Unit | 16 DO Channels | Symphony |
| DSTD 132 57160001-FX/1 | Digital Output PCB Board | 32 DO Channels | Symphony / Advant |
| DSTX 120 | Basic Digital Input Module | 16 DI Channels | Symphony |
| DSDI 110A | Digital Input Module | 32 DI Channels | Advant Controller |
| DSTC 452 5751017-A | FSK Communication Module | Communication Interface | ABB Control Systems |
Popular ABB Automation Models
| Model Number | Description | Function | System Used In |
|---|---|---|---|
| CI854AK01 | PROFIBUS DP Interface Module | Communication | AC 800M, S800 I/O |
| PCD231B100 | Interface Module for Freelance | Communication | ABB Freelance |
| DSAI 130 | Analog Input Module | Analog Input | Symphony / Advant |
| DSDO 115A | Digital Output Module | Binary Output | Advant Controller |
| DTCA 711A | Analog Control Board | Analog Output Control | Symphony DCS |
| DSTD 146 | Relay Output Interface | Signal Relay Output | Infi 90 / Symphony Plus |
